Introduction
The 8×8 HDMI Matrix with simultaneous CAT6 and HDMI outputs connects
eight HDMI sources to 16 displays This matrix features 8 HDMI outputs and
each HDMI output is mirrored to provide a Dual-CAT-Cable output which
runs simultaneously Connect an ID# Receiver to each of the Dual-CAT-
Cable outputs to extend the HDMI signal up to 45m for multi-room
connectivity This matrix switcher can be controlled via the supplied IR
Remote Control, RS-232, Telnet, Web GUI or by using the selection buttons
on the front panel This device supports ‘Deep Color’, High Definition Audio,
and 3D signal compatibility
Feature
• HDMI, HDCP 1 1 and DVI compliant
Supports HDMI 3D pass-through
Supports resolutions from VGA~WUXGA@60RB and HD resolutions
from 480i~1080p dependent upon the display’s EDID settings
Supports transmission distances up to 45 meters through Dual CAT6
cables
Supports 3D signal display dependent upon the display's EDID settings
Supports simultaneous HDMI and CAT6 outputs
Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters
at 12-bit resolution; CAT output up to 45 meters at 8-bit resolution
Supports IR pass-back through CAT for source control
Supports RS-232, remote control, on-panel control and IP Control (Telnet
& Web GUI)
2U size design
Supports external and internal EDID settings
Supports LPCM 7 1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
Note:
1 Tested with CAT-6/23AWG cable, results may vary with cables of a
different specification
2 Cable distance tested with a Sony PS3 40G, 37" Philips 8-bit LCD TV
and 37" Samsung 12-bit LCD TV
3 Figures provided in this manual are for reference only, actual figures
may vary depending on the source equipment and display being
used along with the type of cables and their specifications
4 Do not connect the LAN/CONTROL port to CAT outputs of this device
Application
• Multi-zoned HD installations
HD and AVR Sub-zone installation
Video and TV wall display and control
Security surveillance and control
Commercial advertising, display and control
University Lecture hall display and control
Retail demonstration and sales

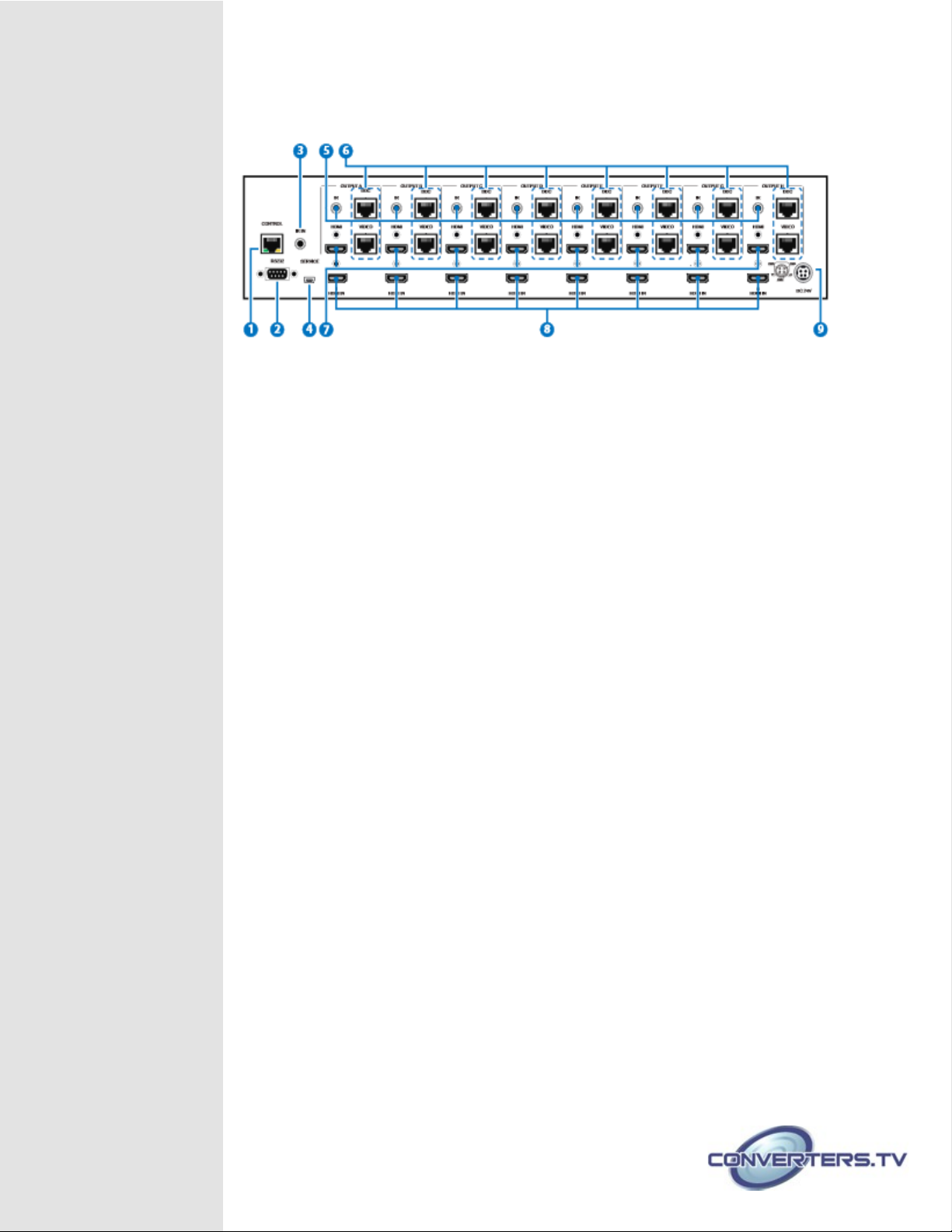

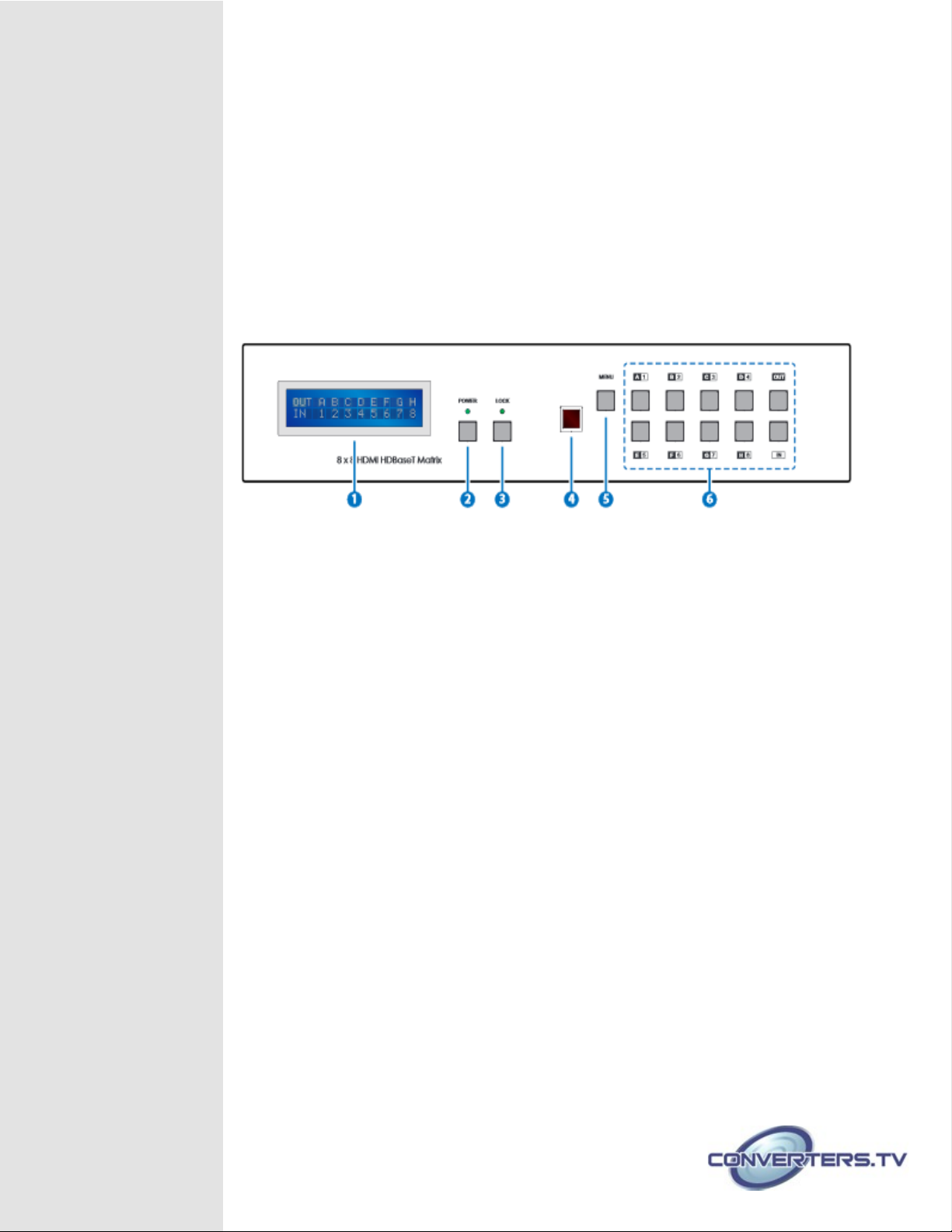

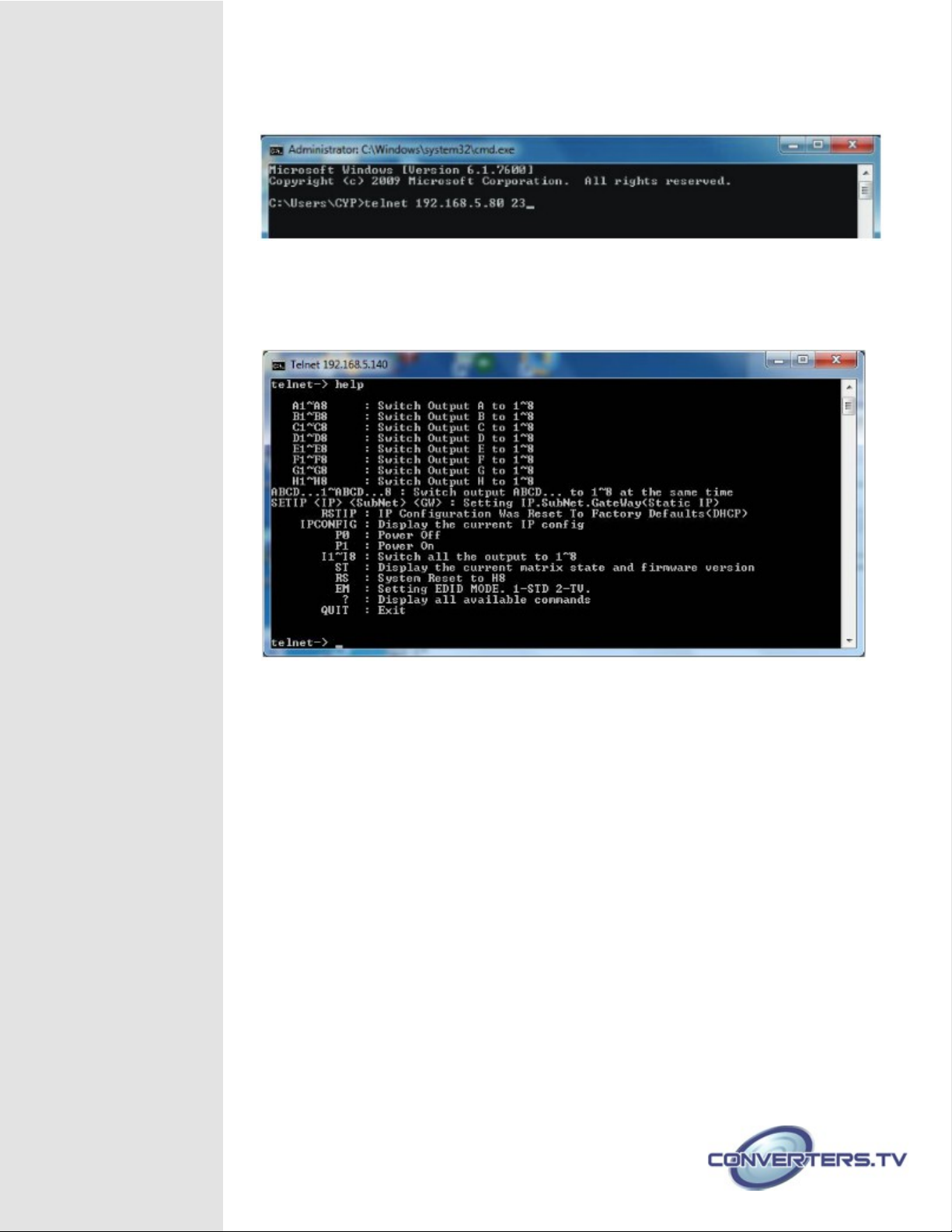

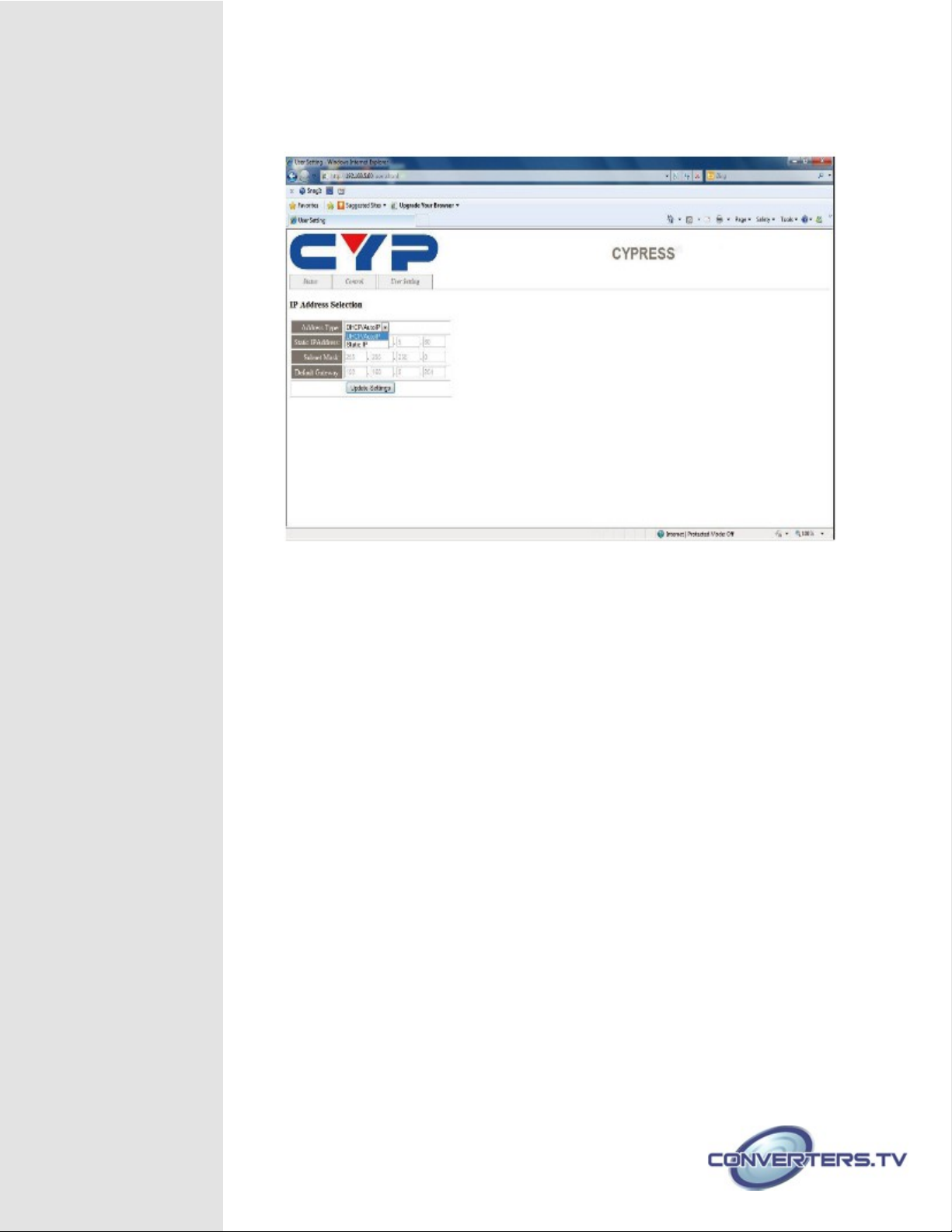

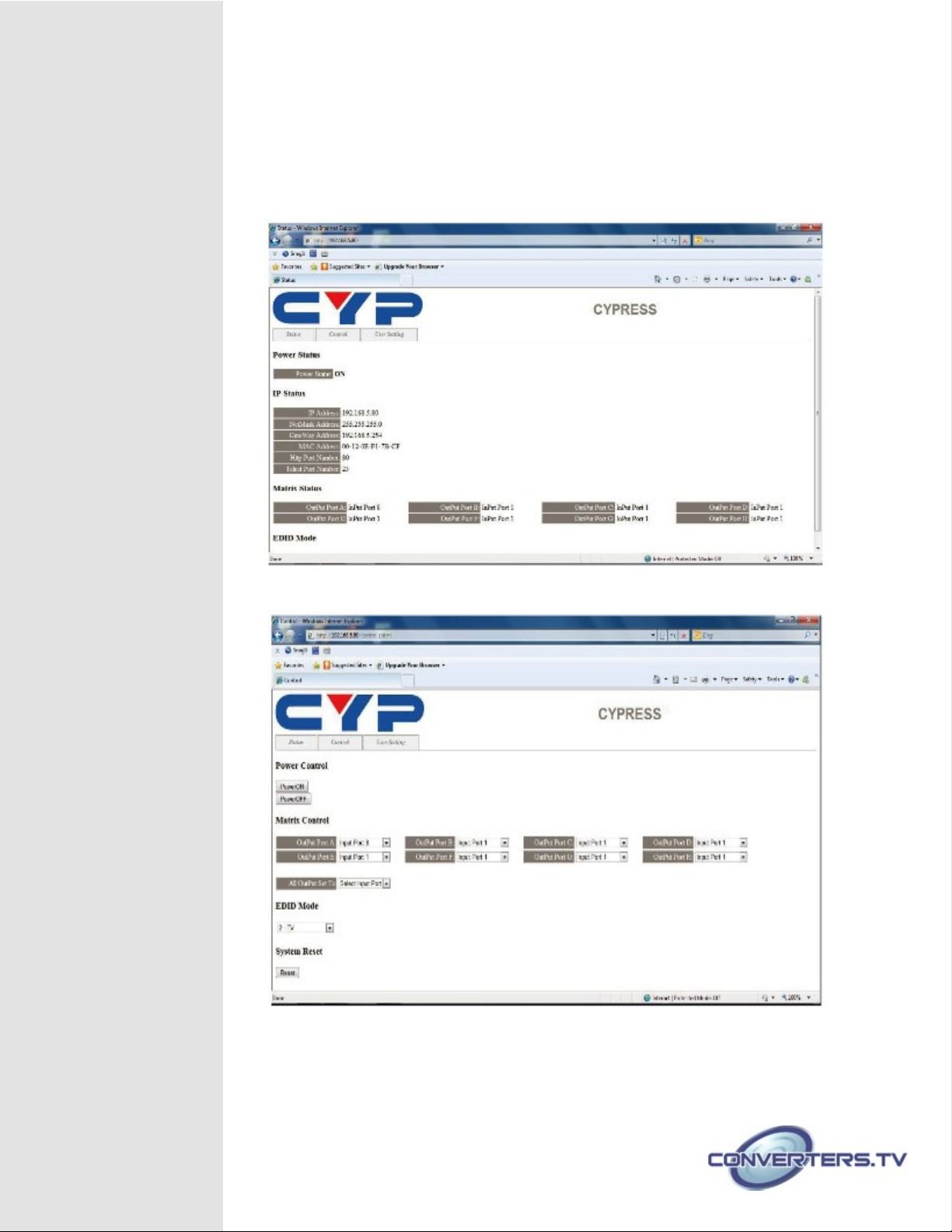

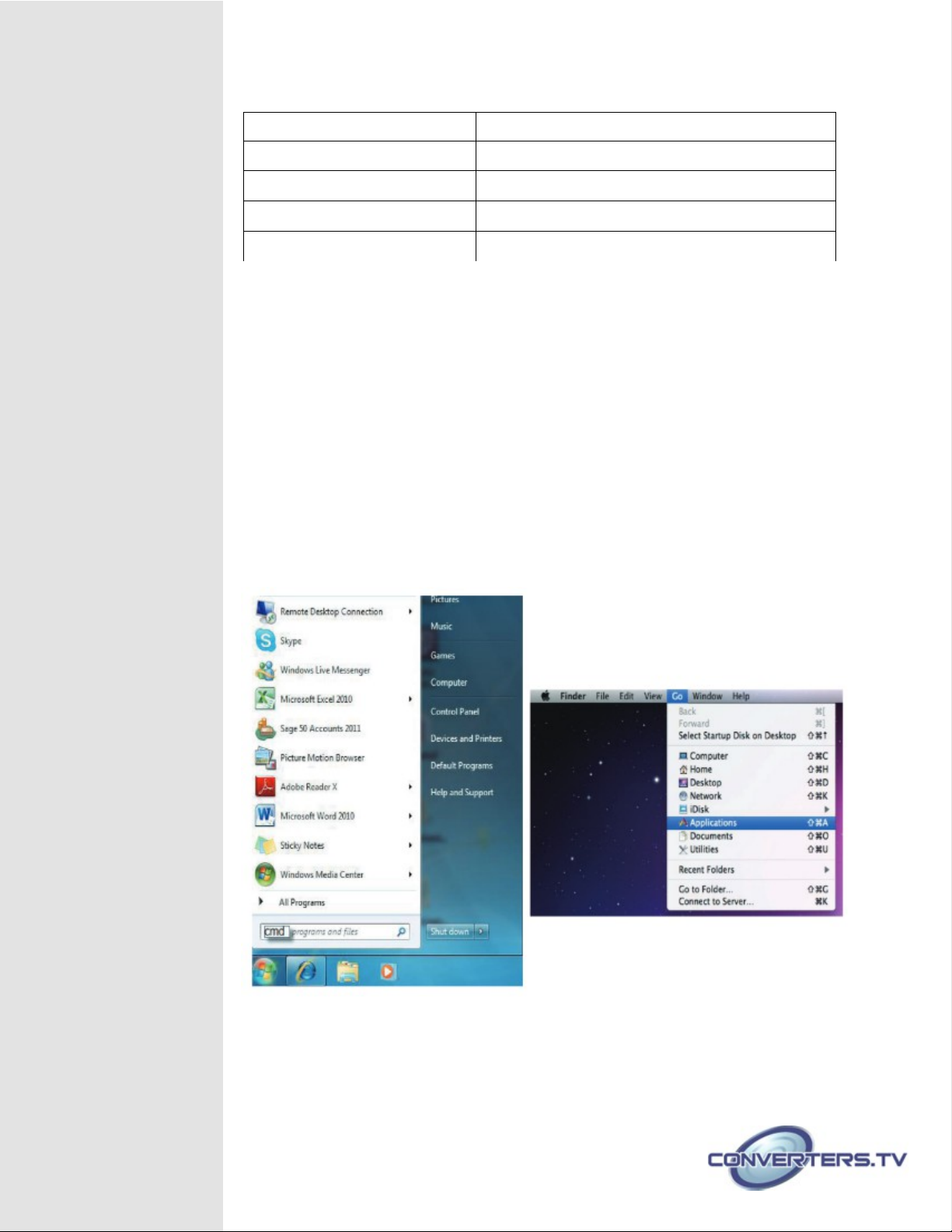

Telnet and Web GUI Control
