Converters.TV 594 Manuale utente

PC/HD Switcher 4 input : 1 output

w/RS232 - ID# 594

Operation Manual

Introduction

PC/HD Switcher 4 input : 1 output w/RS232 is perfect solution for switching between

various PC/HD V sources such as PCs, DVD... to share one display monitor, V

or projector with resolution up to WUXGA/1080p.

Features

●LED indicators

●IR remote control.

●Supports high resolution input:

PC: VGA, SVGA, XGA, SXGA,UXGA(1600x 1200) and

WUXGA(1920x1200),& HD V: 480i, 576i, 480p, 576p, 720p. 1080i and

1080p.

●Bandwidth: 650 Mhz.

●Plug and play, easy to install and operate.

●Built-in advance circuit ensures a smooth transition when

switching from one PC/HD source into another.

●RS-232 interface allows control from a distant device.

●Ideal for presentation and large shop intergration.

●Audio format: L/R analog.

Operation

Controls and

Functions

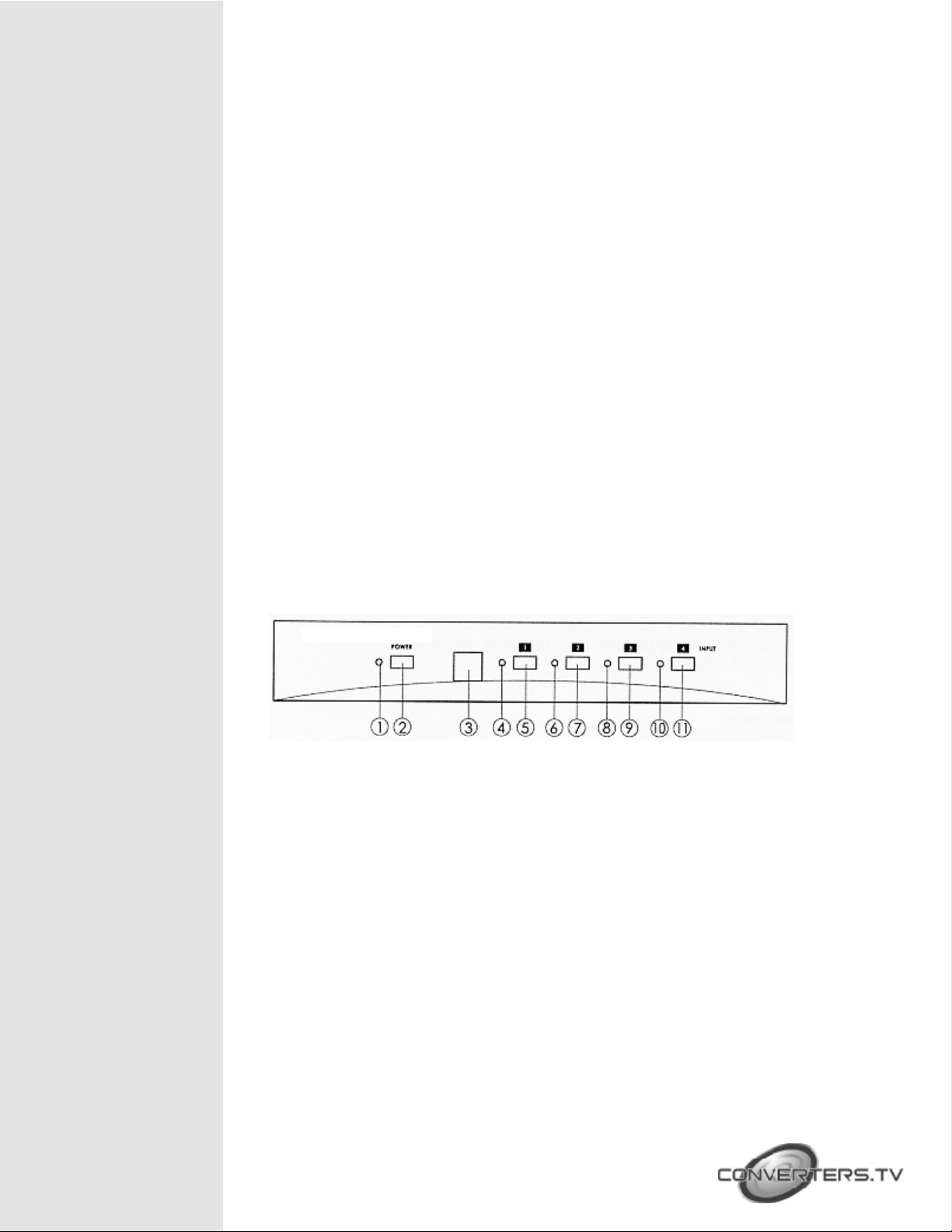

Front Panel

1. Power indicator L D.

2. Power ON/OFF switch: Push the button to turn ON/OFF the power.

3. IR sensor: Infrared remote control sensor.

4. Input 1 indicator L D .

5. Input 1 switch: Push the button, LED lights up, source 1 is selected.

6. Input 2 indicator L D.

7. Input 2 switch: Push the button, LED lights up, source 2 is selected.

8. Input 3 indicator L D .

9. Input 3 switch: Push the button, LED lights up, source 3 is selected.

10 . Input 4 ind ic at or L D.

11. Input 4 switch: Push the button, LED lights up, source 4 is selected.

Rear Panel

1. DC 5V: 5 Volt, 5W DC input , center +.

2. Input 1 connector: Input connector for PC 1 /YPbPr 1.

3. Input 2 connector: Input connector for PC 2/YPbPr 2.

4. Input 3 connector: Input connector for PC 3/YPbPr 3.

5. Input 4 connector: Input connector for PC 4/YPbPr 4.

6. Output connector: Output connector for PC/YPbPr.

7. Audio input 1 connector: Audio input connector for Audio (L+R) 1 via

3.5mm phone jack to 2R audio cable.

8. Audio Input 2 connector: Audio input connector for Audio (L+R) 2 via

3.5mm phone jack to 2R audio cable.

9. Audio input 3 connector: Audio input connector for Audio (L+ R) 3

via 3.5mm phone jack to 2R audio cable.

10. Audio input 4 connector: Audio input connector for Audio (L+R) 4 via

3.5mm phone jack to 2R audio cable.

11. Audio output connector: Audio output connector for Audio(L+R) via

3.5mm phone jack to 2R audio cable.

12. RS-232 interface: DB-9 female connector for connecting to your other

control console for remote control.

Remote

Control

1. Power: Switch between

power ON and Standby.

2. Press button 1 to select

source 1.

3. Press button 2 to select

source 2.

4. Press button 3 to select

source 3. 5. Press button 4 to

select source 4.

Note: Replacement battery

can be found at a local

electronic retail store.

Remote Control

Protocol

* he connection between the PC/HD Switcher 4 input : 1 output w/RS232 and remote

controller with RS-232 modem cable.

Pins definition of modem cable

PC/HD Switcher

Remote Controller

PIN Definition

2 x D

3 R x D

►

PIN Definition

2 R xD

3 x D

GND

◄

GND

* RS-232 transmission format:

Baud Rate : 9600 bps

Data Bit : 8 Bits Parity: None Stop Bit: bit

* Command :

Command Code Comment

"I" + "1"

POR 1 ON

"I" + "2"

POR 2 ON

"I" + "3”

POR 3 ON

"I" + "4"

POR 4 ON

"P” + "4"

POWER ON

"P” + "0"

POWER OFF

Installation and

Connections

Specifications

Input PC/YPbPr:4 RGB: 0.7Vp-p or 1 Vp-p with sync75 ohm

/HD( L): 5Vp-p 10 K ohm

Analog Audio: 4

(L/R)

2Vrms max 47 k ohm

Output PC/YPbPr:1 RGB: 0.7Vp-p or 1 Vp-p with sync 75 ohm

/HD( L): 5Vp-p 10k ohm

Analog Audio: 1

(L/R)

2 Vrms max 47 k ohm

PC /YPbPr

Bandwidth 650 MHz (-3db)

Differential gain 0.05%

Differential phase 0.05 degree

Power consumption 5 Watts (max.)

Power 5V 1A AC adaptor

Dimensions 292(W)x 73(D) x 44(H)mm

Unit gross 1.5Kgs
