RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311

Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031

PM102

"537!9/242!#+

352&!#%

,OCKING

!DJUSTABILITY

"USWAYONLY ,OCKING

!DJUSTABILITY

v

v v

v

v

v

 v h

"USWAY

 v v

 #CT.TL4RACK

 v v

OR#CT4RACK

PM634ob

60 Amp Busway

Catalog #

Type

Project

A machined aluminum track ﬁxture for PAR38MH

lamps 70 or 100 watts. For use with RSA Proﬁle Series

60 Amp Busway, 20 Amp 1 or 2 Circuit Track or 20

Amp 2 Circuit / 2 Neutral Track.

Integral electronic metal halide ballast in aluminum

housing. Ballast by Aromat®.

Front loading lamp with bayonet action lens /

accessory bezel. Optical accessories are captured

in the bezel with a threaded retainer ring preventing

accessory spill-out during relamping. Can accom-

modate up to three optical accessories.

Auto extending / retracting lamp holder. Lamps

extend for easy access and automatically retract

to optimum position. This is extremely helpful when

dealing with varying accessory combinations or dif-

fering manufacturer lamp dimensions.

Optical accessories include color filters, UV ﬁl-

ters, screens, spread lenses, louvers, hex louvers,

snoots. Consult RSA for details.

Locking on both the horizontal and vertical

planes. 370º vertical rotation possible due to over-

center locking mechanism (60 amp busway only).

270º horizontal locking adjustment.

UL and CUL listed

Available in White, Black, Natural Aluminum or

custom ﬁnishes.

PAR38 Metal Halide

Open Back Machined Fixture w/ Integral Ballast

PM634ob | PM434ob | PM234ob | PM134ob

Ordering Example: PM634ob-39-AL-120

PM434ob

20 Amp Track

2 Cct. 2 Ntl.

PM134ob

PM234ob

20 Amp Track

1 or 2 Cct.

Open Back Machined Fixture w/ Integral Ballast Lamp Wattage Finish Voltage

❑ PM634ob - PAR38MH for 60 Amp Busway

❑ PM134ob - PAR38MH for 20 Amp 1 Circuit Track

❑ PM234ob - PAR38MH for 20 Amp 2 Circuit Track

❑ PM434ob - PAR38MH for 20 Amp 2 Circuit / 2 Neutral Track

❑ 70 70 Watt PAR38MH ❑ WH White ❑ 120 120 Volts primary

❑ 100 100 Watt PAR38MH ❑ BK Black ❑ 277 277 Volts primary

❑ AL Natural Alum.

❑ PT Custom Finish

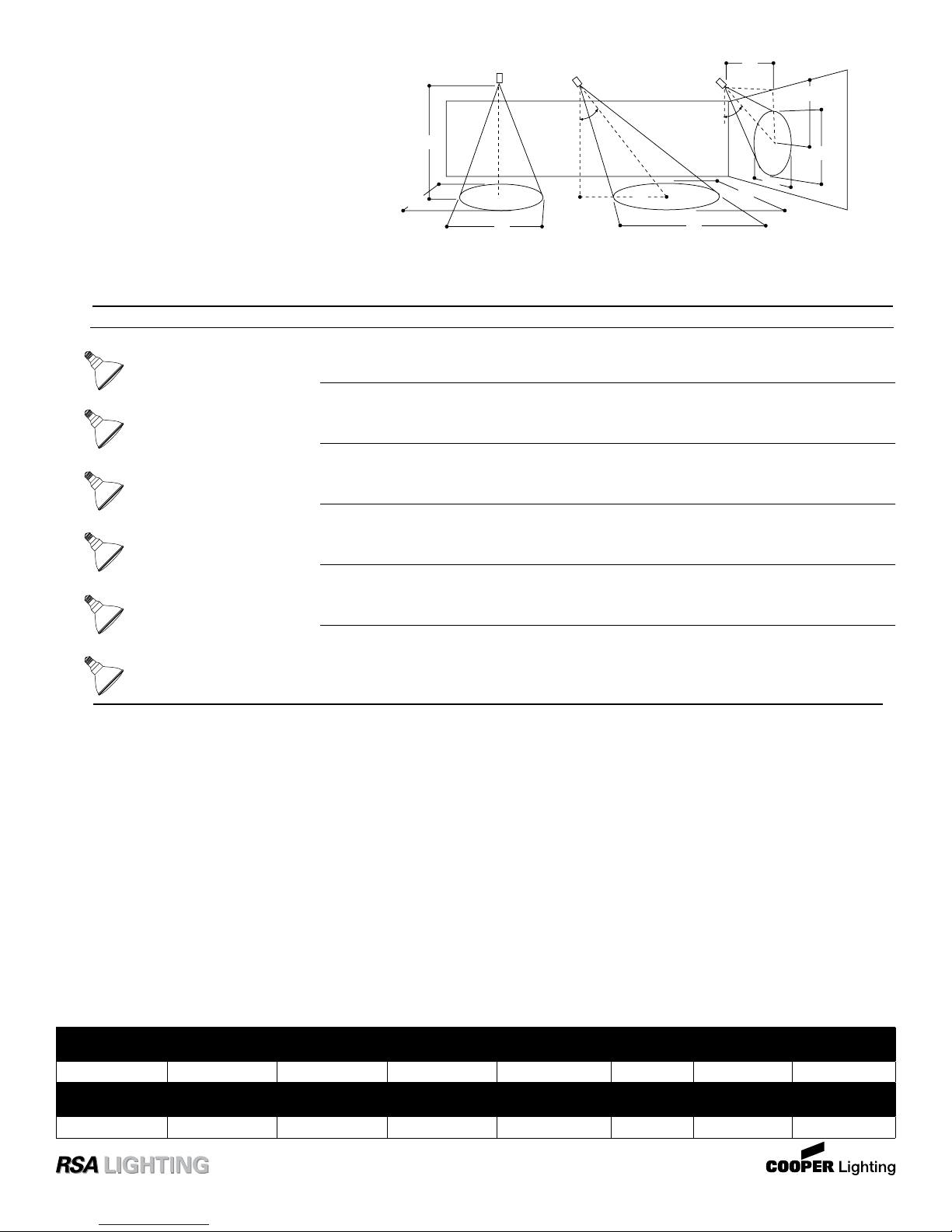

PM103

0° Aiming Angle 30° Aiming Angle 30° Aiming Angle 45° Aiming Angle

Horizontal Footcandles Horizontal Footcandles Vertical Footcandles Vertical Footcandles

D FC L W D FC L W CB D FC L W CB D FC L W CB

FC FC

L L

30° 30°

Lamp Performance Data

D = Distance to the horizontal or vertical surface.

FC = Initial footcandles at the center of the beam.

L = Length of the beam where candlepower is reduced to 50%

of center beam candlepower.

W = Width of the beam where candlepower is reduced to 50%

of center beam candlepower.

CB = Distance to the center of the beam.

Lamp data given is typical and is based on bare lamp performance.

Contact lamp manufacturers for availability and specific performance.

Distance, length and width given in decimal feet.

PAR38MH Ceramic Metal Halide

CDM70 /PAR38 /SP /3K PHI 15 207 3.7 3.7 15 134 4.7 4.2 8.7 5 244 4.2 2.4 8.7 8 257 3.7 2.7 8.0

Beam Spread = 15° x 15° 20 116 5.0 5.0 20 76 6.3 5.6 11.5 7 125 5.9 3.4 12.1 10 165 4.6 3.4 10.0

CBCP = 46572 25 75 6.2 6.2 25 48 7.8 7.0 14.4 9 75 7.6 4.3 15.6 12 114 5.5 4.0 12.0

Rated Life = 10,000 Hrs. 30 52 7.5 7.5 30 34 9.4 8.4 17.3 11 50 9.2 5.3 19.1 14 84 6.4 4.7 14.

CDM70 /PAR38 /FL /3K PHI 8 276 3.5 3.5 8 186 4.3 3.9 4.6 5 127 5.3 3.6 8.7 5 283 3.6 2.9 5.0

Beam Spread = 25° x 25° 10 177 4.4 4.4 10 119 5.4 4.9 5.8 7 65 7.4 5.0 12.1 7 145 5.0 4.0 7.0

CBCP = 17697 12 123 5.2 5.2 12 82 6.5 5.9 6.9 9 39 9.5 6.5 15.6 9 87 6.4 5.1 9.0

Rated Life = 10,000 Hrs. 14 90 6.1 6.1 14 61 7.5 6.8 8.1 11 26 11.6 7.9 19.1 11 59 7.9 6.3 11.0

CDM70 /PAR38 /WFL /3K PHI 4 301 3.2 3.2 4 211 3.8 4.0 2.3 3 178 3.3 3.4 5.2 3 266 3.2 3.3 3.0

Beam Spread = 60° x 60° 6 134 4.9 4.9 6 94 5.6 6.0 3.5 4 100 4.5 4.6 6.9 4 150 4.2 4.4 4.0

CBCP = 4822 8 75 6.5 6.5 8 53 7.5 8.0 4.6 5 64 5.6 5.7 8.7 5 96 5.3 5.5 5.0

Rated Life = 10,000 Hrs. 10 48 8.1 8.1 10 34 9.4 10.0 5.8 6 44 6.7 6.9 10.4 6 67 6.4 6.6 6.0

CDM100 /PAR38 /SP /3K PHI 15 284 3.8 3.8 15 185 4.8 4.3 8.7 6 234 5.1 2.9 10.4 10 226 4.7 3.4 10.

Beam Spread = 15° x 15° 20 160 5.1 5.1 20 104 6.4 5.7 11.5 8 132 6.8 3.9 13.9 12 157 5.6 4.1 12.0

CBCP = 639747 25 102 6.3 6.3 25 66 7.9 7.1 14.4 10 84 8.5 4.9 17.3 14 115 6.5 4.8 14.0

Rated Life = 10,000 Hrs. 30 71 7.6 7.6 30 46 9.5 8.5 17.3 12 58 10.3 5.8 20.8 16 88 7.5 5.5 16.

CDM100 /PAR38 /FL /3K PHI 9 279 4.1 4.1 9 187 5.0 4.6 5.2 4 259 4.2 2.9 6.9 6 253 4.4 4.8 6.0

Beam Spread = 25° x 25° 13 134 5.9 5.9 13 90 7.3 6.6 7.5 5 166 5.3 3.7 8.7 8 142 5.9 6.4 8.0

CBCP = 22614 17 78 7.7 7.7 17 52 9.5 8.6 9.8 7 85 7.4 5.1 12.1 10 91 7.3 8.0 10.0

Rated Life = 10,000 Hrs. 20 57 9.0 9.0 20 38 11.2 10.1 11.5 9 51 9.5 6.6 15.6 12 63 8.8 9.6 12.0

CDM100 /PAR38 /WFL /3K PHI 5 274 3.8 3.8 5 195 4.7 4.5 2.9 3 233 3.7 3.4 5.2 3 353 3.4 4.5 3.0

Beam Spread = 60° x 60° 7 140 5.3 5.3 7 100 6.5 6.3 4.0 4 131 5.0 4.6 6.9 4 198 4.5 6.0 4.0

CBCP = 6862 9 85 6.8 6.8 9 60 8.4 8.1 5.2 5 84 6.2 5.7 8.7 5 127 5.7 7.5 5.0

Rated Life = 10,000 Hrs. 11 57 8.3 8.3 11 40 10.2 9.9 6.4 6 58 7.4 6.9 10.4 6 88 6.8 9.0 6.0

Optivex UV

Filter

Red Color

Filter

Blue Color

Filter

Amber Color

Filter

Cosmetic Peach

2800K Filter

Milk White

Lens

Diffusion Spread

Lens

Linear Spread

Lens

LN65 LN66 LN67 LN69 CP38 LN64 LN61 LN63

Prismatic Spread

Lens

20% Reduction

Screen

30% Reduction

Screen

40% Reduction

Screen

Hex Cell

Louver

Cross

Bafﬂe

Snoot

LN62 RS2038 RS3038 RS4038 LN60 CB38 SN38
