EBP1400NCX and EBP1400NCF Instruction Manual

WARNING

Risk of Fire/Electric Shock

If not qualified, consult an electrician.

WARNING

Risk of Electric Shock

Disconnect power at fuse or circuit breaker before

installing or servicing.

Important Safeguards

WHEN USING ELECTRICAL EQUIPMENT, BASIC

SAFETY PRECAUTIONS SHOULD ALWAYS BE

OBSERVED INCLUDING THE FOLLOWING.

1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS

2. Do not use outdoors.

3. Do not mount near gas or electric heaters.

4. Equipment should be mounted in locations and

at heights where it will not readily be subject to

tampering by unauthorized personnel.

5. The use of accessory equipment not recommended

by Sure-Lites may cause an unsafe condition.

6. Do not use this equipment for other than its

intended purpose.

7. SAVETHESE INSTRUCTIONS

NOTES:

Note 1. To prevent high voltage from being present on

the output terminals (red/white, red, and yellow), do

not connect the test button indicator light to the EBP

until Step 7 of the installation instructions.

Note 2. This product is for use with most 2’ through

8’ (6W-215W single and bi-pin fluorescent lamps

including energy saving, circline, U-shaped and biax.

For specific lamp compatibility, please see the table

later in the instructions.

Note 3. Make sure all of the connections are in

accordance with the National Electrical Code and any

local regulations.

Note 4. To reduce the risk of electrical shock,

disconnect both normal and emergency power

supplies and the test button indicator light (which

disconnects the battery) before servicing.

Note 5. This emergency ballast is for factory or field

installation in the ballast channel.

Note 6. This product is for use in indoor fixtures. This

product is not intended for use near air handling

heated air outlets or in wet or hazardous locations.

Note 7. An unswitched AC power source is required

(120, 240, or 277 volts).

Note 8. Do not attempt to service the battery. A sealed,

no-maintenance battery is used that is not field

replaceable. Contact the manufacturer for information

on service.

Note 9. Servicing should be performed by qualified

service personnel.

CONTAINS NICKEL-CADMIUM

RECHARGEABLEBATTERY.

MUST BE RECYCLEDOR

DISPOSED OF PROPERLY. Ni -Cd

For use in temperature rating

20°C to 55°C

EBP1400NCX EBP1400NCF

COOPER LIGHTING SOLUTIONS ADX142715 Installation instructions

EBP1400NCX and EBP1400NCF Instruction Manual

INSTALLATION

WARNING: to prevent high voltage on Red / White, Red,

and Yellow output terminals prior to installation, the Test

Button / Indicator Light must be disconnected. Connect

the Test Button / Indicator Light after installation.

NOTE: Make sure that the necessary branch circuit

wiring is available. An unswitched source of power is

required.

1. Disconnect AC power from the fixture. Remove the

ballast channel cover. Install the emergency ballast

with grounding screws either in the ballast channel

(see illustrations 1 & 2) or on top of the fixture (see

illustration 3 / EBP1400NCX only).

2. Select the appropriate wiring diagram to connect

the emergency ballast to the AC ballast and lamp.

Make sure all connections are in accordance with the

National Electrical Code and any local regulations.

(See Illustrations 4 and 5 for terminals).

3. Refer to the lamp compatibility table for the HIGH

(Red) or Low (Red / White) connection per the lamp(s)

being illuminated by the emergency ballast.

4. Install the test button / indicator light through the

ballast channel cover of a troffer (Illustration 1 & 6)

or through the side of a strip fixture (Illustration 2 &

7). Drill or punch a 7/8” hole to install the test button

/ indicator light as shown in illustration 6. Drill or

punch a 1/2” hole to install the test button / indicator

light as shown in illustration 7. Install the test button

/ indicator light as shown in the selected illustration.

Apply the two included labels (“Charging Indicator

Light” and “Emergency Light Push toTest”) adjacent

to the test button indicator light.

5. In a readily visible location, attach the included label

“CAUTION –This unit Has More Than One Power

Connection Point. To ReduceThe Risk Of Electric

Shock, Disconnect Both The Branch Circuit-Breakers

Or Fuses and theTest Button / Indicator Light Before

Servicing”.

6. In an area readily visible during relamping, attach the

included relamping label. Write in the lamp type and

wattage.

7. After installation is complete, connect the test

button / indicator light.The factory installed version

(EBP1400NCF) will have 2 twisted wires (brown and

purple) at the access plate which must be connected

for the fixture to operate in emergency mode.

8 Replace covers being careful not to pinch wires, install

lamps, supply AC power to the emergency ballast.

9. A short term discharge test may be conducted after

the emergency ballast has been charging for one

hour. Charge for 24 hours before conducting a long –

term discharge test. Refer to OPERATION.

Emergency

Ballast

Test Button/

Indicator Light

Ballast

Channel

Cover

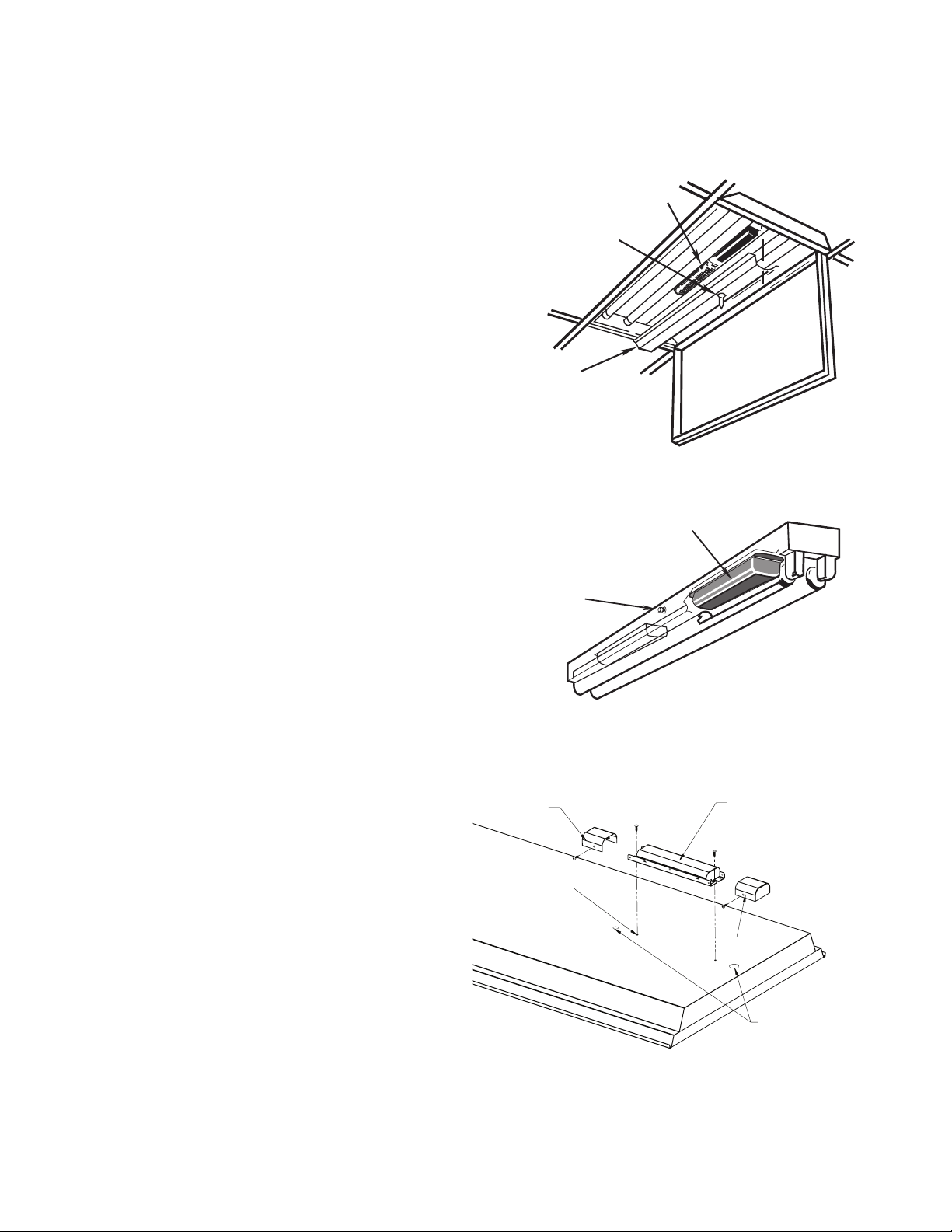

Illustration 1

Emergency

Ballast

Test Button/

Indicator Light

Illustration 2

Illustration 3

Wire Bundle

Cover

Drill 1/8˝ Hole

for Mounting

Screws

Emergency

Ballast

Wire Bundle

Cover

1/2˝ Std. Knockout

7/8˝ Hole w/Bushing

EBP1400NCX only

COOPER LIGHTING SOLUTIONS ADX142715 Installation instructions

EBP1400NCX and EBP1400NCF Instruction Manual

AUX

COMMON

AUX

N.O.

AUX

N.C.

LINE HOT

120/ 277

LINE

NEUTRAL

AUX COM

AUX N.O.

AUX N.C.

LINE HOT

120/240/277

LINE

NEUTRAL

RED / WH

RED

BLUE

BLUE / WH

YELLOW

YELLOW / BK

TEST BU

LIGHT C

Emergenc

Suitable fo

Terminal labels

located here.

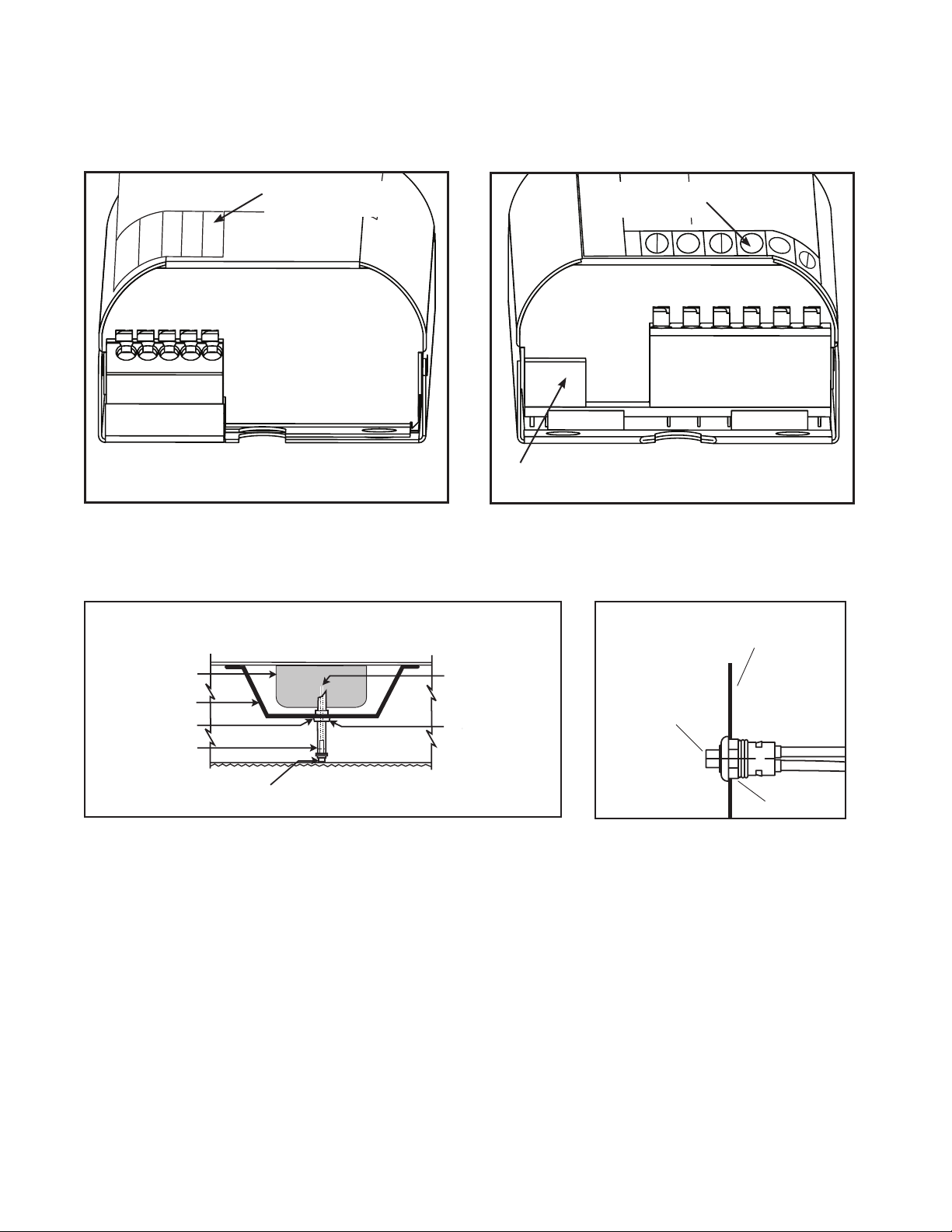

Illustration 4

AUX

COMMON

AUX

N.O.

AUX

N.C.

LINE HOT

120/ 277

LINE

NEUTRAL

AUX COM

AUX N.O.

AUX N.C.

LINE HOT

120/240/277

LINE

NEUTRAL

RED / WH

RED

BLUE

BLUE / WH

YELLOW

YELLOW / BK

TEST

LIGHT

Emergenc

Suitable

Test Button / Indicator Light Connector

Color coded label

located here.

Illustration 5

Illustration 6

Emergency

Ballast

Ballast Channel

Cover

7/8" Punch

PlasticTubing

(cut to necessary

length)

Test Button/

Indicator Light

Leads toTest Button/

Indicator Light

7/8" Bushing

Inserted into

Ballast Channel

Cover

TROFFER STYLE FIXTURE

Illustration 7

Fixture

Test Button/

Indicator Light

Nut

STRIP STYLE FIXTURE

COOPER LIGHTING SOLUTIONS ADX142715 Installation instructions

EBP1400NCX and EBP1400NCF Instruction Manual

OPERATION

When AC power is applied, the charging indicator light is illuminated, indicating the battery is being charged. When

power fails, the emergency ballast automatically switches to emergency power, operating one lamp at reduced

illumination for at least 90 minutes.

MAINTENANCE

Although no routine maintenance is required to keep the emergency ballast functional, it should be checked periodically

to comply with local codes. The following schedule is recommended:

1. Visually inspect the charging light monthly. It should be illuminated.

2. Test the emergency operation of the fixture at 30 day intervals for a minimum of 30 seconds. Depending on

installation, one lamp should operate at reduced illumination.

3. Conduct a 90 – minute discharge test once a year. Depending on installation, one lamp should operate at reduced

illumination for at least 90 minutes.

Refer any service requirements indicated by these checks to qualified personnel.

NOTE: After installing the test button / indicator light, mark it with the appropriate label.

Lamp Compatibility Table

Lamp Type Number

of Lamps

Lamps Connected to

Low/High (Red) Output Wattage

T5 1 HIGH (RED) 6 - 25, 39

T5 1 "LOW (RED / WHITE)" 28 - 35

T5HO 1 HIGH (RED) 24

T5HO 1 "LOW (RED / WHITE)" 54 - 80

T5 CIR 1 HIGH (RED) 22 - 55

T8 1 HIGH (RED) 15 - 32

T8 1 "LOW (RED / WHITE)" 59 - 86

T8U 1 HIGH (RED) 32

T9 CIR 1 HIGH (RED) 20 - 32

T12 1 HIGH (RED) 20 - 75

T12 1 "LOW (RED / WHITE)" 75 - 95

T12HO 1 HIGH (RED) 35

T12HO 1 "LOW (RED / WHITE)" 95 - 110

T12VHO 1 "LOW (RED / WHITE)" 215

BIAX 1 HIGH (RED) 18 - 55

COOPER LIGHTING SOLUTIONS ADX142715 Installation instructions

EBP1400NCX and EBP1400NCF Instruction Manual

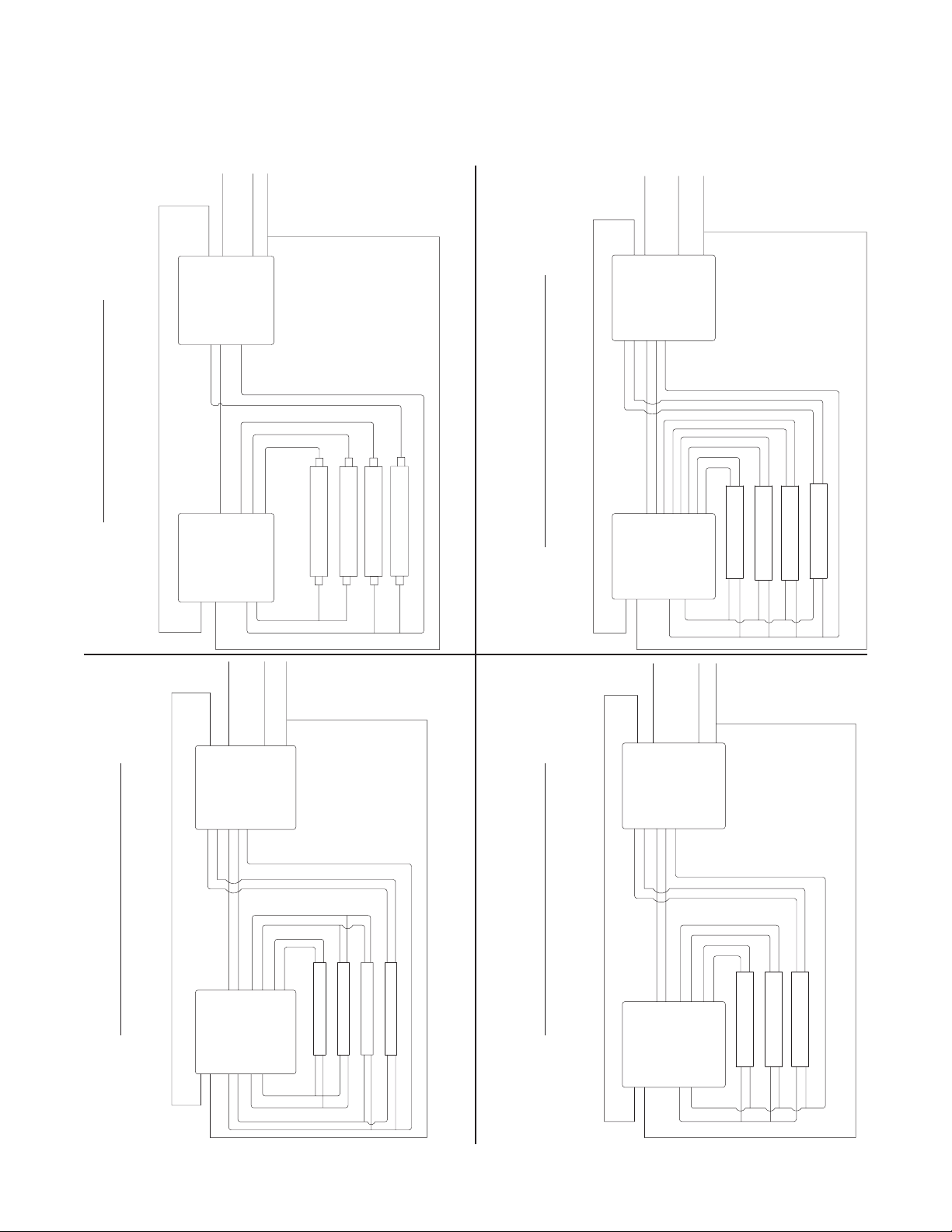

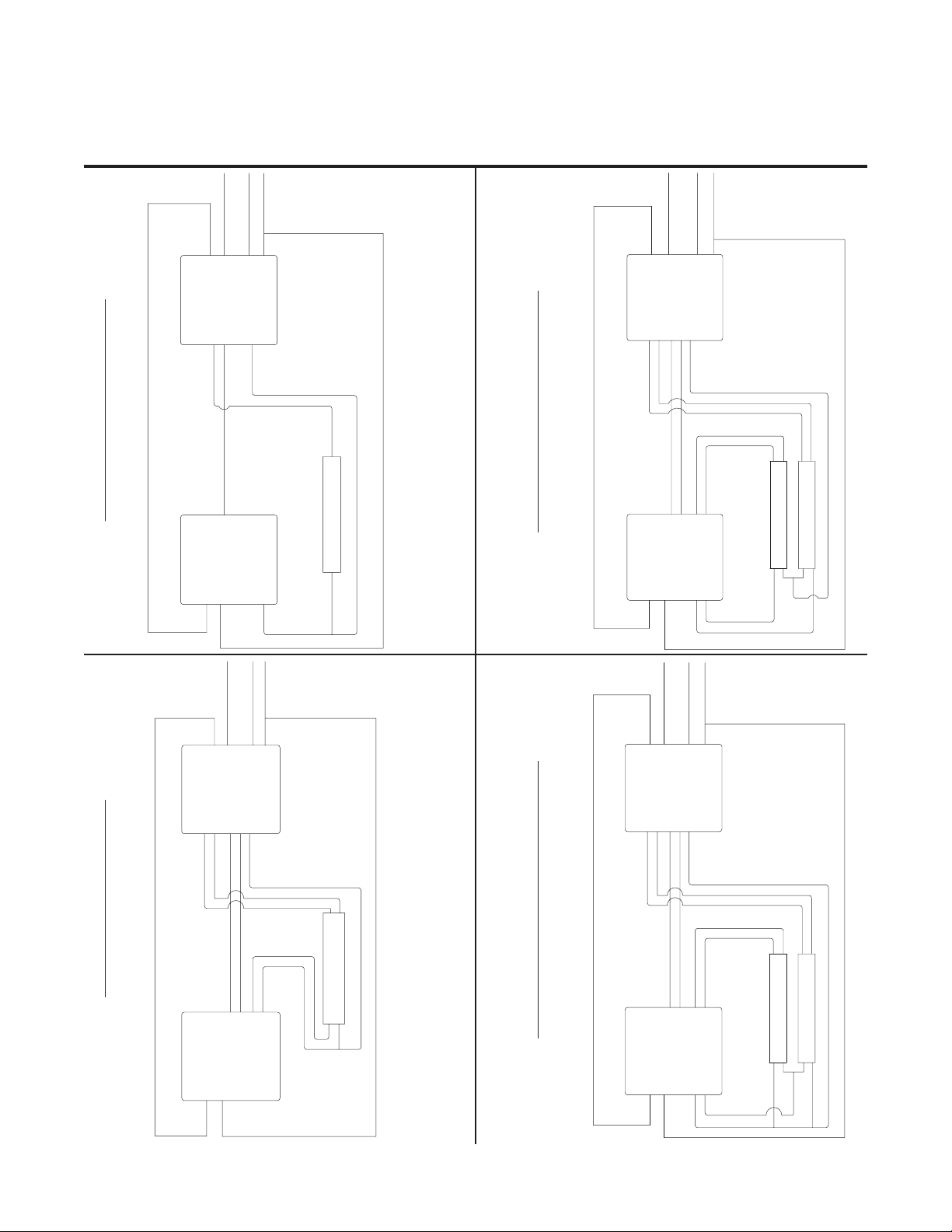

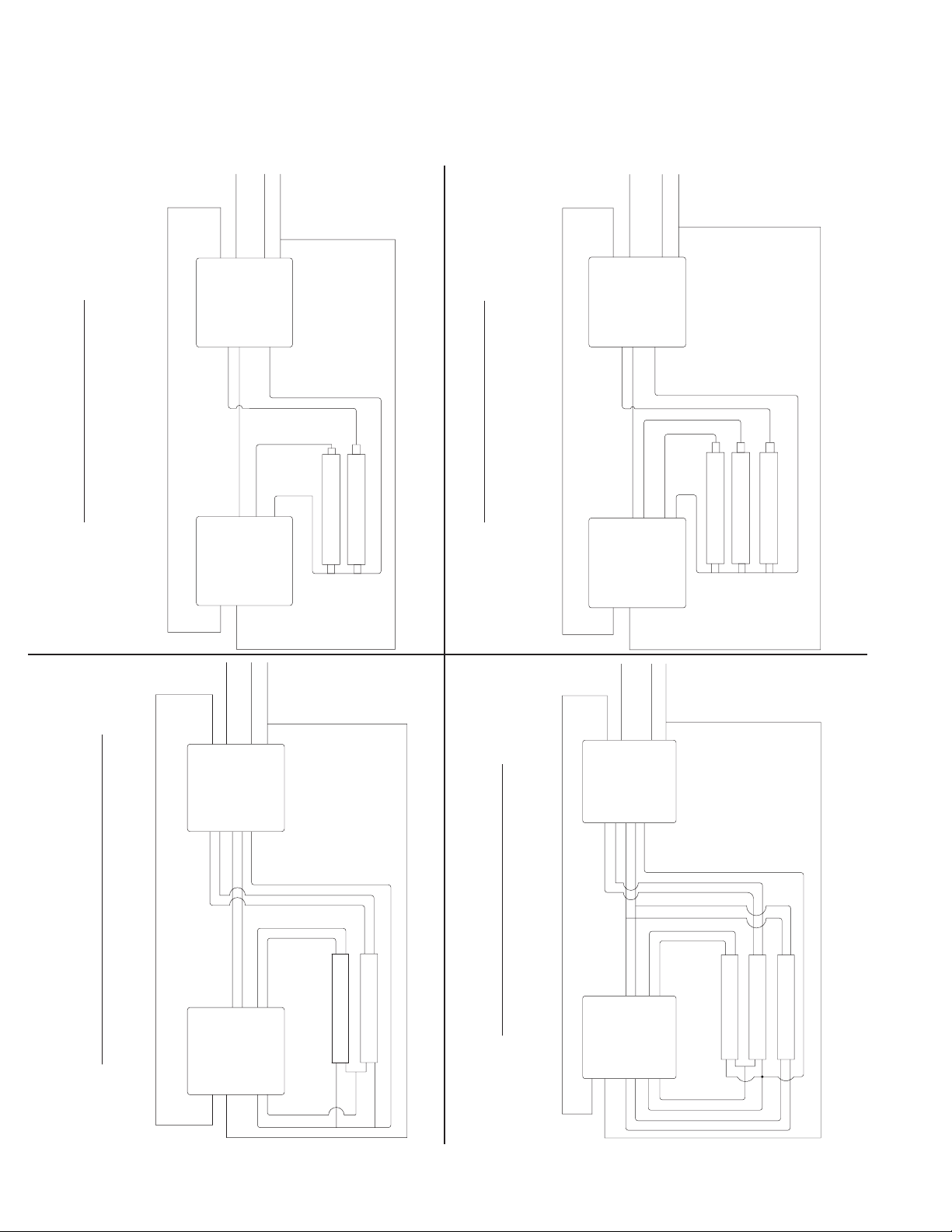

WIRING DIAGRAMS FOR 1-LAMP EMERGENCY OPERATION

TYPICAL SCHEMATICS ONLY. MAY BE USED WITH OTHER BALLAST. CONSULT THE FACTORY FOR OTHER WIRING DIAGRAMS

BLUE

LINE NEUTRAL

RED

AC BALLAST

LINE HOT

YELLOW/BK

YELLOW

BLUE/WH

BLUE

RED OR RED/WH

LAMP ("EMERGENCY")

EMERGENCY BALLAST

CHOOSE BASED

ON LAMP

AUX COM

LINE NEUTRAL LINE NEUTRAL

AUX NO SWITCHED OR UNSWITCHED LINE HOT

AUX NC

LINE HOT (UNSWITCHED) 120/277

1 LAMP RAPID START

LINE HOT YELLOW/BK

YELLOW

BLUE/WH

BLUE

RED OR RED/WH

LAMP ("EMERGENCY")

CHOOSE BASED

ON LAMP

AUX COM

AUX NO

AUX NC

LINE HOT

LINE NEUTRAL

SWITCHED OR UNSWITCHED LINE HOT

(UNSWITCHED) 120/277

LINE NEUTRAL

BLUE

LINE NEUTRAL

RED

AC BALLAST

EMERGENCY BALLAST

1 LAMP INSTANT START

BLUE

LINE NEUTRAL

RED

AC BALLAST

LINE HOT YELLOW/BK

YELLOW

BLUE/WH

BLUE

RED OR RED/WH

LAMP-2

CHOOSE BASED

ON LAMP

AUX COM

AUX NO

("EMERGENCY")

LAMP-1

YELLOW

AUX NC

LINE HOT

LINE NEUTRAL

SWITCHED OR UNSWITCHED LINE HOT

(UNSWITCHED) 120/277

LINE NEUTRAL

EMERGENCY BALLAST

2 LAMP RAPID START SERIES / PARALLEL LAMP

PARALLEL YELLOW FILAMENT

BLUE

LINE NEUTRAL

RED

AC BALLAST

LINE HOT YELLOW/BK

YELLOW

BLUE/WH

BLUE

RED OR RED/WH

LAMP-2

CHOOSE BASED

ON LAMP

AUX COM

AUX NO

("EMERGENCY")

LAMP-1

YELLOW

AUX NC

LINE HOT

LINE NEUTRAL

SWITCHED OR UNSWITCHED LINE HOT

(UNSWITCHED) 120/277

LINE NEUTRAL

EMERGENCY BALLAST

2 LAMP RAPID START SERIES LAMP

SERIES YELLOW FILAMENT

COOPER LIGHTING SOLUTIONS ADX142715 Installation instructions

EBP1400NCX and EBP1400NCF Instruction Manual

WIRING DIAGRAMS FOR 1-LAMP EMERGENCY OPERATION

TYPICAL SCHEMATICS ONLY. MAY BE USED WITH OTHER BALLAST. CONSULT THE FACTORY FOR OTHER WIRING DIAGRAMS

BLUE

LINE NEUTRAL

RED

AC BALLAST

LINE HOT YELLOW/BK

YELLOW

BLUE/WH

BLUE

RED OR RED/WH

LAMP-2

CHOOSE BASED

ON LAMP

AUX COM

AUX NO

("EMERGENCY")

LAMP-1

YELLOW

AUX NC

LINE HOT

LINE NEUTRAL

SWITCHED OR UNSWITCHED LINE HOT

(UNSWITCHED) 120/277

LINE NEUTRAL

EMERGENCY BALLAST

2 LAMP RAPID START OSRAM SYLVANIA SERIES

LAMP PARALLEL YELLOW FILAMENT

LINE HOT YELLOW/BK

YELLOW

BLUE/WH

BLUE

RED OR RED/WH

LAMP-2 ("EMERGENCY")

CHOOSE BASED

ON LAMP

AUX COM

AUX NO

LAMP-1

AUX NC

LINE HOT

LINE NEUTRAL

SWITCHED OR UNSWITCHED LINE HOT

(UNSWITCHED) 120/277

LINE NEUTRAL

EMERGENCY BALLAST

BLUE

LINE NEUTRAL

RED

AC BALLAST

BLUE

2 LAMP INSTANT START

BLUE/WHT

LINE NEUTRAL

RED

AC BALLAST

BLUE

LINE HOT

YELLOW/BK

YELLOW

BLUE/WH

BLUE

RED OR RED/WH

LAMP-2

CHOOSE BASED

ON LAMP

AUX COM

AUX NO

("EMERGENCY")

LAMP-1

YELLOW

LAMP-3

AUX NC

LINE HOT

LINE NEUTRAL

SWITCHED OR UNSWITCHED LINE HOT

(UNSWITCHED) 120/277

LINE NEUTRAL

EMERGENCY BALLAST

3 LAMP RAPID START SERIES LAMP

PARALLEL YELLOW FILAMENT

LINE HOT YELLOW/BK

YELLOW

BLUE/WH

BLUE

RED OR RED/WH

LAMP-2

CHOOSE BASED

ON LAMP

AUX COM

AUX NO

LAMP-1

LAMP-3 ("EMERGENCY")

AUX NC

LINE NEUTRAL

LINE HOT

SWITCHED OR UNSWITCHED LINE HOT

LINE NEUTRAL

(UNSWITCHED) 120/277

EMERGENCY BALLAST

BLUE

LINE NEUTRAL

RED OR YELLOW

AC BALLAST

BLUE

3 LAMP INSTANT START

COOPER LIGHTING SOLUTIONS ADX142715 Installation instructions

EBP1400NCX and EBP1400NCF Instruction Manual

WIRING DIAGRAMS FOR 1-LAMP EMERGENCY OPERATION

TYPICAL SCHEMATICS ONLY. MAY BE USED WITH OTHER BALLAST. CONSULT THE FACTORY FOR OTHER WIRING DIAGRAMS

BLUE/WHT

LINE NEUTRAL

RED

AC BALLAST

BROWN

BLUE

LINE HOT

YELLOW/BK

YELLOW

BLUE/WH

BLUE

RED OR RED/WH

LAMP-2

CHOOSE BASED

ON LAMP

AUX COM

("EMERGENCY")LAMP-4

YELLOW

LAMP-3

LAMP-1

AUX NO

AUX NC

LINE HOT

LINE NEUTRAL

SWITCHED OR UNSWITCHED LINE HOT

(UNSWITCHED) 120/277

LINE NEUTRAL

EMERGENCY

BALLAST

4 LAMP RAPID START SERIES LAMP

PARALLEL YELLOW FILAMENT

BLUE

LINE NEUTRAL

AC BALLAST

BLUE

RED

LINE HOT YELLOW/BK

YELLOW

BLUE/WH

BLUE

RED OR RED/WH

LAMP-3

CHOOSE BASED

ON LAMP

AUX COM

AUX NO

LAMP-2

LAMP-4 ("EMERGENCY")

LAMP-1

YELLOW

AUX NC

LINE HOT

LINE NEUTRAL

SWITCHED OR UNSWITCHED LINE HOT

(UNSWITCHED) 120/277

LINE NEUTRAL

EMERGENCY BALLAST

4 LAMP INSTANT START

RED/WHT

LINE NEUTRAL

RED

AC BALLAST

BLUE

RED/WHT

LINE HOT YELLOW/BK

YELLOW

BLUE/WH

BLUE

RED OR RED/WH

LAMP-2

CHOOSE BASED

ON LAMP

AUX COM

AUX NO

("EMERGENCY")LAMP-3

YELLOW

LAMP-1

AUX NC

LINE HOT

LINE NEUTRAL

SWITCHED OR UNSWITCHED LINE HOT

(UNSWITCHED) 120/277

LINE NEUTRAL

EMERGENCY

BALLAST

3 LAMP RAPID START PARALLEL LAMP

PARALLEL YELLOW FILAMENT

BLUE/WHT

LINE NEUTRAL

RED

AC BALLAST

RED/WHT

BLUE/WHT

BLUE

LINE HOT YELLOW/BK

YELLOW

BLUE/WH

BLUE

RED OR RED/WH

LAMP-2

CHOOSE BASED

ON LAMP

AUX COM

AUX NO

LAMP-3

YELLOW

LAMP-1

("EMERGENCY")LAMP-4

AUX NC

LINE HOT

LINE NEUTRAL

SWITCHED OR UNSWITCHED LINE HOT

(UNSWITCHED) 120/277

LINE NEUTRAL

EMERGENCY

BALLAST

4 LAMP RAPID START PARALLEL LAMP

PARALLEL YELLOW FILAMENT

Cooper Lighting Solutions

1121 Highway 74 South

Peachtree City, GA 30269

P: 770-486-4800

www.cooperlighting.com

Printed in USA

Publication No. ADX142715

June 19, 2015 9:44 AM

Cooper Lighting Solutions is a

registered trademark. All

trademarks are property

of their respective owners.

Product availability, specifications,

and compliances are subject to

change without notice

YELLOW/BK

YELLOW

BLUE/WH

BLUE

RED OR RED/WH

CHOOSE BASED

ON LAMP

AUX COM

AUX NO

AUX NC

LINE HOT

LINE NEUTRAL

(UNSWITCHED) 120/277

LINE NEUTRAL

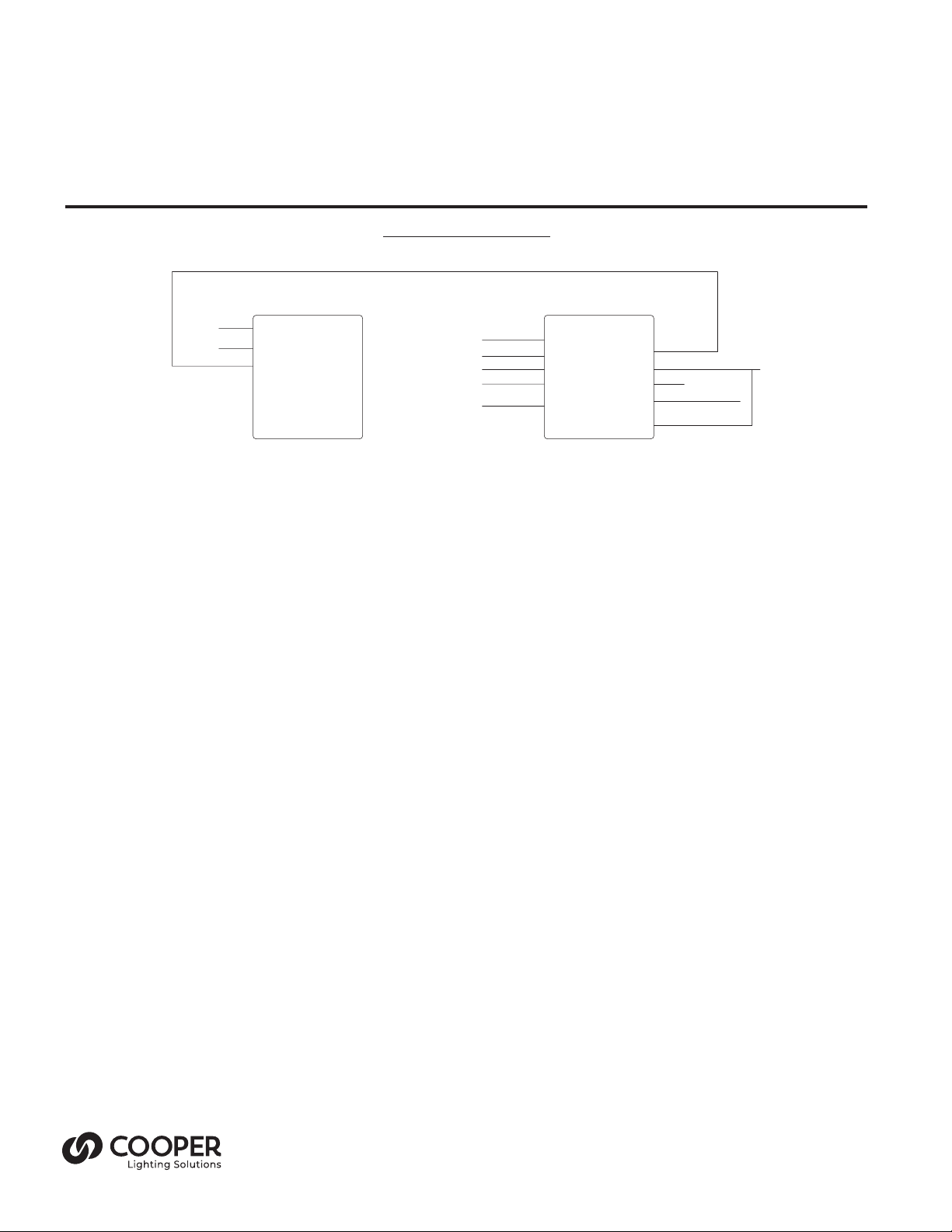

WIRE LAMPS USING DIAGRAM PER

# OF LAMPS AND BALLAST TYPE

SWITCHED LINE HOT

LINE NEUTRAL

BI-LEVEL

AC BALLAST

EMERGENCY BALLAST

BI LEVEL BALLAST

When using the auxillary relay to switch the neutral line, the Emergency and A.C. ballasts

must be on the same branch circuit.

WIRING DIAGRAMS FOR 1-LAMP EMERGENCY OPERATION

TYPICAL SCHEMATICS ONLY. MAY BE USED WITH OTHER BALLAST. CONSULT THE FACTORY FOR OTHER WIRING DIAGRAMS

Warranties and Limitation of Liability

Please refer to www.cooperlighting.com for our terms and conditions.

EBP1400NCX and EBP1400NCF Instruction Manual

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Cooper Lighting Apparecchio di illuminazione

Cooper Lighting

Cooper Lighting HALO H2571 Manuale utente

Cooper Lighting

Cooper Lighting Halo LZR510 Manuale utente

Cooper Lighting

Cooper Lighting Corelite 2T8 Manuale utente

Cooper Lighting

Cooper Lighting PM611cb Manuale utente

Cooper Lighting

Cooper Lighting Architectural Striplight BASIX Series Manuale utente

Cooper Lighting

Cooper Lighting Metalux SA SERIES Manuale utente

Cooper Lighting

Cooper Lighting ComboLight CO Recessed w/ Trim Series none Manuale utente

Cooper Lighting

Cooper Lighting Halo H2HALOLRG Manuale utente

Cooper Lighting

Cooper Lighting Cobolight CR211135 Manuale utente

Cooper Lighting

Cooper Lighting Metalux IA Series Manuale utente

Cooper Lighting

Cooper Lighting Neo-Ray VICEORY 501-IW Manuale utente

Cooper Lighting

Cooper Lighting HALO L20516 Manuale utente

Cooper Lighting

Cooper Lighting RD Series Manuale utente

Cooper Lighting

Cooper Lighting Halo L5056 Stasis Manuale utente

Cooper Lighting

Cooper Lighting Metalux WE Series Manuale utente

Cooper Lighting

Cooper Lighting AMETRIX Cove Manuale utente

Cooper Lighting

Cooper Lighting Halo Cascade I H2574 Manuale utente

Cooper Lighting

Cooper Lighting Combo Trimless Series LV-216-TR Manuale utente

Cooper Lighting

Cooper Lighting PM121cb Manuale utente

Cooper Lighting

Cooper Lighting FAIL-SAFE CFS Manuale utente

Cooper Lighting

Cooper Lighting Quiet Ceiling Trimless QCT907SPMH Manuale utente

Cooper Lighting

Cooper Lighting Halo H1BSMLRG Manuale utente

Cooper Lighting

Cooper Lighting 12X-HZB Series Manuale utente

Cooper Lighting

Cooper Lighting Open Back Machined Fixture PM122ob Manuale utente

Manuali Apparecchio di illuminazione popolari di altre marche

Emos

Emos CLASSIC ZY1431T Manuale utente

Westinghouse

Westinghouse Outdoor Lighting Fixture Manuale utente

Hedler

Hedler C 12 silent Manuale utente

Blizzard Lighting

Blizzard Lighting Puck: CSI Manuale utente

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manuale utente

Lightmaxx

Lightmaxx Shaft 5R Manuale utente

Triarch

Triarch 31083 Manuale utente

Philips

Philips 32614 Series Manuale utente

IKEA

IKEA TIVED Manuale utente

Lightolier

Lightolier LP200 Manuale utente

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manuale utente

Martin

Martin MAC 250 Krypton Manuale utente

Stageline

Stageline ODW-2410RGBW Manuale utente

Light Sky

Light Sky Tornado Series Manuale utente

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Manuale utente

Lightolier

Lightolier Lytespan 83ED17S Manuale utente

Lightolier

Lightolier Calculite CS8226 Manuale utente

ArtFox

ArtFox Beam 15R extreme Manuale utente
