FLAVORFUSION®/

FLAVOROVERLOAD

Training Manual

Publication Number: TP01070

Revision Date: November 16, 2007

Revision: F

Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.

FLAVORFUSION®/FLAVOROVERLOAD

TRAINING MANUAL

The products, technical information, and instructions contained in this manual are subject

to change without notice. These instructions are not intended to cover all details or varia-

tions of the equipment, nor to provide for every possible contingency in the installation,

operation or maintenance of this equipment. This manual assumes that the person(s)

working on the equipment have been trained and are skilled in working with electrical,

plumbing, pneumatic, and mechanical equipment. It is assumed that appropriate safety

precautions are taken and that all local safety and construction requirements are being

met, in addition to the information contained in this manual.

To inquire about current revisions of this and other documentation or for assistance with

any Cornelius product contact:

www.cornelius.com

800-238-3600

Trademarks and Copyrights:

Aurora, Cornelius, FlavorFusion, Focus, Leopard ERV, Nordic, Optifill, Pinnacle, SFV1,

Smart-Pour, Totalflex II, and Vanguard are registered trademarks of IMI Cornelius Inc.

This document contains proprietary information and it may not be

reproduced in any way without permission from Cornelius.

Printed in U.S.A.

FlavorFusion®/FlavorOverload Training Manual

TABLE OF CONTENTS

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Programming Mode Flashing Sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Setting Water Flow Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Adjusting Syrup/Water Ratio (Brix) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setting a Button to Dispense Non-carbonated Water Only . . . . . . . . . . . . . . . . . 5

Setting a Button to Dispense Carbonated Water Only . . . . . . . . . . . . . . . . . . . . 5

Mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Control Box Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Valve Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Valve Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Carbonator Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Motor Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

System Plumbing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Plumbing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Interface Board and Harness Pin-out Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Point-Point Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Ladder Type Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Diagnostics Guide for the Main Control Board (see FIGURE 22) . . . . . . . . . . . . . . 19

FlavorFusion®/FlavorOverload Training Manual

PRODUCT OVERVIEW

• Brand density - 16 brands (14 chilled, 2 ambient) plus up to 8 bonus flavors in 30” wide;

• 255 lbs capacity cube ice only hopper;

• Internal cold carbonation with remote pump;

• Total carb/non-carb flexibility on each brand;

• Eye catching merchandising;

• Improved serviceability of agitator motor;

• Bonus flavors programmable for 1-4 second dispense;

• Valve positions programmable without special tools or PDA;

• Front inlet fittings;

• Key lock switch;

• 10” cup clearance;

• 30% more drip tray capacity;

THEORY OF OPERATION

• The FlavorFusion®/FlavorOverload machine is an above counter ice/beverage unit with multi flavor

nozzles and the capability to inject bonus flavors into the finished drink.

• The beverage is cooled via ice melting on an aluminum cold plate. Ice is kept on the cold plate by

means of an opening in the hopper that drops ice onto the surface during agitation of the ice in the

hopper.

• The unit contains a mechanical ice chute and gate mechanism.

• The ice agitation gear motor is removable from the gear box to ease removal of the motor during ser-

vice and lower repair cost.

• The unit has six nozzles for dispensing brand and bonus flavors.

• Each brand nozzle serves four discreet flavors fed by four syrup valves, one plain water, and one carb

water valve. Every position is flexible for use with either carb or non-carb water.

• Each bonus nozzle serves four individual flavors intended for injection into the finished drink. Bonus

nozzles are fed by four syrup valves only. There is no option to dispense water out of the bonus nozzle

without significant plumbing changes.

• Bonus flavors require a separate regulator setting on their BIB pumps (20 psi maximum).

• Brand and bonus flavors are controlled by means of six interface boards (one interface board per noz-

zle). The interface boards are common for each nozzle. Valve positions are configured on the mem-

brane switch. No special tool or PDA is required.

• Valve flow rates are adjustable for 3.0-3.75 oz/sec finished drink dispense rate.

• Unplug the unit or turn off the key switch before attempting any electrical service on the unit, failure to

do this can cause damage to the electrical components!

FlavorFusion® Training Manual

SYSTEM REQUIREMENTS

Dimensions (in): . . . . . . . . 29 x 30 x 39 (l x w x h). Height is measured to top of bin. Lid adds 3 in to

height.

Counter Weight (lb): . . . . . 320 (plus ice weight)

Shipping Weight (lb): . . . . 330

Capacity: . . . . . . . . . . . . . 250 lb ice bin capacity (cube ice only)

Indoor installation only

40 to 90 oF ambient temperature

Electrical Rating: . . . . . . . . 103-132 Volts

11 Amps

Water supply pressure: . . 50-60 psi at pump

Water volume: . . . . . . . . . 125 gph

CO2: . . . . . . . . . . . . . . . . . 75 psi at carbonator tank

Syrup (brands): . . . . . . . . 60 psi min

Syrup (bonus): . . . . . . . . 20 psi max

Syrup supply lines: . . . . . . .375” ID tubing min

NOTE: If water pressure is below 50 psi a water pressure booster is required for still water drinks.

FlavorFusion®/FlavorOverload Training Manual

PROGRAMMING

NOTE: The programming mode is exactly the same for both brand and bonus keypads.

To enter the programming mode, press and hold the two program buttons (see FIGURE 3) at the top of

the keypad for approximately 4 seconds. All keypad LEDs will flash off for approximately 1 second to

indicate the start of the programming mode.

To exit programming mode, press and hold the two program buttons for approximately 4 seconds. All

keypad LEDs will flash off for approximately 1 second, resuming normal operation mode.

Programming Mode Flashing Sequences

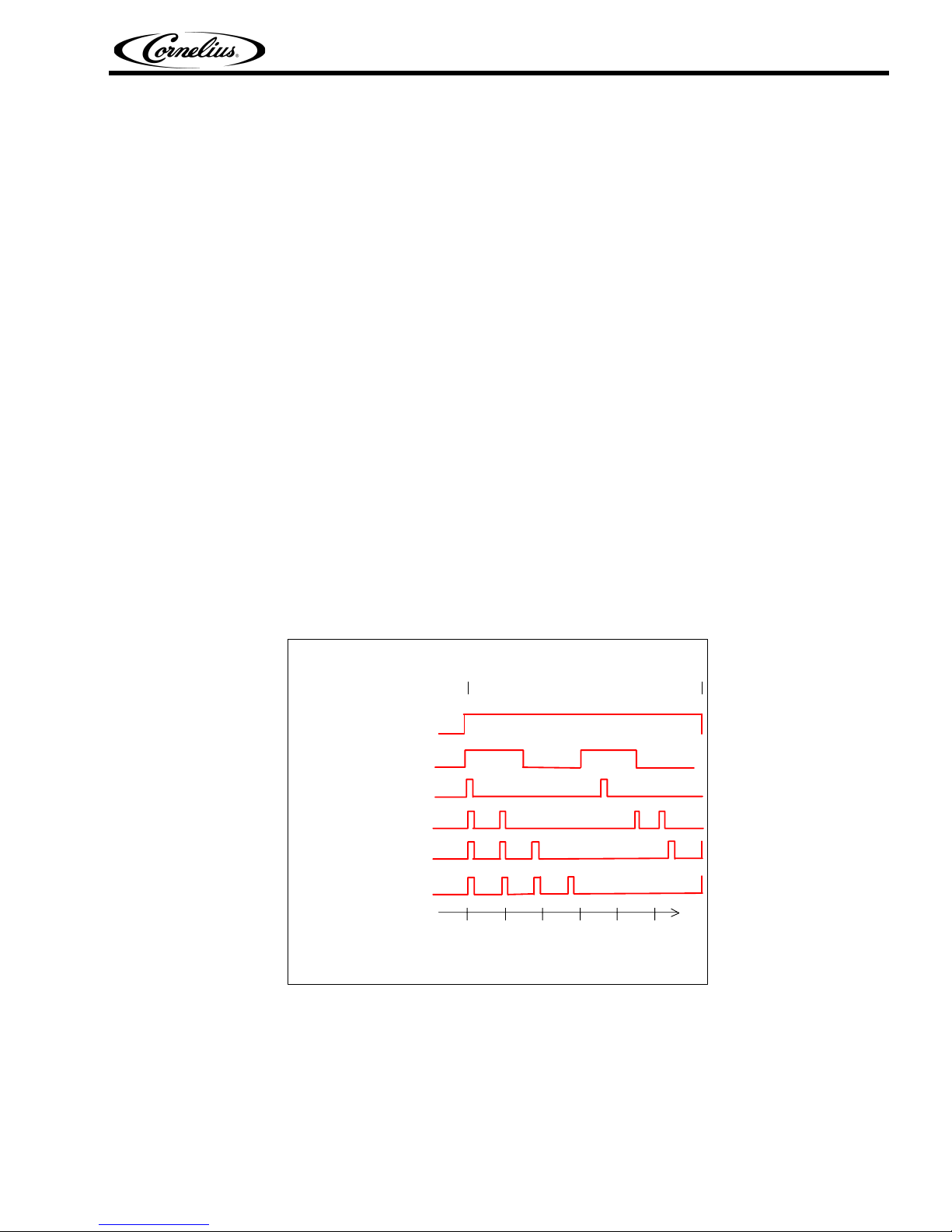

Once in programming mode, each dispense button LED flashes in a sequence cycle according to one (1)

of six (6) dispense types. For Brand Keypads, only dispense types 1 and 2 should be used. For Bonus

Flavor Keypads, dispense types 3 through 6 are used. The six (6) dispense types are described below,

and shown in a timing diagram in FIGURE 1:

• Dispense Type 1, Carbonated water dispense: Solid LED

• Dispense Type 2, Non-carbonated dispense: Flashing LED 1.5 seconds ON, 1.5 seconds OFF

• Dispense Type 3, 1-second flavor shot: LED flashes once for ¼ second, followed by 3 seconds

OFF

• Dispense Type 4, 2-second flavor shot: LED flashes twice for ¼ second ON, ½ second OFF,

followed by 3 seconds OFF

• Dispense Type 5, 3-second flavor shot: LED flashes three (3) times for ¼ second ON, ½ second

OFF, followed by 3 seconds OFF

• Dispense Type 6, 4-second flavor shot: LED flashes four (4) times for ¼ second ON, ½ second

OFF, followed by 3 seconds OFF

FIGURE 1

NOTE: It is possible to program a flavor shot into a keypad. It is also possible to program a cove

dispense (type 1 or 2) into a flavor shot keypad. Both instances result in an incorrect operation

and should be corrected.

1. Carbonated water dispense

2. Non-carbonated dispense

3. 1-second flavor shot

012345

Time

(seconds)

Start

proramming

mode

Exit

programming

mode

4. 2-second flavor shot

5. 3-second flavor shot

6. 4-second flavor shot

FlavorFusion® Training Manual

Setting Water Flow Rate

Setting the water flow rate will require a timed dispense. To accomplish this, the following procedure

should be followed:

1. Enter programming mode for the valve

block by simultaneously pressing and

holding both programming buttons for 4

seconds (see FIGURE 3). The LED’s for

flavors 1-4 should flash off and then back

on. The drink icon should turn off.

2. Set the valve block to a 4 second pour

mode by simultaneously pressing and

holding Flavor 1 and Flavor 4 buttons until

the flash pattern for all four buttons

changes.

3. Place an empty ratio cup under the

appropriate nozzle and press the left

program button for a 4 second dispense of

carbonated water. There should be

approximately 10 oz. dispensed.

4. If necessary, adjust the water flow control

(see FIGURE 2), empty ratio cup, and

repeat step 3. Otherwise empty ratio cup

and repeat step 3 using the right program

button for plain water.

FIGURE 2. Valve with Flow Adjusters

(see plumbing diagram for plumbing and valve

configuration)

5. Exit 4 second pour mode by simultaneously pressing and holding Flavor 1 and Flavor 4

buttons until the flash pattern for all for buttons changes.

6. Exit programming mode by simultaneously pressing and holding both programming buttons

for 4 seconds.

Flow Adjuster Detail

(Water)

Brand Flavor

Programming

Buttons

(Left and

Right)

Drink Icon

Brand Flavor Button 1

Brand Flavor Button 2

Brand Flavor Button 3

Brand Flavor Button 4

Bonus Flavor

Programming

Buttons

(Left

and Right)

Bonus Flavor Icon

Bonus Flavor Button 1

Bonus Flavor Button 2

Bonus Flavor Button 3

Bonus Flavor Button 4

Brand Flavor Nozzle

Bonus Flavor Nozzle

FlavorFusion®/FlavorOverload Training Manual

FIGURE 3

Adjusting Syrup/Water Ratio (Brix)

Timed Dispense Procedure

1. Enter programming mode for the valve block by simultaneously pressing and holding both

programming buttons for 4 seconds (see FIGURE 3). The LED’s for flavors 1-4 should flash off and

then back on. The drink icon should turn off.

2. Set the valve block to a 4 second pour mode by simultaneously pressing and holding Flavor 1 and

Flavor 4 buttons until the flash pattern for all for buttons changes.

3. Place the water end of the ratio cup under the appropriate nozzle and press the left program button

for a 4 second dispense of carbonated water. (Push the right program button for still water pour.)

4. Place the syrup end of the ratio cup under the nozzle and press the appropriate flavor button for a 4

second dispense of syrup. The fill line should be the same for both water and the syrup. Adjust the

syrup flow control if necessary, then empty cup and repeat steps 3 and 4.

5. Repeat for all syrups in valve bank.

6. Exit 4 second pour mode by simultaneously pressing and holding Flavor 1 and Flavor 4

buttons until the flash pattern for all for buttons changes.

7. Exit programming mode by simultaneously pressing and holding both programming buttons

for 4 seconds.

Setting a Button to Dispense Non-carbonated Water Only

1. Program the designated button to dispense non-carbonated water (see Programming Mode.)

2. Do not connect a syrup source to the inlet circuit of the designated button (1-14 or A1-A2.) If circuit

1 through 14 is chosen leave the coldplate inlet circuit plugged with the red cap. If circuit A1 or A2 is

chosen, plug the end of the inlet tube with a red cap from the coldplate, or with tape.

Setting a Button to Dispense Carbonated Water Only

1. Program the designated button to dispense carbonated water (see Programming Mode.)

2. Do not connect a syrup source to the inlet circuit of the designated button (1-14 or A1-A2.) If circuit

1 through 14 is chosen leave the coldplate inlet circuit plugged with the red cap. If circuit A1 or A2 is

chosen, plug the end of the inlet tube with a red cap from the coldplate, or with tape.

NOTE: The ambient circuits A1 and A2 do not give up a cold plate circuit.

FlavorFusion® Training Manual

MECHANICAL

DISASSEMBLY

Control Box Components

FIGURE 4 FIGURE 5

FIGURE 6 FIGURE 7

Ballast for Merchandiser

Light

24 Volt Transformer (2)

Starter Merchandiser Light

Main Control Board/Agitator Timer

Motor Start Capacitor

Valve Flow Controls

Interface

Board

Agitation Board

Adjustment Pots

Indice

Altri manuali Cornelius Distributore di bevande

Cornelius

Cornelius VANTAGE Manuale utente

Cornelius

Cornelius ED 300 BC Manuale utente

Cornelius

Cornelius QUANTUM SERIES Manuale

Cornelius

Cornelius 15 Gallon Single-Flavor Visual Display Dispenser... Guida all'installazione

Cornelius

Cornelius JetSpray JT30-W25 Manuale utente

Cornelius

Cornelius Jetspray JT20 Guida all'installazione

Cornelius

Cornelius MILLENNIUM MJ30-4 PB Manuale

Cornelius

Cornelius Quest Juice Dispenser Manuale utente

Cornelius

Cornelius FCB Pinnacle Manuale utente

Cornelius

Cornelius IDC 255 PROGATE DRIVE THRU UNIT Manuale utente

Cornelius

Cornelius ED Series Guida all'installazione

Cornelius

Cornelius VANGUARD 245 Manuale utente

Cornelius

Cornelius Millennium II 6000 Manuale utente

Cornelius

Cornelius FCB V2 Specifiche

Cornelius

Cornelius FCB PINNACLE 2 Flavour Manuale utente

Cornelius

Cornelius CB1522 Manuale utente

Cornelius

Cornelius VIPER E Manuale utente

Cornelius

Cornelius ED 300 BC Manuale utente

Cornelius

Cornelius JetSpray JS7 Guida all'installazione

Cornelius

Cornelius UC-20 Guida all'installazione

Cornelius

Cornelius CTP-20 Guida all'installazione

Cornelius

Cornelius Tea Tower Manuale utente

Cornelius

Cornelius Quantum 45200001 Guida all'installazione

Cornelius

Cornelius VIPER 2 FLAVOR Manuale utente

Manuali Distributore di bevande popolari di altre marche

PEGAS

PEGAS Evolution Manuale utente

Ugolini

Ugolini MT micro Manuale utente

Bunn

Bunn SLCA-7 Istruzioni per l'installazione

Gekkeikan

Gekkeikan Sake Machine Manuale utente

Olympia

Olympia DH709 Manuale utente

Marco

Marco ECOSMART PB10 Manuale utente

Marvel

Marvel ML24BN Series Manuale

Cecilware

Cecilware 2K-GB-LD Manuale

Sure Vend

Sure Vend 673 Manuale utente

Nostalgia Electrics

Nostalgia Electrics KEG7000SS Manuale utente

Bunn

Bunn LCR-3 HV Guida alla risoluzione dei problemi

Servend

Servend SV-200 Manuale utente

EdgeStar

EdgeStar VBR440 Manuale utente

CDS AUTOMATEN

CDS AUTOMATEN ML-16C2-C Manuale utente

Siemens

Siemens GA 3000 Manuale di istruzioni e di sicurezza

Selbach

Selbach Fruit Juice dispenser Manuale utente

Taylor

Taylor C302NP Manuale utente

Vinotemp

Vinotemp VT-WINEDISP2 Manuale utente
