LP-10
45 Degree Leg Press and Hack
Squat Combo Machine
USER MANUAL
2
TABLE OF
CONTENTS
I. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
II. Care Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04
III. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
IV. Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08
V. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09
VI. Exercise Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
VII. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
VIII. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
| TABLE OF CONTENTS
3
I. IMPORTANT SAFETY
INSTRUCTIONS
WARNING: Read all instructions before using this machine.
To ensure your safety, read the following precautions before using this product.
1. Please read, study and understand the instructions and all warning labels before use.
(It is recommended to be familiar with the normal operation and use methods of the device before
using this product. Information is available on this manual and at local retailers).
2. Please keep this manual and ensure that all the warning labels are clear and complete.
3. This product is recommended to install by more than two people.
4. Please consult your doctor’s advice before starting the exercise.
5. Please ensure safety when the children are present.
6. Be careful when using it with children present.
7. Please check any signs of wear of the wire rope regularly. If there is wear, it may cause some danger
to you.
8. Please keep your hands, limbs and clothes stretch to use the device.
9. Please note any signs of machinery that may occur, including part wear, loose hardware, and welding
cracks. Stop using the device with the above signs immediately and contact the after-sales service
department of our company.
10. You can complete the assembly with a wrench, or an inner hexagon wrench.
11. The user weight of this product shall not exceed 100kg.
12. The product is subject to change without notice and the final interpretation belongs to the Division.
IMPORTANT SAFETY INSTRUCTIONS |
4
II. CARE INSTRUCTIONS
•Lubricate moving joints with silicon spray after periods of usage.
•Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.
•The machine can be kept clean by wiping it down using dry cloth.
•Check and adjust the tension of wire rope on a regular basis.
•Regularly check all moving parts and make sure there are signs of wear and damage, if any the use of
the device must be stopped immediately and contact our after-sales department.
•During inspection, it is necessary to make sure that all bolts and nuts are completely fixed. If any bolt
or nut connection is loosened, please re-tighten.
•Check weld for cracks.
•Failure to perform daily maintenance may result in personal injury or equipment damage.
| CARE INSTRUCTIONS
5

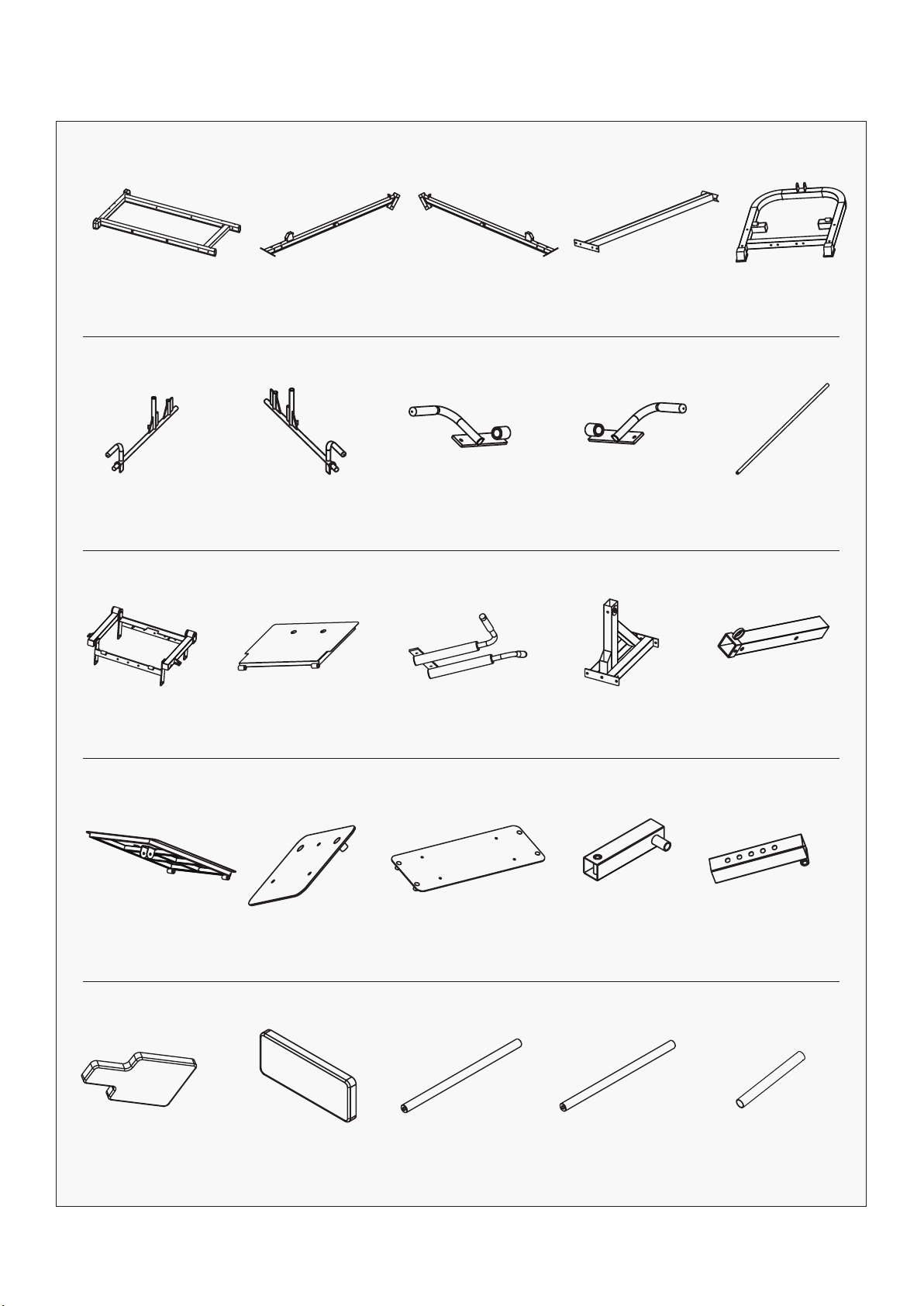

III. PARTS LIST
PARTS LIST |
Main Frame x 1
1
6
11
16
21
2
7
12
17
22
3
8
13
18
23
4
9
14
19
24
5
10
15
20
25
Safety Handrail
Right x 1
Slider Frame x 1
Foot Pedal x 1
Back Cushion x 1
Track Support
Right x 1
Safety Handrail
Left x 1
Board x 1
Weld against the
back x 1
Seat Cushion x 1
Track Support Left
x 1
Back Arm Rest
Right x 1
Squat Arm Rest x 1
Seat Plate welding
x 1
On the counter-
weight shaft x 1
Bottom Frame
Support x 1
Back Arm Rest
Left x 1
Support x 1
Adjusting the
intubation x 1
Under the counter-
weight axis x 1
Front Pedal
Bracket x 1
Track x 2
1625mm
Back Pedal
Regulation Tube x 1
Adjusting Pipe x 1
Sleeve Welding x 4

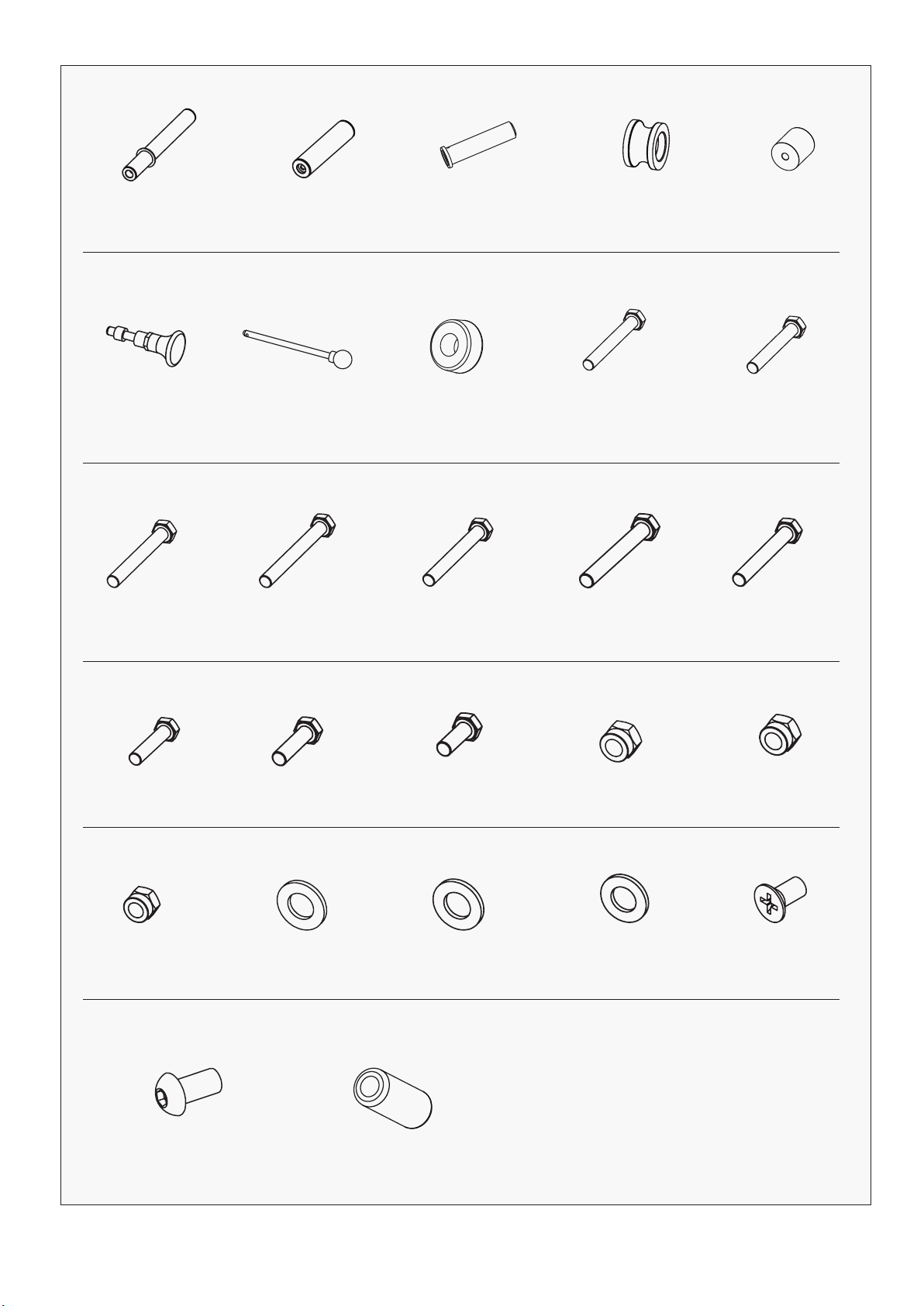

6| PARTS LIST
Stainless Steel
Sleeve welded x 2
26
31
36
41
46
51
27
32
37
42
47
52
28
33
38
43
48
29
34
39
44
49
30
35
40
45
50
Yellow Pull Pin x 1
M12-80 screw bolt
x 4
M10-40 screw bolt
x 4
M10 nut x 35
M10-20 screw bolt
x 4
Shoulder Foam x 2
Stainless Steel
Sleeve 200mm x 2
Ball tip SIngle pin
x 1
M10-120 screw
bolt x 6
M10-30 screw bolt
x 5
Ø 14 gasket x 4
Black Plastic
Sleeve x 4
Thickened cushioning
pad x 2
M10-100 screw
bolt x 4
M10-20 screw bolt
x 8
Ø 12 gasket x 4
Roller x 4
M14-90 screw bolt
x 2
M10-75 screw bolt
x 6
M14 nut x 4
Ø 10 gasket x 84
Nylon Wheel x 4
M14-80 screw bolt
x 2
M10-70 screw bolt
x 12
M12 nut x 4
M8-20 Countersunk
head bolt x 7
7EXPLODED DIAGRAM |

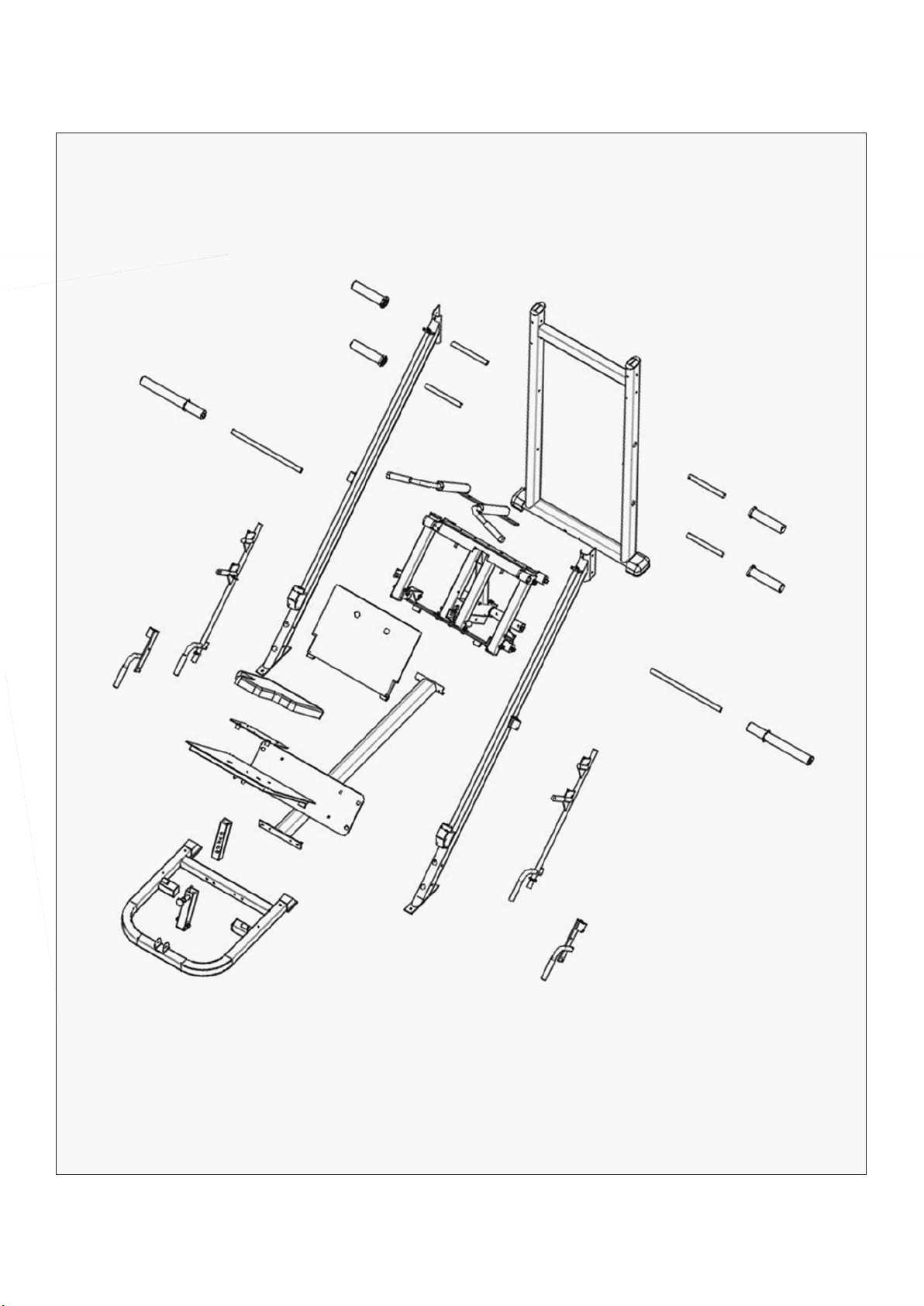

IV. EXPLODED DIAGRAM
8
V. ASSEMBLY INSTRUCTIONS
| ASSEMBLY INSTRUCTIONS
IMPORTANT NOTE: Washers are to go on both ends.
37
43
46
39
40
49
M10*120 x 6
M10*20 x 2
M10 x 22
M10*75 x 4
M10*70 x 12
Ø10 x 46

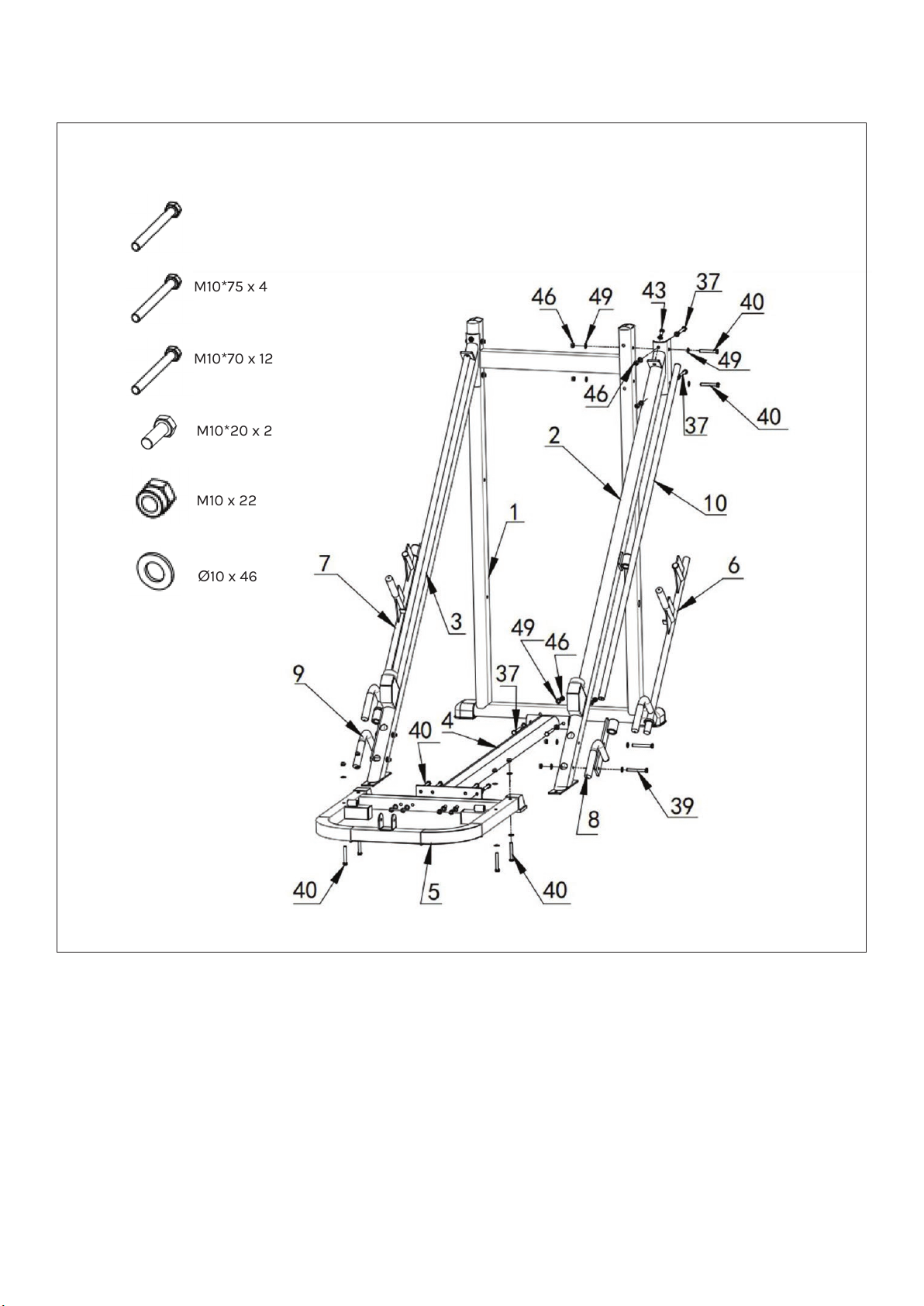

1. Install part #1 Main frame to #3 Track support right with:
- #40 M10x70 Screws - #37 M10x120 Screws
- #49 Ø10 Washers - #46 M6 Nuts
Repeat for the other side for #2 Track support.
STEP 1
9ASSEMBLY INSTRUCTIONS |
2. Install #3 Track support right to #5 Foot pedal bracket with:
- #40 M10x70 Screws - #46 M6 Nuts
- #49 10 Washers
Repeat for the other side for #2 Track support.
Ensure to tighten all bolts.
3. Install part #4 Bottom frame support to #1 Main frame and #5 Foot pedal using:
- #37 M10x120 Screws - #49 10 Washers
- #46 M6 Nuts - #40 M10x70 Screws
4. Fit part #6 Safety handrail right into the Safety handrail slot on part #2. Then on the side other end of
#6 Safety handrail right, slip it into #8 Back arm rest right.
5. Secure #8 Back arm rest right to #2 Track support right and secure it with:
- #39 M10x75 Screws - #46 M6 Nuts
- #49 10 Washers
6. Install #10 Track onto part #2 Track support right using #43 M10x20 Screw.
7. Repeat the same on the other side for #10 Track on #3 Track support left.
10 | ASSEMBLY INSTRUCTIONS
38 46
30
39
49
M10*100 x 2 M10 x 4
M8*20 x 7
M10*75 x 2
Ø10 x 8

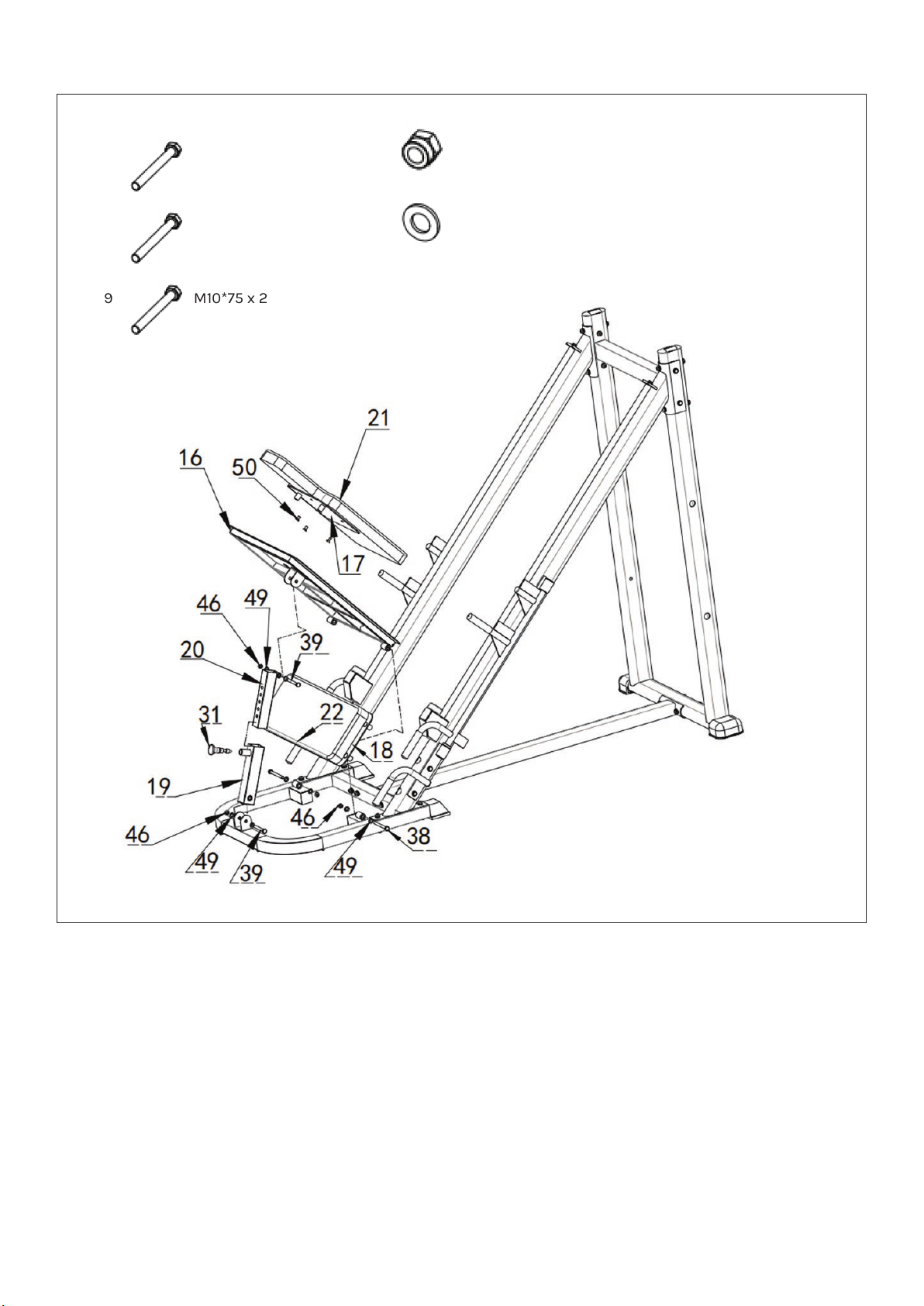

1. Secure part #19 Adjusting the intubation onto #5 using:
- #39 M10x75 Screw - #49 Ø10 Washers
- #46 M6 Nuts
2. Connect #20 Adjustment pipe and #16 Foot pedal using as shown in image, using:
- #39 M10x75 Screw - #49 Ø10 Washers
- #46 M6 Nuts
STEP 2
