Corvalent ATX Manuale utente

This quick installation guide was designed to help with the basic configuration for

the Phoenix ATX. More detailed information can be found in the installation guide.

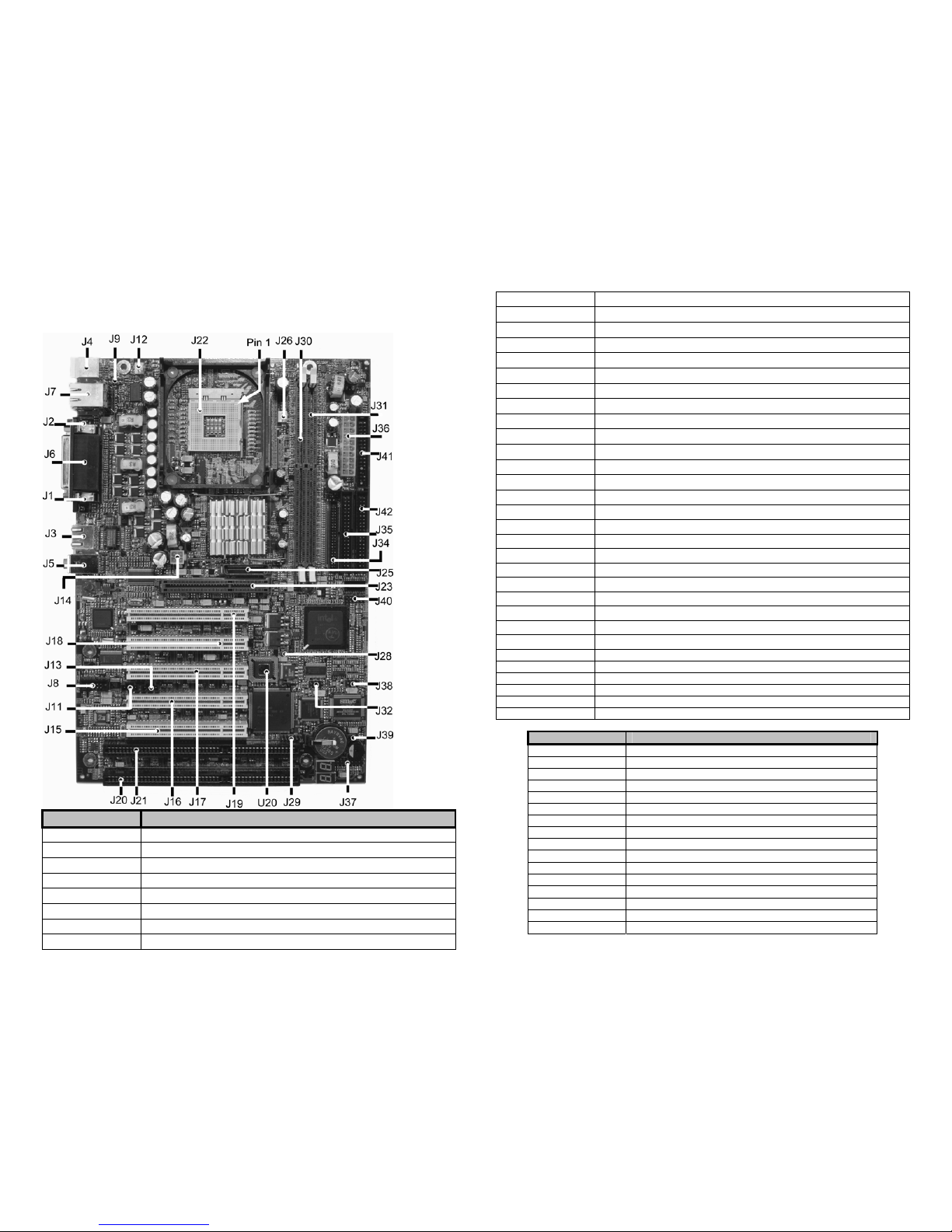

Connector Description

J1 VGA DB15 (ATX-G only)

J2 SER A

J3 Ethernet 1 (Optional 10/100/1000) RJ45

J4 (Bottom)Keyboard – PS/2 (Top)Mouse – PS/2

J5 Audio – Mic. In (pink), Line Out/Headphone (green) and Line In (blue)

J6 LPT - Parallel

J7 (Bottom) USB (Ports 2 & 3) - (Top) Ethernet 2 (Optional)

J8 SER B

J9 Keyboard/Mouse Header

J11 Audio - Aux. In Header

J12 Rear Chassis Fan

J13 Audio – CD In Header

J14 ATX Power Aux. Connector

J15 PCI Connector 5

J16 PCI Connector 4

J17 PCI Connector 3

J18 PCI Connector 2

J19 PCI Connector 1

J20 ISA Slot 1

J21 ISA Slot 2

J22 CPU Socket

J23 AGP Slot/ADD Connector (ADD capabilities on ATX-G only)

J25 DVO Connector (ATX-G Only)

J26 CPU Fan

J28 Intruder detection Header

J29 JTAG

J30 DDR DIMM Socket 0

J31 DDR DIMM Socket 1

J32 USB Header (Ports 4 & 5)

J34 Alt. Secondary IDE

J35 Secondary IDE

J36 ATX Power Connector

J37 Front Panel Header

J38 USB Header (Ports 0 & 1)

J39 Keylock Header

J40 GPIO Header

J41 Floppy Disk Drive Connector

J42 Primary IDE

Pin# Front Panel Header – J37

1 HDD LED Anode

2 Power LED Green Blink

3 HDD LED Cathode

4 Power LED Yellow Blink

5 Reset - GND

6 Power Switch

7 Reset

8 Power Switch - GND

9 +5V

10 NC

11 Infra Red Rx (Opt.)

12 GND

13 GND

14 Power LED Cathode - GND

15 Infra Red Tx (Opt.)

16 Power LED Anode

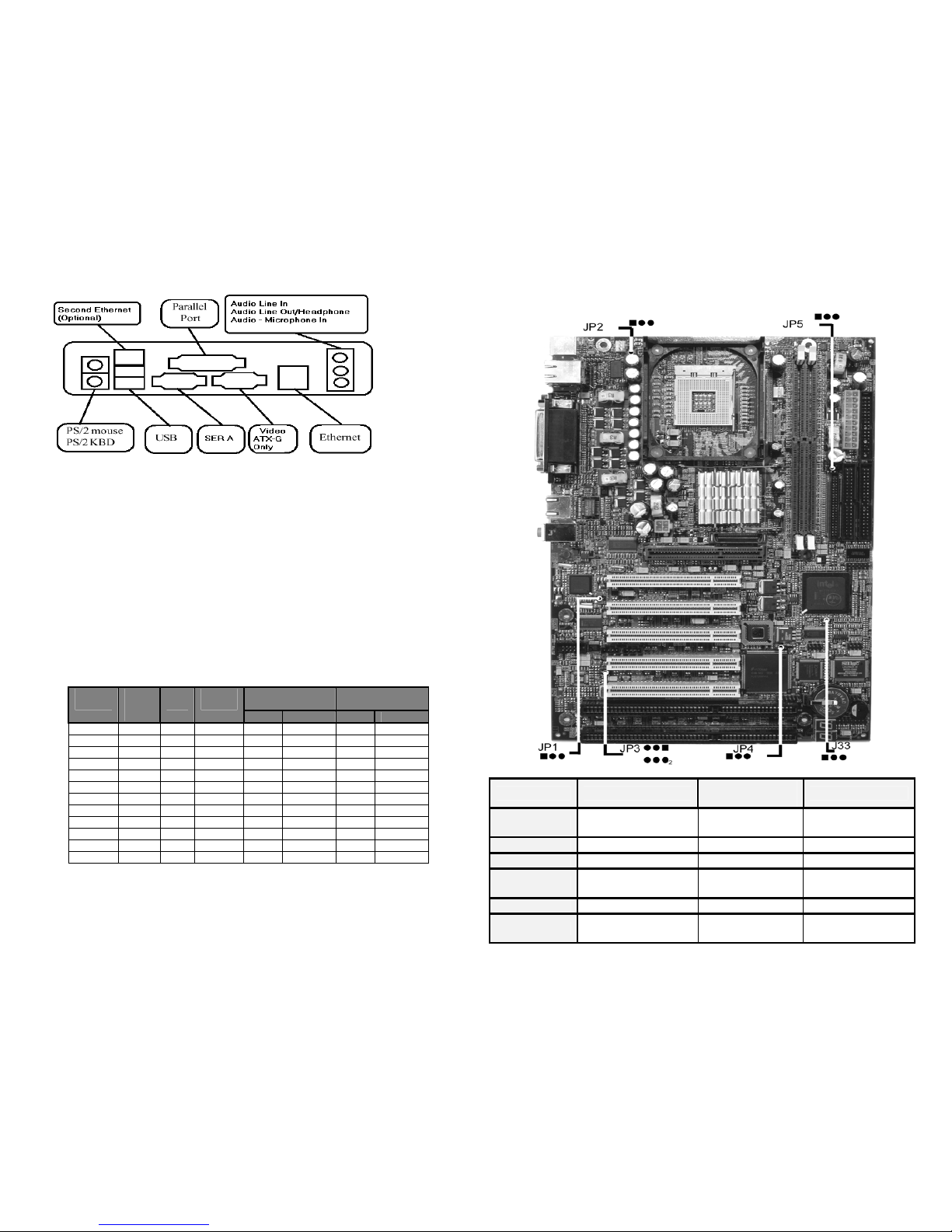

Back Panel

System Memory Features:

• 2.5 V (only) 184-pin DDR SDRAM DIMMs with gold-plated contacts.

• Unbuffered, unregistered single-sided or double-sided DIMMs.

• Maximum total system memory: 2 GB; minimum total system memory: 32

MB .

• DDR333 MHz (PC2700) and DDR266 MHz (PC2100) DDR SDRAM

DIMMs only.

• Serial Presence Detect (SPD).

• Do not use ECC DIMMs.

• Do not use Registered DIMMs.

• Do not use DDR200 DIMMs.

• Do not use DDR333 with 400MHz PSB processors.

• Double sided x16 DIMMs are not supported.

Front Side

Population

Back Side

Population

DIMM

Capacity

# of

Dev./

DIMM

# of

Sides

DRAM

Tech.

Count Config Count Config

32 MB 4 SS 64 Mbit 4 4 M x 16

64 MB 8 SS 64 Mbit 8 8 M x 8

64 MB 4 SS 128 Mbit 4 8 M x 16

128 MB 16 DS 64 Mbit 8 8 M x 8 8 8 M x 8

128 MB 8 SS 128 Mbit 8 16 M x 8

128 MB 4 SS 256 Mbit 4 16 M x 16

256 MB 16 DS 128 Mbit 8 16 M x 8 8 16 M x 8

256 MB 8 SS 256 Mbit 8 32 M x 8

256 MB 4 SS 512 Mbit 4 32 M x 16

512 MB 16 DS 256 Mbit 8 32 M x 8 8 32 M x 8

512 MB 8 SS 512 Mbit 8 64 M x 8

1024 MB 16 DS 512 Mbit 8 64 M x 8 8 64 M x 8

PROCESSOR:

The latest revision of the Phoenix ATX currently supports full series of Intel Pentium

IV (mPGA478 400MHz and 533MHz PSB) processors.

MN-P4GAX-Q1

Jumper Description Manufacturer’s

Settings Jumper Position

JP1 On-Board Ethernet 1

Enabling Enabled 1-2

JP2 CPU Voltage Desktop 1-2

JP3 Audio Output Mode Line Out 3-5, 4-6

JP4 Power-On

Selection

Power-On

immediately 1-2

JP5 ATA disk Voltage 5Vcc 1-2

J33/JP33 CMOS

Reset Normal 1-2
