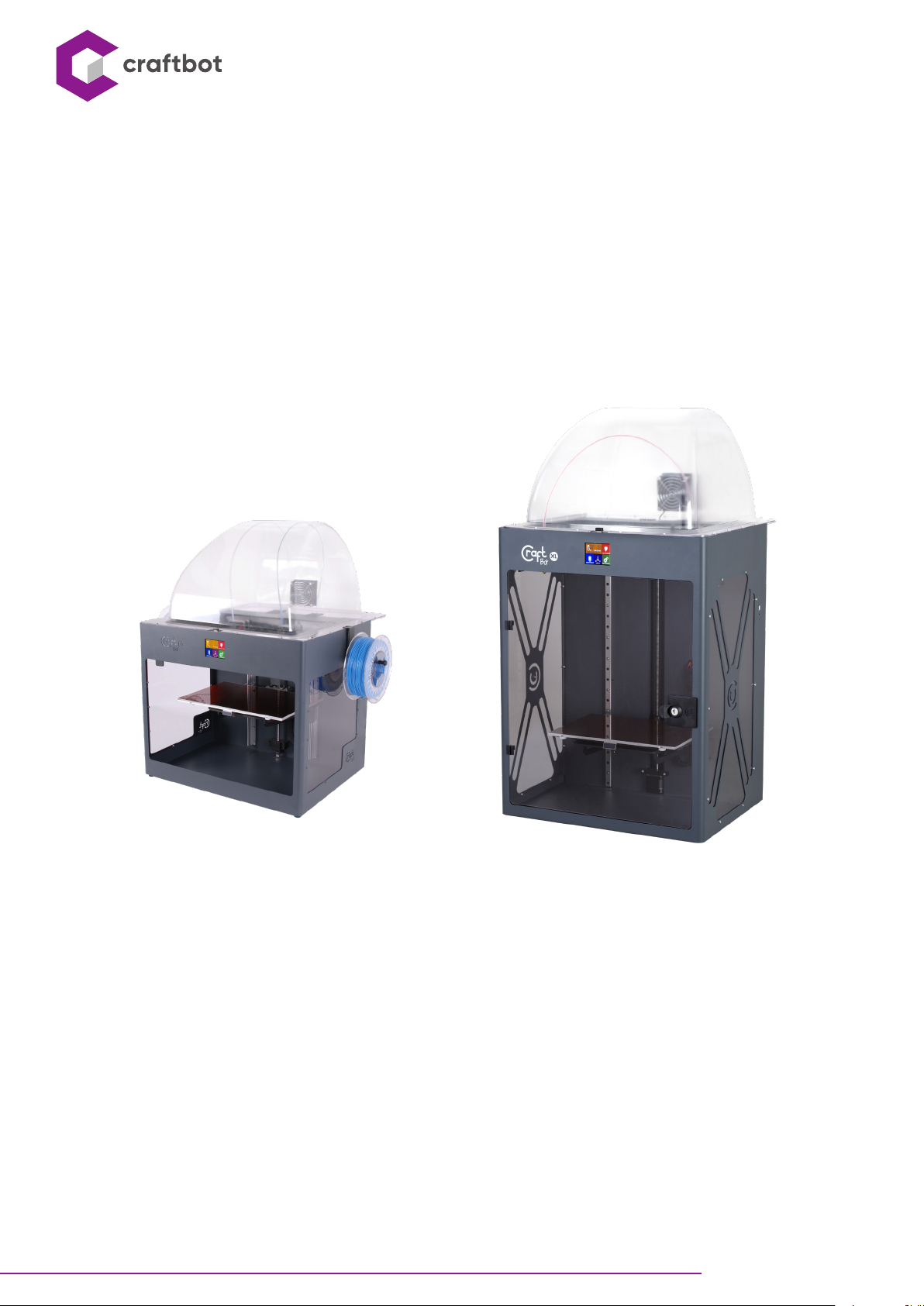

1. INTRODUCTION
For best print quality, some filaments may need to stabilize the build area temperature. This can significantly reduce
the possibility of warping printed objects.
That’s why we also offer the elegant and durable printer cover and door for Crabot printers.
The CraBot XL and the CraBot Plus Pro domes are identical, so we are showing the CraBot Pro Plus assembly.
This manual walks you through the steps of installing the dome.
CRAFTBOT PLUS PRO AND CRAFTBOT XL
DOME INSTALLATION MANUAL
www.craftbot.com
2. ACCESSORIES
Below you can see contents of the box. First of all, check the list to make sure nothing is missing!
1. Assembled dome with fan (1x)
2. Filament holder (1x)
3. Filament guide tube (1x)
Tools needed:
• 2.5mm allen key
• 10 mins
3. INSTALLATION
Please follow the steps listed below to install the dome.
• Remove the filament spool holder.
• Remove the FMS sensor.
• Remove the screws marked with an arrow on the top cover of the printer. (4x)
• Aach the filament spool holder to the indicated position.
• Aach the FMS sensor to the indicated position.
CRAFTBOT PLUS PRO AND CRAFTBOT XL
DOME INSTALLATION MANUAL
www.craftbot.com
• Place the dome to the printer. Please be sure, the cover sits properly on the printer’s top cover.
• Fasten the front of the dome. Use the previously removed screws. (4x)
• Aach the filament guide tube supplied with the dome.
• Insert the tube back into the extruder.
CRAFTBOT PLUS PRO AND CRAFTBOT XL
DOME INSTALLATION MANUAL
www.craftbot.com
• Connect the FMS sensor.
• Connect the dome fan.
CRAFTBOT PLUS PRO AND CRAFTBOT XL
DOME INSTALLATION MANUAL
www.craftbot.com
3. FIRMWARE SETTINGS

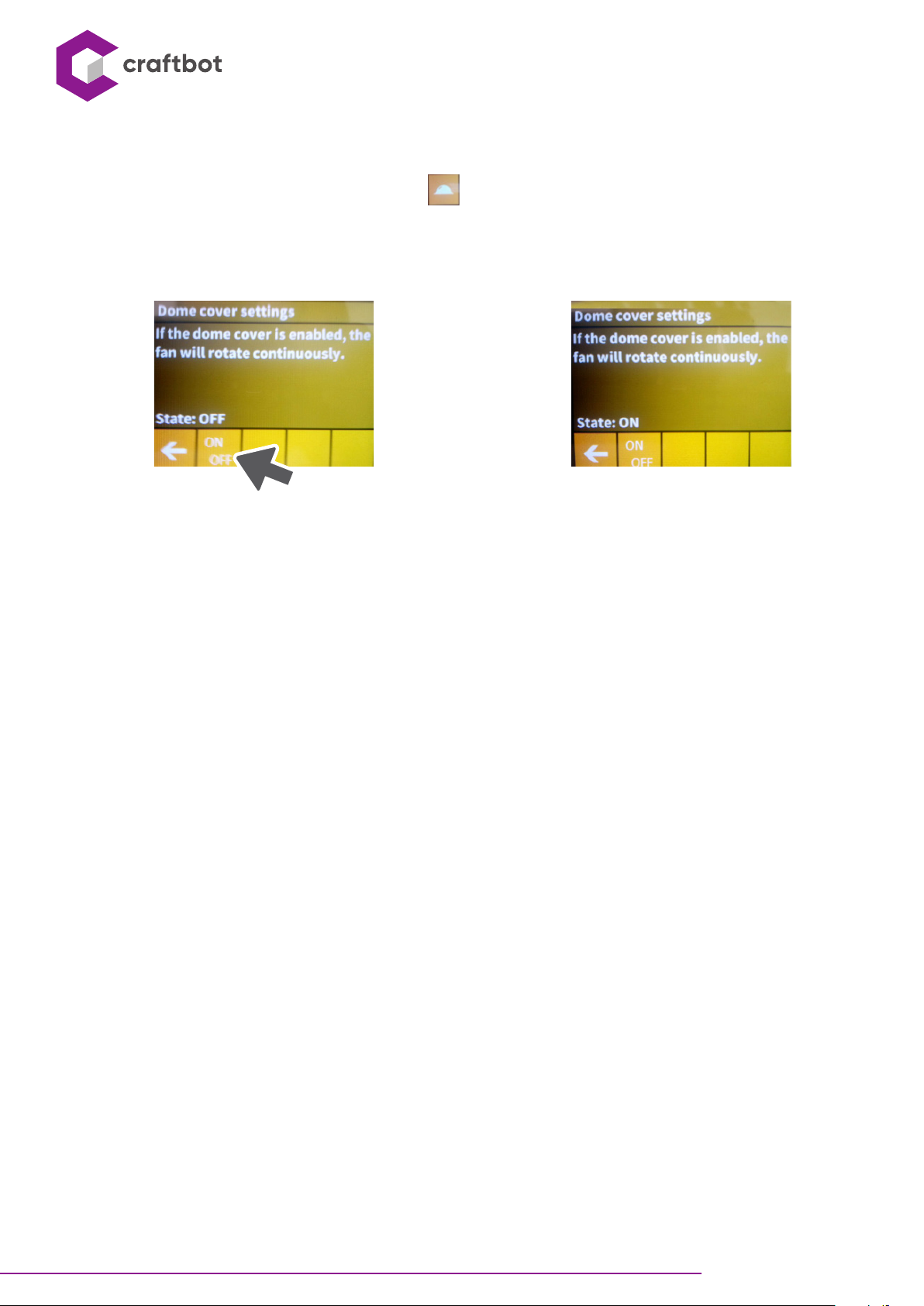

• In the temperature seing menu, by pressing the icon, the dome cover seings menu will be displayed.
• Here, with the ON / OFF buon, you can enable or disable the operation of the dome fan. This feature seing will
not change when the printer is turned off and on.
