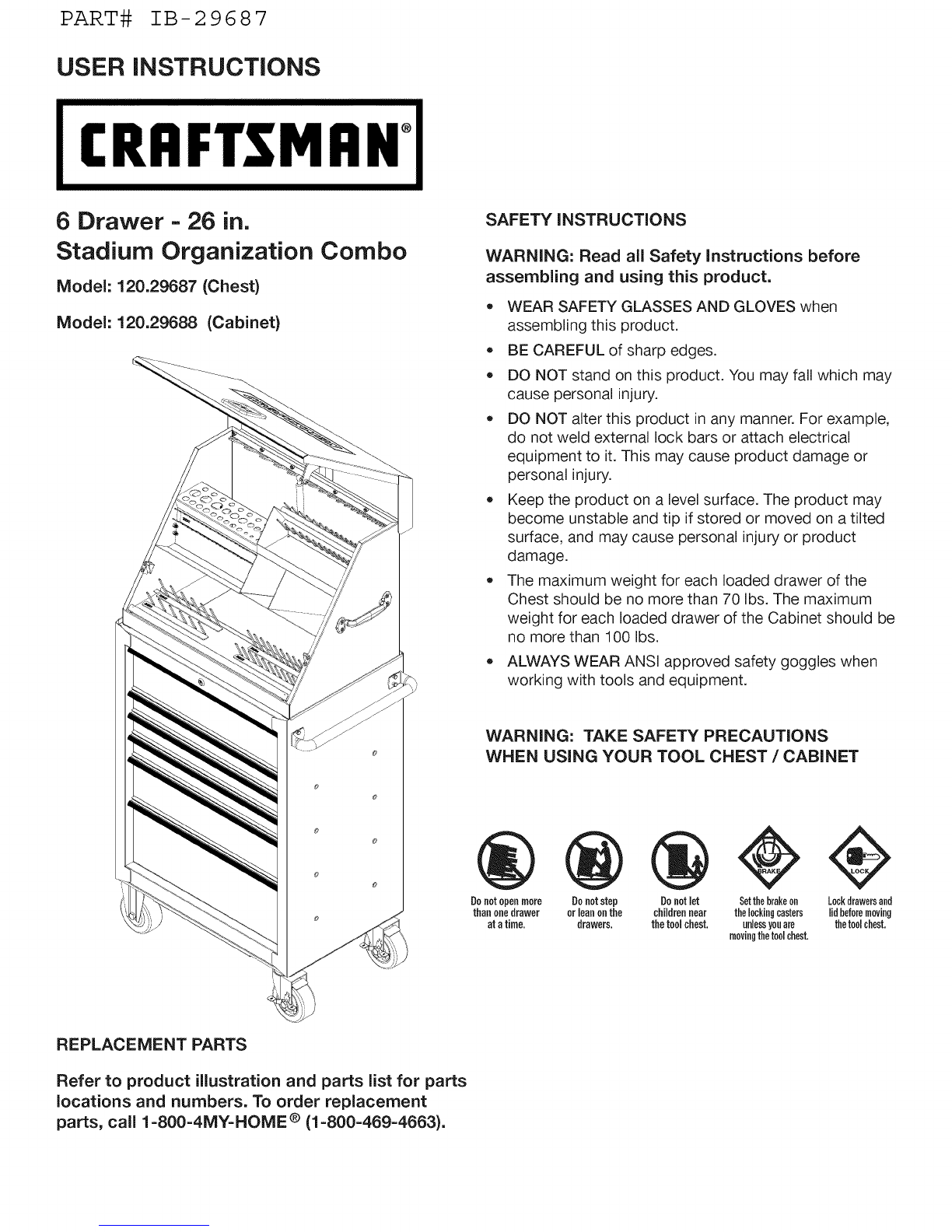

PART# IB-29687

USER iNSTRUCTiONS

6 Drawer- 26 in.

Stadium Organization Combo

Model: 120.29687 (Chest)

Model: 120.29688 (Cabinet)

SAFETY iNSTRUCTiONS

WARNING: Read all Safety instructions before

assembling and using this product.

• WEAR SAFETY GLASSES AND GLOVES when

assembling this product.

BE CAREFUL of sharp edges.

DO NOT stand on this product. You may fall which may

cause personal injury.

DO NOT alter this product in any manner. For example,

do not weld external lock bars or attach electrical

equipment to it. This may cause product damage or

personal injury.

Keep the product on a level surface. The product may

become unstable and tip if stored or moved on a tilted

surface, and may cause personal injuryor product

damage.

The maximum weight for each loaded drawer of the

Chest should be no more than 70 Ibs. The maximum

weight for each loaded drawer of the Cabinet should be

no more than 100 Ibs.

ALWAYS WEAR ANSI approved safety goggles when

working with tools and equipment.

WARNING: TAKE SAFETY PRECAUTIONS

WHEN USING YOUR TOOL CHEST /CABINET

Do netopen mere De notstep Donot let

than onedrawer or leanon the childrennear

ata time. drawers, thet001chest.

Setthebrakeon

the10ckingcasters

unlessy0nare

movingthetoolchest.

Lockdrawersand

lidbeforemoving

thet001chest.

REPLACEMENT PARTS

Refer to product illustration and parts list for parts

locations and numbers. To order replacement

parts, call 1=800=4MY=HOME ® (1=800=469=4663).

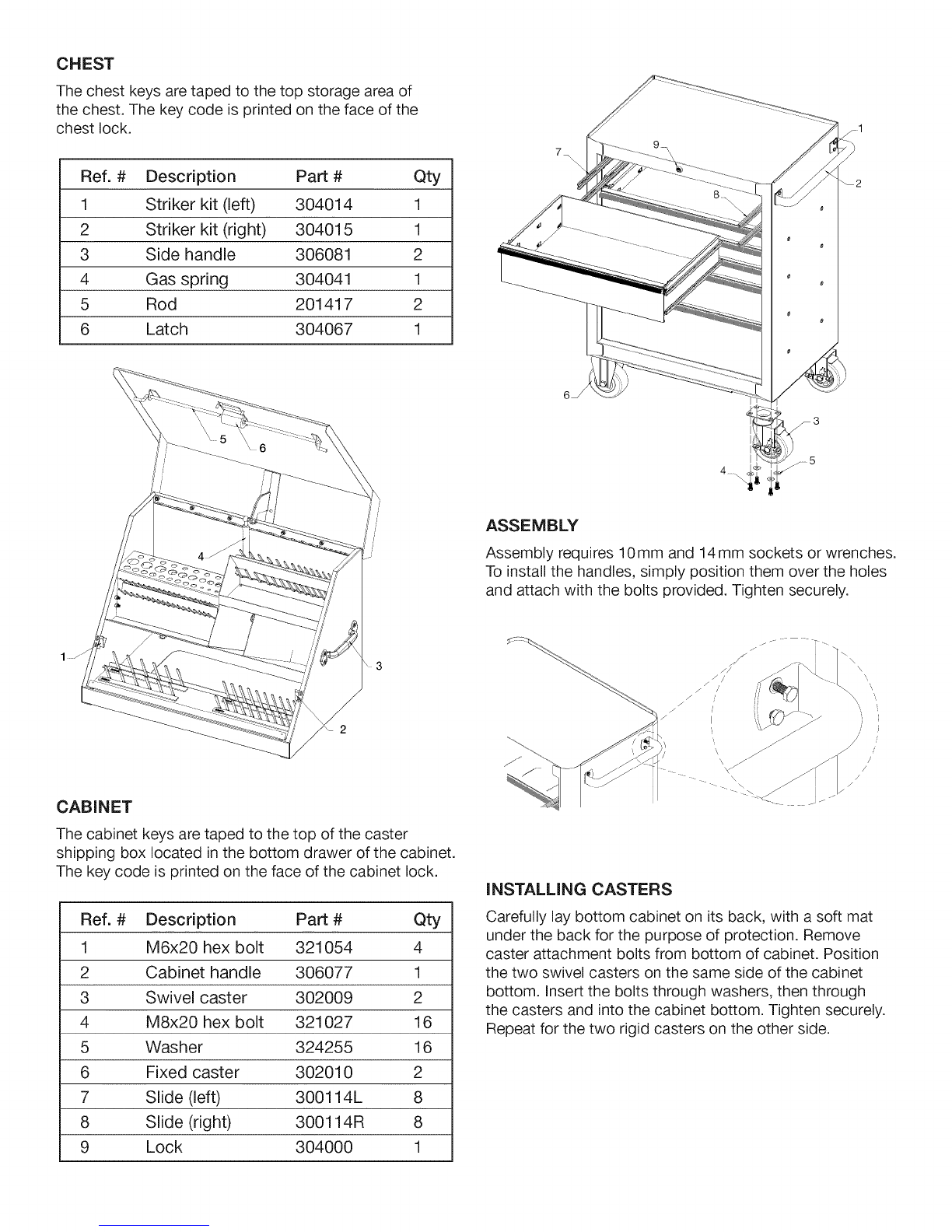

CHEST

The chest keys are taped to the top storage area of

the chest. The key code is printed on the face of the

chest lock.

Ref. # Description Part # Qty

1 Striker kit (left) 304014 1

2 Striker kit (right) 304015 1

3 Side handle 306081 2

4 Gas spring 304041 1

5 Rod 20141 7 2

6 Latch 304067 1

ASSEMBLY

Assembly requires 10 mm and 14 mm sockets or wrenches.

To install the handles, simply position them over the holes

and attach with the bolts provided. Tighten securely.

CABINET

The cabinet keys are taped to the top of the caster

shipping box located in the bottom drawer of the cabinet.

The key code is printed on the face of the cabinet lock.

Ref. # Description Part # Qty

1 M6x20 hex bolt 321054 4

2 Cabinet handle 306077 1

3 Swivel caster 302009 2

4 M8x20 hex bolt 321027 16

5 Washer 324255 16

6 Fixed caster 302010 2

7 Slide (left) 300114L 8

8 Slide (right) 300114R 8

9 Lock 304000 1

INSTALLING CASTERS

Carefully lay bottom cabinet on its back, with a soft mat

under the back for the purpose of protection. Remove

caster attachment bolts from bottom of cabinet. Position

the two swivel casters on the same side of the cabinet

bottom. Insert the bolts through washers, then through

the casters and into the cabinet bottom. Tighten securely.

Repeat for the two rigid casters on the other side.

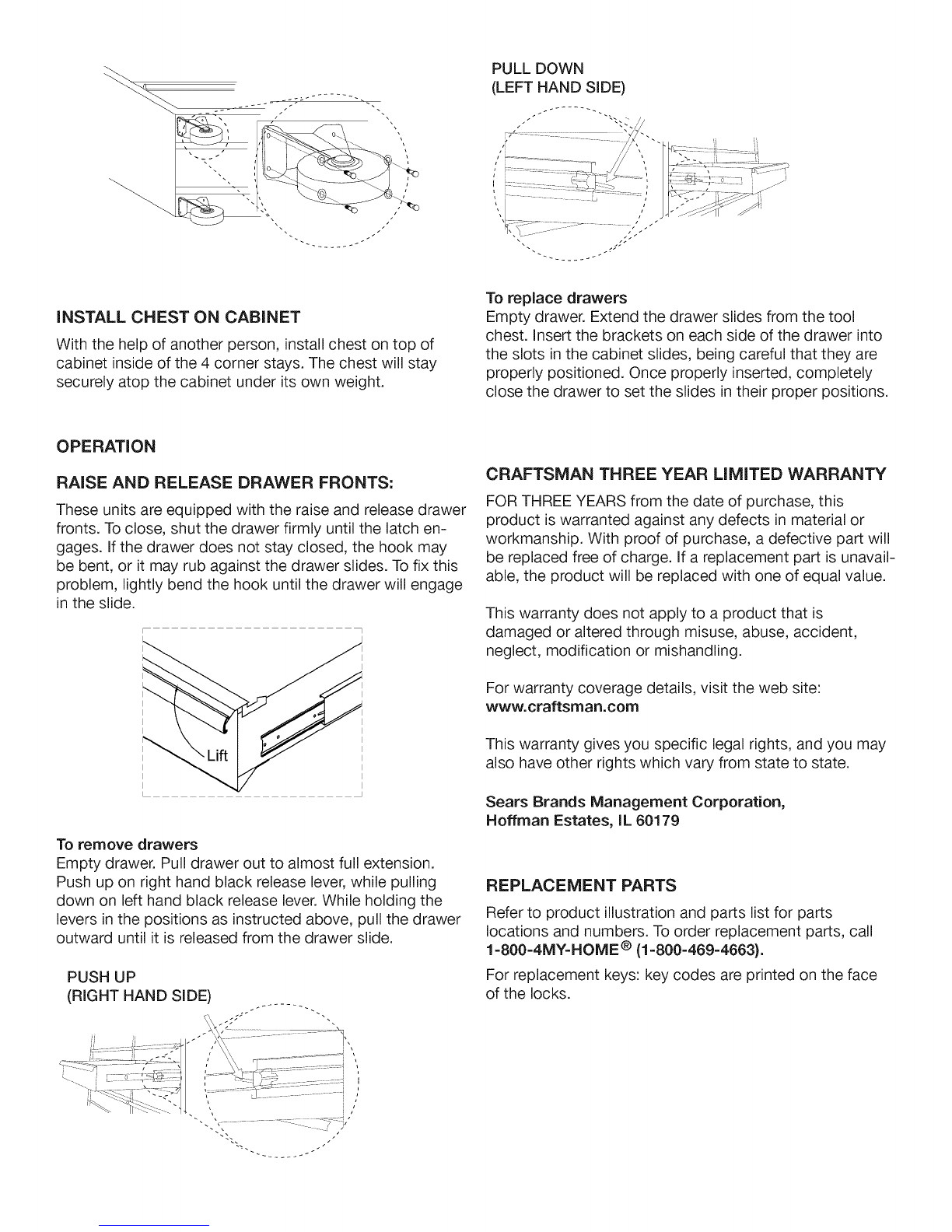

PULLDOWN

LEFTHANDSIDE)

iNSTALL CHEST ON CABINET

With the help of another person, install chest on top of

cabinet inside of the 4 corner stays. The chest will stay

securely atop the cabinet under its own weight.

To replace drawers

Empty drawer. Extend the drawer slides from the tool

chest. Insert the brackets on each side of the drawer into

the slots in the cabinet slides, being careful that they are

properly positioned. Once properly inserted, completely

close the drawer to set the slides in their proper positions.

OPERATION

RAISE AND RELEASE DRAWER FRONTS:

These units are equipped with the raise and release drawer

fronts. To close, shut the drawer firmly until the latch en-

gages. If the drawer does not stay closed, the hook may

be bent, or it may rub against the drawer slides. To fix this

problem, lightly bend the hook until the drawer will engage

in the slide.

To remove drawers

Empty drawer. Pull drawer out to almost full extension.

Push up on right hand black release lever, while pulling

down on left hand black release lever. While holding the

levers in the positions as instructed above, pull the drawer

outward until it is released from the drawer slide.

PUSH UP

(RIGHT HAND SIDE)

CRAFTSMAN THREE YEAR LIMITED WARRANTY

FOR THREE YEARS from the date of purchase, this

product is warranted against any defects in material or

workmanship. With proof of purchase, a defective part will

be replaced free of charge. If a replacement part is unavail-

able, the product will be replaced with one of equal value.

This warranty does not apply to a product that is

damaged or altered through misuse, abuse, accident,

neglect, modification or mishandling.

For warranty coverage details, visit the web site:

www.craftsman.com

This warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

Sears Brands Management Corporation,

Hoffman Estates, IL 60179

REPLACEMENT PARTS

Refer to product illustration and parts list for parts

locations and numbers. To order replacement parts, call

1=800=4MY=HOME ® (1=800=469=4663}.

For replacement keys: key codes are printed on the face

of the locks.
