OPERATOR'S MANUAL

ICRFIFTSM FIN°I

WORKBENCH

CAUTION: Read and follow all Safety Rules and Operating Instructions before first use of this product.

Sears, Roebuck and Co., Hoffman Estates, IL 60179, USA. F1481

SAFETY WARNINGS AND CAUTIONS:

•Use appropriate safety equipment when using power and hand tools. Failure to do so may cause personal injury or product damage.

• Use adequate manpower when assembling and moving this unit. Failure to do so may cause personal injury or product damage.

•DO NOT stand on this product. You may fall which may cause personal injury.

• DO NOT mount this product on a truck bed or any other moving object. This may cause personal injury or product damage.

• Appropriately secure this product before moving it with aforklift.

• DO NOT tow with power equipment. The product could tip, which may cause personal injury or product damage.

• DO NOT alter this product in any manner. For example, do not weld external tockbars or attach electrical equipment. This may cause

product damage or personal injury.

• Keep the product on level surfaces. The product may become unstable and tip if stored or moved on an un-level surface, which may cause

personal injury or product damage.

• BE CAREFUL when opening more than one drawer. The product may become unstable and tip, which may cause personal injury or

product damage.

• DO NOT step in the drawers. You may fall which may cause personal injury.

• The maximum weight for each drawer should be no more than 35 pounds.

• Maximum combined weight limit not to exceed 1,200 pounds. If the limit is exceeded, the product could collapse and cause personal injury

or product damage.

Tools Required: Hardware Included:

3/8" Wrench

7/16" Wrench

11/32" Wrench

Drill

1/8" Drill bit

Screwdriver, Phillips

Screwdriver, Flathead

i' ililil} AA (34) EE(34)

BB (16) FF (34)

CC (8) GG (8)

DD(6)

iCall 1-800-4MY-HOME (1-800-469-4663) for Service Parts. Refer to Service Parts Drawing for full listing of Service Parts. )

//\\\\ /

D(3)

G(4)

E(2)

A(2)

B(2)

H(2)

k. ,J

AA(16)

BB (8)

S \

,\ ./ /i EE(16)

A\.. fY

FF (16)

Attach B to A using BB.

B (2)

Assemble A(2) and C(4).

\\\ \

A(2) _C (4)

Square unit and wrench tighten to 40-50 in/lbs.

tighten and approximately 1/2 wrench turn). (Finger

STEP2

AA(10)

FF (10)

Note: It may be easier to turn unit upside down for steps 2 and 3.

•Attach D(3).

......D (3)

Wrench tighten to 40-50 in/lbs (finger tighten and

approximately 1/2 wrench turn).

fSTEP 3 AA(8)

....'_ )EE (8)

FF (8)

Attach E (2).

Wrench tighten to 40-50 in/lbs (finger tighten and

approximately 1/2 wrench turn).

STEP 4

Separateslide parts.

Release:

Raise or lower

Attach (2) Gd to each H.

CO.

Gd (41

Release

BB (8)

cc (8)

GG (8)

Wrench tighten.

. GG

H (2)

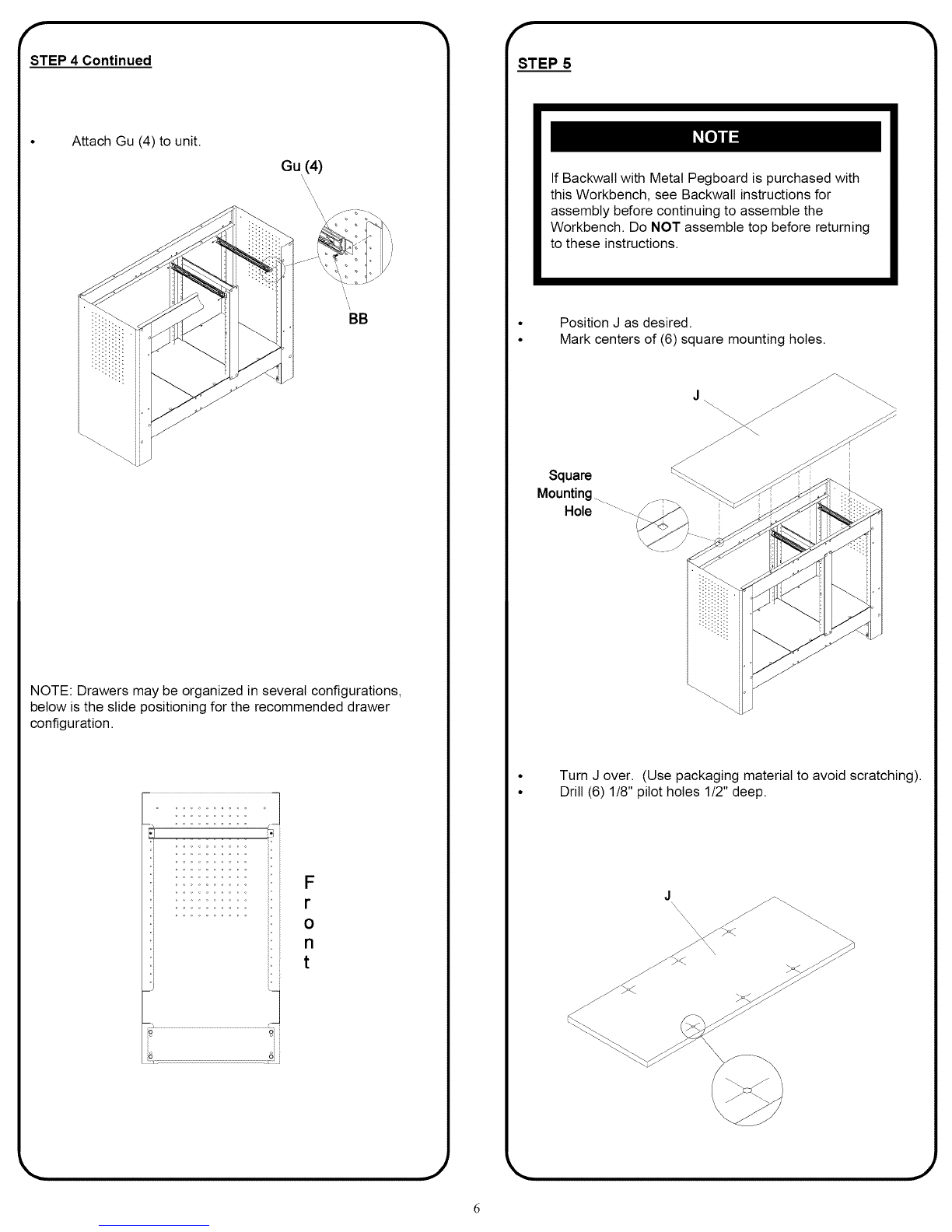

STEP 4 Continued

Attach Gu (4) to unit.

Gu(4)

NOTE: Drawers may be organized in several configurations,

below is the slide positioning for the recommended drawer

configuration.

i .......... i_

ii .......... i_

q .......... i_ i

"i .......... i_ i

STEP 5

If Backwalt with Metal Pegboard is purchased with

this Workbench, see Backwalt instructions for

assembly before continuing to assemble the

Workbench. Do NOT assemble top before returning

to these instructions.

Square

Mounting ......

Hole

Position J as desired.

Mark centers of (6) square mounting holes.

Turn J over. (Use packaging material to avoid scratching).

Drill (6) 1/8" pilot holes 1/2" deep.

"\\\\

,J .J

STEP 5 -Continued

DD (6)

•Reposition J on unit.

• Attach using DD(6).

DD (6)

STEP 6

Insert the drawer slides (Gd) into the workbench slides

(Gu) and push all of the way to the back.

Pull the drawer open until it stops to ensure proper

assembly.

\\ \\\

Carefully align slides and

push drawer into

unit until drawer stops.

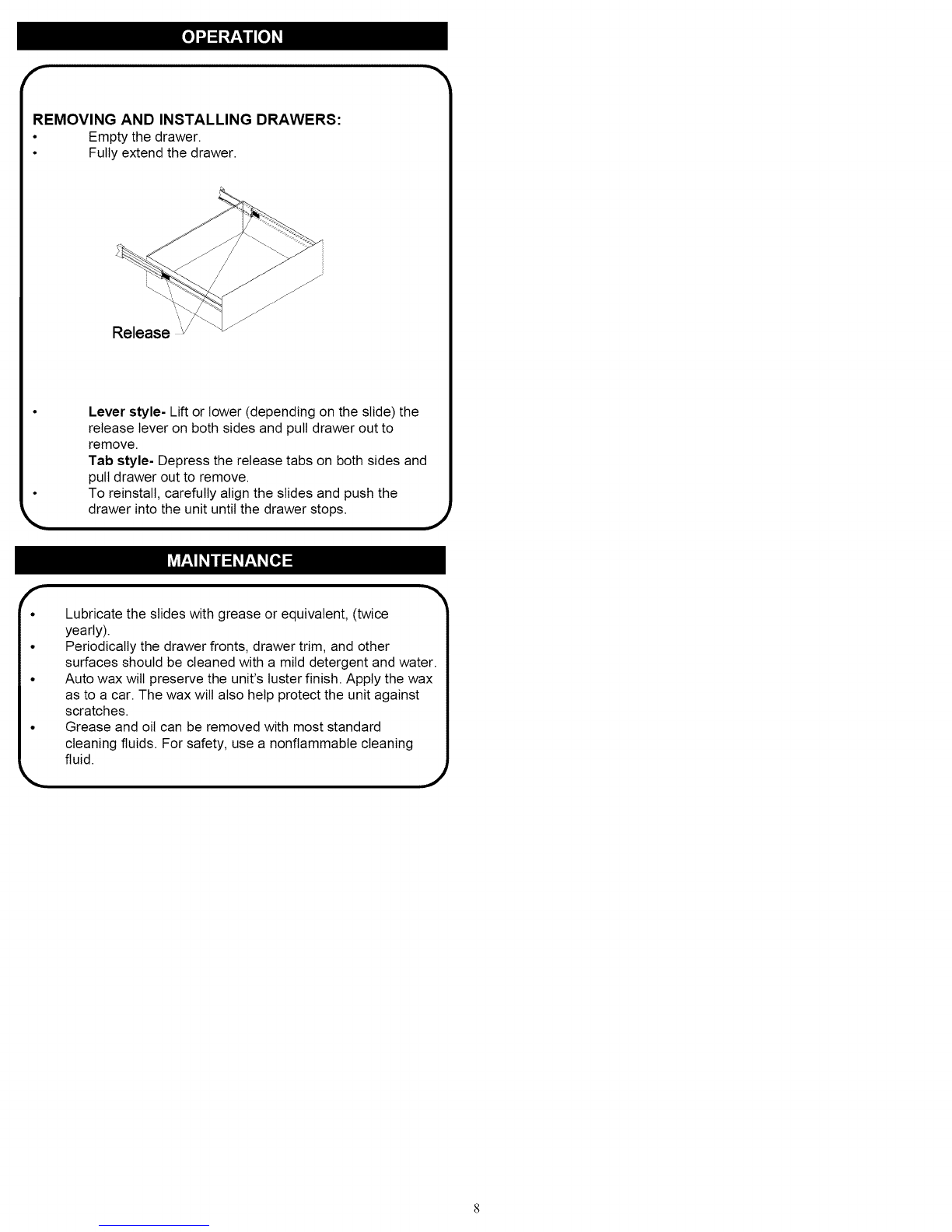

REMOVING AND INSTALLING DRAWERS:

•Empty the drawer.

• Fully extend the drawer.

Lever style- Lift or lower (depending on the slide) the

release lever on both sides and pull drawer out to

remove.

Tab style- Depress the release tabs on both sides and

pult drawer out to remove.

To reinstall, carefully align the slides and push the

drawer into the unit until the drawer stops.

f•Lubricate the slides with grease or equivalent, (twice

yearly).

• Periodically the drawer fronts, drawer trim, and other

surfaces should be cleaned with a mitd detergent and water.

• Auto wax will preserve the unit's luster finish. Apply the wax

as to a car. The wax will also help protect the unit against

scratches.

• Grease and oit can be removed with most standard

cleaning fluids. For safety, use a nonflammable cleaning

L fluid. J

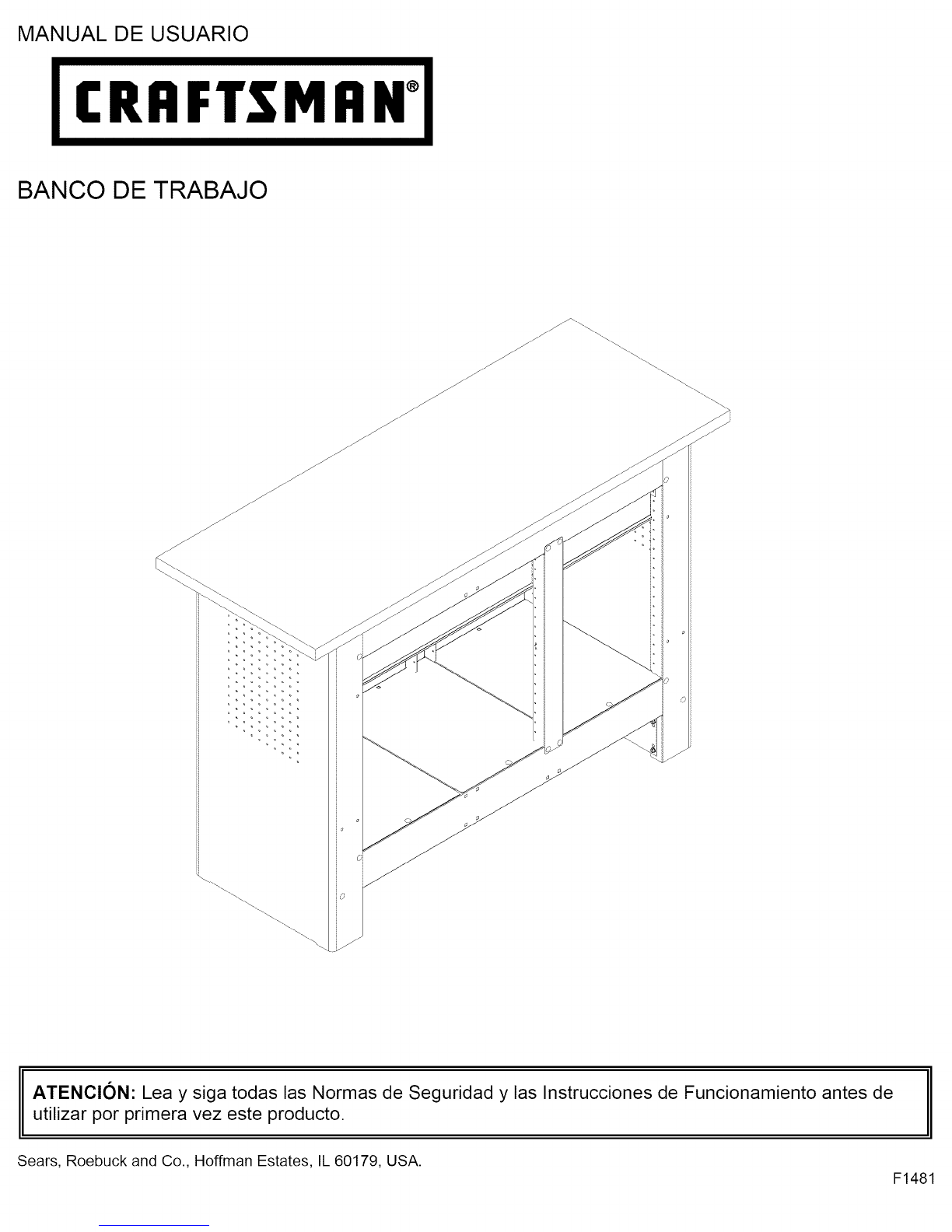

MANUAL DE USUARIO

ICRAFTSMI_N°l

BANCO DE TRABAJO

ATENClON" Lea y siga todas las Normas de Seguridad y las Instrucciones de Funcionamiento antes de

utilizar por primera vez este producto.

Sears, Roebuck and Co., Hoffman Estates, IL 60179, USA. F1481

ADVERTENCIAS Y PRECAUCIONES DE SEGURIDAD:

•Utilice un equipo de seguridad apropiado cuando use herramientas electricas y manuales. De 1ocontrario podria ocasionarse lesiones |

personales o dafiar el producto. |

• Utitice el personal adecuado para el montaje y el traslado de esta unidad. De 1ocontrario podria ocasionarse lesiones personales o dafiar _

el producto. |

•NO se ponga de pie encima de este producto Podria caerse y causarse tesiones personales |

• NO monte este producto en la plataforma de un cami6n ni en ningQn objeto en movimiento Esto podria causarle lesiones personales o |

dafiar el producto. |

• Asegure de forma adecuada este producto antes de moverto con una carretitta elevadora. |

•NO 1oremolque con equipo electrico El producto podria volcar to que podria causarle tesiones personales o dafiar el producto |

• NO altere este producto de modo alguno Esto podria dafiar el producto o causarte lesiones personales |

• Mantenga el producto sobre superficies planas El producto puede desestabilizarse y volcar si se almacena o se mueve en superficies no|

lianas, 1ocual podria causar tesiones personales o dafiar el producto. |

• TENGA CUlDADO al abrir mas de un caj6n. El producto podria desestabilizarse y volcar 1oque podria causarle lesiones personales o |

dafiar el producto. |

• NO se ponga de pie encima de los cajones. Podria caerse y causarse lesiones graves. /

°Et peso maximo en cada gaveta no debe ser mayor de 35 tibras. |

• El peso maximo combinado no debe exceder alas 1,200 libras. Si se excede este limite, el producto podria derrumbarse y causar lesiones _

personales o dafiar el producto. J

Herramientas necasarias: Ferreteria incluida:

Llave Ingtesa de 3/8"

Llave ingtesa de 7/16"

Ltave Ingtesa de 11/32"

Taltadro

Broca de 1/8 de pulgada

Destornittador Philips

Destornillador

de cabeza plana

,4i

AA (34) EE (34)

BB (16) FF (34)

CC (8) GG (8)

DD(6)
