Craftsman 706.597400 Manuale utente

OPERATOR'S MANUAL

ICRRFTSM R#°1

3 DRAWER SERVICE CART

Please indicate the following information from the service part drawing provided.

Model Number:

Model Description:

*Your model may vary from the one shown.

CAUTION: Read and follow all Safety Rules and Operating Instructions before

first use of this product. Retain this document for future reference.

Sears, Roebuck and Co., Hoffman Estates, IL 60179, USA F1602A3

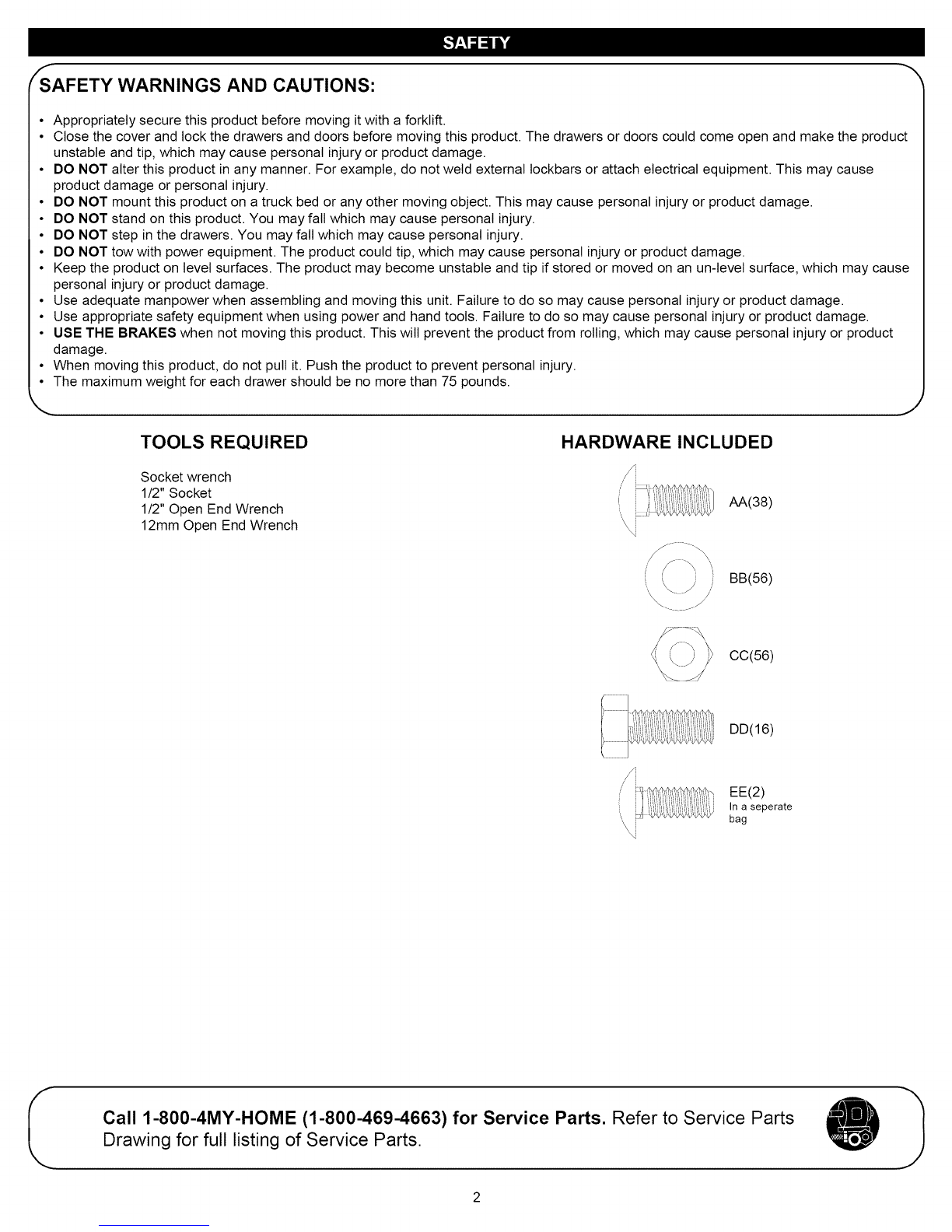

;AFETY WARNINGS AND CAUTIONS:

•Appropriately secure this product before moving it with a forklift.

• Close the cover and lock the drawers and doors before moving this product. The drawers or doors could come open and make the product

unstable and tip, which may cause personal injury or product damage.

• DO NOT alter this product in any manner. For example, do not weld external lockbars or attach electrical equipment. This may cause

product damage or personal injury.

• DO NOT mount this product on a truck bed or any other moving object. This may cause personal injury or product damage.

• DO NOT stand on this product. You may fall which may cause personal injury.

• DO NOT step in the drawers. You may fall which may cause personal injury.

• DO NOT tow with power equipment. The product could tip, which may cause personal injury or product damage.

• Keep the product on level surfaces. The product may become unstable and tip if stored or moved on an un-level surface, which may cause

personal injury or product damage.

• Use adequate manpower when assembling and moving this unit. Failure to do so may cause personal injury or product damage.

• Use appropriate safety equipment when using power and hand tools. Failure to do so may cause personal injury or product damage.

• USE THE BRAKES when not moving this product. This will prevent the product from rolling, which may cause personal injury or product

damage.

• When moving this product, do not pull it. Push the product to prevent personal injury.

• The maximum weight for each drawer should be no more than 75 pounds.

TOOLS REQUIRED

Socket wrench

1/2" Socket

1/2" Open End Wrench

12mm Open End Wrench

HARDWARE INCLUDED

AA(38)

BB(56)

CC(56)

DD(16)

EE(2)

In a seperate

bag

Call 1-800-4MY-HOME (1-800-469-4663) for Service Parts. Refer to Service Parts

Drawing for full listing of Service Parts.

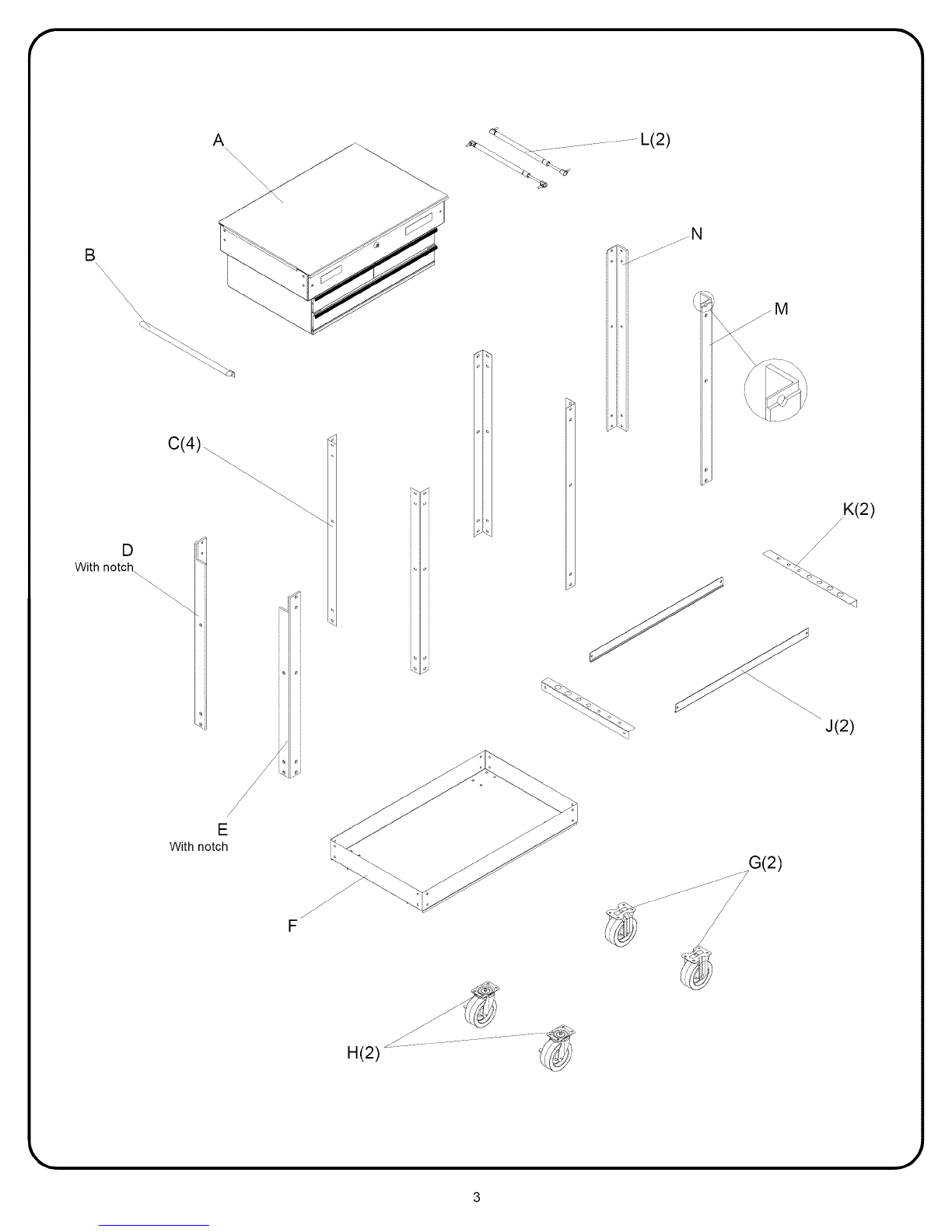

C(4) ...

With notch

\\\\.

4_._. ........................ L(2)

jj_N

K(2)

J(2)

With notch

.....................G(2)

_-------- /

H(2) _

STEP 1:

AA(16)

BB(16)

CC(16)

Note: Remove all components from drawers before assembling

this unit.

• Assemble F, D, E, and (2) C, as shown, using (4) AA, (4) BB,

and (4) CC in each C.

• Finger tighten.

Align holes .

• Attach M, N, and remaining C to opposite end of F in the same

manner.

• Finger tighten.

STEP 2:

AA(8)

BB(8)

cc(8)

• Attach (2) J, as shown, using (2) AA, (2) BB, and (2) CC in each J.

• Finger tighten.

Flanges inside

• Attach (2) K, as shown, using (2) AA, (2) BB, and (2) CC in each K.

• Finger tighten.

'\ \\\

Flange on

._top

STEP 3:

AA(12)

BB(12)

CC(12)

Place A on its back on packaging material as shown.

Packaging/:i..........................i:,_:;:

material

Packaging

material

• Attach assembly from steps 1 and 2, using (12) AA, (12) BB, and (12)

CC.

• The notches should be on the side with the label. Leave holes in

notches open for late assmbly.

Leave open for

later assembly

.Label

Notch

_lllll

STEP 4:

AA(2)

BB(4)

CC(4)

EE(2)

In a seperate

bag

• Attach handle (B) to bottom set of holes using (2) AA, (2) BB,

and (2) CC.

• Install (2) EE in top set of holes using (2) BB and (2) CC.

In a seperate bag

\/AA

• Install (2) L, as shown.

• Close the lid. Adjust for optimum lock performance.

• Open the lid.

• Wrench tighten all fasteners.

/_STEP 5:

DD(16)

BB(16)

CC(16)

•Attach casters (G and H) using (4) DD, (4) BB, and (4) CC in each

caster.

• Wrench tighten.

• Discard screws in caster package (if supplied).

Note: Mount both swivel casters (H) on the same side of the unit as the

handle.

k,.

REMOVING AND INSTALLING DRAWERS:

• Empty the drawer.

• Fully extend the drawer.

Release :/

Lever Style - Lift or lower (depending on the

slide) the release lever on both sides, (this

allows the slides to ride over the stops.) Pull

out to remove.

Tab Style - Depress the release tabs on

both sides, (this allows the slides to ride over

the stops.) Pull out to remove.

• To reinstall, carefully align

the slides and slowly push

the drawer into the unit until

the drawer stops.

Note: Make sure drawers are

matched with their original

slides.

/_GRIPLATCH TMDRAWER FRONTS:

To open, lift up on the drawer front while pulling towards you.

\\\

"\\\\\\

.j---

• To close, shut the drawer firmly until the latch engages.

• Pull back lightly to see if the drawer is completely closed.

• If the drawer does not stay closed, the striker may be bent, or

the striker rubs against the drawer slides.

• To fix the problem, lightly bend the striker until the drawer will

engage in the slide.

• Unit not shown for clarity.

f• Lubricate lock with graphite, (yearly).

• Lubricate the slides with grease or equivalent, (twice yearly.)

• For casters, use high quality bearing grease, (yearly).

• Periodically the drawer fronts, drawer trim, and other surfaces

should be cleaned with a mild detergent and water.

• Grease and oil can be removed with most standard cleaning

fluids. For safety, use a nonflammable cleaning fluid.

• If drawer liners are supplied, it is recommended they are used

to protect the finish inside the drawers and to make the drawers

easier to clean. The drawer liners may be cleaned with soap

and water.

• For units with paint finish, auto wax will preserve the unit's

luster finish. Apply the wax as to a car. The wax wilt also help

protect the unit against scratches.

• For stainless steel units, the unit may be polished with stainless

_,steel polish periodically. ,j

MANUAL DE USUARIO

ICRFIFTSM FIN°I

CARRO DE SERVIClO DE 3 GAVETAS

Sirvase indicar ta siguiente informaci6n que encontrara en el dibujo suministrado

de la pieza de servicio.

NQmero de modelo:

Descripci6n del modelo:

*Su modelo puede variar de el que esta mostrado.

Precau¢idn: Lea y siga todas tas regtas de seguridad e instrucciones para el

manejo antes de usar la unidad por primera vez. Conserve este manual para

referencia futura.

Sears, Roebuck and Co., Hoffman Estates, IL 60179, Estados Unidos F1602A3

S Y PRECAUCIONES DE SEGURIDAD:

• Asegure adecuadamente la unidad antes de moverla con un montacargas.

• Cierre la tapa y asegure las gavetas y puertas antes de mover este producto. Estas se podrian abrir y hacer que el producto quede inestable y se vuelque,

Io cual podria causar lesiones personales o dafios al producto.

• NO altere la unidad en modo alguno. Por ejemplo, no suelde las barras de sujeci6n externas nile incorpore equipos electricos. Podria causar dafio a la

unidad o lesiones personales.

• NO monte esta unidad en la plataforma de carga de la camioneta ni en ningen otro objeto m6vil. Podria causar lesiones personales o dafio a la unidad.

• NO se ponga de pie sobre la unidad. Podria caerse y lesionarse.

• NO se ponga de pie en las gavetas. Podria caerse y lesionarse.

• NO arrastre la unidad con equipo electrico. La unidad podria volcarse, Io cual podria ocasional lesiones personales o dafio a la unidad.

• Mantenga el producto sobre superficies planas. El producto puede desestabilizarse y volcar si se almacena o se mueve en superficies no lianas, Io cual

podria causar lesiones personales o dafiar el producto.

• Utilice el personal adecuado para el montaje y el traslado de esta unidad. De Io contrario podria ocasionarse lesiones personales o dafiar el producto.

• Utilice el equipo de seguridad adecuado cuando emplee herramientas electricas. De Io contrario, podria causarle lesiones personales u ocasionar dafios al

producto.

• UTILICE LOS FRENOS cuando el producto no este en movimiento. Esto impedira que se deslice, Io que podria causar lesiones personales u ocasionar

dafios al producto.

• Cuando mueva la unidad, no la hale. EmpQjela para evitar lesiones personales.

• El peso maximo en cada gaveta no debe ser mayor de 34 kg.

HERRAMIENTAS NECASARIAS

Ltave de tubo

Casquitlo adaptador de 1/2 pulgadas

Llave de extremo abierto de 1/2"

Llave de extremo abierto de 12 mm

FERRETERiA INCLUIDA

AA(38)

BB(56)

CC(56)

DD(16)

EE(2)

En unabolsa

separada

(Llame al 1-800-659-7084 para las piezas de repuesto. Consulte el dibujo de

piezas de servicio si desea un listado completo de piezas de serviclo.

C(4)_ .....

With notch. \\\ \. -\\

\. \

K(2)

J(2)

With notch

G(2)

H(2)

PASO 1:

AA(16)

BB(16)

CC(16)

Nota: Retire todos los componentes de las gavetas antes de ensamblar

esta unidad.

• Ensamble F, D, E, y (2) C, como se ilustra, utilizando (4) AA, (4) BB, y

(4) CC en cada C.

• Apriete a mano.

Alinee los

agujeros .

• Fije M, N, y los restantes C al extremo opuesto de F de la misma

manera.

• Apriete a mano.

PASO 2:

AA(8)

BB(8)

cc(8)

• Sujete la pieza (2) J, segQn se muestra, utilizando la (2) AA, (2) BB, y

(2) CC en cada J.

• Apriete a mano.

PestaSas

hacia adentro

• Sujete la pieza (2) K, segen se muestra, utilizando la (2) AA, (2) BB, y

(2) CC en cada K.

• Apriete a mano.

Brida en la

jparte superior

'\ \\\

Indice
