Creality BLTouch Manuale utente

Manual

AUTO BED LEVELING SENSOR FOR 3D PRINTER

Apply to 32-bit motherboards

Application:

Ender-3 | Ender-3s | CR-10

Ender-3Pro | Ender-5/5S/5Pro

BL Touch*1Pcs

Connectors*1Pcs

Tie*3Pcs

Application:

Ender-3 MAX

M3*8 2Pcs M3*6 2Pcs

Application:

Ender-3 V2

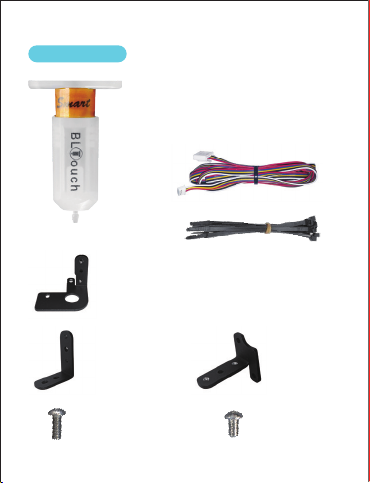

1. Packing List

Note: During BL Touch installation, remember

to pull out the Z endstop switch for auto

leveling. Otherwise it won't work.

Application:

Ender-3 Series | Ender-5/5S/5Pro | CR-10 | Ender-6 (No rack)

2. Circuit Principle

32 bit

Mainboard

5pin

Z Stop

Connectors BL Touch

3. Update Firmware

（To make

flashed successfully, pleasesurethe firmware can be

format the SD card before flashing the firmware）

3. Copy the firmware to the SD card.

Note: the SD card can only hold one firmware file.

Note: Every machine has different firmware files.

Ender-x

xxxxxx ...

Ender-x xxxxxx-vxxx-BLTOUCH

File download website:

https: www.creality.com/download/

2.Firmware download (before

downloading firmware, please

confirm your printer model,

motherboard version, and hard-ware

configuration-whether it comes with

filament sensor or not).

Each printer model corresponds to the BL Touch

firmware, please check appendix 1.

4. Insert SD card. 5. Insert the power cord

and press the switch.

Note: Every machine has

its own operation interface.

6. Wait for the firmware to complete upgrade.

(about 10 seconds).

1. Insert connectors into 5 Pin Port.

2. Install BL Touch on the rack with 2 M3*6 screws.

4. Install BL Touch

3. Loosen all fan cover screws, install the BL Touch rack

on the corresponding position with 2 M3*8 screws.

4. Tie the BL Touch cable together with other printer

cables like the above picture shown.

5. Circuit Wiring

Note: Unplug the cable from Z endstop/limit switch.

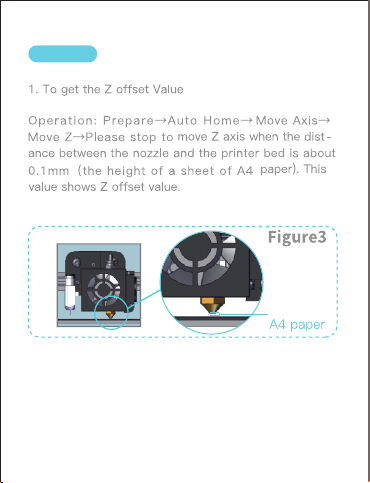

6. Steps

0.1mm
