2.2 Mechanical parts:
•Frame (plexiglass, aluminum, steel, wood, etc..)
• Hardware Kit, Kit of smooth and threaded rods
• Bearings, flexible couplings, pulleys and belts
• Glass or mirror
In addiction to these components (all included in the kit offered by Createc
3D), we need tools and supplies for the installation such as:
• Allen wrench set, welder and tin
• Hex wrenches 13 and 17
• Plan and Star Screwdriver
• Tape measure, gauge
• Scissors, Pliers, file, Blade
• Drill and drill bits metric 3, 5 and 8
• Acetone, Glue (cyanoacrylate recommended)
3.-INSTALLATION PROCESS
Before mounting the printer, the preparation of the plastic parts is essential: remove
the support structures of the parts that presents it, shape and / or drill the holes, weld the
nuts etc.. the most common preparations are shown below:

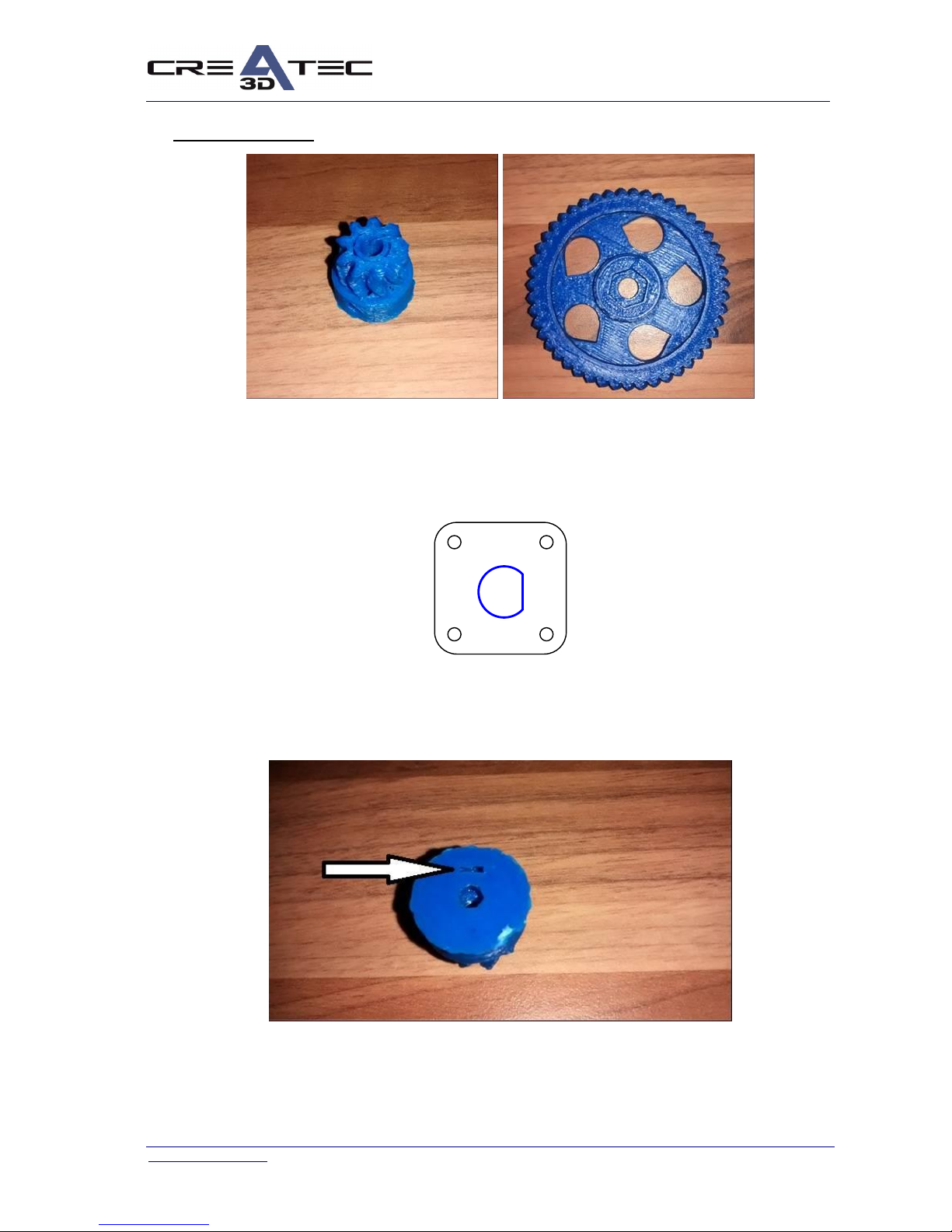

Extruder:
It is a very important part because it sustain the hot tip, the engine and where the
plastic filament pass through:
