Creative SOUND BLASTER TACTIC3D OMEGA WIRELESS Manuale utente
Congratulations!
Experience the next phase of gaming audio evolution with the Sound
Blaster®Tactic3D Alpha and Sound Blaster®Tactic3D Sigma gaming
headsets! Acoustically optimized and evolved to match up with today and
tomorrow’s 3D gaming systems, the Sound Blaster Tactic3D Alpha and
Sound Blaster Tactic3D Sigma are equipped with THX®TruStudio Pro™
technology designed by the legendary sound engineering teams at
Creative Labs and THX.
System Requirements
Minimum Requirements
• 600 MB of free hard disk space
• Available USB 1.1 or 2.0 port
• Internet connection to download drivers and applications available for this
product
For Windows
•Microsoft
®Windows®7 32-bit or 64-bit, Windows Vista®32-bit or 64-bit
with Service Pack 1 or higher, Windows XP Professional x64 Edition or
Windows XP with Service Pack 2 or higher
•Intel
®Pentium®4 or AMD®equivalent processor, 1.6 GHz or faster
• Intel, AMD or 100% compatible motherboard chipset
• 512 MB RAM
For Mac
•MacOS
®X 10.5 or higher
• Intel Core™ Duo processor, 1.6 GHz or faster
• 1 GB RAM
Recommended Requirements
For Windows
• Intel Core 2 Duo or AMD equivalent processor, 2.0 GHz or faster
• 1 GB RAM
For Mac
• Intel Core Duo processor 1.8 GHz or faster
• 2 GB RAM
NOTE Due to programming changes, the recommended system requirements
for the software may change over time.
About Your Headset
Sound Blaster Tactic3D Gaming Headset
Noise-canceling
microphone
Volume
control dial
THX TruStudio Pro USB adapter
Microphone
mute switch
Adjustable headband
Setting Up Your Headset
Before using your headset, you should install the drivers and applications
for it by following the steps below. This lets you enjoy the full features of
your headset such as THX TruStudio Pro audio enhancements and
VoiceFX voice morphing technology.
Step 1: Download the software
Visit www.soundblaster.com/Tactic3D to download the latest drivers and
applications available for your headset.
Step 2: Connect the THX TruStudio Pro USB adapter to your
computer’s USB port
Step 3: Install the software
For all supported Windows OS
1Navigate to the folder where you have downloaded the software.
2Double-click the downloaded file.
3To complete the installation, follow the instructions on the screen.
4When prompted, restart your computer.
You can launch the application by clicking Start Programs or All Programs
Creative Sound Blaster Tactic(3D) headset Sound Blaster Tactic(3D) Control
Panel
For Mac OS
1Double-click the downloaded file to uncompress it.
2Double-click the uncompressed DMG file.
3Double-click the Install icon.
4To complete the installation, follow the instructions on the screen.
You can launch the Sound Blaster Tactic(3D) Control Panel from the Applications
folder.
Step 4: Set the default audio device (For Mac OS only)
1Go to System Preferences, then click Sound.
2Click the Output tab, then select Sound Blaster Tactic(3D) headset.
3Click the Input tab, then select Sound Blaster Tactic(3D) headset.
NOTE If prompted for the audio drivers, click the Cancel button.
Using Your Headset

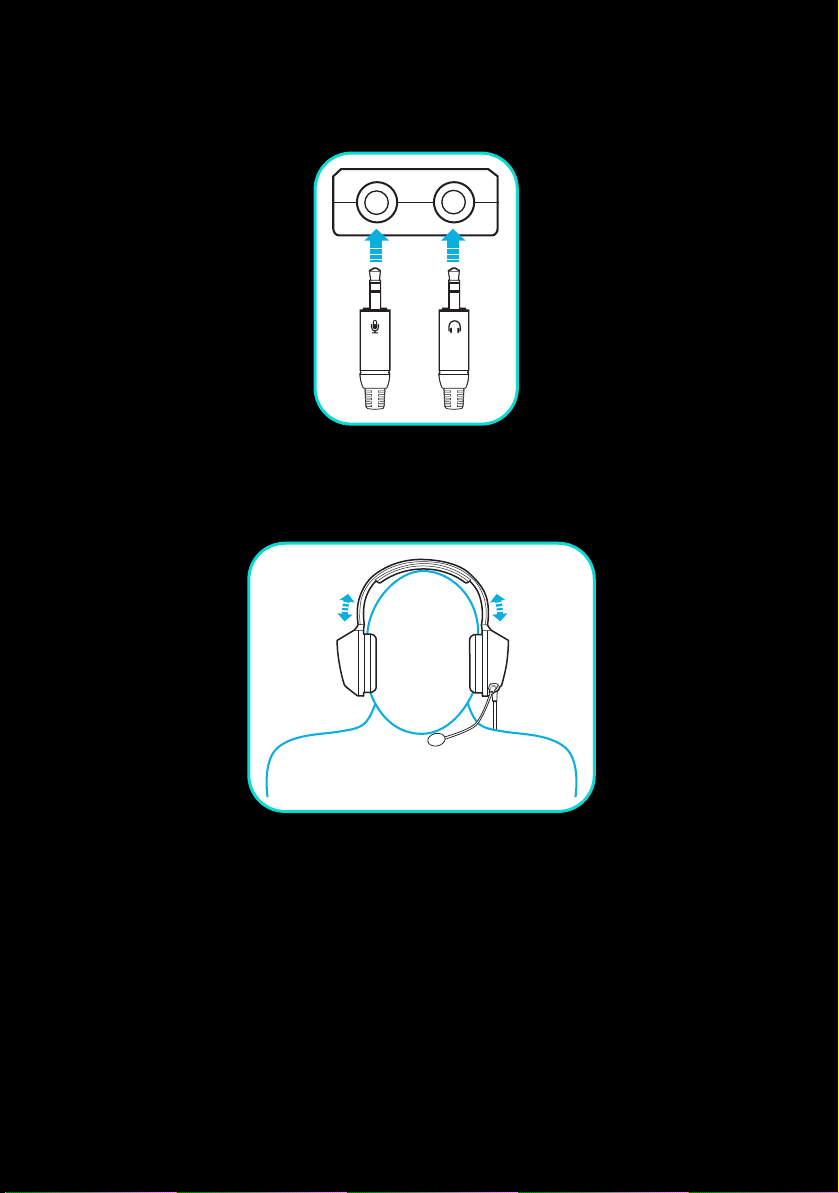

Connect the headset to the THX TruStudio Pro USB adapter
Put on the headset
Adjust the headband so that the headset rests lightly on your head. Do not
tighten excessively.
CAUTION Adjust headset volume to a comfortable level. Do not listen to audio on
your headset at high volumes for prolonged periods of time as hearing
loss might result.
Sound Blaster Tactic3D Control Panel
Managing your TacticProfiles
Activate a profile by clicking and
selecting it from the list.
Click to save all settings
to the current profile or create a new
profile. Click to delete the
active profile.
Customizing your avatar
You can customize the avatar for
each profile by clicking the portrait
and selecting another one from the
list.
Sharing TacticProfiles
You can export your custom settings
and share them with others, or
import other gamers’ custom
settings.
NOTE • TacticProfiles for Windows and Mac are not compatible with each other.
1 2 3
4
1
Adjusting your volume settings
Drag the headset or microphone
volume marker to adjust the volume
level.
You can mute/unmute the headset or
microphone by clicking their
respective icon.
Configuring your software settings
Click each feature to access its
settings page. More information on
each feature can be found in their
respective sections in this manual.
Configuring your general settings
You can change the language
settings or restore settings to their
default values. Click and select
the option from the list.
2
3
4

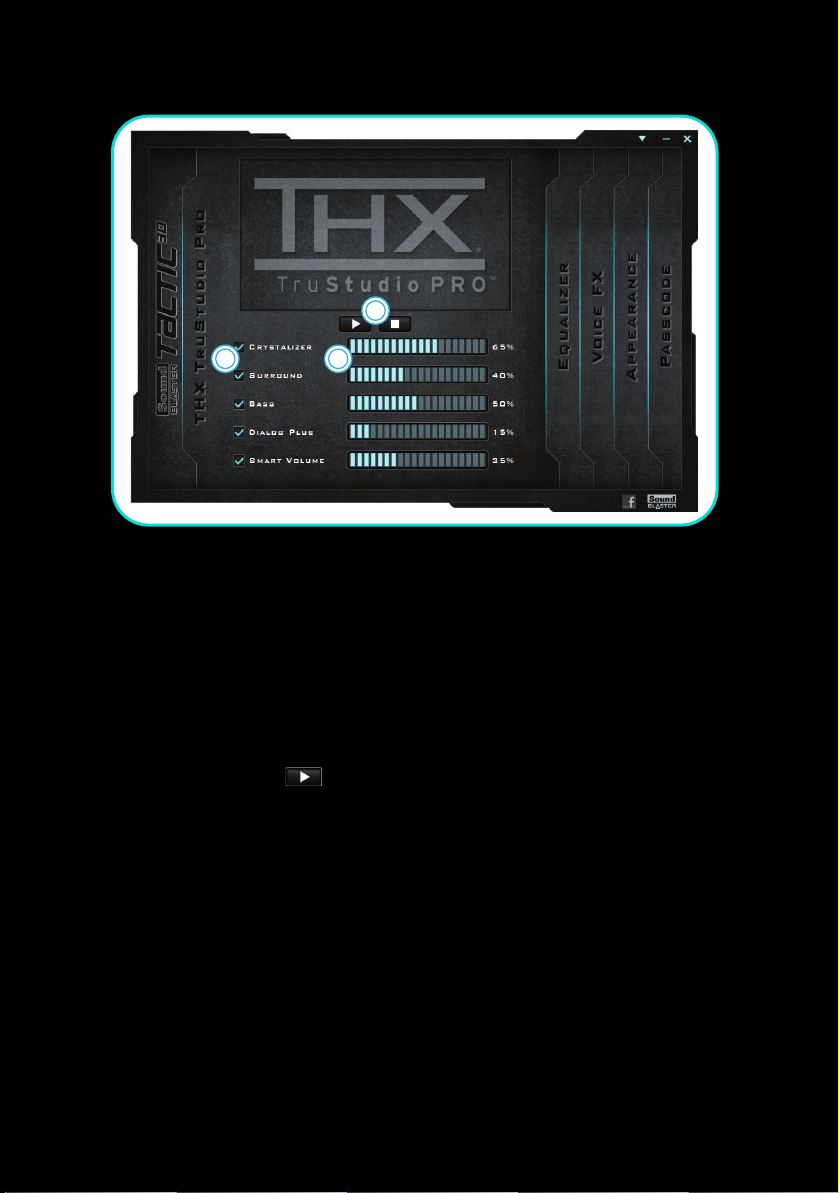

THX TruStudio Pro Settings
1AudioTestcontrols
Play/Pause or Stop the demo video.
2 THX TruStudio Pro enhancements
Select to enable or disable each enhancement.
3 Enhancement Level slider
Adjust the amount of enhancement to apply.
Enhancing your audio experience
You can adjust the amount to apply for each enhancement by dragging its
slider left to decrease or right to increase. To test the effects of the audio
enhancements, click and listen to the demo video.
1
2 3
Equalizer Settings
1 EQ presets
Select an equalizer preset to apply to your audio.
2 EQ sliders
Adjust the equalizer settings.
Customizing your EQ settings
Select the EQ checkbox to enable this feature, then click the EQ drop-
down arrow and select a preset from the list.
Selecting a preset will move the EQ sliders to the appropriate values. You
can adjust the equalizer setting by dragging the sliders up or down to the
desired level.
You can save your custom settings as new presets or delete existing ones.
NOTE The list of default EQ presets cannot be deleted.
1
2
VoiceFX Settings
1 VoiceFX presets
Select a VoiceFX preset to apply to your voice input.
2 VoiceFX audio test
Listen to your voice with the selected VoiceFX preset applied.
Customizing your VoiceFX settings
Select the VoiceFX checkbox to enable this feature, then click the VoiceFX
drop-down arrow and select a preset from the list.
Click to listen to how your voice will sound with the selected
VoiceFX preset applied.
1 2
