Crestron SMK-6X Manuale utente

Crestron SMK-6X

Swivel Mount Kit for TPS-6X

Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron SMK-6X Swivel Mount Kit for TPS-6X

Contents

Swivel Mount Kit for TPS-6X: SMK-6X 1

Introduction ...............................................................................................................................1

Features and Functions................................................................................................1

Specifications ..............................................................................................................1

Physical Description....................................................................................................2

Setup ..........................................................................................................................................3

Supplied Hardware ......................................................................................................3

Installation................................................................................................................... 3

Resources...................................................................................................................................9

Industry Compliance ...................................................................................................9

Further Inquiries .......................................................................................................... 9

Future Updates ............................................................................................................ 9

Return and Warranty Policies ..................................................................................................10

Merchandise Returns / Repair Service ...................................................................... 10

CRESTRON Limited Warranty.................................................................................10

Installation Guide – DOC. 6577A Contents •i

Crestron SMK-6X Swivel Mount Kit for TPS-6X

Swivel Mount Kit for TPS-6X:

SMK-6X

Introduction

Features and Functions

• Designed for attachment to the TPS-6X-DS desktop docking station

• Swivel mount increases security by reducing chance of theft while

improving viewing convenience

• Base rotates 330 degrees

• Mounts on the desktop, in a lectern or on a conference table

• Accommodates surface thickness from 3/4 inch (1.91 cm) minimum to

1 3/8 inches (3.50 cm) maximum, using the hardware provided

• Cables route through center of assembly, keeping cables completely

hidden from work surface

• Customizable swivel range for added security and convenience

Specifications

Specifications for the SMK-6X are listed in the following table.

SMK-6X Specifications

SPECIFICATION DETAILS

Dimensions

Height 2.64 in (6.69 cm)

Width 6.09 in (15.45 cm)

Depth 5.80 in (14.74 cm)

Weight 0.96 lbs (0.44 kg)

Installation Guide – DOC. 6577A Swivel Mount Kit for TPS-6X: SMK-6X •1

Swivel Mount Kit for TPS-6X Crestron SMK-6X

Physical Description

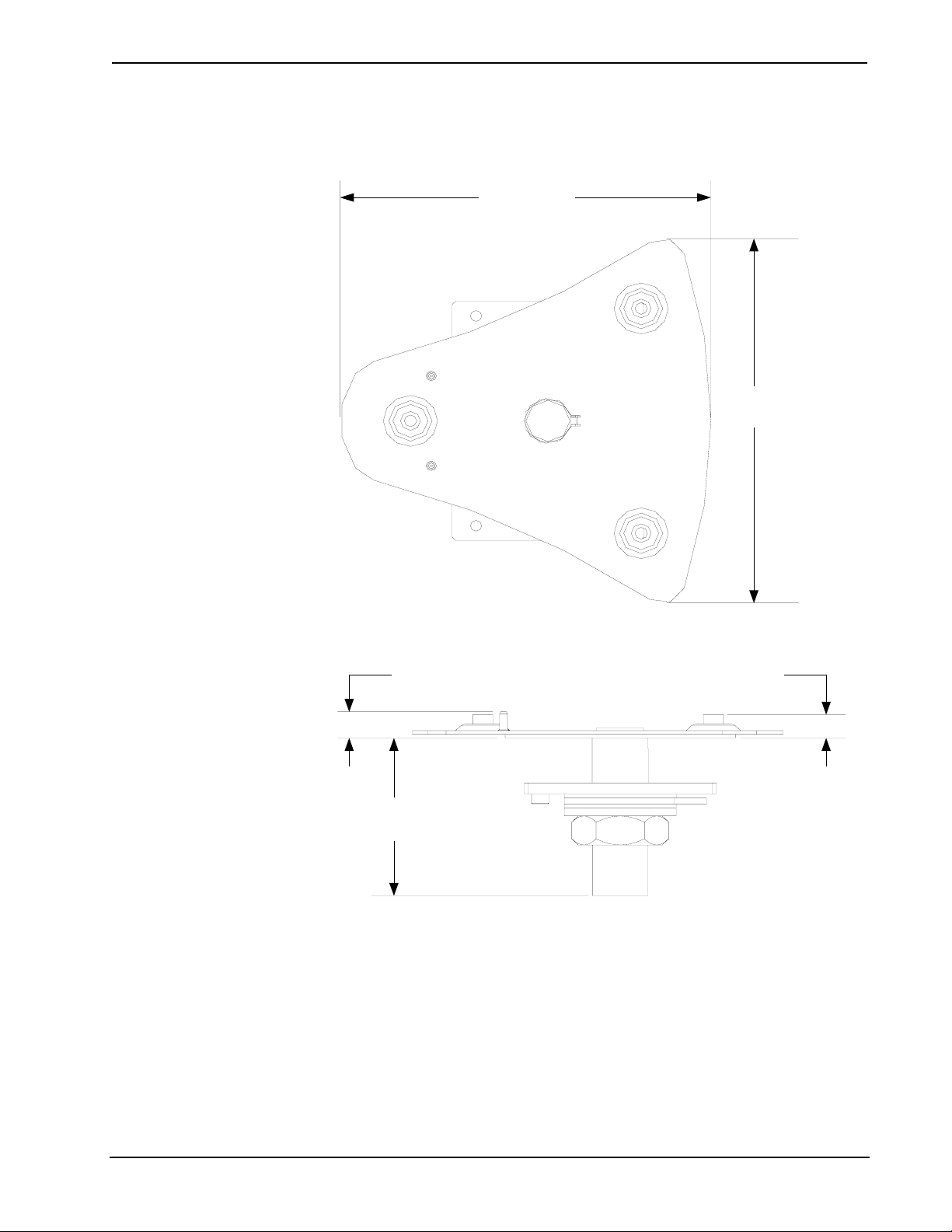

SMK-6X Overall Dimensions

5.80 in

(14.74 cm)

6.09 in

(15.45 cm)

0.39 in

(0.99 cm)

0.44 in

(1.11 cm)

2.64 in

(6.69 cm)

2 •Swivel Mount Kit for TPS-6X: SMK-6X Installation Guide – DOC. 6577A

Crestron SMK-6X Swivel Mount Kit for TPS-6X

Setup

Supplied Hardware

The hardware supplied with the SMK-6X is listed in the following table.

Supplied Hardware for the SMK-6X

DESCRIPTION PART NUMBER QUANTITY

Assembly, Swivel Stop Plate And Screw 4504353 1

Metal, Washer, Keyed, Swivel Stop 4506321 1

Cork/Rubber, Washer, Custom, Swivel 2017614 1

Rubber, Washer, Custom, Swivel 2017615 1

Screw, #08-32 x 3/8”, Steel 2007269 3

Screw, #08-32 x 1/8”, Steel 2017634 2

Washer, Flat, Steel, 7/8-A Narrow,

15/16” Inner Diameter, 1.75” Outer

Diameter, 0.134” Thick

2017633 1

Nut, #7/8”-14, 1-15/16” Hex Diameter,

31/64”H, Steel, Zinc

2017632 1

Screw, #08-8B, 1/2”, Pan, Phil 2017784 6

Template, Overlay, Table Cutout 4504871 1

Installation

To attach the SMK-6X Swivel Mount Kit to the TPS-6X-DS and install the assembly

on a suitable mounting surface, refer to the following procedures.

NOTE: The mounting surface thickness must be 3/4 inch (1.91 cm) minimum to

1 3/8 inches (3.50 cm) maximum using the hardware provided.

Preparing the TPS-6X-DS

1. Remove the four screws on the TPS-6X-DS as shown in the first illustration

on the following page.

2. Carefully remove the rear cover.

3. Slide the grommet out of the bottom of the rear cover and cut the grommet

from the cable.

4. Slide the boot up the cable away from the connector as shown in the second

illustration on the following page.

5. Feed the connector, then the boot and finally the full length of the cable

through the bottom cutout in the base of the TPS-6X-DS.

6. Install the blank grommet provided with your TPS-6X-DS into place on the

rear cover.

7. Replace the boot over the connector.

8. Replace the rear cover and the four screws removed in step 1.

Installation Guide – DOC. 6577A Swivel Mount Kit for TPS-6X: SMK-6X •3

Swivel Mount Kit for TPS-6X Crestron SMK-6X

CAUTION: Use caution when cutting the grommet to prevent damage to the

connecting cable. Damage to this cable can result in loss of functionality in the

TPS-6X.

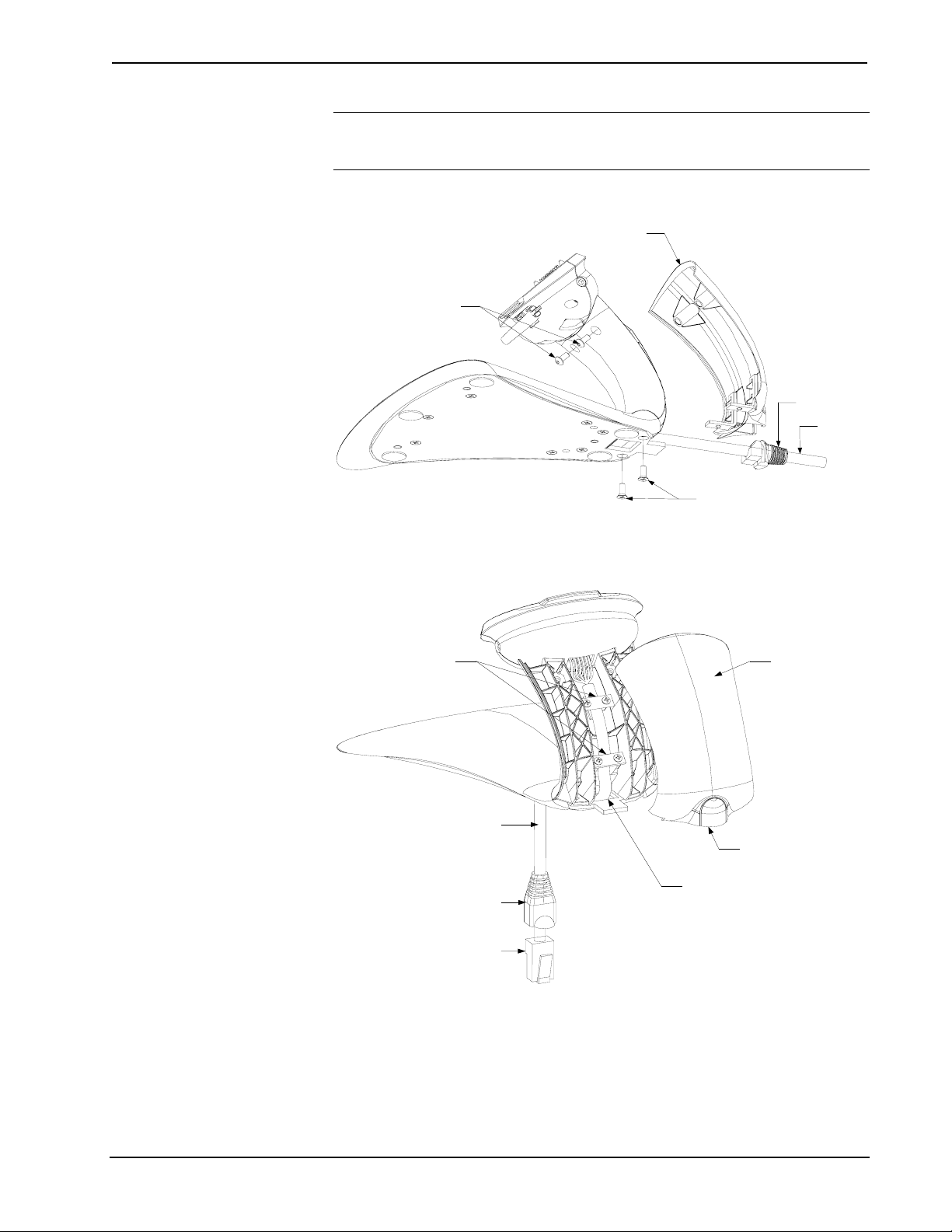

Preparing the TPS-6X-DS (1 of 2)

Remove These

Screws Using a

1/16" Allen

Wrench

Remove These Phillips

Head Screws Using a

No.1 Phillips Screwdriver

Rear Cover

Grommet

Cable

Preparing the TPS-6X-DS (2 of 2)

Do Not Remove

Rear Cover

Blank Grommet

Bottom Cutout

In Baseplate

Cable

Boot

Connector

4 •Swivel Mount Kit for TPS-6X: SMK-6X Installation Guide – DOC. 6577A

Crestron SMK-6X Swivel Mount Kit for TPS-6X

SMK-6X/TPS-6X-DS Assembly

1. Feed the Connector/Boot and the full length of the cable through the swivel

mechanism tube with the cable positioned between one of the guide pins

and the rearmost screw hole as shown in the illustration below.

2. Attach and secure the swivel mechanism plate to the TPS-6X-DS using the

provided screws.

3. Pull the remaining cable slack down through the swivel mechanism tube.

CAUTION: Ensure that the cable is not pinched at any point between the swivel

mechanism plate and the base of the TPS-6X-DS.

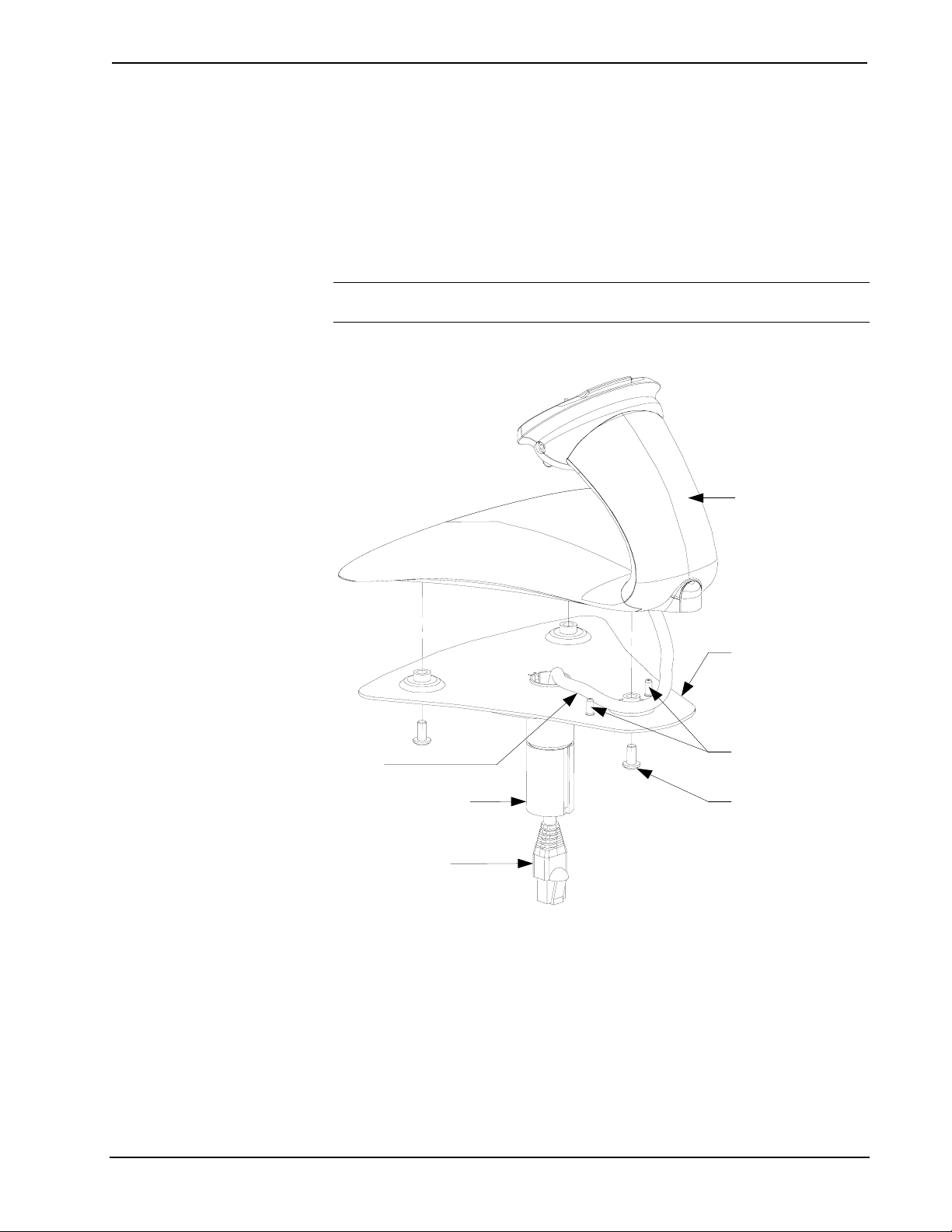

SMK-6X/TPS-6X-DS Assembly Diagram

Cable

Swivel Mechanism

Tube

Connector/Boot

Swivel

Mechanism Plate

Guide Pins

Screws (3) #08-32

(2007269)

TPS-6X-DS

Installation Guide – DOC. 6577A Swivel Mount Kit for TPS-6X: SMK-6X •5

Swivel Mount Kit for TPS-6X Crestron SMK-6X

SMK-6X Swivel Mount Kit Installation

NOTE: The swivel stop plate has a permanently installed limiting screw to prevent

the swivel mechanism plate from spinning continuously in one direction and tangling

the cable attached to the TPS-6X-DS. This permanently installed limiting screw must

be oriented so it is aligned with the rear of the TPS-6X-DS as shown in the

illustration on the following page.

1. Prepare the mounting surface using the template provided with the kit. The

center hole diameter for the swivel mechanism tube should be 7/8 inch

(2.23 cm) minimum, 15/16 inch (2.39 cm) maximum. Position the template

so the edge indicated as the front edge of the table aligns with the desired

front position of the touchpanel. Observe the dashed line indicating the

front edge of the TPS-6X-DS to ensure the touchpanel will not overhang the

mounting surface.

2. Using the six mounting holes on the swivel stop plate as a template, drill

pilot holes 0.093 inch (0.24 cm) minimum, 0.115 inch (0.30 cm) maximum

in diameter, and no deeper than 0.35 inch (0.89 cm). Attach the swivel stop

plate to the bottom of the mounting surface using the six screws provided

with your kit. Pass the swivel mechanism tube down through the mounting

hole and stop plate.

3. Slide the provided hardware up onto the swivel tube in the order indicated

in the illustration on the following page.

NOTE: The keyed metal washer (4506321) will fit onto the swivel mechanism tube

in one of two orientations. Orient the tab on the washer to face the front edge of the

mounting surface.

4. Tighten and adjust the provided nut onto the swivel tube to achieve the

desired resistance on the swivel assembly’s motion. A flat tool (such as a

large flat-head screwdriver) may be used in the slot on the bottom of the

swivel mechanism tube to hold the tube still while tightening the nut.

6 •Swivel Mount Kit for TPS-6X: SMK-6X Installation Guide – DOC. 6577A
