Crestron MiniTouch MT-1000C Istruzioni operative

Crestron MT-1000C

3.8 Inch RF Remote

Programming Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron MT-1000C 3.8 Inch RF Remote

Contents

3.8 Inch RF Remote: MT-1000C 1

Introduction ..........................................................................................................1

Programmable Buttons...........................................................................1

USB Programming Port .........................................................................2

Configuration Software ........................................................................................2

Earliest Version Software Requirements for the PC ..............................2

Microsoft®ActiveSync® and the MT-1000C Driver..............................3

Programming with SIMPL Windows.....................................................4

Programming with VisionTools®Pro-e .................................................9

New Programming Objects ..................................................................14

WAV File Audio Messages..................................................................22

Project Upload and Firmware Upgrade..............................................................23

Project Upload......................................................................................24

Firmware Upgrade ...............................................................................25

Problem Solving .................................................................................................28

Further Inquiries...................................................................................29

Firmware Upgrades..............................................................................29

Future Updates .....................................................................................29

Return and Warranty Policies.............................................................................30

Merchandise Returns / Repair Service .................................................30

CRESTRON Limited Warranty ...........................................................30

Programming Guide – DOC. 6330A Contents •i

Crestron MT-1000C 3.8 Inch RF Remote

3.8 Inch RF Remote: MT-1000C

Introduction

This guide contains programming and configuration information for the

MT-1000C 3.8 inch RF remote. For detailed operation information, refer to the

latest version of the MT-1000C Operations Guide (Doc. 6322), available from

the Crestron®website (http://www.crestron.com/manuals).

Programmable Buttons

The MT-1000C has 16 hard key programmable buttons.

●VOL Up/Down (Join numbers 1 and 2) ●MENU (Join number 12)

●CH Up/Down (Join numbers 3 and 4) ●EXIT (Join number 13)

●MUTE (Join number 5) ●Page Back (Join number 14)

●INFO (Join number 6) ●Page Forward (Join number 15)

●Thumb pad with UP (Join number 7),

RIGHT (Join number 8), DOWN (Join

number 9), LEFT (Join number 10),

and SELECT (Join number 11)

●MAIN (Join number 16)

NOTE: To program hard buttons 14, 15 and 16, the MT-1000C must contain

firmware version 2.22.1.50420, and you must use VisionTools®Pro-e version

3.3.3.6 or later. To view the firmware version, press and hold the MAIN button

for five seconds. Then select System.

Programming Guide – DOC. 6330A 3.8 Inch RF Remote: MT-1000C •1

3.8 Inch RF Remote Crestron MT-1000C

NOTE: When using firmware 2.22, the hard buttons do not work when the low

battery warning is displayed.

USB Programming Port

Located on the rear side, this port connects to a computer with a USB cable

(included with the MT-1000C) for loading operation programming.

MT-1000C Rear View

Configuration Software

Have a question or comment about Crestron software?

Answers to frequently asked questions (FAQs) can be viewed in the Online Help

section of the Crestron website. To post a question or view questions you have

submitted to Crestron’s True Blue Support, log in at http://support.crestron.com.

First-time users will need to establish a user account.

The MT-1000C provides a wireless RF user interface in a Cresnet®2-Series

control system, and also works with X-Series using a CNRFGWA-418 gateway.

NOTE: Crestron recommends using gateway CNRFGWA-418 or control

system MC2W units that shipped after February 15, 2005. Earlier units are not

compatible with the MT-1000C. If you have an earlier unit, it may be returned

for an upgrade. Contact Crestron customer support for more information.

You can create a program that allows you to set up the MT-1000C to operate a

Crestron control system using the Crestron programming tool SIMPL Windows.

Earliest Version Software Requirements for the

NOTE: Crestron recommends that you use the latest software to take advantage

of the most recently released features. The latest software is available from the

Crestron website.

NOTE: Crestron software and any files on the website are for Authorized

Crestron dealers and Crestron Authorized Independent Programmers (CAIP)

only. New users are required to register to obtain access to certain areas of the

site (including the FTP site).

2 •3.8 Inch RF Remote: MT-1000C Programming Guide - DOC. 6330A

Crestron MT-1000C 3.8 Inch RF Remote

The following are the earliest useable software version requirements for the PC:

• SIMPL Windows version 2.05.22 or later, Library 321 and SIMPL+

Cross Compiler version 1.1.

• Crestron VisionTools®Pro-e (VT Pro-e) version 3.3.3.5 or later. Use

version 3.3.3.6 or later to program hard keys 14, 15 and 16.

• Crestron Database version 17.1.0 or later. Required by SIMPL

Windows and VisionTools Pro-e.

• Crestron Toolbox 1.0.7 or later.

• Control system upgrade file (CUZ) version 3.008 or later.

• Microsoft®ActiveSync®version 3.8 or later (On the CD included with

the MT-1000C).

NOTE: To upgrade the MT-1000C firmware version 2.22.1.50520 in order to

use hard keys 14, 15 and 16, use Crestron Toolbox version 1.0.7 or later.

NOTE: If you are using a CNRFGWA-418 or an MC2W that was shipped prior

to February 15, 2005 you must upgrade the unit at the factory.

Microsoft®ActiveSync® and the MT-1000C Driver

The MT-1000C requires Microsoft ActiveSync and the MT-1000C driver for

communication with Crestron Toolbox. The MT-1000C driver is included in VT

Pro-e version 3.3.3.5 or later and with Crestron Toolbox.

NOTE: Begin the installation process with the equipment disconnected.

When you install VT Pro-e, the software searches for ActiveSync on your

computer. If it is not found, you will be prompted to install ActiveSync. Restart

the computer after installing the VT Pro-e and MT-1000C components or

Crestron Toolbox.

Please use the following steps to install ActiveSync.

1. Your MT-1000C comes with a CD that contains Microsoft ActiveSync.

Find and run “ActiveSync.exe” from the included CD.

2. When a new setup window opens for ActiveSync, click NEXT.

“Microsoft ActiveSync” Setup Window

Programming Guide – DOC. 6330A 3.8 Inch RF Remote: MT-1000C •3

3.8 Inch RF Remote Crestron MT-1000C

3. A new window opens to select the installation folder, simply click

NEXT to accept the defaults.

4. If a new window titled “Get Connected” opens, do not click any button

in this window. The “Get Connected” window will automatically

update. Do not click NEXT.

“Get Connected” Window

5. After both Microsoft ActiveSync and VT Pro-e version 3.3.3.5 or later,

which contains the MT-1000C driver, are installed, you can use

VT Pro-e to create a program and use Crestron Toolbox to upload the

program to the MT-1000C.

6. Plug the USB cable into your computer and then into the MT-1000C.

The hardware wizard will recognize the new addition.

NOTE: Remember which USB port was used in the Active Sync installation.

Other USB ports on your PC may not be setup for the MT-1000C, and may

display a “New Equipment Detected” or similar message, or an error message. If

the “New Equipment Detected” message is encountered, you can follow the

default prompts to apply the drivers already present to that USB port.

NOTE: Although keyed, the USB connector can be inserted up side down. This

will generate an error message.

Programming with SIMPL Windows

NOTE: The following are acceptable file extensions for programs that include

an MT-1000C, developed for specific control system types:

.smw: projectname.smw (SIMPL Windows source file)

.spz: projectname.spz (compiled file for 2-series)

.bin: projectname.bin (compiled file for CNX generation)

.csz: projectname.csz (compiled file for CNX generation with SIMPL+)

.ush: projectname.ush (compiled file for CNX generation w/ SIMPL+ header

file)

.usp: projectname.usp (source code module for SIMPL+)

.umc: projectname.umc (user macro for SIMPL)

4 •3.8 Inch RF Remote: MT-1000C Programming Guide - DOC. 6330A

Crestron MT-1000C 3.8 Inch RF Remote

SIMPL Windows is the Crestron graphical, Windows®-based development tool

for programming control systems. The SIMPL Windows interface provides two

workspaces: the Configuration Manager, for configuring the control system,

touchpanels, and controlled network devices; and Program Manager, for

designing the logic and functionality of the control system.

In addition, you can use the powerful Crestron Toolbox utility to accomplish

multiple system tasks, such as uploading the program to the control system and

performing diagnostic functions. Together with the Crestron Database, these

tools provide you with the essential components you need to program the

MT-1000C.

NOTE: The MT-1000C is shipped with a CD that contains ActiveSync. This

must be installed, and your computer rebooted, before running Toolbox. Refer to

page 2.

NOTE: The information in this section assumes that the reader has knowledge

of SIMPL Windows. If not, refer to the extensive help information provided

with the software.

This section describes a sample SIMPL Windows program that includes an

MT-1000C remote control.

NOTE: In the following programming example, a PRO2 2-Series processor is

used as the control system.

Configuration Manager is where programmers “build” a Crestron control system

by selecting hardware from the Device Library. In Configuration Manager, drag

the PRO2 from the Control Systems folder of the Device Library and drop it in

the upper pane of the System Views. The PRO2 with its associated

communication ports is displayed in the System Views upper pane.

Pro2 System View

The System Views lower pane displays the PRO2 system tree. This tree can be

expanded to display and configure the communications ports.

Expanded PRO2 System Tree

Programming Guide – DOC. 6330A 3.8 Inch RF Remote: MT-1000C •5

3.8 Inch RF Remote Crestron MT-1000C

C2Net-Device Slot in Configuration Manager

An RF gateway device is required to incorporate an MT-1000C into a system.

The C2Net-Device Slot can accept a gateway such as the CNRFGWA-418.

Once a gateway is configured in a C2Net-Device Slot, the slot allows Cresnet

communication between the MT-1000C and the control system.

NOTE: An MC2W control system can be programmed to operate at 418 MHz

without the need for a CNRFGWA-418.

To incorporate the CNRFGWA-418 into the system, drag the CNRFGWA-418

from the Wireless Receivers | Wireless Receivers (RF) folder of the Device

Library and drop it in the System Views. The PRO2 system tree displays the RF

gateway in slot 9 with a default Net ID of 24 as shown in the following

illustration.

NOTE: The first CNRFGWA-418 in a system is preset with a Net ID of 24,

when its symbol is dragged into the upper pane of System Views. Additional

CNRFGWA-418 units are assigned different Net ID numbers as they are added.

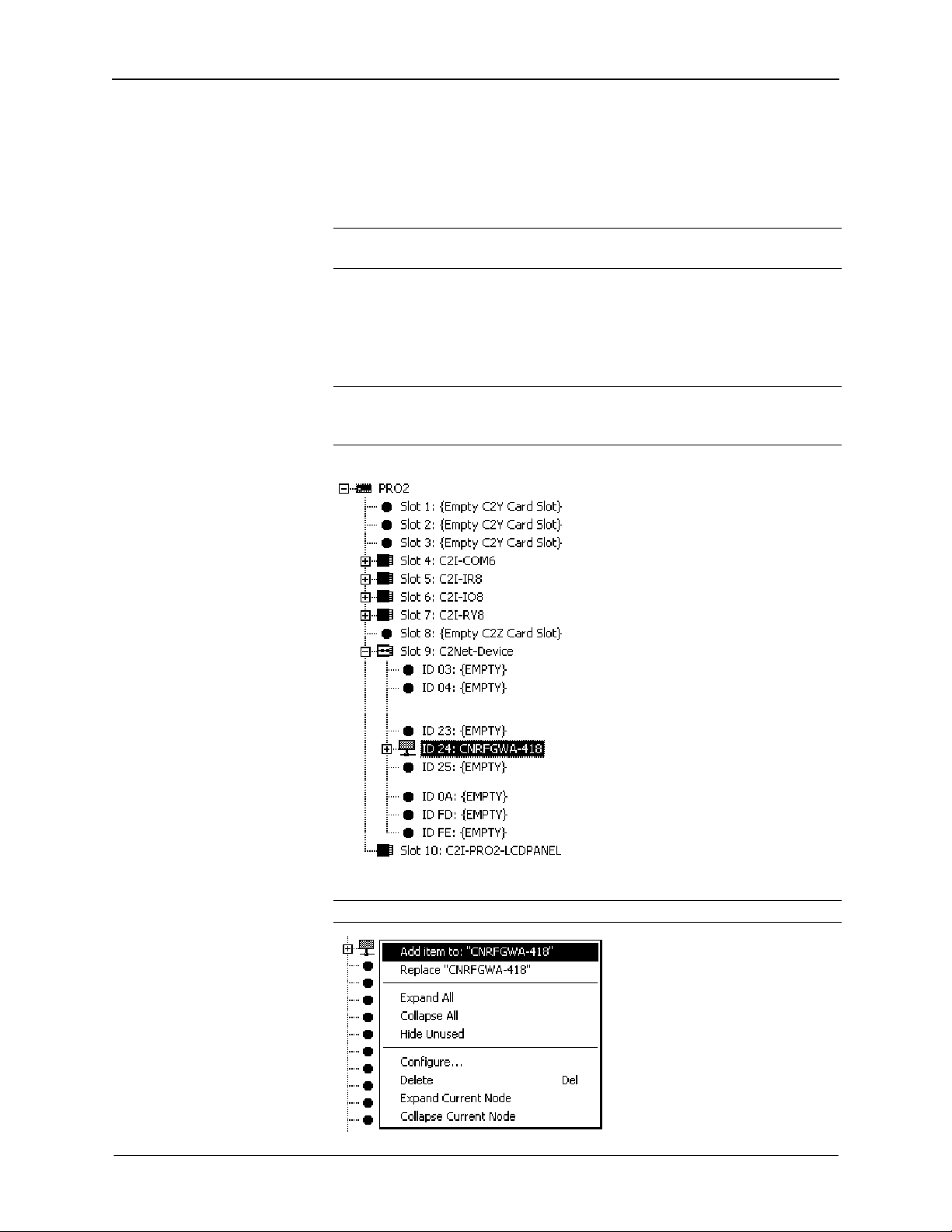

C2Net Device, Slot 9

Right-click on the CNRFGWA-418 in the System Views tree.

NOTE: The RFID in SIMPL Windows and in VT Pro-e must be the same.

6 •3.8 Inch RF Remote: MT-1000C Programming Guide - DOC. 6330A

Altri manuali per MiniTouch MT-1000C

Indice

Altri manuali Crestron Telecomando

Crestron

Crestron TSR-302 Manuale utente

Crestron

Crestron GLPPA-REMOTE-USER Manuale utente

Crestron

Crestron HR-150 Disegno dimensionale

Crestron

Crestron Prodigy PLX3 Manuale utente

Crestron

Crestron ML-500 Manuale utente

Crestron

Crestron MLX-3N Manuale utente

Crestron

Crestron ML-600 Manuale utente

Crestron

Crestron Smart Touch CNXRMIRD Manuale utente

Crestron

Crestron HR-100 Disegno dimensionale

Crestron

Crestron TSR-302 Manuale utente

Crestron

Crestron iLux CLS-IRHT8 Manuale utente

Crestron

Crestron TSR-310 Disegno dimensionale

Crestron

Crestron HRI-150 Disegno dimensionale

Crestron

Crestron ML-500 Istruzioni operative

Crestron

Crestron MLX-3 Manuale utente

Crestron

Crestron Isys i TPMC-4XG-B Manuale utente

Crestron

Crestron MLX-3 Disegno dimensionale

Crestron

Crestron HR-310 Manuale utente

Crestron

Crestron HRI-100 Manuale utente

Crestron

Crestron infiNet EX CEN-RFGW-EX Manuale utente

Crestron

Crestron TSR-310 Manuale del proprietario

Crestron

Crestron TSR-302 Manuale del proprietario

Crestron

Crestron MiniTouch MT-1000C Manuale utente

Crestron

Crestron HR-310 Disegno dimensionale

Manuali Telecomando popolari di altre marche

Panasonic

Panasonic EUR7622KB0 Manuale utente

Bang & Olufsen

Bang & Olufsen Beo4 Manuale utente

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuale utente

Multiplex

Multiplex PROFI TX 9 Manuale utente

One Remote

One Remote RMB4 Manuale utente

FUTABA

FUTABA 9ZAP - PART2 Manuale utente

HR Matic

HR Matic HR MULTI 3 Manuale utente

Yamaha

Yamaha ACC-GNRST-30-20 Manuale utente

EisSound

EisSound KBSOUND Manuale utente

Marantz

Marantz RC101 Manuale utente

Conrad

Conrad FS20 TC6 Manuale utente

Anritsu

Anritsu MP1777A Manuale utente

Niles

Niles WVC100 Guida alla risoluzione dei problemi

RCA

RCA RCU1300 Manuale utente

Bang & Olufsen

Bang & Olufsen BEO6 Manuale utente

GE 94901 Manuale utente

Onbon

Onbon YQ1-75 Manuale utente

FUTABA

FUTABA R7108SB Istruzioni per l'installazione
