Color LCD Handheld Wireless

Remote with infiNET EX®: MLX-3

Navigate the MLX-3

The MLX-3 uses a scroll wheel and a “MenuBack” button to navigate through the

LCD display.

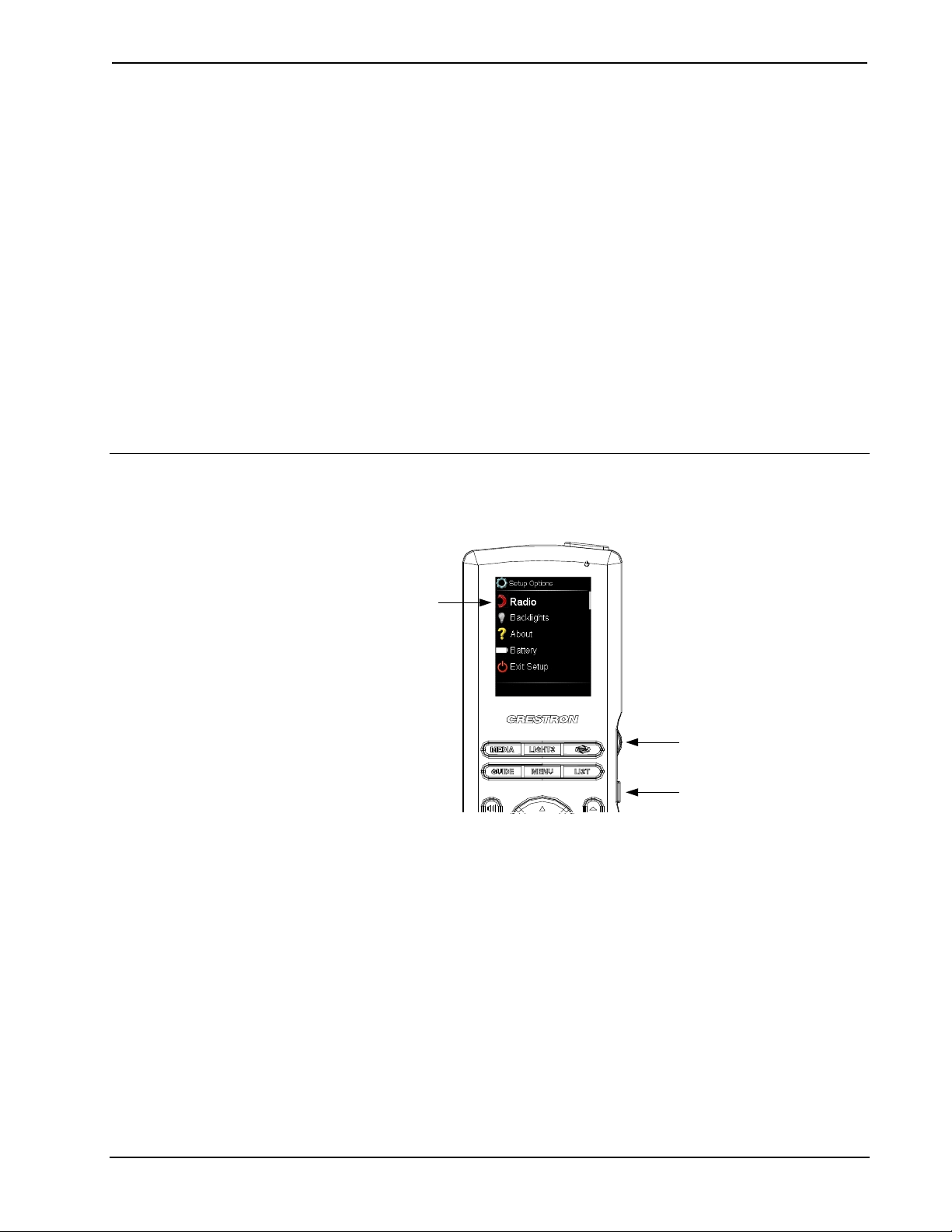

Highlighted Item

Scroll Wheel

“MenuBack” Button

• To highlight an item, turn the scroll wheel until the desired item is shown in

bold text

• To select a highlighted item, press the scroll wheel

• To return to the previous screen, press the “MenuBack” button

Configuration Guide – DOC. 7284A Color LCD Handheld Wireless Remote with infiNET EX®: MLX-3 •1

Color LCD Handheld Wireless Remote with infiNET EX®Crestron MLX-3

Access the Setup Screens

The MLX-3 is configured from the setup screen.

NOTE: If no project has been loaded or if an invalid project has been loaded, the

MLX-3 defaults to the setup menu screen.

The setup screens allow basic configuration procedures prior to regular operation of

the MLX-3.

When power is applied for the first time, the screen shown in the following

illustration appears.

Initial Screen

Press SELECT (or the scroll wheel) to display the “Setup Options” screen, as shown

in the following illustration.

“Setup Options” Screen

The “Setup Options” screen is divided into Radio, Backlights, About, Battery and

Exit Setup sections. The functions of each are detailed in the next section of this

guide.

2 •Color LCD Handheld Wireless Remote with infiNET EX®: MLX-3 Configuration Guide – DOC. 7284A

Crestron MLX-3 Color LCD Handheld Wireless Remote with infiNET EX®

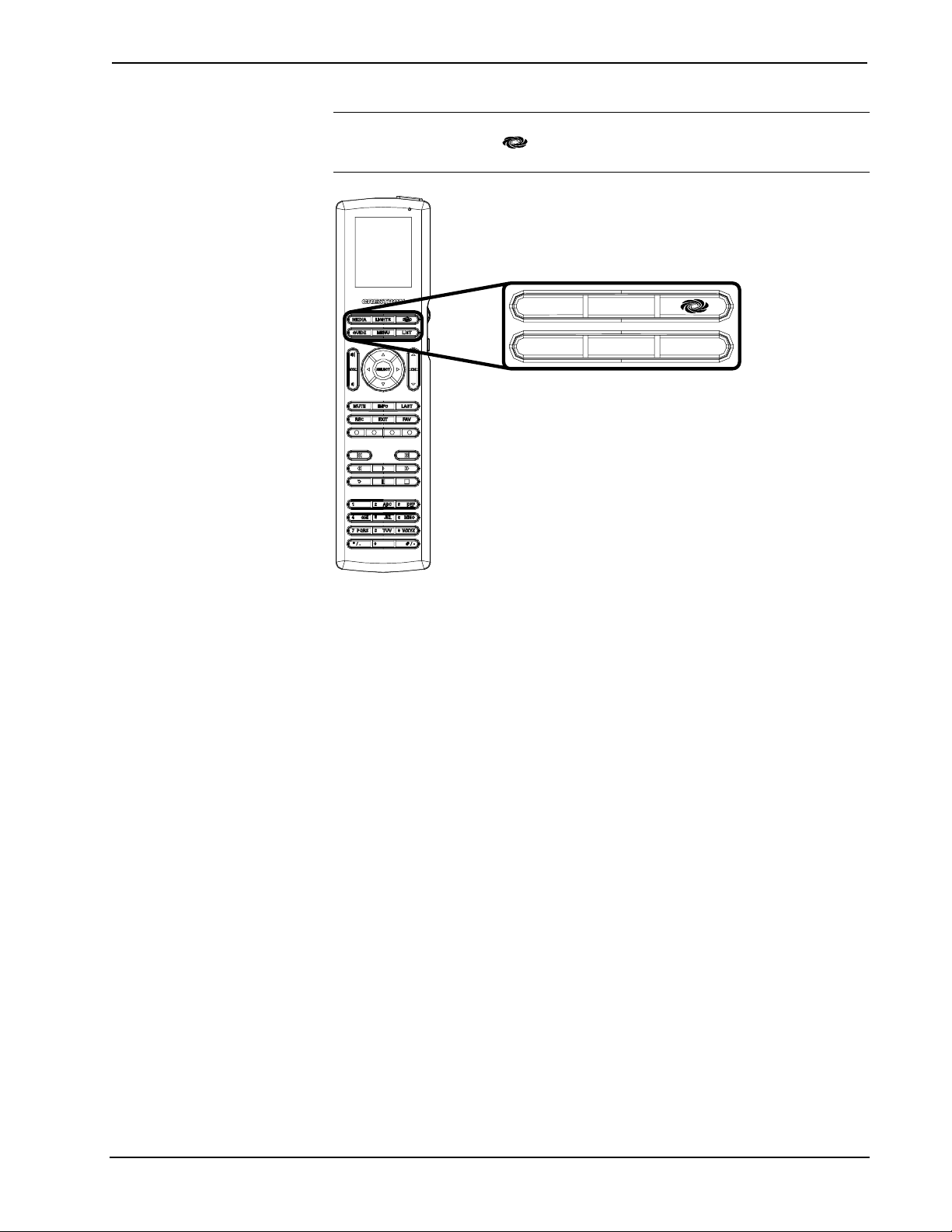

NOTE: To activate the setup functions during regular operation of the MLX-3,

press MEDIA, LIGHTS, and GUIDE in sequence twice within a five second

period.

MEDIA

GUIDE

LIGHTS

LISTMENU

Configuration Guide – DOC. 7284A Color LCD Handheld Wireless Remote with infiNET EX®: MLX-3 •3

Color LCD Handheld Wireless Remote with infiNET EX®Crestron MLX-3

Configure the MLX-3

Radio

From the “Setup Options” screen, turn the scroll wheel to highlight Radio and press

the scroll wheel to go to the “Radio Options” screen, shown in the following

illustration.

“Radio Options” Screen

The “Radio Options” screen provides access to screens for Info, Status, RF ID and

Acquire.

Radio Options - Info Turn the scroll wheel to highlight Info and press the scroll wheel to go to the “Radio

Information” screen, shown in the following illustration.

“Radio Information” Screen

The “Radio Information” screen can be used to access information about the MLX-3

remote and about the gateway with which it is communicating.

4 •Color LCD Handheld Wireless Remote with infiNET EX®: MLX-3 Configuration Guide – DOC. 7284A

Crestron MLX-3 Color LCD Handheld Wireless Remote with infiNET EX®

Turn the scroll wheel to highlight Remote and press the scroll wheel to go to the

“Remote RF Info” screen, shown in the following illustration.

“Remote RF Info” Screen

The “Remote RF Info” screen shows whether the MLX-3 has been acquired by a

gateway as well as the MLX-3’s current RF ID, channel setting and EUID (Effective

User ID). Press the “MenuBack” button to return to the “Radio Information” screen.

From the “Radio Information” screen, turn the scroll wheel to highlight Gateway and

press the scroll wheel to go to the “Gateway RF Info” screen, shown in the following

illustration.

“Gateway RF Info” Screen

The “Gateway RF Info” screen shows the gateway’s channel and EUID. Press the

“MenuBack” button to return to the “Radio Information” screen.

Configuration Guide – DOC. 7284A Color LCD Handheld Wireless Remote with infiNET EX®: MLX-3 •5

Color LCD Handheld Wireless Remote with infiNET EX®Crestron MLX-3

Radio Options - Status From the “Radio Options” screen, turn the scroll wheel to highlight Status and press

the scroll wheel to go to the “Radio Status” screen, shown in the following

illustration.

“Radio Status” Screen

The “Radio Status” screen shows whether the MLX-3 has been acquired by a

gateway as well as the gateway’s connection status, whether a program is running

and the signal strength of the RF signal. Press the “MenuBack” button to return to

the “Radio Options” screen.

Radio Options – RF ID From the “Radio Options” screen, turn the scroll wheel to highlight RF ID and press

the scroll wheel to go to the “Radio RF ID” screen, shown in the following

illustration.

“Radio RF ID” Screen

The “Radio RF ID” screen shows the MLX-3’s current RF ID and allows the option

to change the RF ID.

To exit the “Radio RF ID” screen without changing the setting, either turn the scroll

wheel to highlight No and press the scroll wheel or simply press the “MenuBack”

button.

6 •Color LCD Handheld Wireless Remote with infiNET EX®: MLX-3 Configuration Guide – DOC. 7284A
