CrimeStopper CS-9704 Manuale utente

CS-9704RS

INTEGRATED ALARM/REMOTE START SYSTEM

INSTALLATION / OPERATING MANUAL

INTRODUCTION:

This is a combination vehicle security alarm and tach-less remote start system for 12-volt motor vehicles. There

are a variety of built-in features, which you may or may not use. Some require the addition of a relay, diode or

other component to function properly, which is not included in the kit. Additional labor and parts will be required

for some vehicle with Anti-Theft Systems such as GM PassKey/Passlock/VATS, or Key-FOB based RF

Transponder systems. This system is designed for single vehicle operation with automatic transmissions only.

Technical support is available from the following sources:

TECHNICAL SUPPORT (800)-998-6880

Monday - Friday 8:00am - 4:30pm Pacific Time

Fax-On-Demand 805-526-9540

Web Site: www.crimestopper.com

E-mail: [email protected]

CRIMESTOPPER SECURITY PRODUCTS, INC.

1770 S. TAPO STREET, SIMI VALLEY, CA. 93063

This device complies with FCC Rules part 15. Operation is

subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) This device must

accept any interference that may be received, including

interference that may cause undesired operation. The

manufacturer is not responsible for any radio or TV

interference caused by unauthorized modifications to this

equipment. Such modification could void the user’s authority

to use the e

ment.

INSTALLATION CAUTIONS & WARNINGS

1. BEFORE BEGINNING, check all vehicle manufacturer cautions and warnings regarding electrical service (AIR

BAGS, ABS BRAKES, AND BATTERY).

2. TO PREVENT A POSSIBLE DEAD BATTERY remove vehicle dome light fuse while working on the vehicle.

MAKE CERTAIN TO REINSTALL FUSE PRIOR TO TESTING FOR DOOR TRIGGERS.

3. DO NOT EXCEED MAXIMUM OUTPUT RATINGS - SERIOUS DAMAGE MAY OCCUR. Limits for alarm and

remote start functions are listed in the main diagram and wiring descriptions page. If you are unsure about

current load, measure the load with an AMP-METER.

4. REMOVE MAIN SYSTEM FUSE(S) before jump starting the vehicle. DAMAGE MAY OCCUR TO SYSTEM IF

PROPER PRECAUTIONS ARE NOT OBSERVED.

5. DO NOT INSTALL CS9704RS ALARM/AUTOSTARTER in vehicles with MANUAL TRANSMISSIONS.

Accidentally left in gear, a remote started vehicle could become a self-propelled threat to life and property.

6. DO NOT EXTEND CS-9704RS AUTOSTARTER IGNITION HARNESS LENGTH. When mounting module, be

certain to place module so that main harness reaches all ignition switch wiring. Extending these wires could

result in poor performance.

7. DO NOT ROUTE ANY WIRING THAT MAY BECOME ENTANGLED with brake, and gas pedals, steering

column, or any other moving parts in the vehicle.

8. WHEN STARTING THE VEHICLE IN A GARAGE, make sure that door is open or adequate ventilation is

provided.

SUGGESTED COMPONENT MOUNTING

Control Module: Driver’s side underdash, the unit should be placed as high as possible, not easily accessible.

Shock Sensor: Mount with wire ties to an under dash wire harness or fasten with screws to a panel.

Siren: under the hood to fender-well or other body surface with the open end facing downward.

LED in a visible location on the dashboard or console. Drill an 11/32" hole at the chosen location.

Override/Program button: hidden location, but accessible to the user in case the system must be disarmed

without the use of the transmitter. This switch is also used to program certain features.

Antenna Assembly: inside front left windshield (close to window frame) using supplied double sided tape.

WIRING

J-1 6 PIN HI-CURRENT CONNECTORS (See Wire diagram at back of manual for Details)

RED: +12V INPUT

RED: +12V INPUT (30 Amp)

BROWN: IGNITION 1 (Secondary Ign. Output)

YELLOW: IGNITION 1 (Primary Ign. Output AND Input)

ORANGE: ACCESSORY (20 Amp)

PURPLE: STARTER OUTPUT

J-2 10 PIN MAIN HARNESS PLUG

WHITE WIRE: PIN 1: PARKING LIGHT CIRCUIT

Connect to switched parking light wire at back of light switch. If this is not possible, connect directly to one of the

parking lights at the front of the vehicle. This wire has an in-line fuse to prevent excessive current from being

drawn from the system. European may vehicles require separate right and left circuits. Use a dual relay or 2

diodes to separate the output signal.

RED WIRE: PIN 2: Alarm Power (10 amp fuse)

Connect to +12 Volt source. Recommended location for this connection is at the vehicle battery positive

terminal.

BROWN WIRE: PIN 3: + SIREN OUTPUT (2 amp max. output)

Connect to RED siren wire.

BLACK WIRE: PIN 4: SYSTEM CHASSIS GROUND

Connect to chassis metal of the vehicle. Scrape away any paint or dirt from the connection point to ensure a

good connection. We recommend the kick panel area for your ground point.

ORANGE WIRE: PIN 5: STARTER KILL / NEGATIVE ARMED OUTPUT

Provides continuous 150mA ground output when system is armed. This output is used for disabling the starter

when the system is armed and/or to activate other devices such as scanner LED’s, window modules, voice

modules etc. For starter kill, cut starter wire and connect between 87A and 30 on relay. Connect orange wire to

85 and connect 86 to Ignition voltage that has power in crank position.

WIRING

GRAY WIRE: PIN 6: Engine Monitor (used for tach mode only)

Used to monitor when the engine is running. Connect to negative terminal of ignition coil, crankshaft position

sensor or ECM/PCM tach wire. An alternate method is to wrap several turns around a spark plug wire and fasten

with wire ties or hi-temp plastic clamps. See programming selection for engine monitor type on page 10 under

“Remote Start Programming Options”.

GREEN WIRE: PIN 7: DOOR TRIGGER (for negative [grounding] switch)

Identify the wire that reads ground when any door is open and 12 volts when all doors are closed. Connect this to

the green door trigger wire to allow the alarm to trigger when any door is open. Some vehicles use a diode to

isolate driver door. In this case you need to run an additional wire from the other doors to this trigger wire to allow

triggering from any door.

BLUE WIRE: PIN 8: HOOD/TRUNK TRIGGER (Grounding switch type / Mandatory Connection!)

This wire is an input trigger for a grounding hood or trunk pin switch. It is used to trigger the alarm and also to

inhibit remote start if the hood is open. Connect to existing hood and trunk pin switches, which read ground when

open. Diode isolate existing switches to avoid any feedback to, or from vehicle's electrical system. If no existing

switches are available, install new pin switches (it may be necessary to drill a hole) and connect to BLUE wire of

alarm. Note: DO NOT mount new pin switches in water pathways.

PURPLE WIRE: PIN 9: DOOR TRIGGER (positive type switch)

Same as green wire above except this wire is used for vehicles that show a positive voltage (12 volts) when the

door is open such as Ford.

YELLOW WIRE: PIN 10: BRAKE INPUT (for positive switch)

Connect this wire to the foot brake switch wire that goes to 12 volts when the foot brake is depressed. This input

is used to reset remote start after entering the running vehicle and turning the ignition key on.

WIRING

J-3 2 PIN PLUG (WHITE)

RED-BLACK WIRE: PIN 1: DOME LIGHT ILLUMINATION (-) (REQUIRES RELAY)

Connect to terminal 85 of relay. This wire turns the dome light on for 30 seconds upon disarming of the alarm. If

the ignition is turned on or the alarm is re-armed, the dome light will turn off again.

WHITE-YELLOW: PIN 2: HORN HONK OUTPUT (-) (MAY REQUIRE RELAY)

This wire provides a pulsed 150mA negative output for honking the vehicle's horn when the alarm is triggered.

Connect this wire to the horn relay in the steering column. If there is no horn relay you must install one.

NOTE: Some vehicle horns operate only with ignition on. This will require rewiring the horn circuit in order for the

alarm system to operate the horns. Call technical support for details.

J-4 2 PIN PLUG (BLUE) J-5 2 PIN PLUG (RED)

PROGRAM/OVERRIDE BUTTON LED INDICATOR (Red flashing light)

J-6 3PINPLUG(RED)

GRN/BLK PIN 1: NEGATIVE REMOTE OUTPUT (Optional)

RED PIN 2: FACTORY DISARM (Negative pulse)

YELLOW PIN 3: VACUUM INPUT (Used when installing a vacuum switch for engine monitor)

J-7 3PINPLUG(WHITE)

GREEN PIN 1: NEGATIVE LOCK Connect directly to negative lock/unlock systems. If vehicle uses

RED PIN 2: +12V For Relays positive door lock signals or reversing polarity type, then external

BLUE PIN 3: NEGATIVE UNLOCK relays must be added. Door lock wires are usually found in

J-8 4 PIN SENSOR PLUG (22 GAUGE WIRES)

WHITE PIN 1: NEG. PRE-WARN The Dual Stage Pre-Warn Shock sensor connects directly to

BLACK PIN 2: SENSOR GROUND Alarm Brain with 4-Pin harness. Note: If adding additional

BLUE PIN 3: NEG. TRIGGER sensors, you must diode-isolate the extra sensor’s trigger

RED PIN 4: SENSOR +12V wire. Place a diode in-line with band (cathode) towards the

sensor.

OPERATION

This system performs the following tasks by pressing one of the buttons on the hand-held transmitter:

•ARM / LOCK •DISARM / UNLOCK •TRUNK POP •REMOTE START •PANIC

Note: You may not have all of the available features depending on your particular installation. Some features

require additional parts and/or labor.

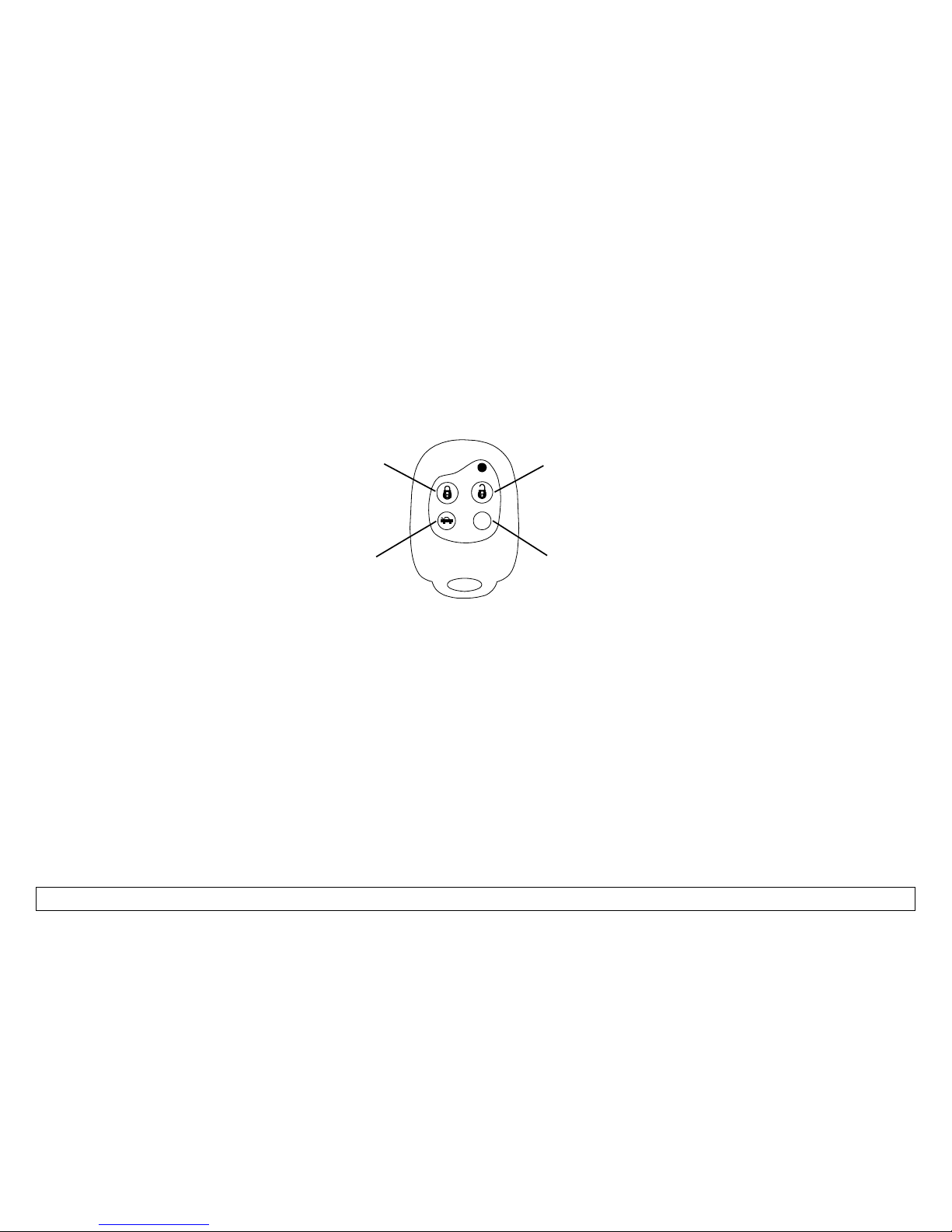

TRANSMITTER BUTTONS

START

ARM/

TRUNK REMOTE

START

UNLOCKLOCK

DISARM/

POP

ARMING:

Press the arm/lock button on the transmitter. You will hear a single siren chirp and the lights will flash once. The

red LED in the vehicle will start flashing. The system will arm, the doors will lock (optional feature) and the starter

will be disabled (optional feature). If after a 5 second delay there is an intrusion or disruption to the vehicle body,

the alarm will sound with siren, lights and honking horn for 45 seconds (Horn does not sound with shock sensor

activation). If a low-level shock to the vehicle body is detected, the pre-warning sensor activates sounding 6

quick siren chirps and 1 light flash. If a higher-level shock is detected, the siren will sound continuously and the

lights will flash on and off for 45 seconds. Turn the sensor control knob clockwise to increase sensitivity and

counter-clockwise to decrease sensitivity.

DISARMING:

Press the disarm/unlock button on the transmitter. You will hear 2 siren chirps and the lights will flash twice. The

dome light turns on and the dash LED stops flashing. If the alarm had triggered in your absence, you will hear 3

siren chirps.

OPERATION

REMOTE ENGINE START:

Press and hold the Remote Start button on the transmitter until you hear 3 siren chirps (release button) then the

parking lights will turn on. The vehicle will start and run for 15 minutes unless you press the Remote Start

transmitter button again or press the foot brake in the vehicle. If the vehicle fails to start on the first attempt, the

system will try 2 more times before aborting the remote start process.

TRUNK POP / OPTIONAL FEATURE:

Press the trunk pop button on the transmitter. If the system is armed, you must disarm it first or the alarm will

trigger.

PANIC FEATURE:

In the event of an emergency situation, press and hold the arm/lock button on the transmitter for about 2-3

seconds until the siren sounds. Press the disarm/unlock button to turn off.

ADDITIONAL FEATURES

AUTOLOCK/UNLOCK:

The doors will automatically lock when the ignition is turned on and will unlock when the ignition is turned off. If a

door is open the unit will not lock to prevent keys from being locked in.

VALET:

To disable the Alarm and Remote Start sections of the system while still allowing door lock/unlock, turn the

ignition on and press the override/program button until the dash LED turns on solid (about 2 seconds). Repeat

the process to re-enable the features. The siren will chirp 2 times and the dash LED will turn off.

PASSIVE ARMING:

Passive arming means that the alarm will arm itself 30 seconds after the ignition is turned off and the door is

opened and closed. This feature can be turned off if desired in option programming.

SILENT ARMING:

The system can be armed and disarmed without the siren making any sound if you prefer. See the alarm

programming options to enable this feature.

OPERATION

ACTIVE RE-ARMING:

Active Re-arming means that the system will re-arm itself 30 seconds after disarmed with the transmitter if a door

has not been opened. This is handy if the vehicle is accidentally disarmed without you knowing it. This feature

can also be turned off with the programming options.

OVERRIDE:

If you have lost the transmitter or it stops working for any reason and the Alarm is armed, you will have to open

the door with the key, which will activate the alarm. Turn the ignition on and press the override/program button

about 2 seconds. The Alarm will disarm and enter the Valet mode, which allows you to use the vehicle until you

can repair/replace the remote transmitter at which time you can take the vehicle out of valet.

ALARM PROGRAMMING OPTIONS

Programming options are accessed by turning the ignition on and pressing the override/program button 5 times

within 5 seconds. You will hear a 2 second chirp from the siren. Within the next 5 seconds press the

override/program button again the number of times that corresponds to the listed feature below. The siren will

chirp once for each button press. One you are at the desired option number, press the lock or unlock button on

the transmitter to change the option. If the lock button is pressed, 1 siren chirp will sound. If the unlock button is

pressed, 2 siren chirps will sound. Pressing TX button 2 for any of the options will change the selected option

from default to the alternate setting (i.e. pressing the unlock button when the option for Autolock is selected will

turn Autolock off. The Autolock feature is ON by default from the factory). See list below for option selections.

Option Number Feature Description Button #1 (Lock) Default Button 2 (Unlock)

1. PassiveArming ON OFF

2. Lockw/PassiveArm ON OFF

3. Autolockon/off ON OFF

4. 0.7 or 3 Second Lock Pulse 0.7 Sec. 3 Sec.

5. Double Unlock Pulse OFF ON

ALARM PROGRAMMING OPTIONS

SILENT ARM/DISARM PROGRAMMING:

To eliminate siren chirps, turn the ignition on and press the transmitter’s remote start button for about 3 seconds.

You will hear a short double chirp. After the ignition is turned off, there will be no siren chirps for arm, disarm and

remote start engage/reset confirmation. To revert back to siren chirps, perform the same procedure (there will

be 2 short double chirps when re-enabling chirps).

ACTIVE RE-ARM PROGRAMMING:

To disable this feature, turn the ignition on and press the transmitter’s lock button for about 3 seconds. 2 siren

chirps will sound confirming the feature has been disabled. To re-enable active rearming, perform the same

procedure (only 1 siren chirp will sound).

REMOTE START PROGRAMMING OPTIONS

The 4-position dipswitches are used to select Remote Start options as follows:

Dip Switch Number Settings

#1 Tach/Tachless or Vacuum ON = Tach/Tachless OFF = Vacuum

#2 Crank Time (.8 or1.25 Sec.) ON = .8 Sec. OFF = 1.25 Sec.

#3 Gas / Diesel ON = Gas OFF = Diesel

#4 Engine or Tachless Monitor ON = Tachless OFF = Engine Monitor

TACH/TACHLESS MODE:

In Tach/Tachless Mode, the selection of dip switch #4 determines if the system will be monitoring the gray Engine

monitor wire or if no wire will be used (Tachless Mode).

VACUUM MODE:

In Vacuum Mode (switch #1 off), connect the Yellow Vacuum Monitor wire to a vacuum switch (not included)

which connects to an engine vacuum hose. When there is no vacuum (engine not running), a ground will be

present and the starter will crank. When vacuum is present (engine running), the switch will activate removing the

ground.

REMOTE START PROGRAMMING OPTIONS

CRANK TIME:

This feature controls the length of time the starter stays engaged. If the default (0.8 seconds) is not long enough

to start the engine, change the setting to1.25 seconds.

GAS / DIESEL:

Set this switch to select the proper vehicle fuel type. Selecting Diesel delays starter activation about 10 seconds

to allow warming of glow plugs.

TACHLESS or ENGINE MONITOR:

When switch #4 is on, the system is in the Tachless mode and it is not necessary to connect the gray Engine

Monitor wire. When switch #4 is off, the unit monitors engine RPM/Pulses through the Gray wire. The wire must

be connected to a valid source when #4 is in the OFF position.

NOTE: For ease of installation, select Tachless mode first. If the vehicle will not remote start, turn Switch

#4 OFF and connect the Gray wire to a tach source.

TRANSMITTER PROGRAMMING

The supplied transmitters are programmed from the factory to operate the system. In the event you need to add

another transmitter or reprogram any transmitter to the system, follow the procedure below. ALL TRANSMITTER

CODES MUST BE LEARNED DURING PROGRAMMING.

1. Turn ignition on and off 3 times within 5 seconds leaving it on the 3rd time. (on/off, on/off, on) A single siren

chirp should sound if this was performed correctly.

2. Press the override/program button for approx. 3 seconds then 3 siren chirps should sound.

3. Press the #1 button on the transmitter. You should hear a single siren chirp when the code is accepted, then

and repeat this step for each remaining transmitter.

4. Turn the ignition off and wait a few seconds before trying the any of the transmitters.

TROUBLESHOOTING

Indice

Altri manuali CrimeStopper Avviamento remoto

CrimeStopper

CrimeStopper Cool Start RS-1405DP Manuale utente

CrimeStopper

CrimeStopper ezee Start EZ-777 VII Manuale utente

CrimeStopper

CrimeStopper RS700 IIIER Manuale utente

CrimeStopper

CrimeStopper RS-999TW1/TW2 Manuale utente

CrimeStopper

CrimeStopper EZEE START EZ-10 Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-7 Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-850 Manuale utente

CrimeStopper

CrimeStopper RSX-G6 Manuale utente

CrimeStopper

CrimeStopper Ezee Start EZ-64TW1 Manuale utente

CrimeStopper

CrimeStopper RS-800.III Manuale utente

CrimeStopper

CrimeStopper cool start RS2-G3 Manuale utente

CrimeStopper

CrimeStopper EZ-777 Manuale utente

CrimeStopper

CrimeStopper cool start RS2-G3 Manuale utente

CrimeStopper

CrimeStopper RS-800 Manuale utente

CrimeStopper

CrimeStopper CS-2016DPII-FM Informer II Manuale utente

CrimeStopper

CrimeStopper EZEE Start EZ-1 Manuale utente

CrimeStopper

CrimeStopper RS800ER Manuale utente

CrimeStopper

CrimeStopper SP-400 Manuale del sistema

CrimeStopper

CrimeStopper EZEE Start EZ-3 Manuale utente

CrimeStopper

CrimeStopper RS700 IIIER Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-00 Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-1300DP Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-1300DP Manuale utente

CrimeStopper

CrimeStopper COOL START RS-901 Manuale utente

Manuali Avviamento remoto popolari di altre marche

AstroStart

AstroStart 803U Manuale utente

Durite

Durite 0-649-20 Manuale

EINHELL

EINHELL BT-PS 1000 Manuale

Linear

Linear ACCESS AK-21 Specifiche tecniche

Soundstream

Soundstream TARANTULA RS.2 Manuale utente

Jaycar Electronics

Jaycar Electronics MB3752 Manuale utente

Ultra Start

Ultra Start 72 Series Manuale utente

ADS

ADS FLASHLOGIC FLRSVW1 Manuale utente

Selecta

Selecta JS012 Manuale utente

Black Widow Security

Black Widow Security BW RAS 400 Manuale utente

Vector

Vector Power City DK080706 Supplemento

Code Alarm

Code Alarm CA-535 Manuale utente

Ozito

Ozito OJS-800 Manuale utente

Profi-Partner

Profi-Partner 46387 Manuale utente

EZ STARTER

EZ STARTER EZ-45 Manuale utente

Viper

Viper 4204 Manuale utente

Essex Electronics

Essex Electronics KE-1701 Manuale utente

EINHELL

EINHELL EGS 3600 Manuale
