CrimeStopper EZ-777 Manuale utente

EZ-777 TW1 /EZ-777 TW2 / EZ-777 FM

2-Way Paging Remote Engine Starting & Keyless

Entry System with 1-Way Sidekick Remote Control

OPERATING INSTRUCTIONS

-PRIMARY: These are features that must be connected in order for the system to operate properly i.e. Remote

Startconnections,Flashinglights,BrakeReset. Forprogramming,thehoodpinand program button are required.

-OPTIONAL: These are features are to be connected only if desired or agreed upon by the customer and the

installingdealeri.e. Door Locks, Trunk Pop, Dome Light Illumination, Horn-Honk, Anti-Grind, etc. These features

may also require additional parts and/or labor fees. Consult with your installer beforehand to be sure of what is

going to be installed with your particular system.

TECHNICAL SUPPORT: (800) 998-6880

Monday - Friday 8:00am - 4:30pm Pacific Std. Time

Web Site: www.crimestopper.com

E-mail: [email protected]

CRIMESTOPPER SECURITY PRODUCTS, INC.

1770 S. TAPO STREET, SIMI VALLEY, CA. 93063

REV B – 05.16.2005

This device complies with FCC Rules part 15. Operation is

subject to the following two conditions: 1) This device may not

cause interference, and (2) this device must accept any

interference that may be received, including interference that

may cause undesired operation. The manufacturer is not

responsible for any radio or TV interference caused by

unauthorized modification to this equipment. Such modification

could void the user's authority to operate the equipment.

TABLE OF CONTENTS

Operation Cautions & Warnings….………………..….…………………………………….………………….………1

2-Way Paging LED Remote TW1.........…………………………………………………………….………………….2

2-Way Paging LCD Remote TW2..…………………………………………………………………………………….3

2-Way Paging LCD Remote FM…..……..………………………………………………………………………...…..4

Using the Remote 1-Way Remote…………………………………………………………………………….………..5

Remote Engine Starting………………………………………………………………………………………….……6-8

Turbo Timer Mode……………………………….……………………………………...…………………………….…9

Convenience and Safety Features…….……………………….………………..………………………..…..….10-11

Transmitter Programming….…………….………………………………………….……………….…..………...…12

2 Vehicle Operation.………………………………….………………...……………………..………...…….………13

Troubleshooting “Before You Call”………….…………..………………………………………….…………….13-14

Low Battery Warning and replacing the AAA battery on LCD Remote…………………………………………..14

Setting the Clock…………………………………………………………………………………...…….…Back Page

OPERATION CAUTIONS & WARNINGS

CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDORS shall not be liable for any accident resulting

fromtheuse of this equipment. This system is designed to beprofessionallyinstalled into a car or vehicle inwhich

allitems,such as parking brake and all associated components, door switches, transmissionshiftlinkage, throttle

linkage, and all engine safety features, are in perfect working condition.

DO NOT install the Remote Engine Starting System on MANUAL TRANSMISSION vehicles. Ifaccidentally left

in gear the vehicle could become a self-propelled threat to life and property.

IT IS ABSOLUTELY THE OWNER’S SOLE RESPONSIBILITY TO: A) Understand the operation of this system

anditssafety features. B) Check for proper operation of the system prior to accepting delivery of the vehiclefrom

the installation facility. C) Check and maintain the condition of the vehicle and all items relative to the proper

operation of this system and its safety features. D) Always leave the doors and windows closed and locked to

protect against accident and theft.

DO NOT remote start the vehicle in a closed garage. Make sure that the garage door is open or there is

adequateventilation. Failure to observe this rule could resultininjury or death from poisonous CarbonMonoxide

fumes.

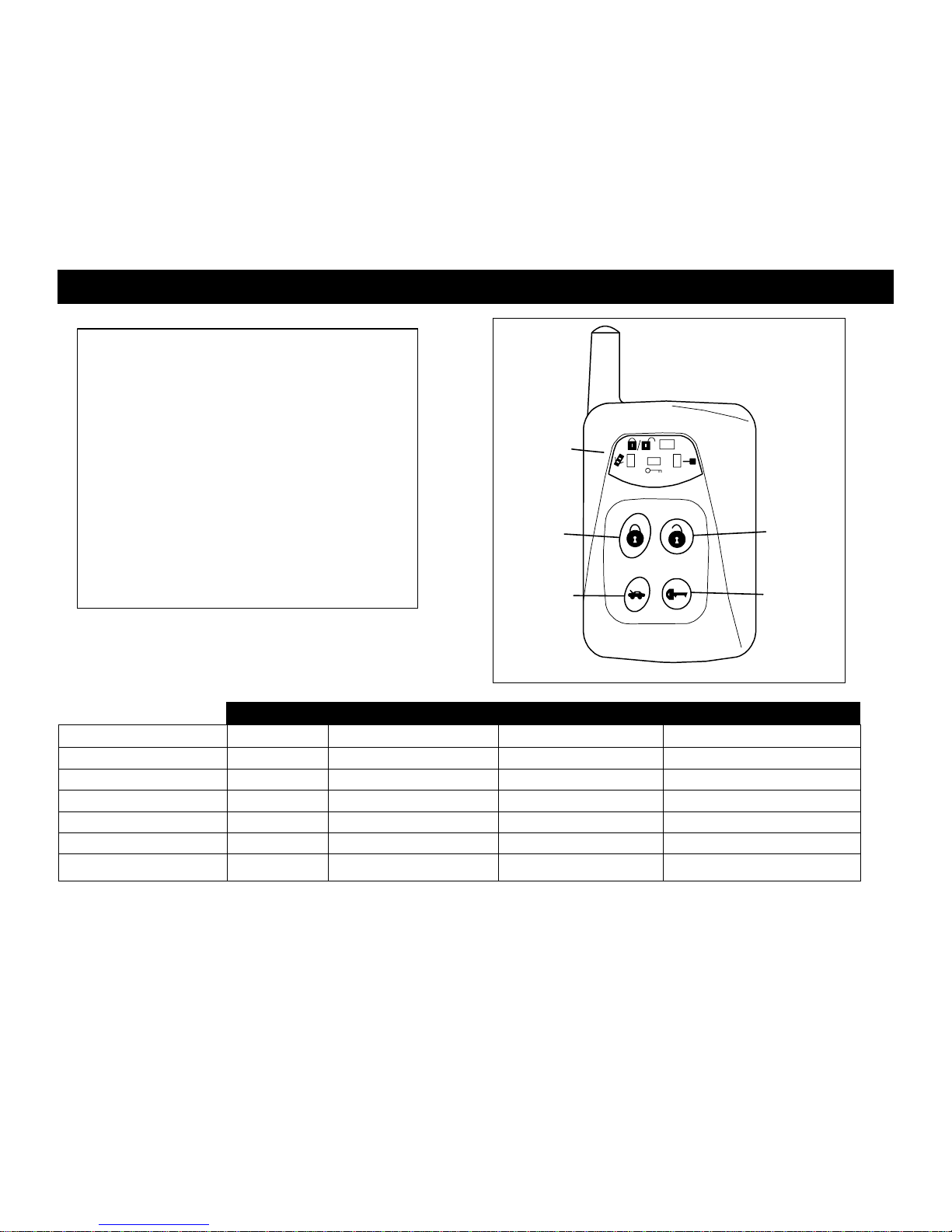

2-WAY PAGING LED REMOTE EZ-777.TW1

TWO-WAY PAGER OPERATION & PAGE TONES:

FEATURE BUTTON ACTION BEEPS LED/FLASH

LOCK #1 (Lock) Press & Release 1X then 1X again Orange / 1X

UNLOCK #2 (Unlock) Press & Release 1X then 2X again Green / 2X

AUX #1 #3 (Trunk) Press & Hold 2 Sec. 1X then 3X again Yellow / 3X

REMOTE START #4 (Start) Press & Hold 2 Sec. 1X then 3X again Green 3X

ENGINE RUNNING 6X Red & Green / 6X

TURN OFF ENGINE #4 (Start) Press & Hold 2 Sec. 3X Red & Green / 3X

PANIC #1 (Lock) Press & Hold 3 Sec. 1X then 2X / 12X Orange 12X / Green 1X

UNLOCK

LOCK

PAGING

LED's

REMOTE

ANTENNA

FIXED

TRUNK

#1 #2

#3 #4

POP START

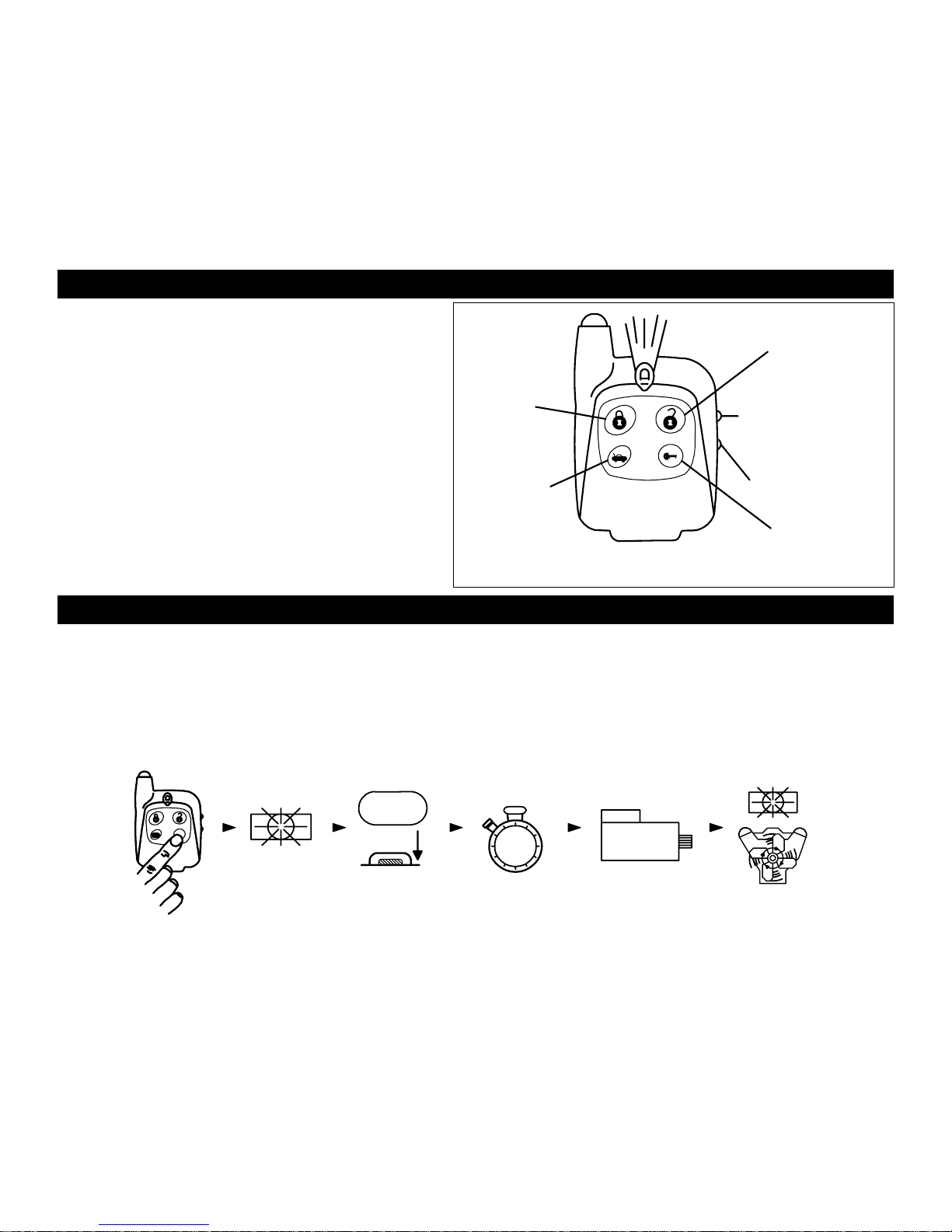

OPERATION:

BUTTON 1 (Lock Symbol):

•Press and release to Lock doors.

•Press and Hold for more than 3 seconds to

activate “Panic” feature.

BUTTON 2 (Unlock Symbol):

•Press and release to Unlock doors.

BUTTON 3 (Trunk Symbol):

•Press and Hold for two seconds to activate

trunk pop (Optional Feature).

BUTTON 4 (Start):

•Press and Hold for two seconds to

Start/Stop Engine.

#2 UNLOCK

LCD

SCREEN

#4 ENGINE

START/STOP

#1 LOCK

#3 TRUNK

#5 RECALL

CAR I or II

FIXED

ANTENNA

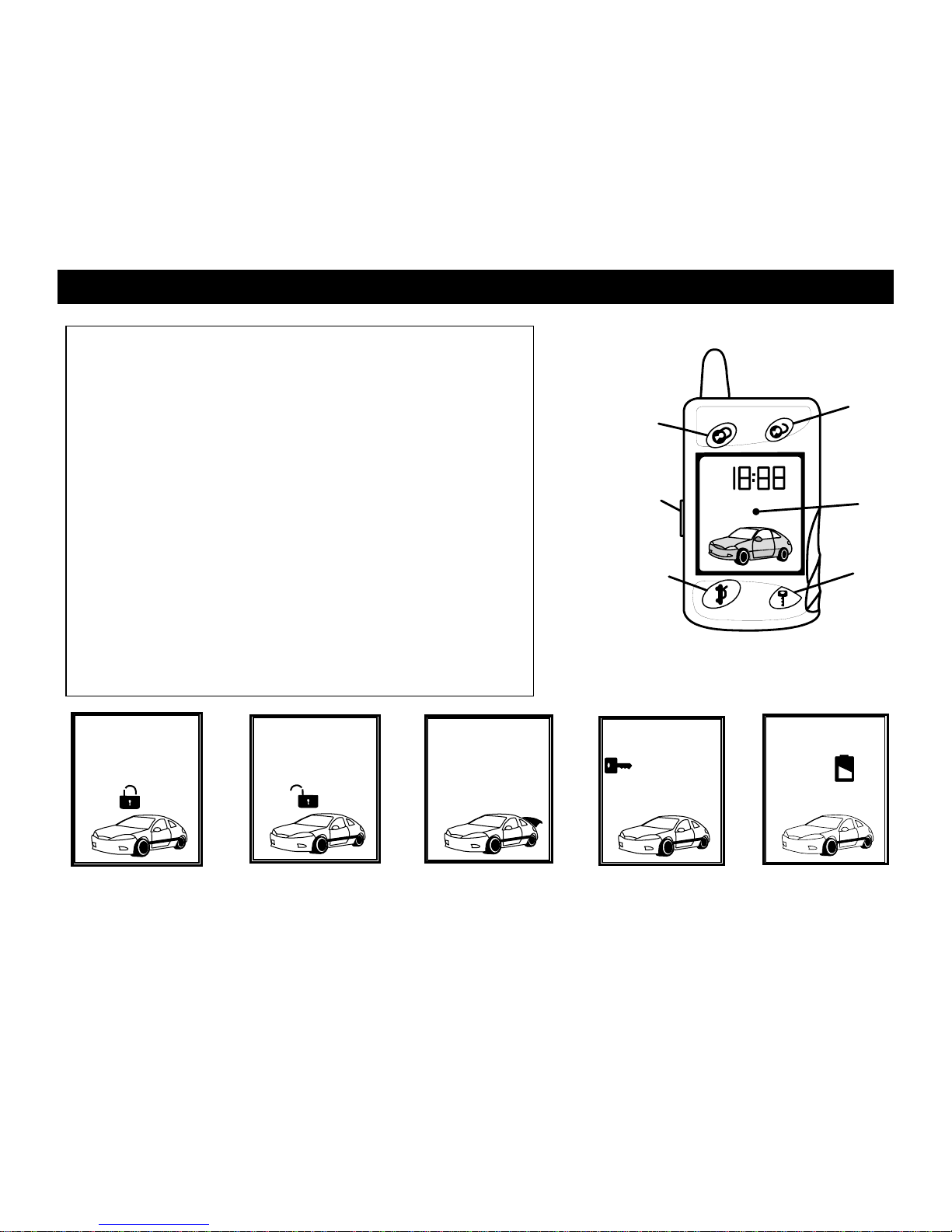

OPERATION:

BUTTON 1 (LOCK Symbol):

•Press and release to Lock doors.

•Press and Hold for more than 3 seconds to activate “Panic”

feature.

BUTTON 2 (Unlock Symbol):

•Press and release to Unlock doors.

BUTTON 3 (Trunk Symbol):

•Press and Hold two seconds to activate trunk pop (Optional

Feature).

BUTTON 4 (Start Key Symbol):

•Press and Hold two seconds to Start/Stop engine.

BUTTON 5 (On side of remote):

•Press and release to light up the LCD screen.

•Press and release twice to recall the last message from the

LCD screen.

•Press and Hold two seconds to change from Car 1 to Car 2

•Press 5 times to change the Time and audible beep tones

on the remote.

LOCK

UNLOCK

TRUNK POP

LOW BATTERY

2-WAY PAGING LCD REMOTE EZ-777.TW2

REM

TART

(Key flashes)

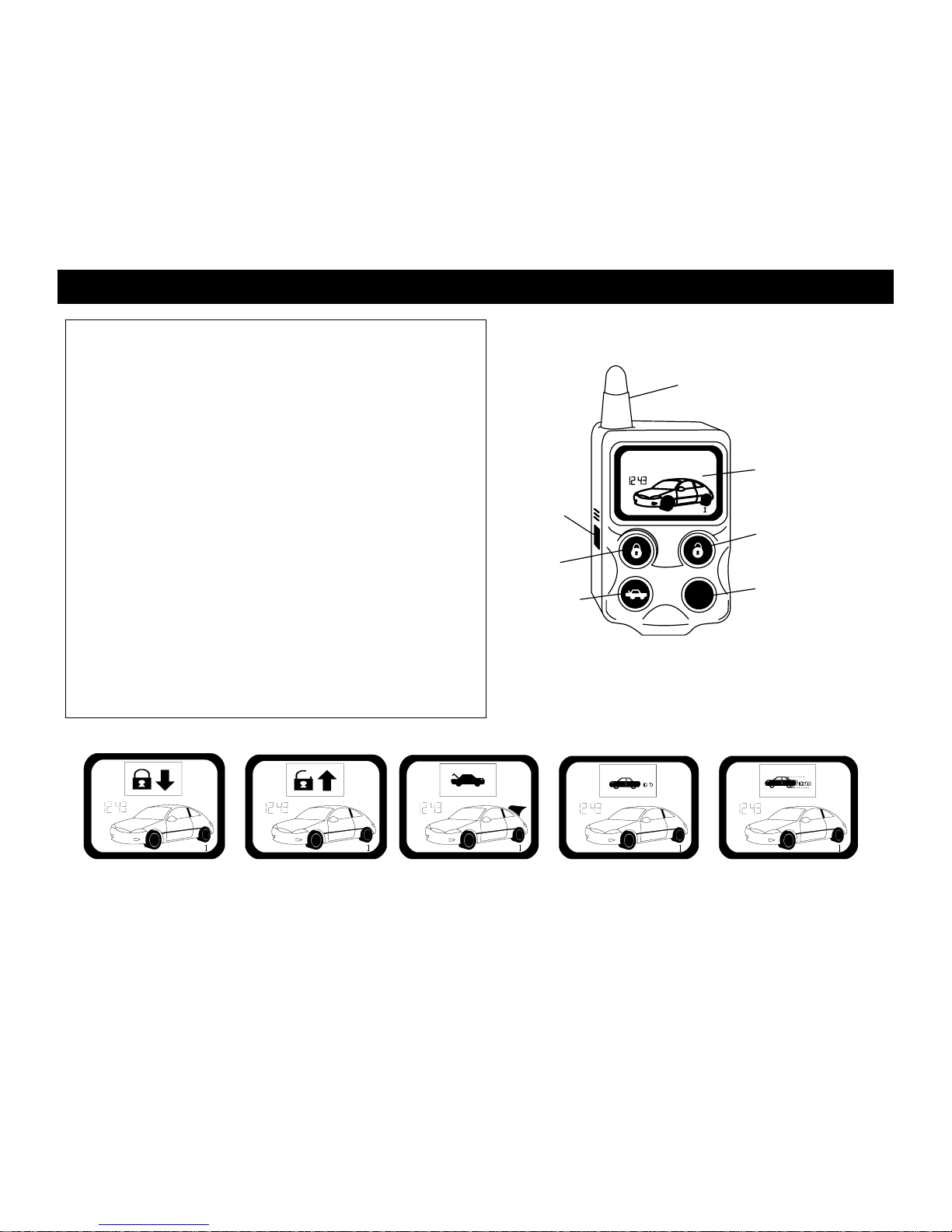

2-WAY PAGING LCD REMOTE EZ-777.FM

#1 ARM/

LOCK #4 ENGINE

START/STOP

RECALL /

CAR I OR II

#3 TRUNK

POP

#2 DISARM/

UNLOCK

ANTENNA

START

FIXED

LCD

SCREEN

IGN

(<<<< MOVING <<<<<)

LOCK UnLock Trunk Pop Confirm Remote Successful Start

Start Request

OPERATION:

BUTTON 1 (Lock Symbol):

•Press and release to Lock system.

Press and Hold for more than 3 seconds to activate

“Panic” feature.

BUTTON 2 (Unlock Symbol):

•Press and release to Unlock system.

BUTTON 3 (Trunk Symbol):

•Press and Release to activate trunk pop (Optional

Feature).

BUTTON 4 (Start Symbol):

•Press and release to Start/Stop Engine.

BUTTON 5 (On Side of Remote)

•Press and release to recall the last message from the

LCD screen.

•Press and Hold 5 seconds to change from Car 1 to Car 2.

•Press 5 times to enable/disable beep tones from the

remote.

EZ START

LOCK

TRUNK

REMOTE

UNLOCK

VEHICLE 2

FLASHLIGHT

START

#6 (FM only)

USING THE 1-WAY REMOTE

The transmitter supplied with the EZ-777 system

has six buttons. The button configuration of the EZ-

777is Factory-set and unchangeable. See Page 13

foradditionalinformationonhow to use your remote

to operate a second vehicle equipped with an EZ-

777 system.

NOTE: BUTTON #4 Remote Start

There is a deliberate delay built into the system on

button #4 to help prevent accidental remote starting

from the remote being in your pocket or purse.

During normal use, if you press button #4 too

quickly, the system may not start the engine.

REMOTE ENGINE STARTING

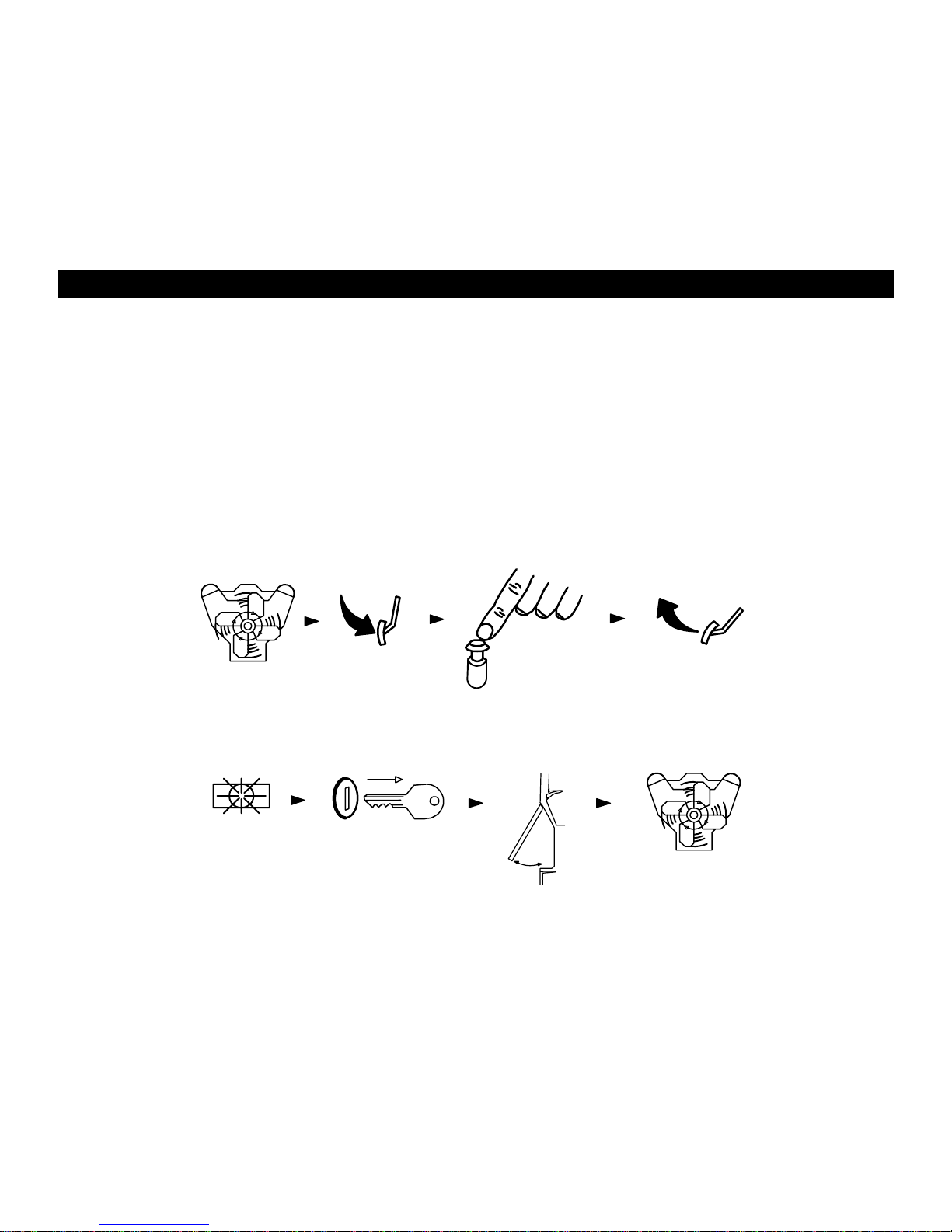

REMOTE ENGINE STARTING - SUCCESSFUL START:

1) Press the remote start button for at least 1 second.

2) Parking lights flash once; return solid, and the Ignition/Acc circuits turn on.

3) After a few seconds the Starter Motor engages, Parking lights and Acc circuits will turn off while cranking.

4) Engine Starts and Runs. Parking Lights and Acc turn back on, Doors Lock.

5) Enginewillremain running for programmed run time until reset with Brake pedal. If needed, the engine can be

turned off with remote transmitter by pressing and releasing the Start button.

AFTER

IGN

STARTER

THEN

FLASH 1X

SOLID

SEC.

Replacement Battery

GP23A

(

12volt

)

REMOTE ENGINE STARTING

REMOTE ENGINE STARTING - UNSUCCESSFUL START

In the event that the engine does not start on the first attempt, the system shuts down for a few seconds, then

attempts to restart the engine a 2nd and 3rd time. For hard starting engines, the unit will allow a starter crank time

of up to 10 seconds maximum. This should provide ample cranking time for difficult starts, but is limited to 13

seconds to help prevent damage to the starter from over cranking.

1) If engine starts on 2nd or 3rd attempt, see steps 4 & 5 above of "Successful Start".

2) If Third attempt fails to start engine, the system will turn off and doors will remain locked. NO FURTHER

ATTEMPTS WILL BE MADE AUTOMATICALLY

TURNING OFF A REMOTE STARTED ENGINE:

1) Engine is running in Remote Start (Parking lights ON).

2) Press and release the remote start button.

3) Engine & parking lights OFF, Doors re-lock/re-arm.

ENTERING YOUR REMOTE STARTED VEHICLE:

1) With engine running, Remote Unlock system (If equipped) or open door with key.

2) Enter vehicle and be careful not to step on brake pedal! (Remote Start Reset)

3) Turn Ignition to ON/RUN position, then press brake pedal to reset the Remote Starter & Shift out of park.

4) Remote starter will reset instantly when the brake is pressed. Parking lights will turn off and the ignition key is

now controlling your vehicle.

* NEW * REMOTE START RUN TIME RESET:

You can now reset the engine-run timer to allow for more running time after remote start has already occurred

using the remote control. After a successful remote start, press both the Lock & Unlock buttons together for at

least 2 seconds. The parking lights will flash 3 times and internal engine timer will reset back to zero minutes.

IDLE DOWN MODE:

This mode allows the unit to take over operation of the parked vehicle while the ignition key is removed and you

exitthevehicle. The vehicle is put into a remote running condition before youexitand it will remain running for the

programmed run time or until you come back.

Examples:

•You pull up to a convenience store for a quick stop, "Idle Down" mode keeps engine running when you exit the vehicle,

(with keys in hand) remote lock doors or arm alarm. When you return, unlock, turn ignition ON and drive away.

REMOTE ENGINE STARTING

IDLE DOWN MODE - EXITING THE VEHICLE:

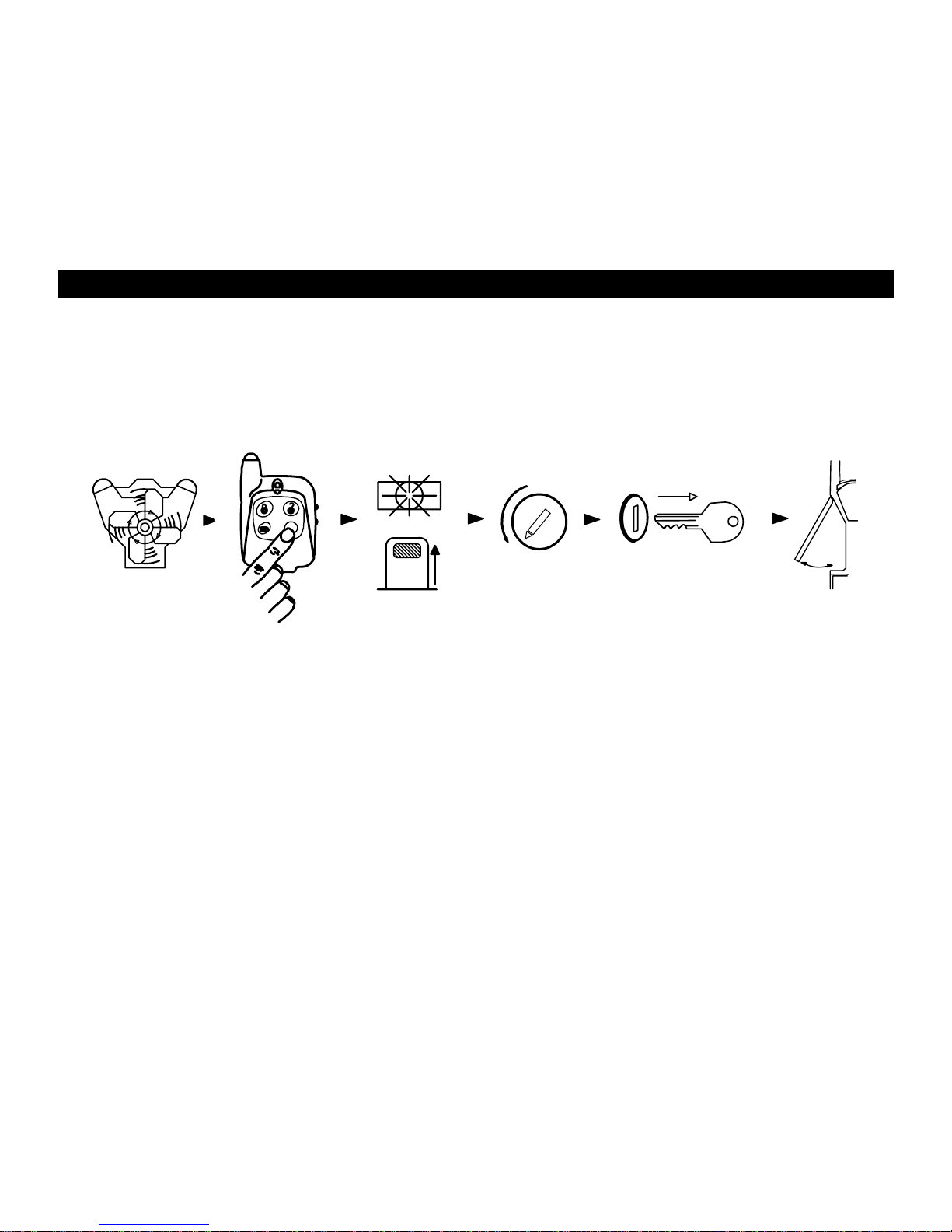

1) With vehicle engine running with key, press the Remote Start button for at least one second.

2) Parking Lights will turn ON.

3) Doors will unlock, or if brake pedal is being depressed, doors will unlock when it is released.

4) Turn OFF Ignition and remove key. Engine should remain running.

5) Exit vehicle then remote lock doors if desired.

6) Engine will remain running for programmed run time or until you return (whichever comes first).

IGN

SOLID

OFF

UNLOCK

ENTERING A VEHICLE DURING “IDLE-DOWN” or “INFINITY RUN” MODES:

See “Entering Your Remote Started Vehicle” on Last page.

INFINITY RUN MODE

Thismodecan only be activated when "Idle Down" procedure. The Infinity Runmode allows the vehicle engine to

remainrunning INDEFINITELY after the programmed run time elapses. This mode will allow the vehicle to be left

runningandunattended without the ignition key in the switch preventing the vehicle from being stolen. Thismode

can be beneficial to law enforcement or commercial trucks that need to remain running unattended for long

periods of time. See next page for Infinity mode steps.

REMOTE ENGINE STARTING

INFINITY RUN MODE – EXITING THE VEHICLE:

1) With vehicle engine running with the key, press the Remote Start button for at least 1 second, pause a few

seconds, then press and release the remote start button a second time.

2) Parking Lights will start flashing, and doors will unlock.

3) Turn Ignition switch OFF, remove key and exit the vehicle. Engine should remain running.

4) The vehicle’s parking lights will flash for the programmed run time of 12, 24, or 36, or 48 minutes and then

switch to solid while motor runs indefinitely or until fuel supply runs out.

* NEW * SELECTABLE HOURLY COLD-START MODE (1-4 HOURS)

This mode allows the vehicle to be programmed to self-start every 1, 2, 3 or 4 hours and run for the programmed

run time. This can be helpful during extremely cold conditions where engine fluid freeze-up is a concern. THE

VEHICLE MUST BE OUTDOORS OR IN A WELL VENILATED AREA! Once thismodeis set, the unit will startat

the programmed hourly interval and run for the programmed run time. To reset this mode, start the vehicle with

the key or the remote control.

SELECTABLE HOURLY COLD-START MODE – EXITING THE VEHICLE:

1) Engine should be running with the Key. Press the Remote Startbutton for at least 1 second. Lights will turn on

signaling the remote start has turned on and doors will unlock.

2) Within10seconds press and release the valet/program button once for eachhourlyincrement (1 time = 1hour,

2X = 2 hours, 3X = every 3 hours, 4X = every 4 hours).

3) Parking Lights will turn once the button is pressed and flash for each consecutive button press.

4) Turn Ignition switch OFF, remove key and exit the vehicle. Engine should remain running.

5) Once outside the vehicle, press and release the remote start button to turn off engine. The parking lights will

flash the number of times indicating the hourly increment for confirmation.

6) The vehicle will start by itself at the selected hourly increment until driven with key or started via the remote

control.

TURBO TIMER MODE (OPTIONAL)

TheoptionalTurbo Timer mode allows the CoolStart system to keep aTurboor Turbo Diesel vehicle runningfor1

to5minutes [selectively] after you remove the key, exit the vehicle, and lock the doors remotely. Thisishandy for

turbocool-downwithout the need for expensive turbo timers. This mode requires the use of an extra part called a

momentary switch/button that is not included with the kit. Check with your installer about adding this feature.

NOTE: The turbo timer button will also trigger a remote start if it is inadvertently pressed when the vehicle is not

running. Please note this when installing the button and choose a location out of harm’s way.

1) Engine should be running with the key.

2) Press and hold down the brake pedal.

3) Press your “Turbo Timer” button 1 to 5 times for each minute of run time you desire. (1 press = 1 min.)

4) As you release the brake pedal and your system will confirm by flashing the lights the same number of times

the button was pressed.

5) Turn Ignition switch OFF, remove key and exit the vehicle. Remote lock your doors for safety. The engine

should remain running for the selected number of minutes.

REMOVE KEY

PRESS TURBO

FLASH 1-5X

EXIT VEH.

PRESS

AND HOLD

BRAKE

TIMER BUTTON

1-5 TIMES

RUNNING RELEASE

BRAKE

LIGHTS

RUNNING

REMAIN

1-5 MIN.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali CrimeStopper Avviamento remoto

CrimeStopper

CrimeStopper ezee Start EZ-777 VII Manuale utente

CrimeStopper

CrimeStopper Ezee Start EZ-777 FM Manuale utente

CrimeStopper

CrimeStopper RS-800.IV Manuale utente

CrimeStopper

CrimeStopper EZEE Start EZ-1 Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-7 Manuale utente

CrimeStopper

CrimeStopper CS-870RKE Manuale utente

CrimeStopper

CrimeStopper REVO-1 Series Manuale utente

CrimeStopper

CrimeStopper RS-800 Manuale utente

CrimeStopper

CrimeStopper COOL START RS-901 Manuale utente

CrimeStopper

CrimeStopper EZEE Start EZ-45DP Manuale utente

CrimeStopper

CrimeStopper G5 series Istruzioni operative

CrimeStopper

CrimeStopper Infinity CS-2900DP-FM Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-1300DP Manuale utente

CrimeStopper

CrimeStopper cool start RS2-G3 Manuale utente

CrimeStopper

CrimeStopper LC-1 Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-850 Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-3 Manuale utente

CrimeStopper

CrimeStopper RS-800.III Manuale utente

CrimeStopper

CrimeStopper EZEE Start EZ-45DP Manuale utente

CrimeStopper

CrimeStopper RS-999TW1/TW2 Manuale utente

CrimeStopper

CrimeStopper SP-400 Manuale utente

CrimeStopper

CrimeStopper EZEE Start EZ-3 Manuale utente

CrimeStopper

CrimeStopper RS-800 Manuale utente

CrimeStopper

CrimeStopper SP-500 Manuale utente

Manuali Avviamento remoto popolari di altre marche

AstroStart

AstroStart 803U Manuale utente

Durite

Durite 0-649-20 Manuale

EINHELL

EINHELL BT-PS 1000 Manuale

Linear

Linear ACCESS AK-21 Specifiche tecniche

Soundstream

Soundstream TARANTULA RS.2 Manuale utente

Jaycar Electronics

Jaycar Electronics MB3752 Manuale utente

Ultra Start

Ultra Start 72 Series Manuale utente

ADS

ADS FLASHLOGIC FLRSVW1 Manuale utente

Selecta

Selecta JS012 Manuale utente

Black Widow Security

Black Widow Security BW RAS 400 Manuale utente

Vector

Vector Power City DK080706 Supplemento

Code Alarm

Code Alarm CA-535 Manuale utente

Ozito

Ozito OJS-800 Manuale utente

Profi-Partner

Profi-Partner 46387 Manuale utente

EZ STARTER

EZ STARTER EZ-45 Manuale utente

Viper

Viper 4204 Manuale utente

Essex Electronics

Essex Electronics KE-1701 Manuale utente

EINHELL

EINHELL EGS 3600 Manuale
