Instruction Manual

www.currentaudio.com

1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181

SB80 RPA 090312

Safety Instructions

1. Read these instructions completely prior to use or hook-up.

2. Keep these instructions for future reference. Record Model Number_______________ and

Serial Number _____________________

3. Understand and heed all Warnings.

4. Follow all instructions.

5. Do not use soundbar or subwoofer near water, rain or high moisture.

6. Clean only with a dry cloth. Never use solvents. A microfiber cloth is recommended.

7. Do not block any of the ventilation openings. See Instructions.

8. Do not install near heat sources such as stoves, radiators and amplifiers.

9. Use only with supplied power sources, with polarized power cord.

10. Protect power cord from being walked on or pinched. Do not have cord stretched taut.

11. Use only connections and auxiliary equipment suggested by manufacturer.

12. Use only with an approved cart, stand, tripod, bracket or table specified by the

manufacturer.

13. Unplug this system during lightning storms or when left unattended for extended periods.

14. Use an ILS-120 to protect from surges, over/under voltages and lightning strikes.

15. Refer service to qualified service personnel.

16. Allow at least 2” (5 cm) space around units for ventilation.

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operation or

maintenance instructions.

The lightning flash with arrowhead symbol within an equilateral

triangle is intended to alert the user to the presence of

dangerous voltages within the product’s enclosure that may be

sufficient magnitude to constitute a risk of electric shock to

people.

WARNING

TO REDUCE THE RISK

OF ELECTRIC SHOCK,

DO NOT EXPOSE THIS

EQUIPMENT TO RAIN

OR MOISTURE.

CAUTION

TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT

REMOVE COVER OR BACK.

NO USER-SERVICABLE

PARTS INSIDE. REFER TO

QUALIFIED SERVICE

PERSONNEL.

www.currentaudio.com

1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181

SB80 RPA 090312

Thank you for purchasing the Current Audio Home Theater SoundBar.

Please read this manual thoroughly before making any connections or applying

AC power. This manual applies to the SB80 and SB65 SoundBar Systems.

Follow the instructions in this manual. It will allow you to obtain the maximum

performance and listening pleasure from your new amplifier.

Please retain this manual to use as a future reference.

Supplied Accessories

The boxes include the following equipment and accessories:

•(1) Multiple speaker SoundBar

•(1) 120VAC to 12VDC power supply

•(1) FM Antenna

•(1) RCA stereo audio cable

•(1) 3.5mm stereo audio cable

•(1) Hand held remote control unit

•(1) 2.4GHz wireless MegaBass unit with power cord

•(1) Wall support mounting bar with screws

•(1) Table Top Mounting feet

•(1) Instruction Manual

Specifications

SoundBar Power SB80/65

Subwoofer SB80/65

60 Watts RMS Ported /40 Watts RMS Ported. Defined midrange.

80 Watts RMS Powered / 60 Watts Powered

Sound Mode SB80

Selectable 2.0/2.1 with Enhanced DSP Surround Modes

Sound Mode SB65

2.1 for Enhanced DSP listening

Speakers SB80

8 Speakers. 6 2.5” Midrange Drivers and 2 1.25” Tweeters

Speakers SB65

6 Speakers. 4 2.5” Midrange Drivers and 2 1.25” Tweeters

Subwoofer SB80/65

2.4GHz 8” Long Throw Ported Woofer. 6.5” Long Throw.

Bluetooth SB80 Only

Connectivity for iPhone,Android,MP3 and PC

Audio Inputs SB80/65

Digital Optical, Digital Coaxial, RCA,3.5mm

USB and SD Memory Slot

MP3,USB HD, PC, Mobile Phone

Frequency Response

SB80: 37Hz-20 kHz SB65: 40-Hz-20kHz

FM Tuner

Built-in Selectable FM Tuner with Presets

Dimensions WxHxD

SoundBar: SB80: 39 ¾” (1010mm) x 3 ½”” (89mm) x 3 5/16” (84mm)

SB65: 39 ½” (1003mm) x 3 ½”” (89mm) x 3 5/16” (84mm)

Dim MegaBass SB65

WxHxD 16 3/8”(416mm) x 7 7/8”(200mm) x 13”(330mm)

Dim MegaBass SB80

WxHxD 17 1/8”(435mm) x 8 11/16”(221mm) x 14 1/4”(362mm)

Weight SoundBars

Subwoofer

9 lbs (4.08kg)

SB80 21 lbs (9.5kg) SB65 17 lbs (7.7kg)

www.currentaudio.com

1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181

AMP2150 RPA 06052012

Soundbar SB80 and SB65 by Current Audio

The SB80 and SB65 SoundBar describes the latest digital technology in amplified

speaker sound bars with a powerful wireless amplified MegaBass subwoofer by

Current Audio. The powerful subwoofer can be located anywhere in the room.

This is the perfect Home Theater System with a wide sound stage.

The system comes with a handheld remote to control power, switch inputs and

adjust sound fields. You may also use the touch screen buttons on the SoundBar.

The slim depth and sleek design blends with all flat LED/LCD TV models.

Features and Connections for SoundBar (see photo on next page)

Rear Panel SoundBar

1. Power Switch-Rear panel switch to cut power for service or hook-up.

2. Input Power Jack-Connect the 12VDC power supply here.

3. Line Inputs–Three input methods are provided on the back panel. Digital

Optical or Coaxial or standard analog RCA input from TV.

4. AUX IN-A standard 3.5mm audio jack for MP3, computers or mobile devices.

5. FM Antenna-Connect the supplied FM antenna to play FM radio.

Front and Side Panel SoundBar

6. Remote Control Receive Window-Aim the Remote to this area to control

or change the functions of the system.

7. LCD Display-The Digital read out gives status of the system functions and

will automatically dim after 60 seconds. Press any button on the remote to

turn the display on.

8. Sound Source Touch Button-Switches between FM radio, Aux, USB, SD

card, TV, Optical or Coaxial modes.

9. Volume Up/Down Touch Buttons-Manually control volume.

10. Power Touch Button-Place system in Standby OFF mode or ON mode.

11. USB-Port-2.0 Input for MP3 or WMA format music files.

12. SD Memory Card Port-Input for MP3 and WMA format music files.

13. Mounts-packed with each amp is an accessory pack that include brackets

allowing the SoundBar to be table top or wall mounted.

Subwoofer

14. Input power Jack-Connect 110VAC 2 conductor power cord here.

15. Power Mode-Power ON or OFF

16. Match Button and Status LED-Used to sync the SoundBar with the

MegaBass for control of the subwoofer.

www.currentaudio.com

1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181

SB80 RPA 090312

SB80

Rear Input View

SB80 Home Theater SoundBar Elements

3 2

www.currentaudio.com

1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181

SB80 RPA 090312

Subwoofer Picture w Inputs

Remote

9 10 11 12

INSTALLATION

Getting Started

SoundBar Placement

www.currentaudio.com

1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181

SB80 RPA 090312

Note: Current Audio D-Force SoundBar requires adequate free air space for safe and proper

operation.

INSTALLATION

Making Connections

Caution: All connections and switching should be done with the AC power switched OFF.

The final connection should be the power cords.

INPUTS

The inputs are located on the back of the SoundBar. They include 12VDC Power, Analog RCA,

Digital Optical, Digital Coaxial and 3.5mm Jack

Where to Locate SoundBar

Either mount the SoundBar on a flat horizontal surface centered in front of the TV or surface

wall mount the SoundBar on the wall via the Key Hole slots. Use proper wall anchors to

support the weight of the SoundBar. (see Picture)

Where to Locate Subwoofer

Install the wireless subwoofer preferably near the front wall next to a 110VAC outlet. The

power cord is the only wire needed for hook-up. Corner placement will give an added bass

boost.

INSTALLATION

Making Connections

See picture for Hook-Up

Use quality connection cables for best performance

www.currentaudio.com

1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181

SB80 RPA 090312

SoundBar Rear Panel Inputs

Connect Blue FM RCA Plug

Optical Digital Cable

Connect Red and

Black Stereo RCA

Plug from TV

Optical & RCA Coax Digital

3.5mm Stereo Plug from Mobile Device

INSTALLATION

Setup for SoundBar and Wireless Subwoofer Matching

The wireless signal between the SoundBar and the MegaBass is factory set.

In order for the SoundBar to communicate with the wireless MegaBass

subwoofer the units must sync with each other. If the units are not in sync the

following steps will allow the two units to talk with each other and allow the

subwoofer to receive the low frequencies from the SoundBar.

1. Plug the subwoofer into a close 110VAC outlet.

2. Press the ON/Off Power switch to On position.

3. Energize the 12VDC SoundBar Power by placing the rear switch to ON.

4. Switch SoundBar from Standby power to ON. Use either the Remote Control

or the Power Touch switch on the SoundBar. Check LCD Display.

5. Switch the SoundBar Mode to 2.1 by the Remote Control.

6. On the Remote Control, press the MATCH button (at the bottom left) until the

LCD screen indicates the Signal Symbol under the 2.1 mode display.

7. Using a pen or small screwdriver, depress the MATCH sync momentary

switch on the back panel of the Subwoofer and hold for at least 10 seconds

or until the Match LED blinks rapidly. This indicates the subwoofer is in the

process of syncing with the SoundBar.

8. When the Match LED stops blinking and remains solid the match between the

SoundBar and subwoofer is successful.

www.currentaudio.com

1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181

SB80 RPA 090312

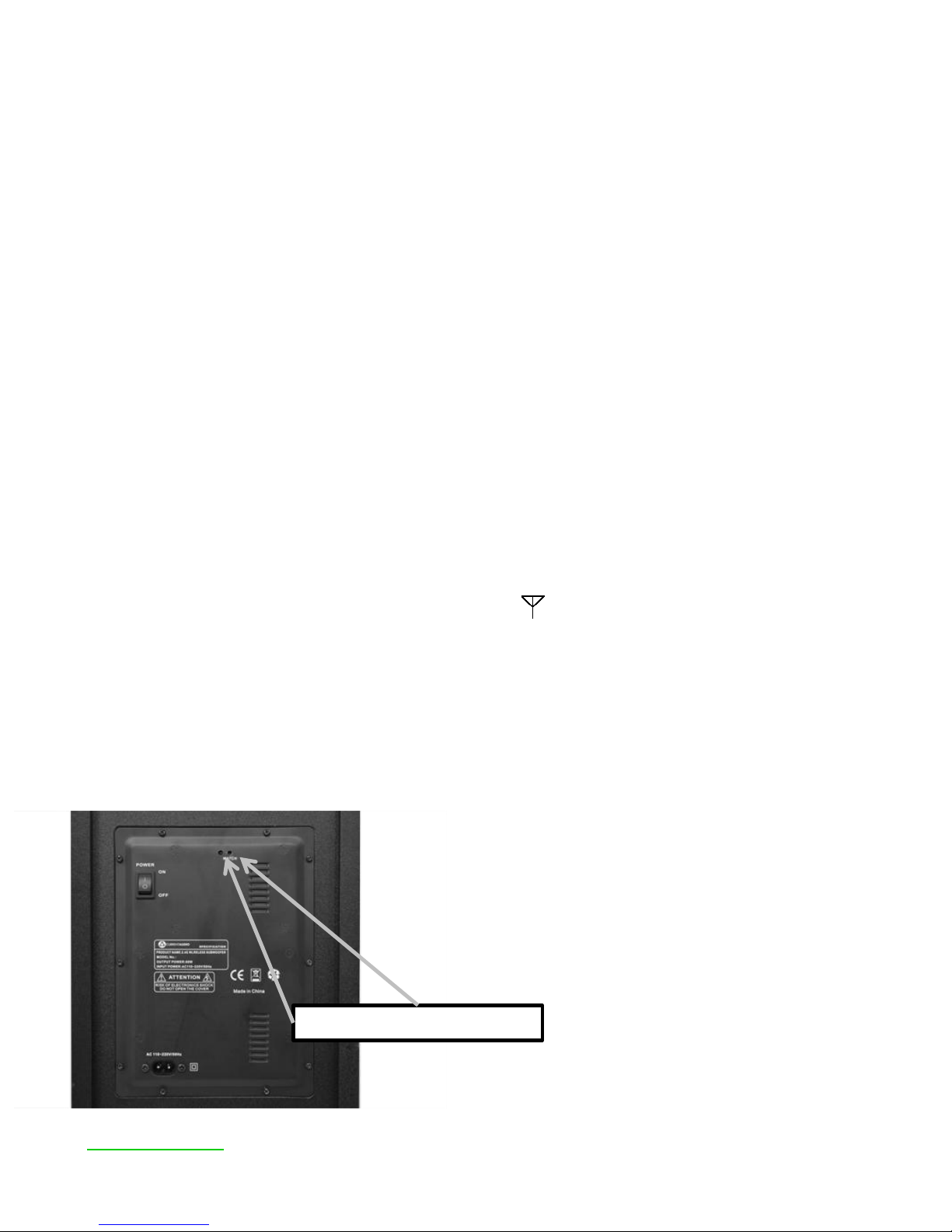

MATCH Switch LED

INSTALLATION

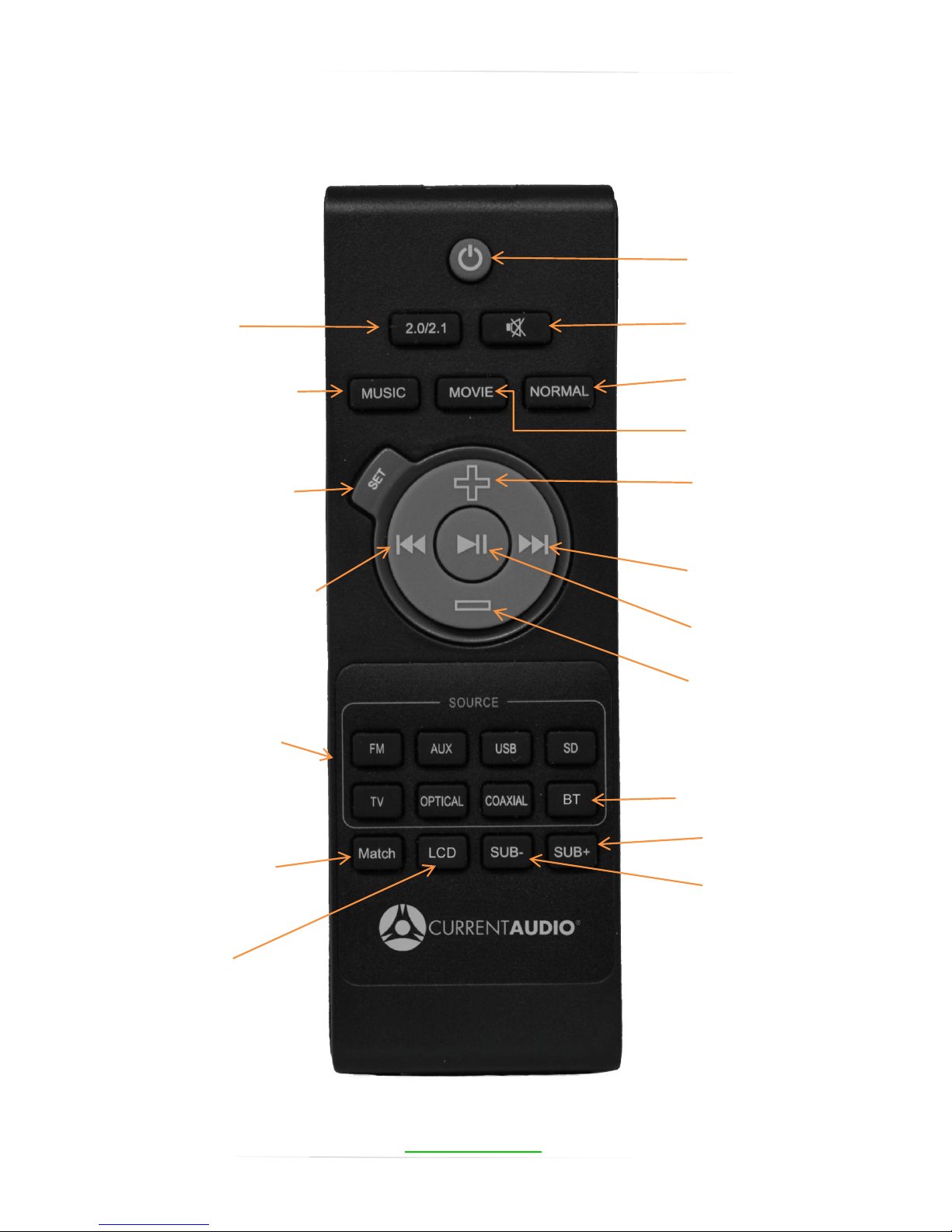

Remote Control Functions

See picture for functions

www.currentaudio.com

1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181

SB80 RPA 090312

Power –toggle ON/OFF

DSP- toggle 2.0/2.1 Mute –toggle ON/OFF

DSP Movie- enhanced

wide soundstage image

DSP Normal-flat

frequency response

DSP Music- enhanced

Bass and high frequency

response

Red Ring-for setting clock.

Toggle to am/pm, hour

minutes. (+) (-) to adjust. Skip –press for a couple of

seconds to scan to the next

FM station or the next MP3

track

(+) –volume up

(-) –volume down

Play/Pause- MP3

Back –press for a couple of

seconds to scan to the next

FM station or to skip to go to

the previous MP3 track

Source Buttons: FM, AUX

(3.5mm jack), USB, SD,

TV (RCA jacks), digital

optical, digital coaxial

SUB (+) –volume up

Turn Display on or off

Match –for pairing

SoundBar to MegaBass

unit. Indicated by Antenna

symbol. SUB(-) –volume down

Bluetooth streaming input

www.currentaudio.com

1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181

SB80 RPA 090312

Bluetooth connection guide for model SB80

1. Turn the power on the SoundBar SB80 with the remote

control

2. Press the “BT” button on the remote control, BT will be

displayed in the upper left hand portion of the LCD

screen

3. Turn on your Bluetooth compatible device and allow it

to search for the SoundBar. The default name of the

SoundBar is OVC3860. The connect it by using 0000

as the security code.

4. Please see your device’s Bluetooth connection

directions for further details.

Altri manuali per SB80

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Current Audio Altoparlanti

Current Audio

Current Audio FIT801 Guida alla risoluzione dei problemi

Current Audio

Current Audio PRO CECS80-70V Guida alla risoluzione dei problemi

Current Audio

Current Audio OC525 Guida alla risoluzione dei problemi

Current Audio

Current Audio OC8 Guida alla risoluzione dei problemi

Current Audio

Current Audio PRO 70V Series Guida alla risoluzione dei problemi

Current Audio

Current Audio WS650 Manuale utente

Current Audio

Current Audio FIT FastLoc FIT650FL Guida alla risoluzione dei problemi

Current Audio

Current Audio WSLCR650FL Manuale utente

Current Audio

Current Audio OC525W Guida alla risoluzione dei problemi

Current Audio

Current Audio CS650DB Guida alla risoluzione dei problemi

Current Audio

Current Audio FastLoc CS650FL Guida alla risoluzione dei problemi

Current Audio

Current Audio CECS65 Manuale utente

Current Audio

Current Audio PRO SUB801-70V Guida alla risoluzione dei problemi

Current Audio

Current Audio OR6 Series Guida alla risoluzione dei problemi

Current Audio

Current Audio SPA525FR Guida alla risoluzione dei problemi

Manuali Altoparlanti popolari di altre marche

argon audio

argon audio IE20 Manuale utente

Denon

Denon SC-N7 Manuale utente

Gemline

Gemline Ace 3952 Manuale utente

Focal

Focal ON WALL 300 Manuale di istruzioni

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuale utente

SoundLogic

SoundLogic BCCS-6/6395 Manuale utente

Peavey

Peavey DTH 218 Manuale utente

Avantree

Avantree Pluto Air Manuale utente

Morel

Morel Integra Series INTEGRA OVATION 4 Manuale utente

Oppo

Oppo SONICA Manuale utente

Bose

Bose SoundLink Wireless Music System Manuale utente

Rocksteady

Rocksteady Stadium Manuale utente

Bowers & Wilkins

Bowers & Wilkins 4 Manuale utente

Sonance

Sonance SONOS OUTDOOR Series Manuale utente

Electro-Voice

Electro-Voice EVID FM4.2 Manuale utente

Pioneer

Pioneer XW-HTD630 Manuale utente

Onn

Onn BWA16AA002 Manuale utente

HP GL313AA - USB Speakers PC Multimedia Manuale utente
