CyberPower RMCARD205 Manuale utente

Quick Start Guide

REMOTE MANAGEMENT CARD

RMCARD205

RMCARD305

The Remote Management Card allows a UPS

system and environmental sensor to be managed,

monitored, and configured.

K01-0000449-00

INSTALLATION GUIDE

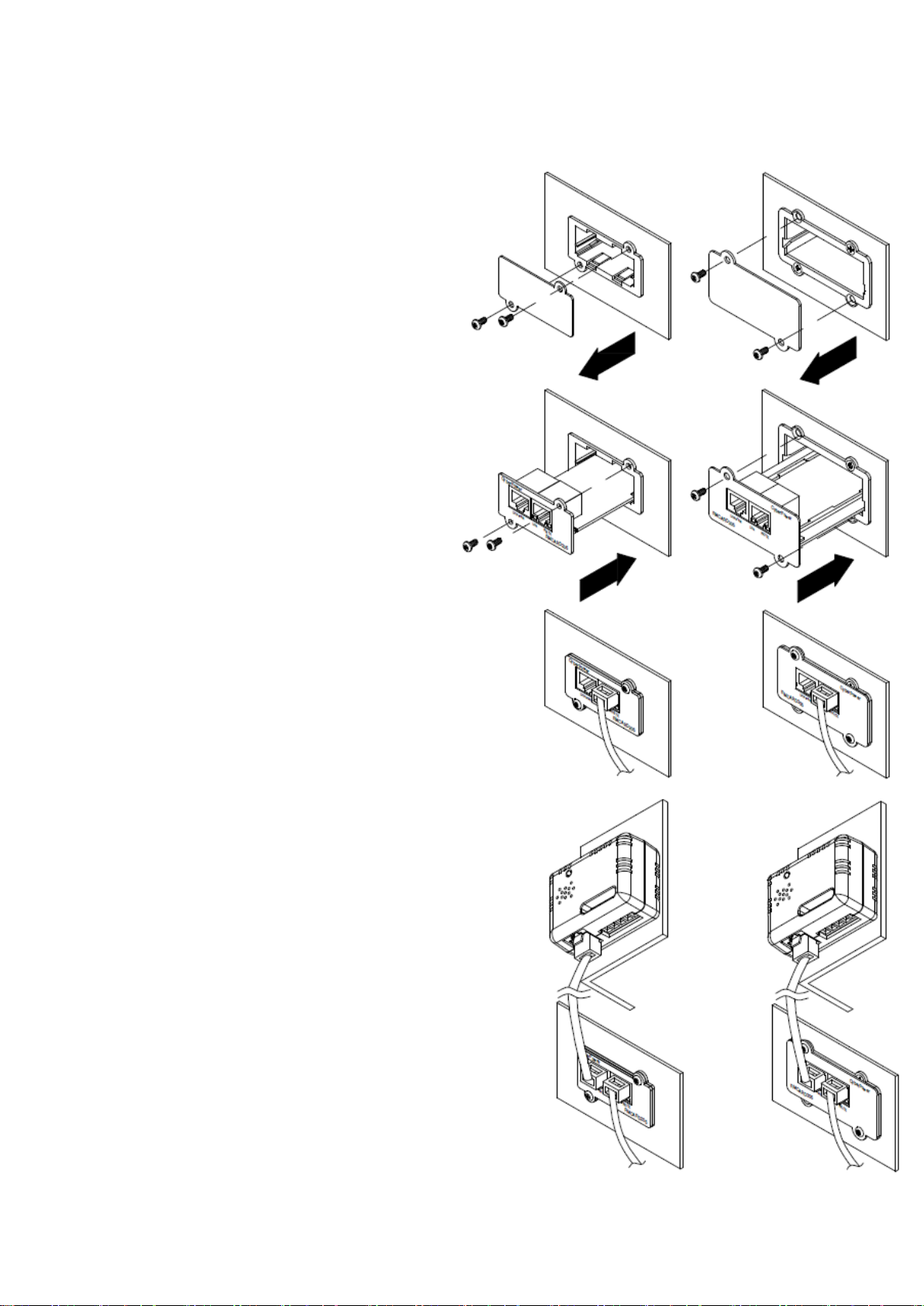

Step 1. Hardware Installation

1. Remove the two retaining screws

of the expansion port cover, and

then remove the cover.

2. Install the CyberPower Remote

Management Card into the

expansion port.

3. Re-install and tighten the retaining

screws.

4. Connect the Ethernet cable to the

Ethernet connector of the

CyberPower Remote Management

Card.

5. (Optional) To connect with the

environmental sensor, use a

RJ45 Ethernet cable. Connect

one end to the Universal port on

the RMCARD and the other end

into the sensor. For further

information, please refer to the

ENVIROSENOR user’s manual.

NOTE: The CyberPower Remote Management Card is a hot-swap device, so you do

not need to turn off the UPS to install it.

RMCARD205

RMCARD305

Definitions for LED Indicators

Link LED color

Condition

Off

The Remote Management Card is not connected to

the Network/ or the Remote Management Card

power is off

On(Yellow)

The Remote Management Card is connected to the

Network

TX/RX LED color

Off

The Remote Management Card power is off

On(Green)

The Remote Management Card power is on

Flash

- Receiving/transmitting data packet

- Reset finished

Step 2. Configure the IP address for the CyberPower

Remote Management Card.

Method 1: Using the Power Device Network Utility Tool

1. Install the Power Device Network Utility tool available for download on the

Network Power Management product web page at www.CyberPower.com.

2. After installation completes, run the “Power Device Network Utility”.

3. The main dialog of the Power Device Network Utility Tool program is

shown in Figure 1. The configuration tool will display all CyberPower

Remote Management devices present on the same network subnet. The

"Refresh" button is used to search the local network subnet again.

Figure 1. The main window of the “Power Device Network Utility” program.

4. Select the Remote Management Card you are setting up. Click on the

Tools menu and select “Device Setup” or double click the Remote

Management Card you want to configure.

5. You can modify the IP Address,

Subnet Mask, and Gateway address

for the Device MAC Address listed in

the Device Network Settings window,

as shown in Figure 2. The default IP

Address is 192.168.20.177 and the

default Subnet Mask is

255.255.255.0.

6. Modify the IP, subnet mask or

gateway address. Enter the new

addresses into the corresponding

fields.

Figure 2. The Device Network setting window.

Step 1. Hardware Installation

LINK Indicator

Ethernet connector

RX/TX Indicator

RMCARD203

Universal Link RX/TX

Universal connector

7. You will need to enter a User Name

and Password for the Remote

Management Card in the

authentication window, as shown in

Figure 3.

*Default user name: cyber

Default password: cyber

8. If the IP address change is

successful, you will see a message

confirming the IP set up is OK, as

shown in Figure 4.

Method 2: Using a command prompt

1. Obtain the MAC address from the label on the Remote Management Card.

Each Management Card has a unique MAC address.

2. Use the ARP command to set the IP address.

Example:

To assign the IP Address 192.168.10.134 for the Remote Management

Card, which has a MAC address of 00-0C-15-00-FF-99 you will type in the

following in the command prompt from a PC connected to the same

network as the Remote Management Card.

(1) Type in “arp -s 192.168.10.134 00-0C-15-00-FF-99” then press Enter.

3. Use the Ping command to assign a size of 123 bytes to the IP.

(1) Type in “ping 192.168.10.134 -l123” then press Enter.

(2) If the replies are received, your computer can communicate with the IP

address.

Note: These instructions are for Windows OS. For other OS please refer to RMCARD

User’s Manual available for download at CyberPower Systems official website:

www.CyberPower.com.

Figure 4. Setup IP Address successfully message.

Figure 3. Authentication window.

WEB INTERFACE Login User Account

You can select a preferred language, and will need to enter a User Name

and Password to login to the interface. There are two user account types.

1. Administrator

*Default username: cyber

Default password: cyber

2. View only

*Default username: device

Default password: cyber

The administrator can access all functions, including enable/disable the view

only account. The viewer can access read only features but cannot change

any settings.

Trouble Shooting

Problem

Solution

Unable to configure

the Remote

Management Card

by method 1 or

method 2

1. Check the LED status, the condition is normal

when the yellow and green LEDs are both on.

If green LED is off :

►Check if the Remote Management Card is

properly seated in the UPS and the UPS

power is connected to working electrical

outlet.

If yellow LED is off :

►Ensure the network connection is good.

2. Ensure the PC being used is on the same

network subnet as Remote Management Card.

Unable to ping the

Remote

Management Card

1. Use method 1 and method 2 to get/set a correct

IP address for the Remote Management Card.

2. If the PC being used is on a different network

subnet from the Remote Management Card,

verify the setting of subnet mask and the IP

address of gateway.

Lost the user name

and password

Please refer to the “Reset to Default Setting /

Recover from a Lost Password” section in the

RMCARD User’s Manual.

SOFTWARE SUPPORT

PowerPanel®Business Edition Client can support a UPS with a remote

management card via the network. PowerPanel® Business Edition software

is available on CyberPower Systems official website. Please visit

www.CyberPower.com and go to the software section for free download.

CONFORMANCE APPROVALS

FCC Warning

This equipment has been tested and found to comply with the limits for a

Class A Digital Device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the

interference at his own expense.

Any special accessories needed for compliance must be specified in the

instruction.

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

The Class A digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulation.

Cet appareil numerique de la class A respecte toutes les exigencies du

Reglement sur le materiel brouilleur du Canada.

CyberPower North America

CyberPower Systems (USA), Inc.

Phone: (952)-403-9500 Toll-free: (877)297-6937

4241 12th Avenue E. Suite 400, Shakopee, MN 55379

E-mail: tech@cpsww.com

Website: www.CPSww.com

CyberPower International

CyberPower Systems, Inc.

Website: www.CyberPower.com
