CYP CH-1106TX & RX Manuale utente
CH-1106TX & RX
HDMI over Dual CAT6
Extender with IR
Operation Manual
CH-1106TX & RX
Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2009 by Cypress Technology.
All Rights Reserved.
Version 1.0 October 2009
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
V1 20091020 Preliminary Release
V2 20101116 IR Connection in Pg. 7
VR3 20120416 Add IR Distance
Table of Contents
1
1
1
1
2
3
4
4
5
6
6
6
7
9
1. Introduction ……………………..……………………...…........….…….
2. Applications …………………..………………….……...................…..
3. Package Contents ………………………...........……….................…
4. System Requirements ……………..……….........………............…….
5. Features …………………………………………......……........…...……
6. Specications ………………………………...……..........………....….
7. Operation Controls and Functions ……………...……..............……
7.1 Front Panel ..............................................................................
7.2 Rear Panel .…………………………………..…….......…...….…
8. Pin Assignment .............................……………..........…......…....…...
8.1 IR Cable Pin Assignment .......................................................
8.2 RJ-45 Pin Denitions ................................................................
10. Connection and Installation ….………………….........…..…..…......
11. Acronyms …......................................................................................
1. Introduction
The HDMI over Dual CAT6 Extender is the ideal device to send your HDMI
signals over long distances. Instead of using expensive HDMI cables, your
existing CAT6 cables/sockets can replace HDMI cables while performing
the same functions like transferring Deep Color (12 bits/color) video and
lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master
Audio) digital audio. Moreover, you can use the existing remote to control
the source and connect it to another transmitter and receiver to extend your
HDMI signal to distances you never thought possible. This HDMI over Dual
CAT6 Extender is your only choice when looking for an HDMI extender.
2. Applications
Showroom display/control
Home entertainment systems
Commercial displays
Lecture room display/control
3. Package Contents
HDMI over Dual CAT6 Transmitter x 1
HDMI over Dual CAT6 Receiver x 1
IR Receiver x 1
IR Blaster x 1
5V DC Power Adaptor x 2
Operation Manual x 1
4. System Requirements
HDMI equipped source devices such as DVD/Blu-ray players or Set-
top Boxes connected with HDMI cables or DVI equipped source
devices connected with DVI to HDMI cables
HDMI equipped displays such as HDTVs or monitors or HDMI equipped
AV receivers connected with HDMI cables
Industry standard CAT6 cables
1
5. Features
HDMI, HDCP 1.1 and DVI 1.0 compliant.
Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/
color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus
and DTS-HD Master Audio) digital audio .
Supports CAT6 cables for data/DDC transmission
Equalizes and recovers any incoming TMDS data before re-transmitting it
in flawless quality regardless of the incoming signal.
HDMI cable distance testing showed with 1080p/8bits & 12bits resolution
the Input/Output distance can reach up to 15/15 meters away. With
CAT6 cable, distance test with 1080p/8bits & 12bits resolution the I/O
source can run up to 45/20m away.
Note:
A. Cable tested with CAT6/23AWG/Solid, using cables of another type
may result in a different operating distance.
B. Cable distance tested with the following: PS3 40G, 37" Philips 8 bit LCD
TV and 37" Samsung 12 bit LCD TV.
C. Figures provided in this manual are for reference only, actual
performance may depend on the source and display used along
with the type of cable.
Supports CEC bypass and xvYCC
Includes an IR Receiver and Blaster
Supports wide range of IR frequencies from 30~50KHz
Can be connected to another transmitter and receiver to extend an
HDMI signal to an extreme distance
2
6. Specications
Transmitter 1 x HDMI
1 x IR Blaster
1 x CAT6 Output for Video
1 x CAT6 Output for DDC
Receiver 1 x HDMI
1 x IR Receiver
1 x CAT6 Input for Video,
1 x CAT6 Input for DDC
HDMI Input Cable 1080p 8-bit (15M), 12-bit (15M)
HDMI Output Cable 1080p 8-bit (15M), 12-bit (15M)
CAT6 Cable 1080p 8-bit (45M), 12-bit (20M)
Power Supply 5V/1A (US/EU standards, CE/FCC/UL certified)
ESD Protection Human body model: ±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions (mm) 78.5(W) x 117(D) x 30(H) / Transmitter
78.5(W) x 72(D) x 30(H) / Receiver
Weight(g) 200 / Transmitter
90 / Receiver
Chassis Material Aluminum
Silkscreen Color Silver
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Power Consumption 3.6 W
Relative Humidity 20 ~ 90% RH (non-condensing)
3
7. Operation Controls and Functions

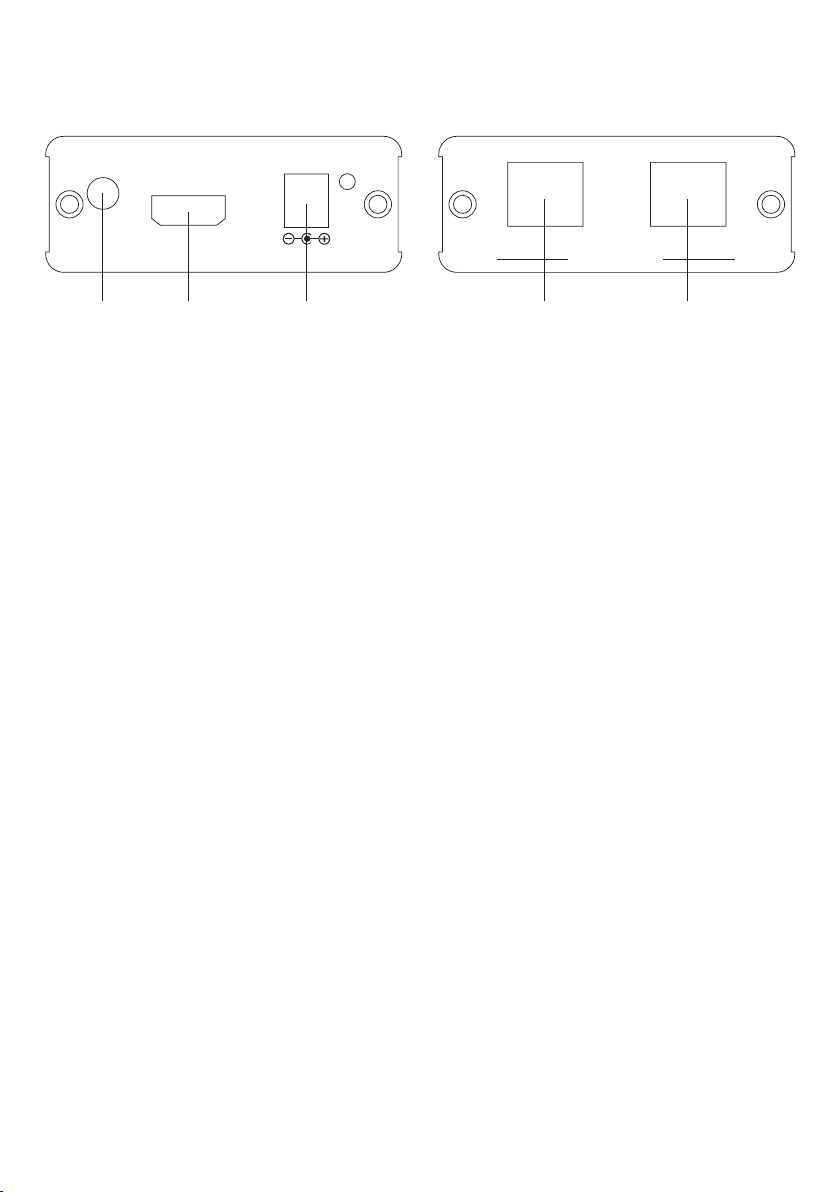

7.1 Transmitter Front and Rear Panels
④ ⑤
DDC VIDEO
CAT6 OUTPUT
① ② ③
POWER 5V
HDMI INPUT
IR
Transmitter
① IR Transmitter: This slot is where you connect the IR blaster cable. Place the
IR eye in front of the source equipment(s) in order to send an IR signal, the
IR blaster has a frequency range from 30KHz to 50KHz.
② HDMI INPUT: This slot is where you connect the HDMI or DVI output port of
your source equipment such as DVD/Blu-ray players or set-top-boxes
with an HDMI cable or receiver unit, you may also connect this device to
another unit from the same family or some other type of splitter to further
extend an HDMI signal.
③ POWER 5V: This slot is where you plug the 5V DC power supply into the unit
and connect the adaptor to an AC outlet.
④ DDC OUTPUT: Connect to the DDC Input of the receiver with a CAT6
cable.
⑤ Video OUTPUT: Connect to the Video Input of the receiver with a CAT6
cable.
4

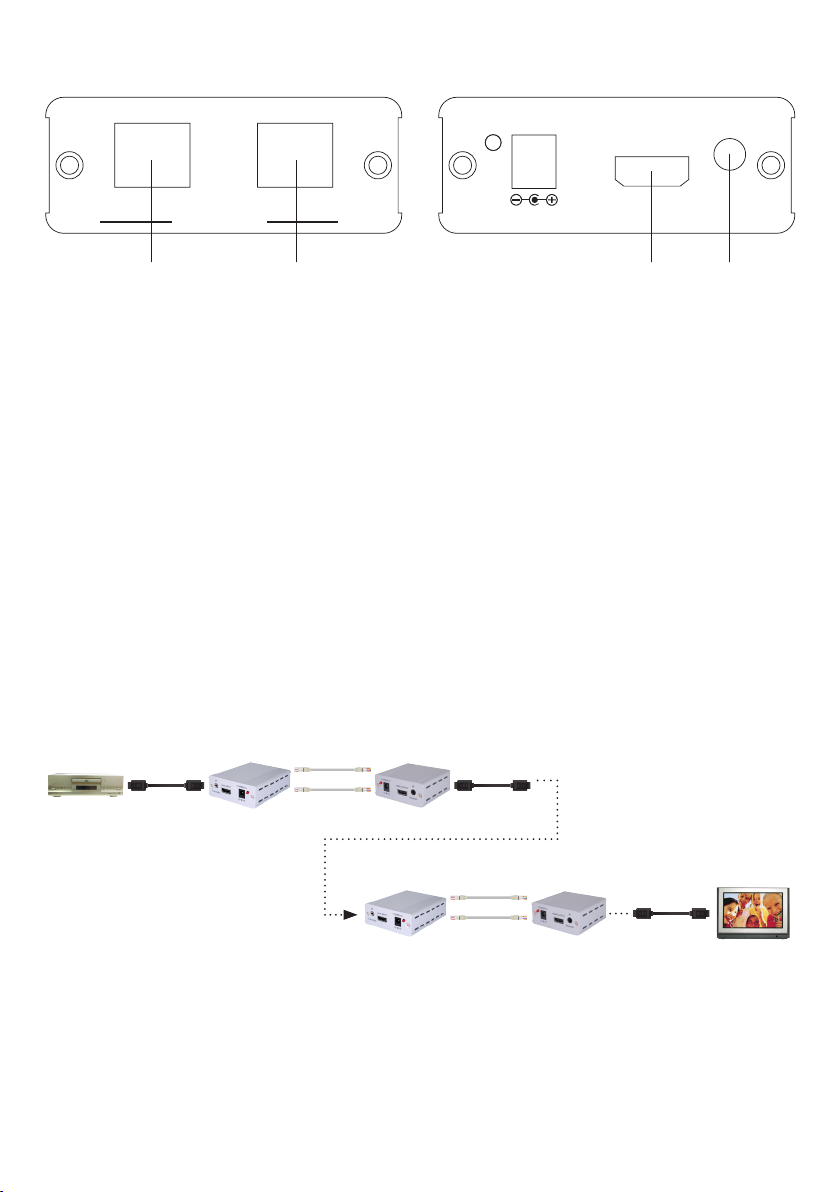

7.2 Receiver Front and Rear Panels
②①
VIDEO DDC
CAT6 INPUT
④ ⑤
POWER 5V IR
Receiver
HDMI OUTPUT
① Video INPUT: Connect to the Video Input of the transmitter with a CAT6
cable.
② DDC INPUT: Connect to the DDC Input of the transmitter with a CAT6
cable.
③ POWER 5V: This slot is where you plug the 5V DC power supply into the unit
and connect the adaptor to an AC outlet.
④ HDMI OUTPUT: This slot is where you connect the HDMI or DVI input port of
your display such as HDTV’s or HD monitors or you can connect this device
to another unit from the same family or some other type of splitter to
further extend an HDMI signal.
⑤ IR Receiver: This slot is where you connect the IR receiver cable, place
the IR eye in front of the display then use the existing remote to control
the input source equipment. The IR receiver has a frequency range from
30KHz to 50KHz.
Example:
DVD
Player
HDMI
Cable
HDMI
Cable
HDMI
Cable
CAT6
VIDEO
CAT6
VIDEO
DDC
CAT6
DDC
CAT6 HDMI LCD TV
CH-1106TX
CH-1106TX
CH-1106RX
CH-1106RX
HDM
I
HDMI
HDM
I
HDMI
HDMI
HDMI
5
