CH-1601TXRX

HDMI/Audio over CAT5e/6/7 Extender with 48V PoE

Operation Manual

DRAFT

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means

- electronic, mechanical, magnetic, optical, chemical, manual,

or otherwise - without express written permission and consent from

Cypress Technology.

Version 1.0 November 2014

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

DRAFT

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack or install or

operate this equipment, and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through

module openings or empty slots, as you may damage parts.

• Do not attach the power supply cabling to building surfaces.

• Do not allow anything to rest on the power cabling or allow it to

be abused by persons walking on it.

• To protect the equipment from overheating, do not block the slots

and openings in the module housing that provide ventilation.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 20/10/14 Preliminary Release

DRAFT

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Transmitter’s Front Panel..................3

6.2 Transmitter’s Rear Panel ..................4

6.3 Receiver’s Front Panel.....................5

6.4 Receiver’s Rear Panel .....................6

6.5 IR Cable Pin Assignment..................7

6.6 D-Sub 9-Pin Assignment...................7

7. Connection Diagram ............................ 8

8. Specications ........................................ 9

9. Acronyms ............................................. 10

DRAFT

1. INTRODUCTION

This HDMI and Audio over Single CAT5e/6/7 Transmitter and Receiver

set can send uncompressed audio/video along with controls, IP and

USB data over a single run of CAT5e/6/7 cable up to 100m. It has the

added benet of control through the built-in RS-232 and IR ports and

a bidirectional LAN serving connection. There is a bidirectional digital

audio capability that gives users the convenience of an additional

audio connection. This system also allows the connection of any

USB host, enabling a USB connection to up to 2 USB ports, giving the

Receiver the ability to act like a USB hub. The 48V PoE design can

power the Receiver (PD) from the Transmitter (PSE), eliminating the

need for a separate power supply for the Receiver.

2. APPLICATIONS

• 48V PoE from Transmitter (PSE) to Receiver (PD)

• Household entertainment extending and control

• Lecture room display and control

• Showroom display and control

• Meeting room presentation and control

• Classroom display and control

3. PACKAGE CONTENTS

• 1 x HDMI/Audio over CAT5e/6/7 Transmitter

• 1 x CAT5e/6/7 to HDMI/Audio Receiver

• 1 x IR Blaster

• 1 x IR Extender

• 1 x 48 DC Power adaptor

• Operational Manual

4. SYSTEM REQUIREMENTS

Input source equipment such as DVD/Blu-ray player, host PC/Laptop

and HDMI equipped output display (TV or monitor) with amplier or

active speakers.

DRAFT

5. FEATURES

• Supports HDBaseT 2.0 specication supporting over a single CAT6/7

cable up to 100m/328ft and CAT5e cable up to 90m/295ft

• Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K2K

60Hz with 4:2:0)

• Receiver features 2 USB 2.0 ports

• HDMI (with 3D & 4Kx2K support), HDCP and DVI compliant

• HDBaseT 5Play™ convergence: High-Denition (HD) Video and

Audio, 100BaseT Ethernet, PoE and Control (Bidirectional IR/RS-232

pass-through)

• Supports pass-through of audio formats: LPCM2/5.1/7.1CH, Dolby

Digital 2~5.1Ch, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master

Audio

• Supports 10/100 Ethernet network connection

• Bidirectional LAN and external digital audio capability

• Supports RS-232 baud rate from 110~115200bps

DRAFT

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Transmitter’s Front Panel

RS 232 IN IR IN 2 IR OUT 1LAN CAT5e/6/7 OUT DC 48V

POWER

654321

1RS-232 IN

Connect to a PC or Laptop with D-Sub 9- pin female cable for the

transmission of RS-232 commands.

2IR IN 2

Connect to the supplied IR Extender cable for IR signal reception.

Ensure that remote being used is within the direct line-of-sight of

the IR Extender.

3IR OUT 1

Connect to the supplied IR Blaster Cable for IR signal transmission.

Place the IR Blaster in direct line-of-sight of the equipment to be

controlled.

4LAN

Connect to an internet or network connection.

5CAT5e/6/7 OUT

Connect to the Receiver unit with a single CAT5e/6/7 cable for

transmission of all data signals. The yellow LED will illuminate to

represent the link from Receiver is steady, when it blink irregularly it

represent the link error or when not illuminate it means no link with

Receiver. The green LED will illuminate to represent the HDMI signal

contents HDCP signal.

6DC 48V & POWER LED

Plug the 48V DC power supply into the unit and connect the

adaptor to an AC outlet and the LED will illuminate.

DRAFT

6.2 Transmitter’s Rear Panel

HDMI IN COAX AUDIO IN

OUT 1IN

USB

54321

1HDMI IN

Connect to HDMI source equipment such as a DVD or Blu-ray

player.

2USB

Connect from PC or Laptop for data transmit to or control from the

Receiver’s USB slots.

3COAX OUT 1

Connect to speaker with coaxial input for audio signal output from

Receiver’s COAX IN 1.

4COAX IN 2

Connect to audio source equipment such as DVD or Blu-ray player

for audio signal sending to Receiver’s COAX OUT2.

5AUDIO IN L/R

Connect with audio source equipment such as PC or CD player for

audio signal sending to Receiver’s AUDIO OUT L/R.

DRAFT

6.3 Receiver’s Front Panel

RS 232 OUT IR IN 1 IR OUT 2LAN CAT5e/6/7 IN

POWER

654321

1RS-232 OUT

Connect to the device that is to be controlled (via D-Sub 9-pin

male cable) by RS-232 commands.

2IR IN1

Connect to the supplied IR Extender cable for IR signal reception.

Ensure that remote being used is within the direct line-of-sight of

the IR Extender.

3IR OUT 2

Connect to the supplied IR Blaster cable for IR signal transmission.

Place the IR Blaster in direct line-of-sight of the equipment to be

controlled.

4LAN

Connect to a PC or Laptop to the internet or network connection.

5CAT5e/6/7 IN

Connect to the Transmitter unit with a single CAT5e/6/7 cable for

transmission of all data signals. The yellow LED will illuminate to

represent the link from Receiver is steady, when it blink irregularly it

represent the link error or when not illuminate it means no link with

Receiver. The green LED will illuminate to represent the HDMI signal

contents HDCP signal.

6POWER LED

This LED will illuminate when the device is connected with power

supply.

DRAFT

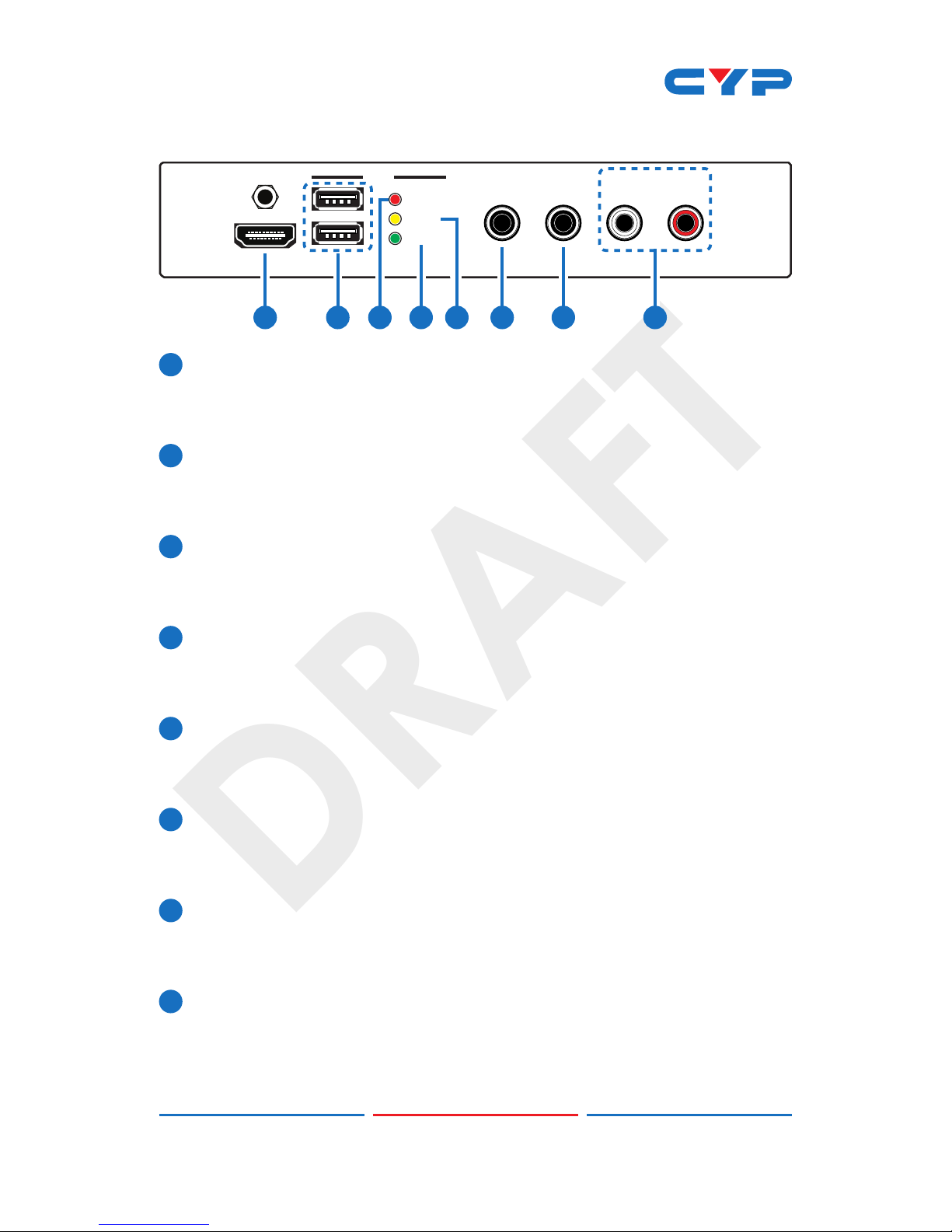

6.4 Receiver’s Rear Panel

HDMI OUT COAX AUDIO OUT

OUT 2IN

POWER

LINK 1

LINK 2

USB

876542 31

1HDMI OUT

Connect to a HDMI equipped TV/monitor for display of the HDMI

input source signal.

2USB

Connect to USB peripheral devices such as printer, keyboard, ash

driver or …etc. for data receiving or sending back to Transmitter.

3POWER LED

This LED will illuminate when device is connected with USB power

supply.

4LINK 2

This LED will illuminated when the lower USB slot is connected with

signal activated.

5LINK 1

This LED will illuminated when the upper USB slot is connected with

signal activated.

6COAX OUT 2

Connect to speaker with coaxial input for audio signal output from

Transmitter’s COAX IN 2.

7COAX IN 1

Connect to audio source equipment such as DVD or Blu-ray player

for audio signal sending to Transmitter’s COAX OUT1

8AUDIO L/R OUT

Connect to speaker with RCA input for audio signal output.
