CYP HDBT PU-4H4HBTE-4K Manuale utente
PU-4H4HBTE-4K
4 x 4 HDMI HDBaseT™ Matrix (5Play™ including
LAN serving & 4K resolution support)
OPERATION MANUAL
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 07/04/14 Preliminary Release
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 2
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 Remote Control................................5
6.5 RS-232 Pin Assignment .....................6
6.6 RS-232 and Telnet Commands .......7
6.7 Telnet Control ...................................8
6.8 Web GUI Control ............................10
7. Connection Diagram .......................... 12
8. Specifi cations ...................................... 13
9. Acronyms ............................................. 14
1
1
1. INTRODUCTION
The 4K2K 4 by 4 HDMI Matrix over CAT5e/6/7 supports the transmission
of video (resolutions up to 4K2K Full HD), multi-channel digital audio
from 4 HDMI sources to 4 outputs over a single CAT5e/6/7 cable (up
to 100m) for each output. It supports high resolution digital audio
formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus and DTS-
HD Master Audio as well as 3D content that can be displayed when
connecting a 3D TV and 3D source.
This matrix features control via manual selection buttons, IR, RS-232,
Telnet or Web GUI. CYP provide control drivers for all the major control
systems. This unit also supports UART RS-232 pass-through.
The PU-4H4HBTE-4K is designed to be used with any of the HDBaseT
receivers that can utilise the Power over Cable (PoC) capabilities of
the matrix.
The LAN serving capabilities of the matrix provide network
connections in every zone.
2. APPLICATIONS
•HDMI Matrix System
• Video/TV wall display and control
• Security surveillance and control
• Commercial advertising, display and control
• University lecture hall, display and control
• Retail sales and demonstration
3. PACKAGE CONTENTS
•4K2K 4×4 HDMI Matrix over CAT5e/6/7
•1×IR Extender
• 1×IR Blaster
• 1×24 V/3.75A DC Power Adaptor
• 1×IR Remote Control
• Operation Manual
2
2
4. SYSTEM REQUIREMENTS
• HDMI equipped source devices, connect with HDMI cables or DVI
equipped source, connect with DVI to HDMI cables
• HDMI equipped displays (TVs or monitors) or HDMI equipped AV
receivers, connect with HDMI cables
• Industry standard CAT5e/6/7 cables
• HDBaseT™ Receivers
5. FEATURES
Note:
1. Do not connect the LAN/CONTROL port to CAT outputs of this
device.
• HDMI, HDCP1.1 and DVI compliant
• Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz
(RGB 4:4:4 & • YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0),
4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV
4:2:0) dependent upon the output display’s EDID settings
• Supports uncompressed video/audio up to 10.2Gbps
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Supports 1080p distances up to 100 meters through CAT5e/6/7
cables
• Supports 3D signal display dependent upon the output display EDID
settings
• Supports PoC (Power over Cable) on compatible receivers only
• Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters
at 12-bit resolution
• Supports bi-directional IR from input and output locations
• Supports RS-232, remote control, on-panel control and IP Control
(Telnet & Web GUI)
• Supports LAN serving function through the LAN port
• 1U size design
• Supports external and internal EDID settings
• Supports RS-232 for Matrix Control, plus RS-232 pass-through:
Third-party devices can be controlled in each zone via RS-232 from
the head-end to the receiver, or head-end devices can be
controlled via RS-232 from any receiver in any zone
• Supports 4K/2K & 4K UHD - CAT5e/6 = 70m & CAT6a/7 = 100m
3
3
6. OPERATION CONTROLS AND FUNCTIONS

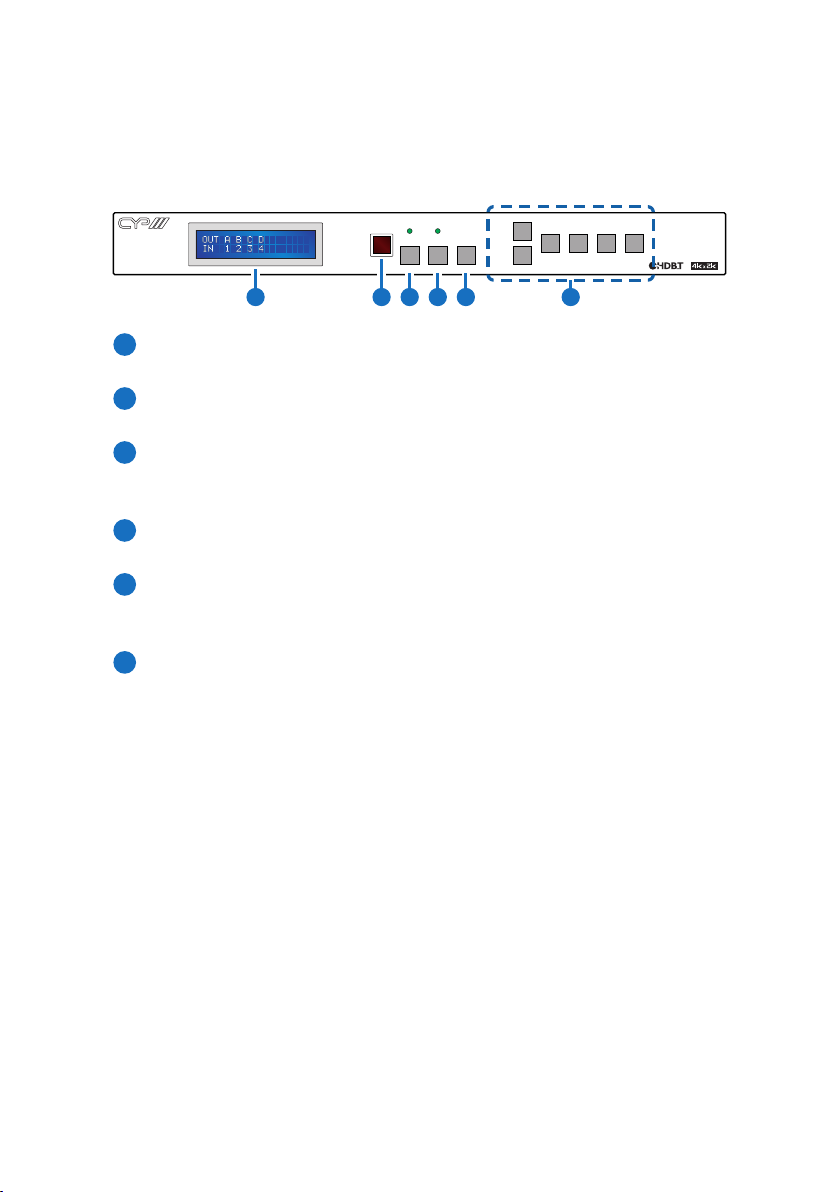

6.1 Front Panel
4X4 HDMI MATRIX
OVER CAT5e/6/7
POWER LOCK MENU
A/1B/2 C/3D/4
OUT
IN
61 2 3 4 5
1LCM: Displays the setting information of each input and output
setting.
2IR: IR Receiver window (accepts the remote control signal of this
device only).
3POWER: Press this button to power the device on/off. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
4LOCK: Press this button to lock all the buttons on the panel; press
again to unlock. The LED will illuminate when locked.
5MENU: Press this button to access the LCM menu system, from
here EDID settings can be managed and IP system settings are
displayed.
6A~D/1~4 and OUT/IN: Press the OUT or IN button to select the
output or input mode and then press the required number button
to make the selection accordingly.
For example, if outputs A~B need to be set to input 1 and outputs
C~D need to be set to input 2, then the following sequence of
button presses need to be performed:
Press: OUTABIN1MENU,
and then press: OUTCDIN2MENU.
Note: If the MENU button is not pressed the selection will not be
changed.
POWER LOCK MENU
A/1B/2 C/3D/4
OUT
IN
61 2 3 4 5
4
4

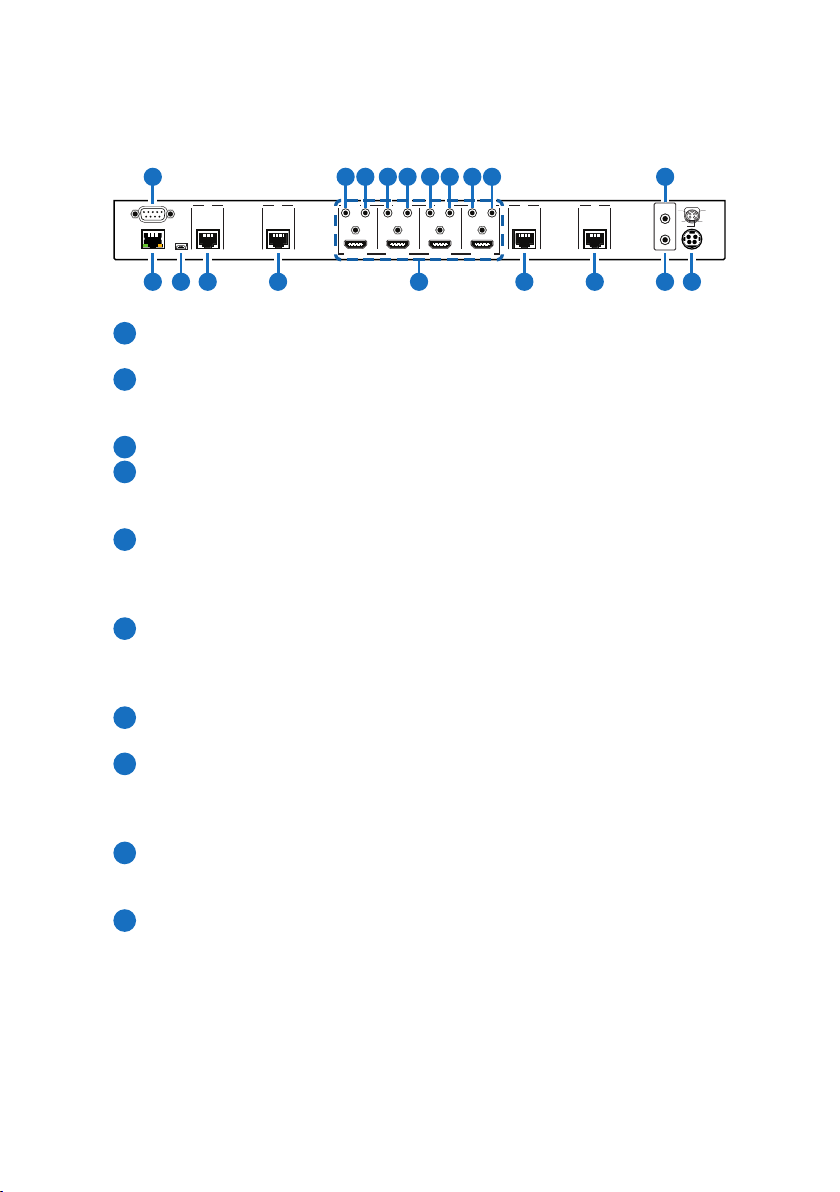

6.2 Rear Panel
IR OUT
IR IN
ALL
RS232
IP &
ETHERNET
SERVICE
1
IR IN IR OUT
2
IR IN IR OUT
3
IR IN IR OUT
4
IR IN IR OUT
HDMI IN 1HDMI IN 2 HDMI IN 3 HDMI IN 4 DC 24V
1
2
3
4
V+
GND
GND GND
V+
CAT5e/6/7 OUT CAT5e/6/7 OUT CAT5e/6/7 OUT
CBA D
CAT5e/6/7 OUT
2 3 4 4 4 4 9 107
1 85 6 5 6 5 6 5 6
1RS-232: Connect to a PC or control system with D-Sub 9-pin cable
for the transmission of RS-232 commands.
2IP & ETHERNET: This port is the link for Telnet or Web GUI controls,
connect to an active Ethernet link with an RJ45 terminated cable (for
further details, please refer to section 6.8 & 6.9).
3SERVICE: Manufacturer use only.
4CAT5e/6/7 OUT A~D: Connect from these CAT outputs to the CAT
input port of the receiver units with a single CAT5e/6/7 cable for HDMI
Audio/Video and IR/RS-232 control signal transmission.
5IR IN 1~4: Connect to the IR extenders for IR signal reception. Ensure
that the remote being used is within the direct line-of-sight of the IR
extender for it will send out the IR signal to the selected receiver's
IR OUT.
6IR OUT 1~4: Connect to the IR blasters for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be
controlled for it will blaster out the IR signal received from the
receiver side choosen by input selection.
7HDMI IN 1~4: Connect to the HDMI input source devices such as a
DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.
8ALL IR OUT: Connect to the IR blaster for IR signal transmission to
the source side. Place the IR blaster in direct line-of-sight of the
equipment to be controlled for it will blaster out all signal received
from the IR IN at the receiver sides.
9ALL IR IN: Connect to the IR extender for IR signal reception. Ensure
that remote being used is within the direct line-of-sight of the IR
extender for it will send out the signal to all receiver's IR OUT.
10 DC 24V: Plug the 24 V DC power supply into the unit and connect the
adaptor to an AC outlet.
Warning: Please do not connect the CAT5e/6/7 cable into the
receiver's LAN port.
5
5

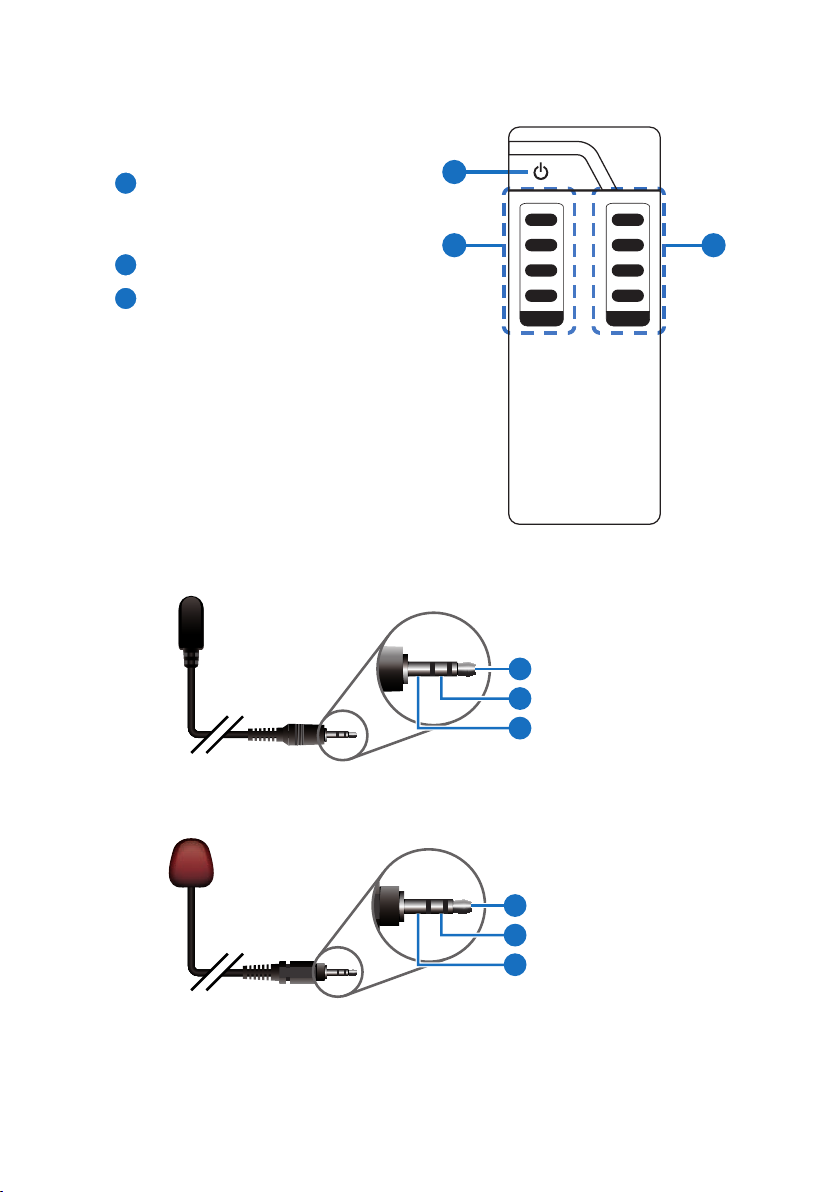

6.3 Remote Control
1
POWER: Press this button to switch
on the device or set it to standby
mode.
2
IN: Input ports selection 1~4.
3
OUT: Output ports selection A~D.
6.4 IR Cable Pin Assignment
3
1
3
1
2
2
Power
IR Blaster Signal
NC
IR Signal
Power
Grounding
IR Extender
IR Blaster
1
23
1A
B
2
C
3
4D
CR-121
IN OUT
6
6
6.5 RS-232 Pin Assignment
CMPRO-U4H4CVE Remote Control Console
PIN Assignment PIN Assignment
1 NC 1 NC
2Tx 2Rx
3Rx 3Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200 bps
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
PU-4H4HBTE-4K
