CYP OR-HD88HC Manuale utente

OR-HD88HC

v1.4 HDMI 8 x 8 Matrix Switcher withsimultaneous

HDMI & CAT Outputs (inc. IR)

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sucient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

RDV1 26/03/12 Preliminary Release

RDV2 04/07/12 Controls Function

v1.01 24/07/12 Telnet and Web GUI sections updated

CONTENTS

1. Introduction ...........................................6

2. Applications ...........................................6

3. Package Contents ..................................6

4. System Requirements ...........................6

5. Features ..................................................7

6. Operation Controls and Functions .......8

6.1 Front Panel ................................................... 8

6.2 Rear Panel ..................................................... 9

6.3 Side Panel ...................................................10

6.4 Remote Control ........................................10

6.5 IR Cable Pin Assignment .......................11

6.6 RS-232 Pin Assignment..........................12

6.7 RS-232 and Telnet Commands ............13

6.8 Telnet Control ............................................14

6.9 Web GUI Control ......................................16

7. Connection Diagram .......................... 18

8. Specications ...................................... 20

9. Acronyms ............................................. 21

1. INTRODUCTION

The OR-HD88HC Matrix Switcher connects eight HDMI sources to 16

displays. This matrix features 8 HDMI outputs and each HDMI output

is mirrored to provide a Twin CAT output which runs simultaneously.

Connect a PU-1106RX Receiver to each of the Twin CAT outputs to extend

the HDMI signal up to 45m for multi-room connectivity.This matrix

switcher can be controlled via the supplied IR Remote Control, RS-232, or

by using the selection buttons on the front of the unit. This device supports

‘Deep Colour’, High Denition Audio, and 3D signal compatibility.

2. APPLICATIONS

Multi-zoned HD installations

HD and AVR Sub-zone installation

Video and TV wall display and control

Security surveillance and control

Commercial advertising, display and control

University Lecture hall display and control

Retail demonstration and sales

3. PACKAGE CONTENTS

8×8 HDMI over Dual CAT6 Matrix

1×IR Receivers

8×IR Emitters

1×24 V/6.25 A DC Power Adaptor

1×IR Remote Control

Operation Manual

4. SYSTEM REQUIREMENTS

HDMI equipped source devices, connect with HDMI cables or DVI

equipped source, connect with DVI to HDMI cables

HDMI equipped displays (TVs or monitors) or HDMI equipped AV

receivers, connect with HDMI cables

HDMI over dual CAT6 Receiver(s) with industry CAT6 cable

5. FEATURES

HDMI, HDCP 1.1, DVI 1.0 compliant

Resolutions supported: PC - VGA to WUXGA ; HDTV - 480i to 1080p

plus 1080p24fps

High Denition audio supported: Dolby TrueHD, Dolby Digital Plus,

DTS-HD Master Audio + LPCM

The HDMI input is compensated, clock / phase adjusted, and jitter

eliminated so the output is a brand new standard HDMI signal running

up to 15m at 1080p

RS-232, CEC Command functionality, IR Remote Control, and IR

receiver supported

Selectable EDID settings - TV (downstream) and STD (xed)

Supports Deep Colour (10 & 12 bit)

Supports 3D signals

Key lock function

Note:

1. Tested with CAT-6/23AWG cable, results may vary with cables of a

dierent specication.

2. Cable distance tested with a Sony PS3 40G, 37" Philips 8-bit LCD TV

and 37" Samsung 12-bit LCD TV.

3. Figures provided in this manual are for reference only, actual gures

may vary depending on the source equipment and display being used

along with the type of cables and their specications.

4. Do not connect the LAN/CONTROL port to CAT outputs of this device.

6. OPERATION CONTROLS AND FUNCTIONS

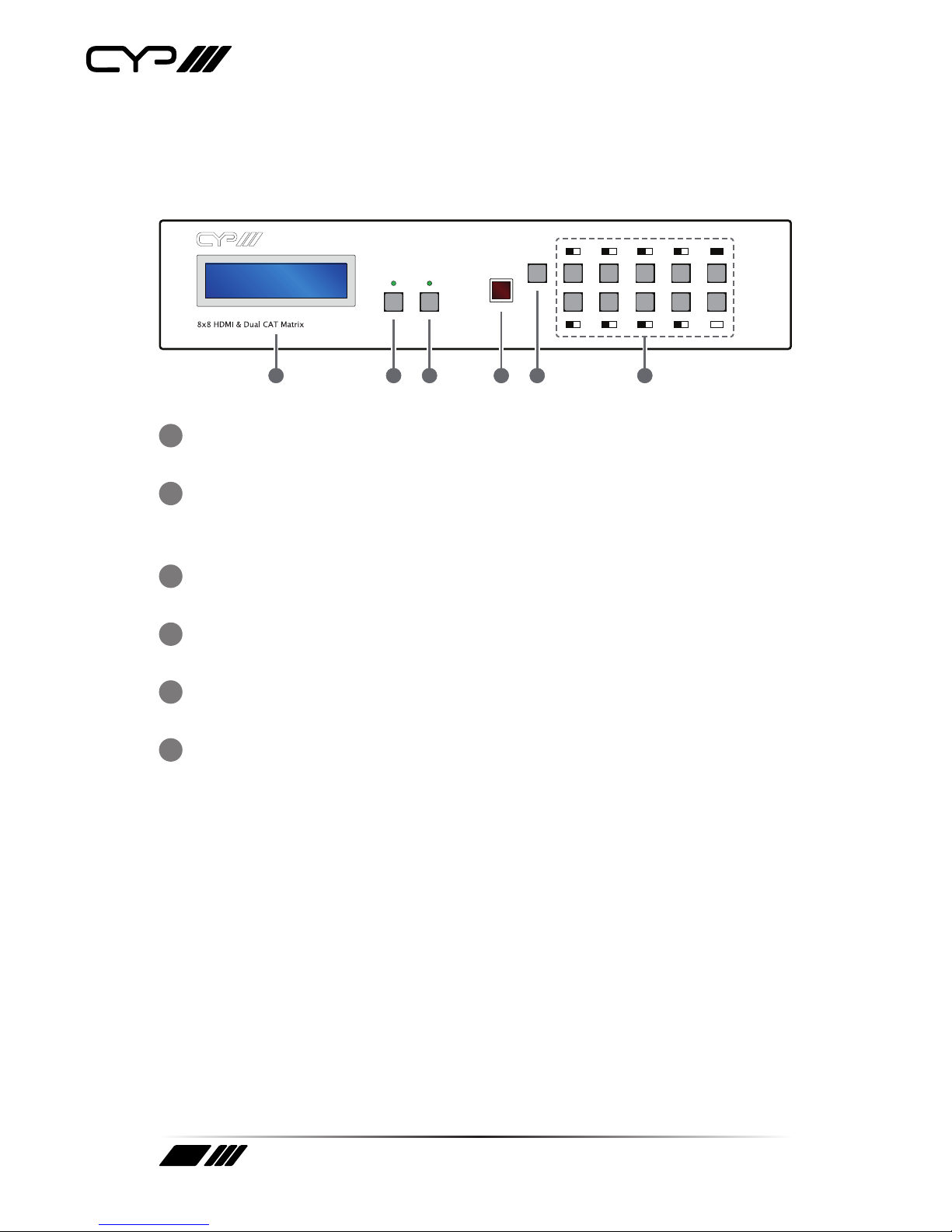

6.1 Front Panel

POWER LOCK

MENU OUTA 1B2C3D4

E5F6G7H8

2 3 4 5 61

1 LCM: Displays the setting information of each input and output

setting.

2 POWER: Press this button to power the device on/o. The LED will

illuminate green when the power is on, red when it is in 'Standby'

mode.

3 LOCK: Press this button to lock all the buttons on the panel, press

again to unlock.

4 IR: IR Receiver window (accepts the remote control signal of this

device only).

5 MENU: Press this button to access the LCM menu system, from here

EDID settings can be managed and IP system settings are displayed.

6 1~8/A~H and OUT/IN: Press the OUT or IN button to select the

output or input mode and then press the required number button to

make the selection accordingly.

For example, if outputs A~D need to be set to input 1 and outputs

E~H need to be set to input 2, then the following sequence of button

presses need to be performed:

Press: OUTABCDIN1MENU,

and then press: OUTEFGHIN2MENU.

Note: If the menu button is not pressed the selection will not be changed.

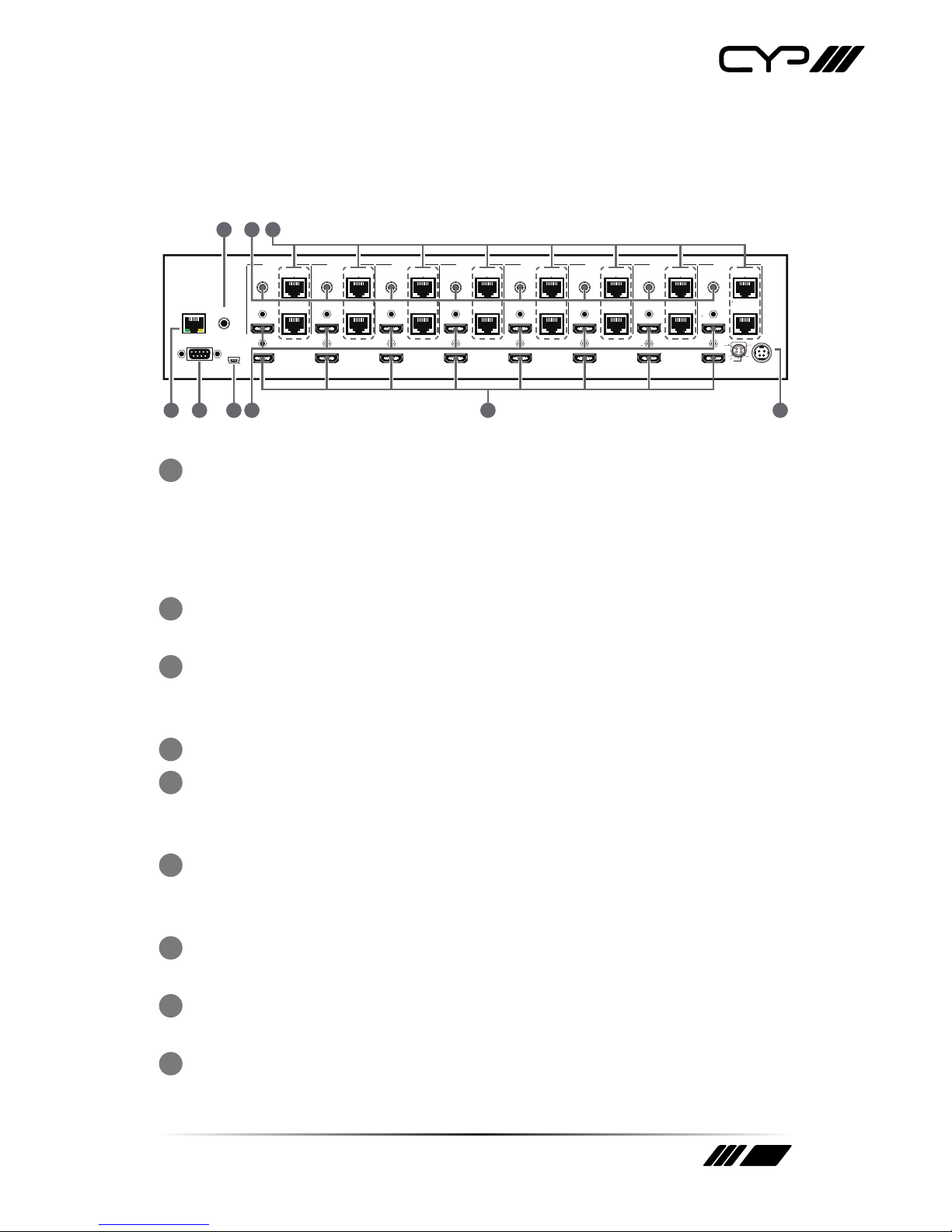

6.2 Rear Panel

CONTROL

DC 24V

RS232 SERVICE

OEDIVOEDIVOEDIVOEDIVOEDIVOEDIVOEDIVOEDIVIMDH

DDC CDDCDDCDDCDDCDDCDDCDD

OUTPUT A

HDMI IN 2

HDMI IN 3

HDMI IN 4

HDMI IN 5

HDMI IN 6

HDMI IN 7

HDMI IN 8

HDMI IN

V+

GND

GND GND

V+

HDMI

OUTPUT B

HDMI

OUTPUT C

HDMI

OUTPUT D

HDMI

OUTPUT E

HDMI

OUTPUT F

HDMI

OUTPUT G

HDMI

OUTPUT H

IR IN

2 4

1 CONTROL: This port is the link for Telnet control, connect to an active

Ethernet link with an RJ45 terminated cable (for further details, please

refer to sections 6.8 and 6.9).

Warning: Please do not connect this port directly to the PC/Laptop as the

Telnet function will not work.

2 RS-232: Connect to a PC or control system with D-Sub 9-pin cable for

the transmission of RS-232 commands.

3 IR IN: Connect to the IR receivers for IR signal reception from the

remote control of the Matrix. Ensure that the remote is within the

direct line-of-sight of the IR receiver when used.

4 SERVICE: Manufacturer use only.

5 IR OUT A~H: Connect to the IR emitters for IR signal transmission.

Place the IR emitter in direct line-of-sight of the equipment to be

controlled.

6 DDC/VIDEO OUTPUT A~H: Connect from these CAT outputs to the

CAT input port of the receiver units with a single CAT5e/6/7 cable for

HDMI Audio/Video and IR control signal transmission.

7 HDMI OUT A~H: Connect to HDMI equipped TVs or monitors for

display of the HDMI input source signal.

8 HDMI IN 1~8: Connect to the HDMI input source devices such as a

DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.

9 DC 24V: Plug the 24 V DC power supply into the unit and connect the

adaptor to an AC outlet.

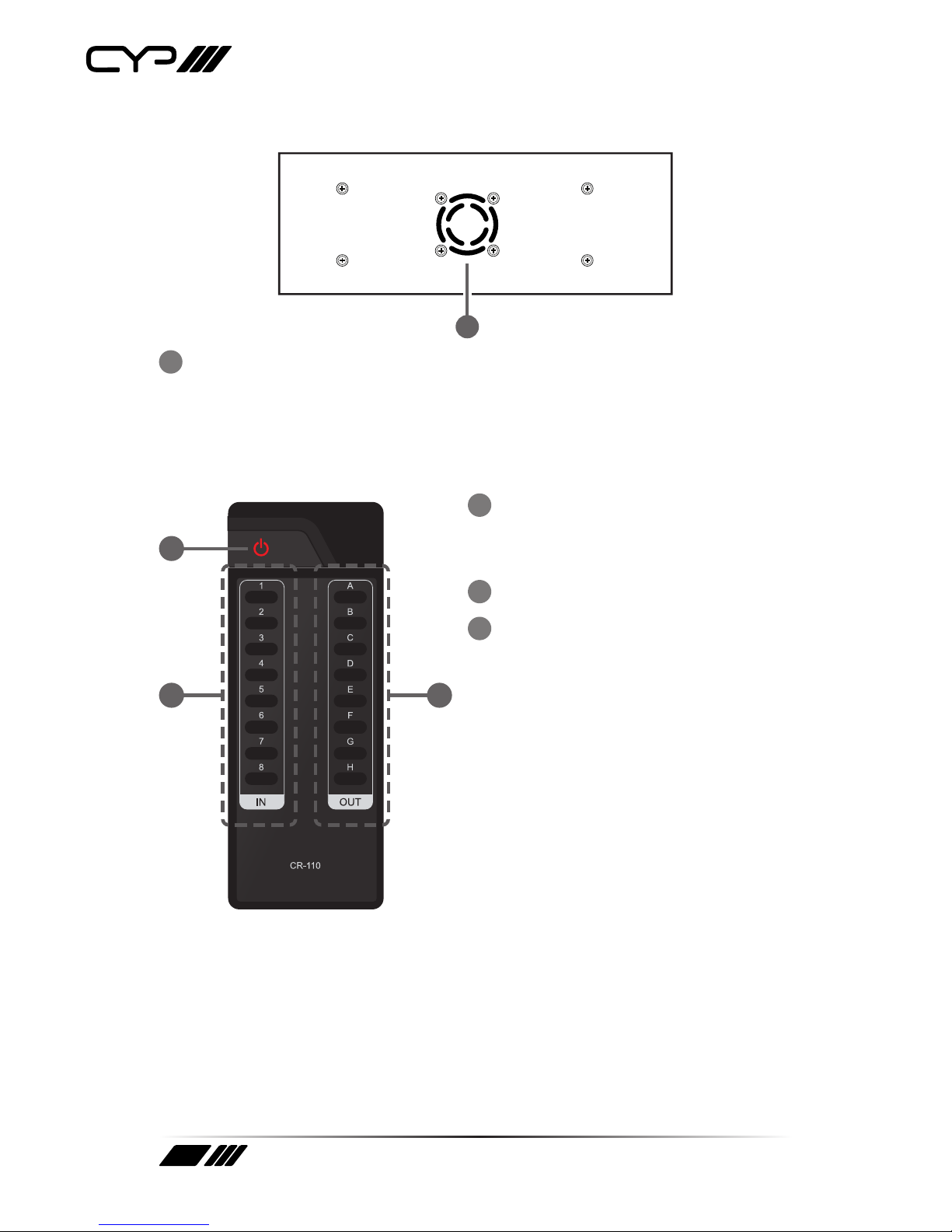

6.3 Side Panel

1 Fan Ventilator: These are air ventilation areas, DO NOT block these

areas or cover it with any object. Please allow adequate space around

the unit for air circulation.

6.4 Remote Control

1 POWER: Press this button to

switch on the device or set it to

standby mode.

2 IN: Input ports selection 1~8.

3 OUT: Output ports selection A~H.
