Cypress CY3250-PLC20NQ Manuale utente

CY3250-PLC20NQ

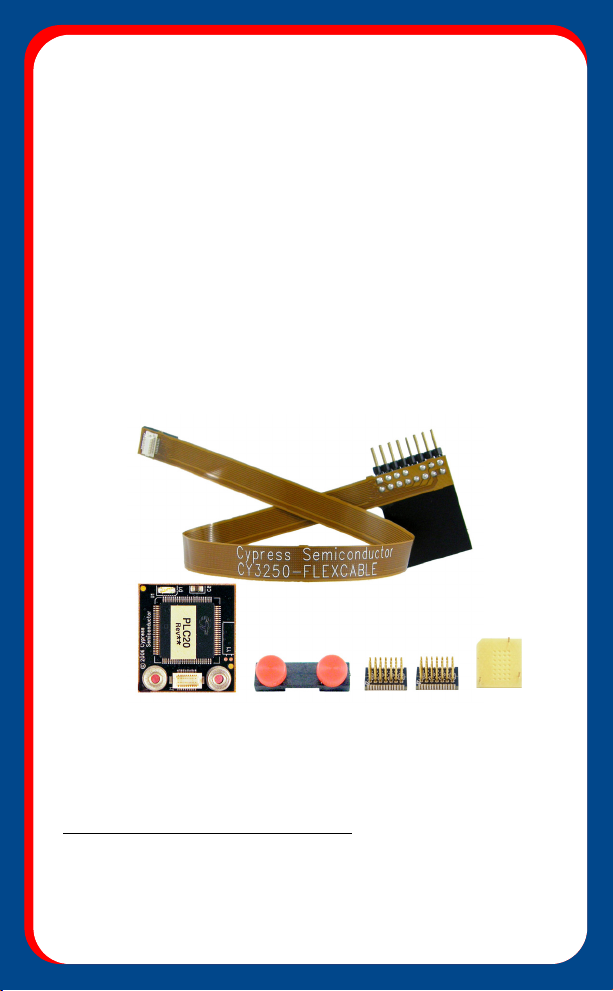

What comes with the kit:

• One PLC20 Pod

• One Flex cable

• Two 28SSOP Feet

•One28-pinMask

ICE Cube shown in the picture is included in CY3215-DK

The CY3250-PLC20NQ emulation POD is designed to work with the PSoC®ICE

Cube (In-Circuit Emulator). The ICE Cube can be purchased separately as a part of

the CY3215-DK kit available from the Cypress Online Store at www.cypress.com.

Getting Started:

1. Solder one of the included emulation POD feet to your target board in place of

the Cypress CY8CPLC20 part.

2. Connect the larger end of the CY3250-FLEXCABLE to the ICE Cube emulator.

Ensure that power is being supplied to the ICE Cube. Also, ensure that the ICE

Cube is connected to your host PC via a USB cable provided with the CY3215-

DK In-Circuit Emulator Debugging Kit.

3. Connect the smaller end of the CY3250-FLEXCABLE to the POD as shown on

the front side of this card.

4. Secure the flex cable to the POD using the included compression plate and red

thumb screws.

5. Connect the POD to the foot previously soldered to your target board, making

sure the pins align correctly using the pin 1 indicators on the POD and foot.

6. Open the PSoC Designer applicationA, which is included on CD as part of the

CY3215-DK kit, and create a firmware project using the appropriate device.

7. To begin debugging your firmware project, follow the instructions within the

PSoC Designer application.

For more information about the CY8CPLC20 device, visit us at www.cypress.com.

There you will find datasheets and application notes. For application support, visit us

at www.cypress.com/go/support.

A. Update to the latest PSoC Designer™ including service pack releases at:

http://www.cypress.com/psocdesigner

POD Thumbscrews + 1

Compression Plate

Flex cable

Feet Mask

© Cypress Semiconductor Corporation, 2009. All rights reserved. PSoC is a registered

trademark and PSoC Designer™ is a trademark of Cypress Semiconductor Corp. All

other trademarks or registered trademarks referenced herein are the property of their

respective owners. The information contained herein is subject to change without

notice. Printed in the U.S.A. Doc. # 001-54216 Rev. *A
