Cypress CP-261HS Manuale utente

PC/HD

With Audio to HDMI

Format Converter

Operation Manual

CP-261HS

The PC/HD to HDMI format conveter converts analog PC RGBHV/YPbPr and

audio signal to digital HDMI format.

It allows you to connect the analog HD-15 RGBHV/YPbPr output from PC or Video

equipments to the digital HDMI input of the latest HD ready plasma, LCD or DLP TV.

Its high bandwidth capability supports a wide range of PC and HDTV resolutions.

Features

* It enables you to connects computers with analog PC output or DVDs

with YPbPr output to HDMI input of HD ready plasma, LCD or DLP TV.

* You can select input format as PC/RGBHV or HD/YPbPr.

* HDMI is compliant with HDMI 1.2

* Supports up to 1600 x 1200 @ 60 for PC input and

1920 x 1080p @ 60 for HD input.

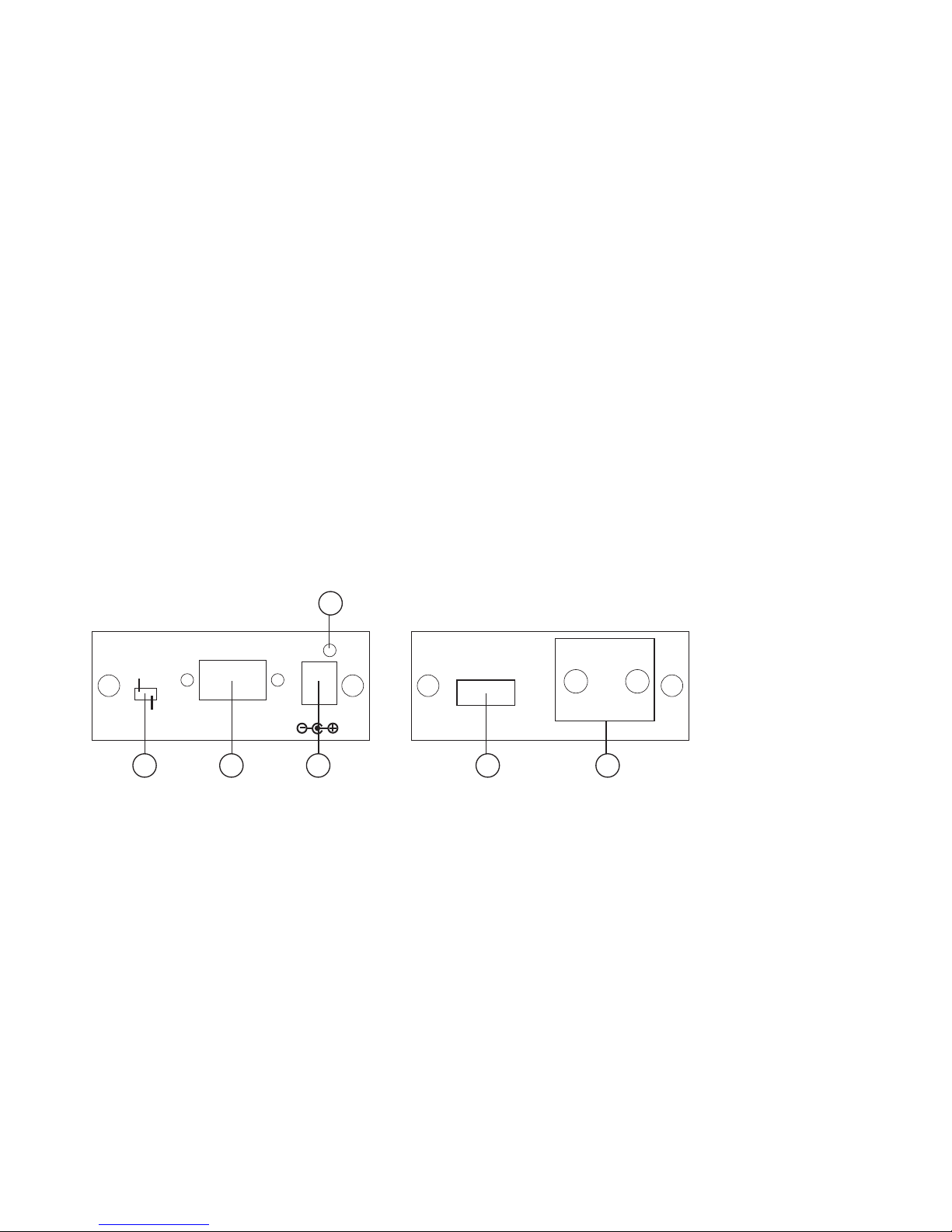

Operation Controls and Functions

Front Panel Rear Panel

PC/YPbPr INPUT

RGB

YPbPr

HDMI OUTPUT AUDIO INPUT

L R

INPUT

DC 5V

1 32 56

1. Input format switch:

- Set the switch to YPbPr when the output format of your

source equipment is component YPbPr. Use VGA to 3 RCA

adaptor cable to connect between your source equipment

and the CP-261HS.

- Set the switch to RGB when the output format of your source

equipment is RGBHV. Use HD-15 D-Sub VGA cable to connect

between your source equipment and the CP-261HS.

HD-15 D-Sub input: Connects to PC or YPbPr output connector of your PC or YPbPr

source equipment using VGA cable, or D-Sub to 3 RCA adaptor cable.

3. DC 5V power input jack.

4. Power LED light.

HDMI output connector: Connect to the HDMI input of your display TV using HDMI cable.

6. Stereo audio input : Connect to the output of your audio source equipment.

Package Contents

- One CP-261HS unit.

- One switching power supply adaptor.

- One VGA to 3 RCA adaptor cable.

- User manual.

Specifications

* Video Input: HD-15 (RGBHV/YPbPr)

* Input Signal:

RGB: 0.7 Vp-p 75 ohm

H + V: 3 to 5 Vp-p

or Y :1 Vp-p 75 ohm,

Pb/Pr:0.7 Vp-p, 75 ohm

* Audio Input: Analog audio L,R

* HDMI is compliant with HDMI 1.2

* Operation Frequency: up to 165MHz

* Input/Output Resolution:

PC：VGA@60、VGA@72、VGA@75、VGA@85

SVGA@60、SVGA@72、SVGA@75、SVGA@85

XGA@60、XGA@70、XGA@75、XGA@85

SXGA@60、SXGA@75、SXGA@85、UXGA@60

1152@70、1152@75、1152@85、XGAi@87

HD：480i@60、576i@50、480p@60、576p@50、720p@60、

720p@50、1080i@60、1080i@50、1080p@60、

1080p@50、1080p@30、1080p@25、1080p@24

* Using switch to select input format between HD/YPbPr

and PC/RGBHV

* Dimension (mm): 76(W) x 30(H) x 105(D)

* Power：5V 2A Center-positive

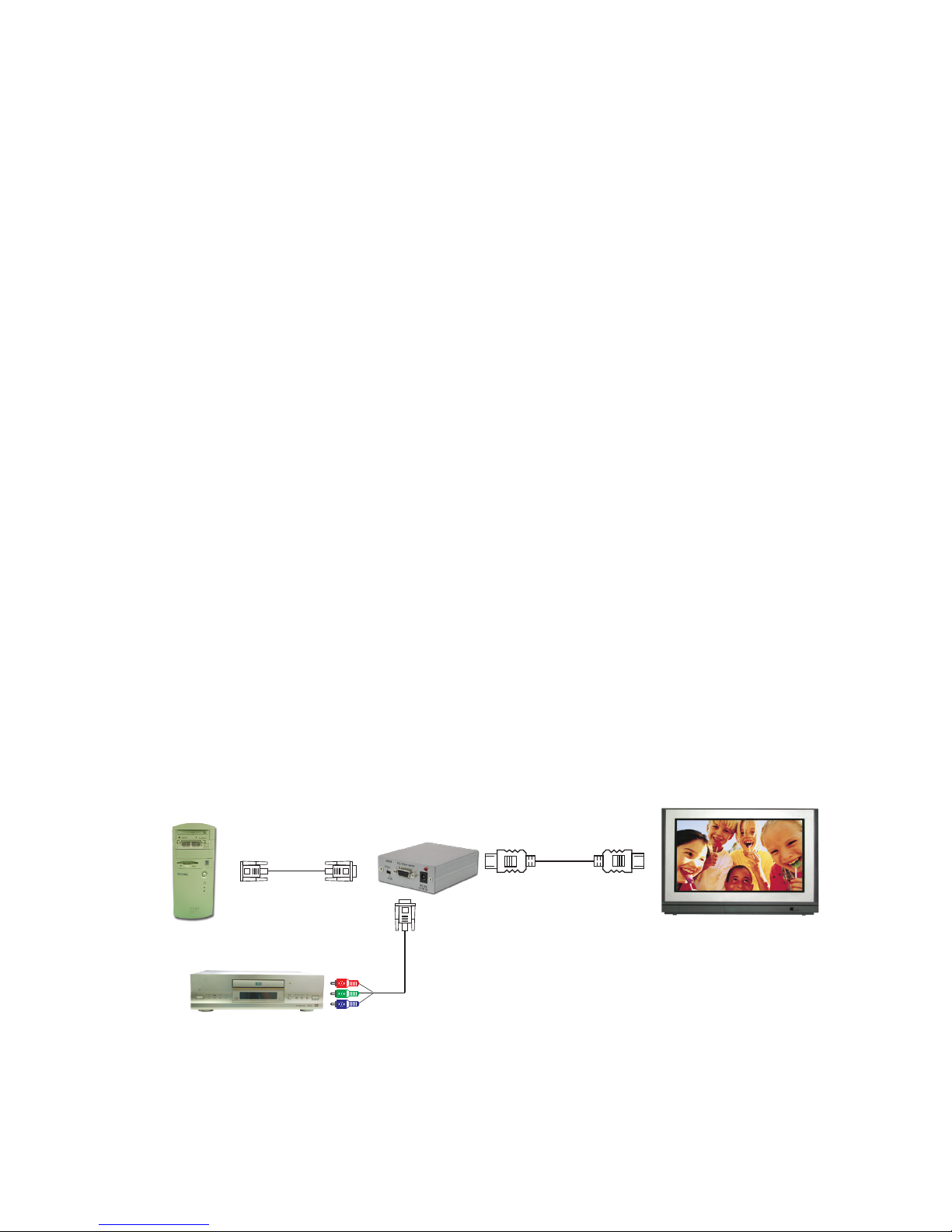

Connection and Installation

HDMI Plasma,

LCD or DLP TVs

Computer

HDMI cable

PC/YPbPr to HDMI

Format Converter

DVD YPbPr

Component out

YPbPr to

VGA cable

VGACable

RGB out
