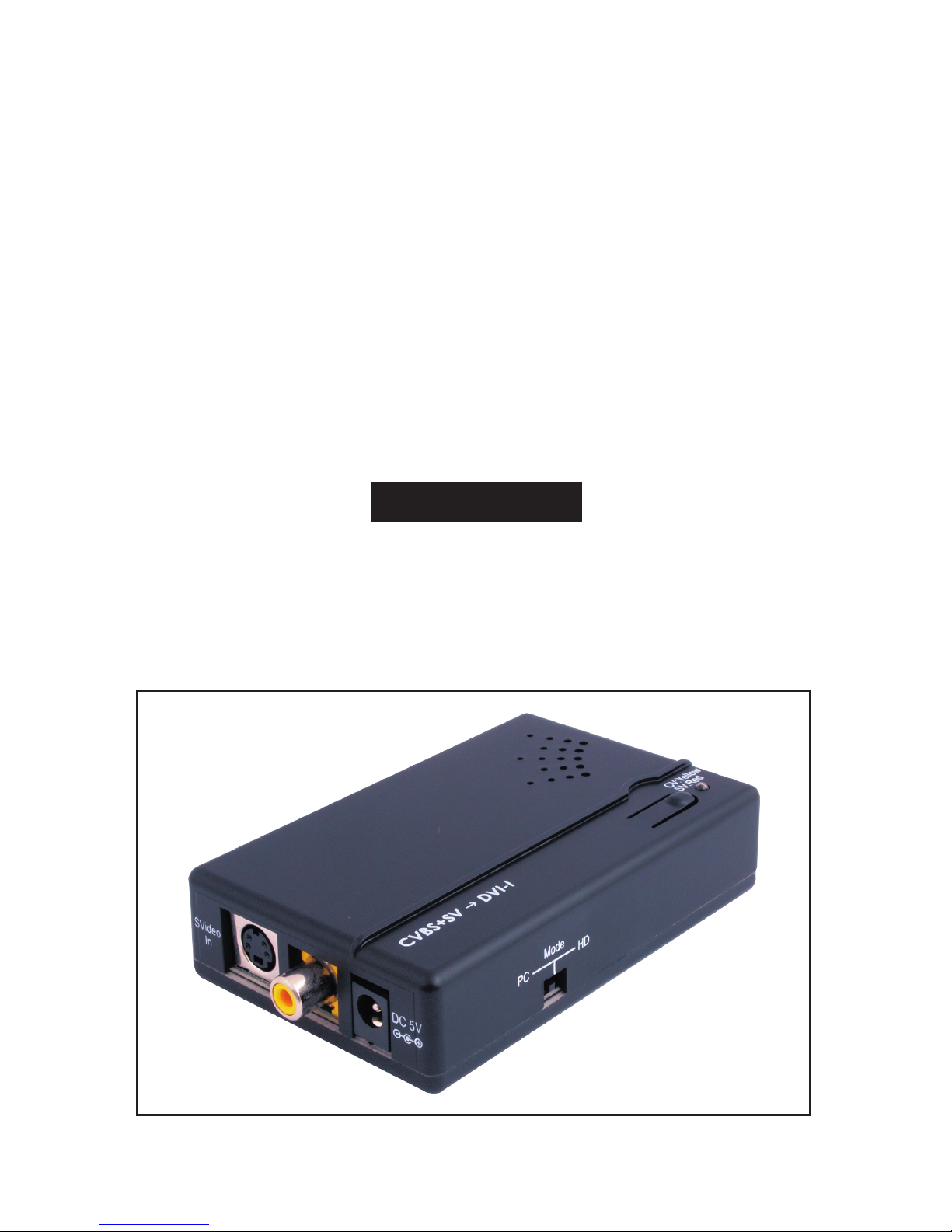

Operation Manual
CM-398DI
Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2010 by Cypress Technology.
All Rights Reserved.
Version 1.0 October 2010
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
V1 20101011 Preliminary Release
Table of Contents
1
2
2
2
2
3
4
4
4
5
5
6
7
8
1. Introduction ……………………..……………………...…........….…….
2. Applications …………………..………………….……...................…..
3. Package Contents ………………………...........……….................…
4. System Requirements ……………..……….........………............…….
5. Features …………………………………………......……........…...……
6. Specications ………………………………...……..........………....….
7. Operation Controls and Functions ……………...……..............……
7.1 Left side Panel .........................................................................
7.2 Right side Panel .……………..……………..…….......…...….…
7.3 Front panel .…………………………......…..…….......…...….…
7.4 Top panel .…………………………………...…….......…...….…
8. 8. OSD ......................................…......……………..........…..…....…...
9. Connection and Installation ….………………….........…..…..…......
10. Acronyms …......................................................................................
1. Introduction
This is a low cost video to DVI-I converter box that can convert CV/SV (NTSC
or PAL system) to DVI-I resolutions of XGA to UXGA or HD resolutions of 480p to
1080p. With frame rate conversion feature that allows users to view DVD, VCR
or video game sources on a DVI monitor this device also has an On-Screen
Display function that allows users to easily select the output resolution.
2. Applications
CV/SV signal with audio to display on DVI monitor
STB/Camcorder signal display on DVI monitor
VCR signal display on DVI monitor
3. Package Contents
CV/SV to DVI Converter
Power Adaptor
Operation Manual
4. System Requirements
Input source equipments such as DVD/Video cassette player and output DVI
monitor with connection cables.
1
5. Features
Operates in NTSC 3.58 and PAL system
High Quality Scaling Engine
Output resolution:
■ PC resolutions: XGA, SXGA, UXGA
■ DVI resolutions: 480p/576p, 720p,1080p
3D (frame based) motion adaptive YNR/CNR noise reduction (for Y/C
video input)
On-Screen Display
Advance 3D motion adaptive de-interlace
Automatic 2:2 & 3:2 film mode detection
Play video games on your HD monitor/TV
High-resolution output picture
Plug & play- no drive software required
2
6. Specications
Input port 1 x CV, 1 x SV
Output port 1 x DVI
Output Resolution PC: XGA/SXGA/UXGA
HD: 480p/576p/720p/1080p
Power Supply 5VDC/1A (US/EU standards,
CE/FCC/UL certified)
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm) 162.6(W) x 164.5(D) x 33.5(H)
Weight(g) 100
Chassis Material Plastic
Silkscreen Color Black
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity 20~90% RH (no condensation)
Power Consumption (W) ??(Max)
3
7. Operation Controls and Functions
The following sections describe the hardware components of the unit.

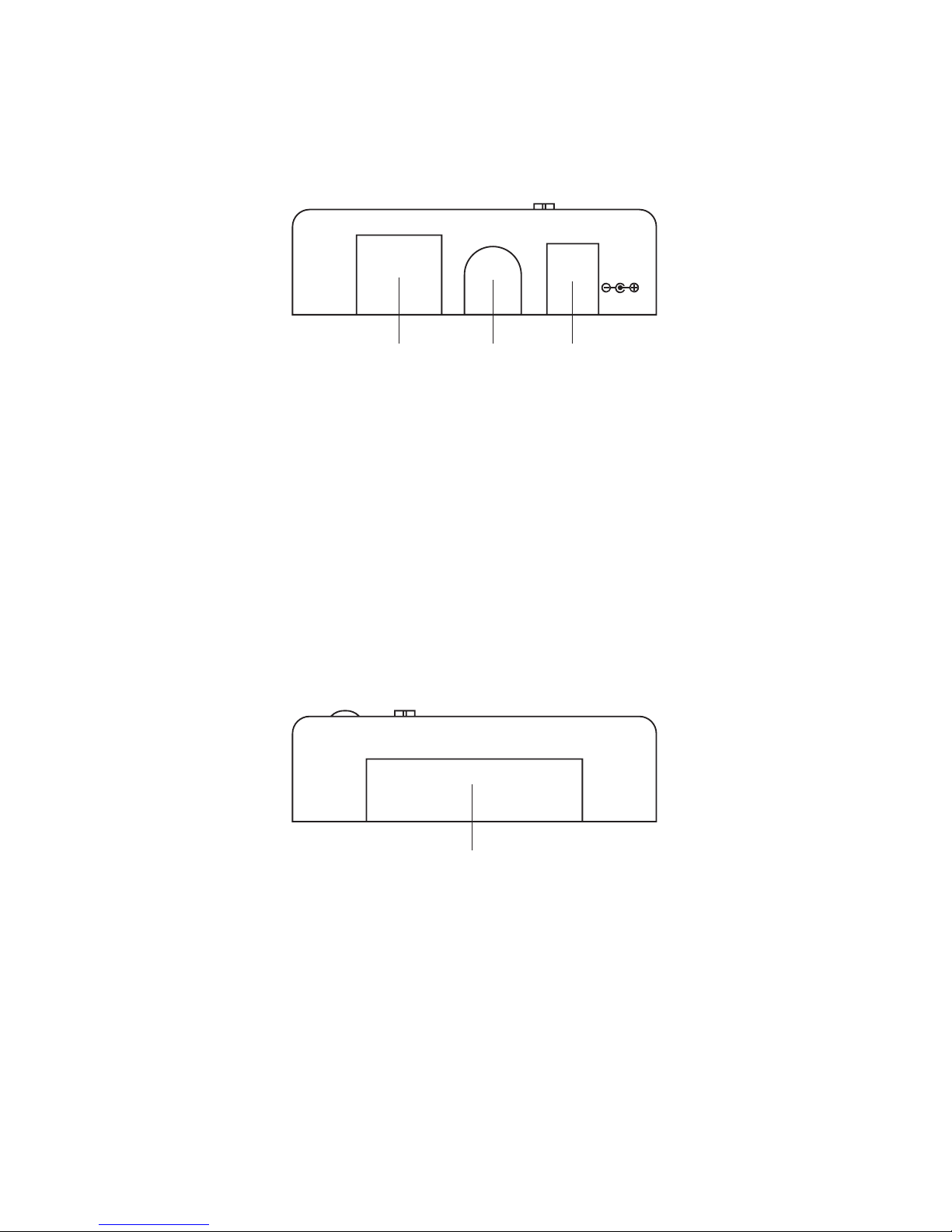

7.1 Left side Panel
① ② ③
SVideo
In
DC 5V
① S-Video input: This slot is where you connect the input source equipment
such as digital camcorder or PDAs with S-Video cable for input signal
sending.
② Composite (CV) input: This slot is where you connect the input source
equipment such as personal media player or personal recorder with CV
cable for input signal sending.
③ DC 5V In: This slot is where you plug the 5V DC power supply into the unit
and connect the adaptor to an AC wall outlet.
7.2 Right side Panel
①
DVI-I
Out
① DVI-I OUT: This slot is where you connect the output display monitor/TV
with DVI cable.
4
7.3 Front Panel
①
PC
Mode
HD
① PC/HD switch: This dip switch allows you to select PC or component HD
timing output. Simply slide the dip switch to left or right and the output
mode will display your desire selection.

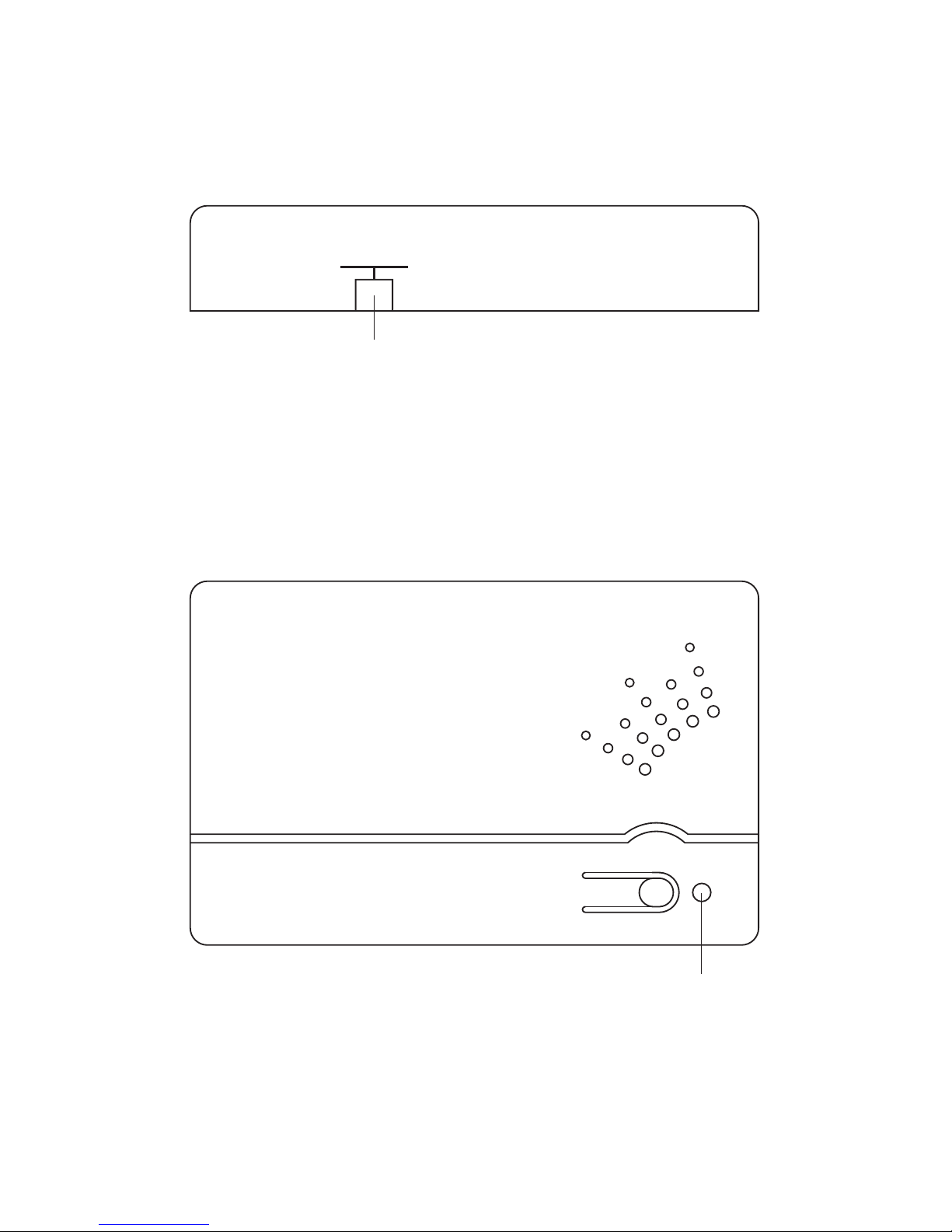

7.4 Top Panel
①
CV:Yellow
SV:Red
CVBS+SV DVI-I
① CV/SV SW & LED: Press this button to switch input source between
composite or S-Video. The Led will illuminate in yellow when switch to
composite input and red when switch to S-Video input.
5
8. OSD
← IN / OUT
← F / W
← PC Monitor

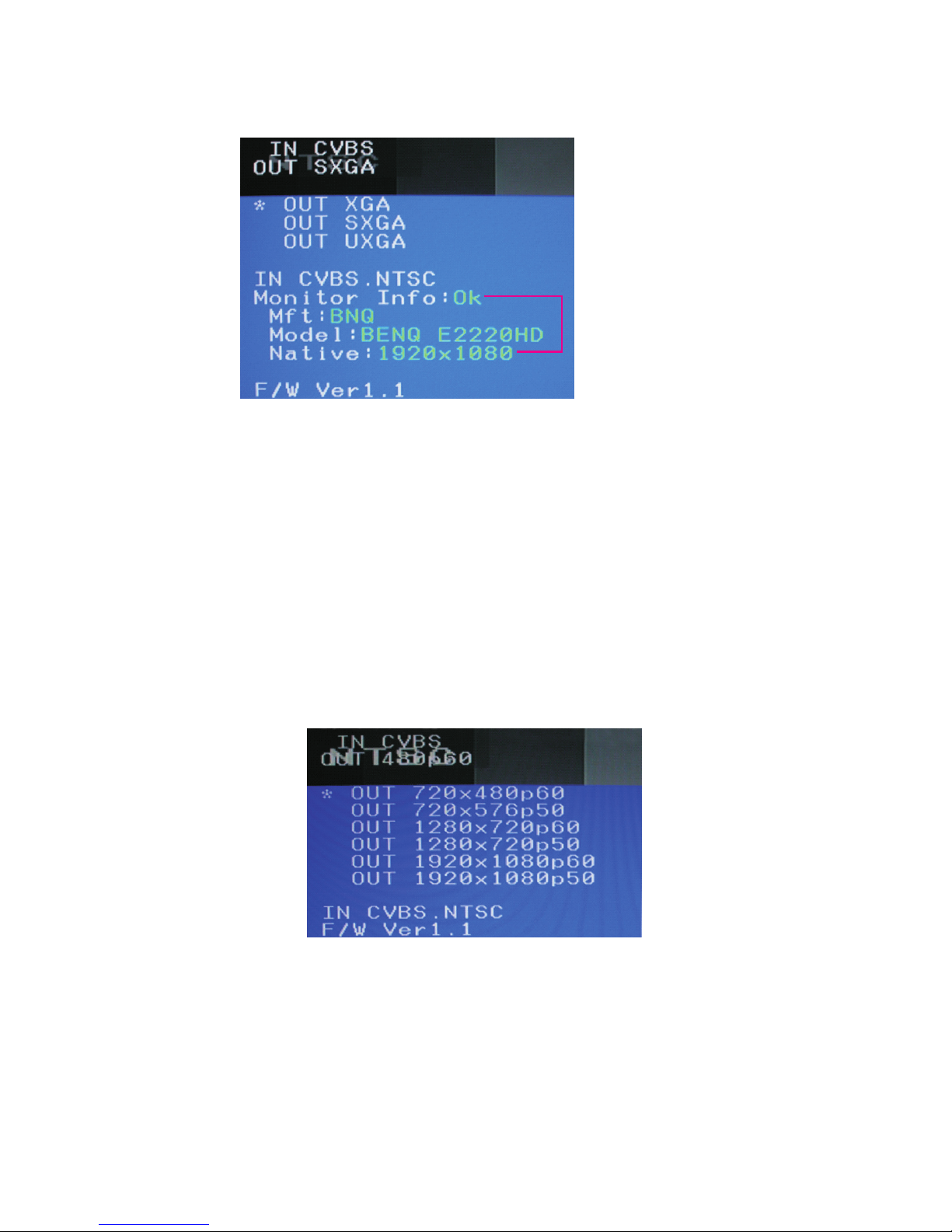

1. Press the top panel’s button once to switch in between CV/SV. If input
source is disconnected the OSD will show “No Signal”.
2. Press the top panel’s button for 3 second to bring up OSD manual.
3. When the device is under PC mode the OSD will display input format and
output timing, source detection, PC monitor’s EDID and firmware version as
to above picture.
4. When the device is under HD mode the OSD will display input format and
output timing, frame rate conversion selection, video system and firmware
version as show in below picture.
← IN / OUT
← F / W
6
