Cypress CP-262DPC Manuale utente

DVI to PC

Format Converter

Operation Manual

The CP-262DPC converts digital DVI to analog PC/RGB.

It enables you to connect your new DVI sources to the older

analog PC monitor, Projector or TV.

CP-262DPC

DC 5V 2A

DVI INPUT PC OUTPUT

Features:

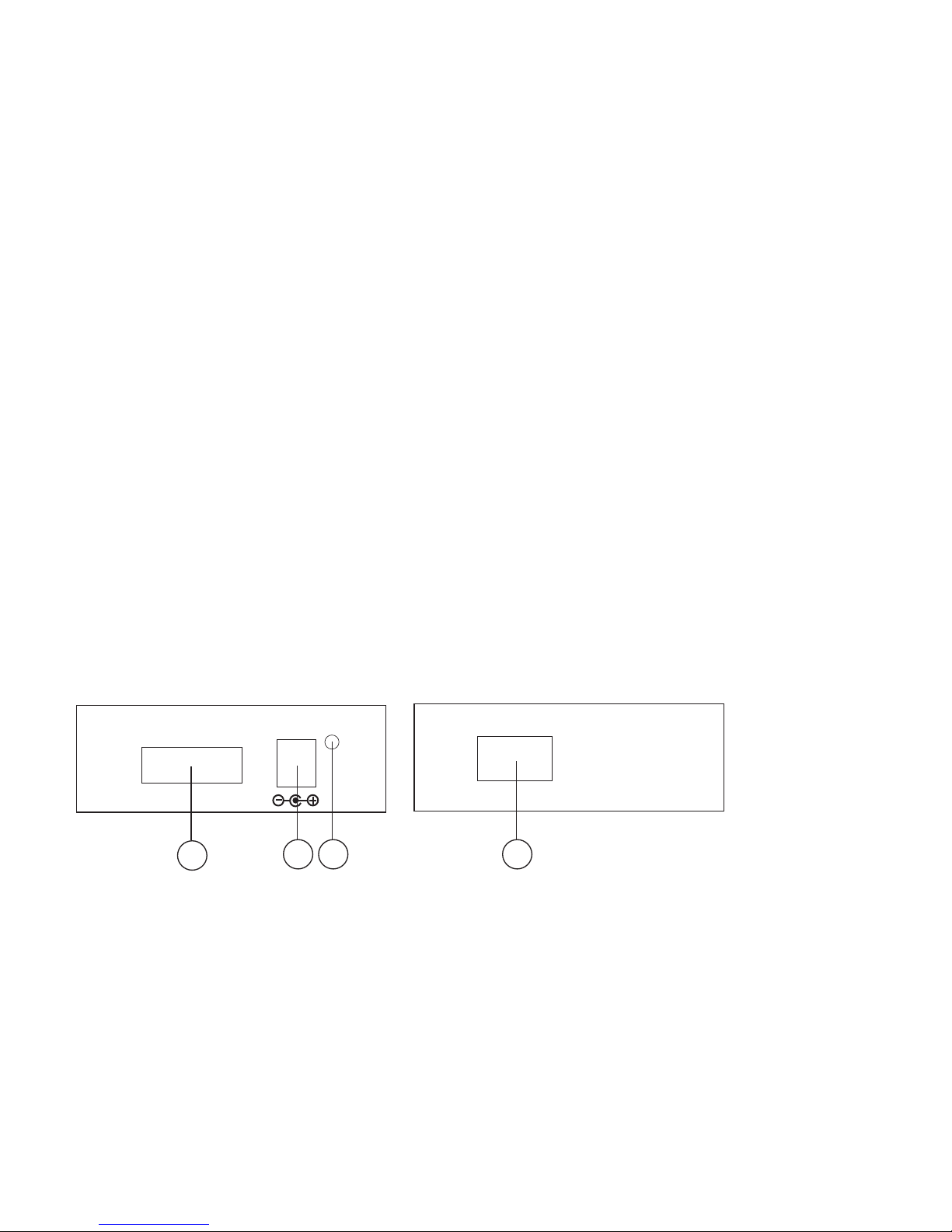

Operation Controls and Functions

Front Panel Rear Panel

The DVI to VGA format converter converts digital DVI/RGB signal

to analog PC RGB signal.

It allows you to connect the DVI output from PC or Video equipments

to the HD-15 VGA input of the tranditional monitors.

Its high bandwith capability supports a wide range of PC

and HDTV resolutions.

> Connects computers with DVI-D connectors to analog

VGA monitors or projectors.

> Supports up to 1600x1200 @60 for PC input and

1920x1080p@60 for HD input.

> Supports DDWG standard for DVI compliant monitors.

This package includes

- One CP-262DPC unit.

- One 5V power supply adaptor.

- User manual.

12 3 4

1. DVI-I input connector: This input connector accepts DVI-D signal

from DVI source equipment, such as PC with DVI Graphic card or

DVD with DVI out. It does not accept analog RGB signal.

2. 5V DC power input.

3. Power LED.

4. HD-15 D-sub PC output: This output connects to the PC D-sub input of

your PC monitor, Projector, LCD or PDP display unit.

*Input: DVI-I connector.

* Input signal: Digital RGB data bitstream.

*Compliant with DVI Rev1.0

* Output: Analog HD-15 ( RGBHV )

* Output signal:

RGB: 0.7 Vp-p 75 ohm

H+V: 3 to 5 Vp-p

* Operation frequency: up to 165MHz

* Input/Output resolution:

PC：VGA@60、VGA@72、VGA@75、VGA@85

SVGA@60、SVGA@72、SVGA@75、SVGA@85

XGA@60、XGA@70、XGA@75、XGA@85

SXGA@60、SXGA@75、SXGA@85、UXGA@60

1152@70、1152@75、1152@85

HD/RGB：480i@60、576i@50、480P@60、576P@50、720P@60、

720P@50、1080i@60、1080i@50、1080P@60、

1080P@50、1080P@30、1080P@25、1080P@24

* Dimension (WxHxD): 76 * 30 * 105mm

* Power: 5V 500mA~2A Center-positive

Specifications

Pin Configuration

A. DVI input Pin Assignment.

Pin#

Function

TMDS D2-

TMDS D2+

TMDS D2 SHD

N.C.

DDC CLOCK

DDC DATA

RESERVED

Function Pin#

Function

TMDS D1-

TMDS D1+

TMDS D1 SHD

N.C.

POWER +5V

GND(DDC)

H.P. DETECT

TMDS D0-

TMDS D0+

TMDS D0 SHD

N.C.

TMDS CLK SHD

TMDS CLK+

TMDS CLK-

17 24

Part No. Pin No. Description (PC out)

DB15HD

RED

GREN

BLUE

GND

GND (DDC-RETURN)

GND-RED

GND-GREEN

GND-BLUE

N.C

GND-SYNC

GND

DDC-DATA

H-SYNC

V-SYNC

DDC-CLOCK

B. Analog VGA output Pin

Assignments when output switch

set to RGB.

109

14131211

4321

6 7 8

Connection and Installation

VGA Monitor

DVI Computer DVI to VGA

Format Converter

DVI Cable VGACable
