Cypress CM-1392M Manuale utente

CM-1392M

Video and L/R to HDMI

Scaler Box

Operation Manual

CM-1392M

Disclaimers

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes

no commitment to update or to keep current the information

contained in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer ﬁle, in any form or by any means

- electronic, mechanical, magnetic, optical, chemical, manual,

or otherwise - without express written permission and consent from

Cypress Technology.

Version 1.0 March 2011

Trademark Acknowledgments

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

Safety Precautions

Please read all instructions before attempting to unpack or install or

operate this equipment, and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

 Always follow basic safety precautions to reduce the risk of

ﬁre, electrical shock and injury to persons.

 To prevent ﬁre or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

 Never spill liquid of any kind on or into this product.

 Never push an object of any kind into this product through

module openings or empty slots, as you may damage parts.

 Do not attach the power supply cabling to building surfaces.

 Do not allow anything to rest on the power cabling or allow it to

be abused by persons walking on it.

 To protect the equipment from overheating, do not block the

slots and openings in the module housing that provide

ventilation.

Revision History

Version No Date Summary of Change

VR0 20110413 Preliminary Release

Table of Contents

1. Introduction...................................................................................1

2. Applications..................................................................................1

3. Package Contents .......................................................................1

4. System Requirements...................................................................1

5. Features.........................................................................................1

6. Specications ................................................................................ 2

6.1 Supporting Input & Output Timing .................................... 2

7. Operation Controls and Functions .............................................. 3

7.1 Front Panel ........................................................................... 3

7.2 Rear Panel............................................................................ 4

8. Output Format.................................................................................5

9. OSD Operation................................................................................5

9.1 Picture Adjust....................................................................... 5

9.2 Output Setup ....................................................................... 6

10. Remote Control.............................................................................7

11. Connection and Installation........................................................8

12. Acronyms ......................................................................................9

1. Introduction

The CM-1392M Video to HDMI Scaler Box is designed to scale CVBS and

S-Video with R/L audio into HDMI. Supporting PC timings up to WUXGA 1920

x 1200 at 60Hz and HD timings up to 1080p at 60Hz. Supporting the NTSC and

PAL TV standards and allowing you to select the speciﬁc video timing through

the OSD, this device has many features that enhance the quality of your

videos.

2. Applications

 Showroom environment

 Education demo

 Installation usage

3. Package Contents

 Video and L/R to HDMI Scaler Box

 5V DC power supply adaptor

 Operation Manual

 Remote Control

4. System Requirements

 Input source equipments such as video player or DVD player with

Composite or S-Video and L/R output and connection cables.

 Output displays with HDMI input and connection cable.

5. Features

 Motion adaptive 3-D de-interlacing and 3D Y/C separation with CVBS

input

 Automatic 2: 2, 3 : 2 ﬁlm mode detection & correction

 Automatic NTSC/PAL video format detection and frame rate conversion

(from 50Hz to 60Hz)

 Automatic 3D noise reduction

 Supports one dimensional CTI (Chroma Transient Improvement) and LTI

(Luminance Transient Improvement) for edge improvement

 OSD menu for picture quality adjustment

 Supports HD timings from 480p@60 Hz to 1080i/p@60 Hz and PC timings

from VGA@640x480 to WUXGA@1920x1200

 Two ways to control the CM-1392M, either using an IR remote control or

the control panel on the device

6. Specications

TMDS Clock Frequency 225Mhz

Color depth 8bits

Color space YUV (HD), RGB (PC)

Input Signal Levels Video@1Vp-p, 75Ω, Y@1Vp-p, 75Ω, [email protected] Vp-p,

75Ω

Input Ports 1 x Composite, 1 x S-Video, 1 x R/L

Output Port 1x HDMI

Audio Input Level 2Vrms (Full Scale)

Output Resolution HD: 480p@60Hz, 576p@50 Hz, 720p@50/60 Hz,

1080i@50 /60 Hz, 1080p@50/60 Hz

PC: VGA@640x480,

SVGA@800x600, XGA@1024x768,

WXGA@1360x768, WSXGA@1440x900,

SXGA1280x1024, SXGA+@1400x1050,

UXGA@1600x1200, WUXGA@1920x1200

Power Supply 5V/1A Linear power adaptor (US/EU standards,

CE/FCC/UL certiﬁed) or 5V/1.2A Switching

power adaptor (with universal plug CE/FCC/UL

certiﬁed)

Weight (g) 400

Dimensions (mm) 125 (W) x 123 (D) x 30 (H)

Silkscreen Color Process Blue

Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity 20 ~ 90% RH (non-condensing)

Power Consumption (W) 4.1

6.1 Supporting Input & Output Timing

Input Video System

Output Timing

PC HDMI support’s

Frame Rate conversion

NTSC(60Hz) VGA/SVGA/XGA/1280x800/WXGA/

WSXGA/SXGA/1400x1050/1680x1050/

UXGA/WUXGA/1920x1080

480p,576p,720p50/60,1080i50/60,

1080p50/60

PAL(50Hz)

* WSXGA=1440x900@60, WXGA=1360x768@60, SXGA=1280x1024@60,

UXGA=1600x1200@60, WUXGA=1920x1200@60RB

7. Operation Controls and Functions

The following sections describe the hardware components of the unit.

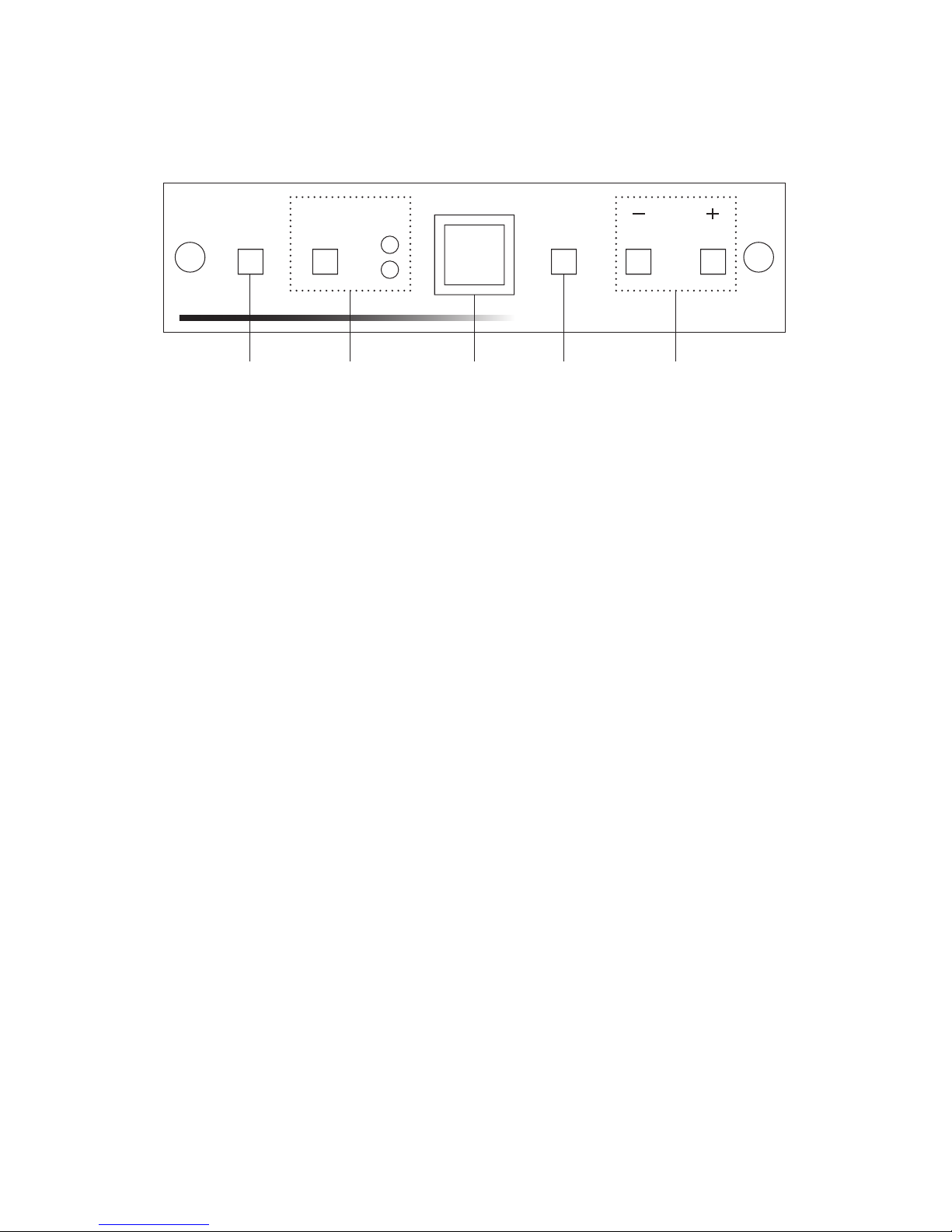

7.1 Front Panel

POWERINPUT

CM-1392M Video to HDMI Scaler Box

① ③ ④② ⑤

①󳌤 Power button and LED indicator:

Press the button once to power on the unit, press again to power off.

When the unit is powered on, one of the input LED will illuminate

depending on your last selection of input source before power off.

The factory default setting for the input is CV (Composite Video).

The green LED illuminates when composite video is selected.

The Yellow LED illuminates when S-Video is selected.

②󳌤󳌤Input select button:

Press the button to select your desired input source between Composite

Video and S-Video.

③󳌤󳌤IR Sensor: Infrared ray remote control sensor.

④󳌤󳌤Menu/Enter: This button serves two purposes.

a. Press the button to select your desired input source between

Composite Video and S-Video.

b. To act as a “Enter”key to enter sub menu of your selection item or to

adjust value of the selected item.

⑤󳌤󳌤+/- button:

Press the button to move up or down the tick “V”to your desired

parameter. Or after a parameter is elected by pressing MENU/ENTER

button, press the button to alter the value of your selected parameter.

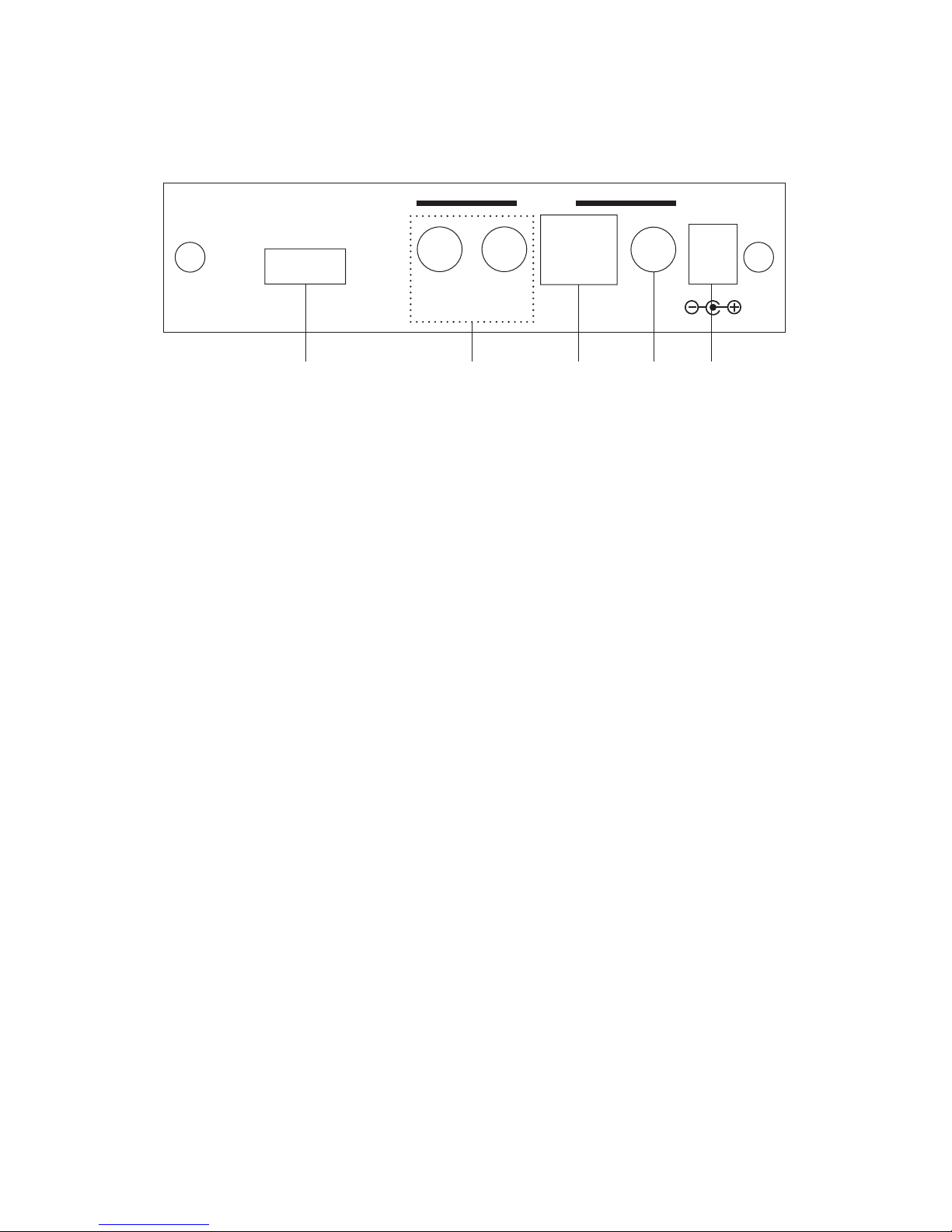

7.2 Rear Panel

DC 5V

SV CV

OUTPUT INPUT

AUDIO

HDMI

②① ③ ④ ⑤

①󳌤 HDMI output: Connect the HDMI output port to the HDMI input of the LCD

or HDTV.

②󳌤 R/L audio input: Connect R/L stereo audio format to the audio source,

when selected Composite Video or S-Video the HDMI output will include

the stereo audio with the video at the same time.

③󳌤 S-Video Input: Use a S-Video cable to connect the S-Video output of

the source video equipment to this S-Video input on the back of the video

scaler. S-Video provides improved performance over Composite Video

and is recommended over Composite.

④󳌤 CV (Composite Video) Input : Use a Composite Video cable to connect

the Composite Video output of the source equipment to this Composite

Video (CV) input of the scaler.

⑤󳌤 DC power jack: Plug the DC 5V power supply into the splitter and connect

the adaptor to AC wall outlet.

8. Output Format

The format for analog PC output is RGB and for analog HD output is YPbPr.

PC (RGBHV) HDTV (YPbPr)

VGA

SVGA

XGA

WXGA

WSXGA

SXGA

UXGA

WUXGA

640 x 480

800 x 600

1024 x 768

1280 x 800

1360 x 768

1680 x 1050

1280 x 1024

1400 x 1050

1680 x 1050@60RB

1600 x 1200

1920 x 1200

1920 x 1080@60RB

60Hz

1080p

1080i

720p

576p

480p

1920 x 1080p

1920 x 1080i

1280 x 720

720 x 576

720 x 480

Follow input source and can

convert 50Hz to 60Hz

Follow input source and can

convert 50Hz to 60Hz

Follow input source and can

convert 50Hz to 60Hz

50Hz

60Hz

9. OSD Operation

After power on the unit, press the menu button to bring up the main menu

page as below:

Main Menu

Picture Adj

Output Setup

Exit

Use +/- button to move “”to your desired parameter, the press MENU/ENTER

to enter into sub-menu of your selected parameter.

9.1 Picture Adjust

When Picture Adjust is selected a sub menu as below comes up.

Default Range

Bright 16 1-31

Contrast 16 1-31

Color 16 1-31

Tint 16 1-31

Sharp 50 1-19

Default OK

Exit

Use +/- to move the tick “”to your desired adjust item, press the Menu/Enter

to conﬁrm your selection.

+/- to increase or decrease the value of the parameter.

When adjustment is complete, press “MENU”to leave the parameter. Move

the tick “”to cancel the selection, press MENU/ENTER to Exit.

9.2 Output Setup

When output Set up is selected a submenu as below appears:

Output Setup

Timing XGA

Exit

Press the “MENU/ENTER”button to enter into output timing select mode. Press

+/- to toggle through a variety of output resolutions as below. Once your

desired resolution is selected, press the MENU/ENTER to enter the resolution.

VGA 640 x 480 60 Hz

SVGA 800 x 600 60 Hz

XGA 1024 x 768 60 Hz

1280 x 800 60 Hz

WXGA 1360 x 768 60 Hz

WSXGA 1440 x 900 60 Hz

SXGA 1280 x 1024 60 Hz

1400 x 1050 60 Hz

1680 x 1050 60 HzRB

UXGA 1600 x 1200 60 Hz

1920 x 1080 60 HzRB

WUXGA 1920 x 1200 60 HzRB

480p 720 x 480 60 Hz

576p 720 x 576 50 Hz

720p 1280 x 720 60 Hz

1080i 1920 x 1080i follow input source and can convert 50Hz to 60Hz

1080p 1920 x 1080p follow input source and can convert 50Hz to 60Hz

Native follow input source and can convert 50Hz to 60Hz

Note:1. All output resolutions except 576p have 60Hz vertical rate, the 576p

resolution has 50Hz vertical rate.

Indice

Altri manuali Cypress Convertitore multimediale

Cypress

Cypress DCT-9 Manuale utente

Cypress

Cypress CDM-660 Manuale utente

Cypress

Cypress CLUX-SDI2CSS Manuale utente

Cypress

Cypress CP-280H Manuale utente

Cypress

Cypress CMDP-DL2DVI Manuale utente

Cypress

Cypress OSM-1000-BRD Manuale utente

Cypress

Cypress CM-398DI Manuale utente

Cypress

Cypress CM-390 Manuale utente

Cypress

Cypress CVX-OPTW Manuale utente

Cypress

Cypress CP-264 Manuale utente

Cypress

Cypress CM-393 Manuale utente

Cypress

Cypress CSLUX-300I Manuale utente

Cypress

Cypress DCT-2 Manuale utente

Cypress

Cypress CP-261HS Manuale utente

Cypress

Cypress CSC-5500 Manuale utente

Cypress

Cypress CCR-2SRGB Manuale utente

Cypress

Cypress CLUX-14CEC Manuale utente

Cypress

Cypress CP-300VD Manuale utente

Cypress

Cypress CP-268S Manuale utente

Cypress

Cypress HTCP-255DN Manuale utente

Cypress

Cypress CP-261D Manuale utente

Cypress

Cypress CM-398H Manuale utente

Cypress

Cypress CDL-125 Manuale utente

Cypress

Cypress CP-RGBVS Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
