Safety precautions

Information regarding use of loudspeakers

WARNING! Never stand in the immediate vicinity of loudspeakers driven at a high

level. Professional loudspeaker systems are capable of causing a

sound pressure level detrimental to human health. Seemingly non-

critical sound levels (from approx. 95 dB SPL) can cause hearing

damage if people are exposed to it over a long period.

In order to prevent accidents when deploying loudspeakers on the

ground or when flown, please take note of the following:

When setting up the loudspeakers or loudspeaker stands, make sure

they are standing on a firm surface. If you place several systems on

top of one another, use straps to secure them against movement.

Only use accessories which have been tested and approved by d&b

for assembly and mobile deployment. Pay attention to the correct

application and maximum load capacity of the accessories as detailed

in our specific “Mounting instructions” or in our "Flying system and

Rigging manuals".

Ensure that all additional hardware, fixings and fasteners used for

installation or mobile deployment are of an appropriate size and load

safety factor. Pay attention to the manufacturers' instructions and to

the relevant safety guidelines.

Regularly check the loudspeaker housings and accessories for visible

signs of wear and tear, and replace them when necessary.

Regularly check all load bearing bolts in the mounting devices.

CAUTION! Loudspeakers produce a static magnetic field even if they are not

connected or are not in use. Therefore make sure when erecting and

transporting loudspeakers that they are nowhere near equipment and

objects which may be impaired or damaged by an external magnetic

field. Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic

data carriers (floppy disks, audio and video tapes, bank cards, etc.) is

sufficient; a distance of more than 1 m (3 ft) may be necessary with

computer and video monitors.

E6 Manual, (1.1 EN) Safety precautions - 1

Fig. 1: E6 loudspeaker

Fig. 2: E6 stage monitor setup

The E6 is a high performance multipurpose loudspeaker employing an

integrated 6.5”/1” exit coaxial driver design with neodymium magnet

and constant directivity horn loading. The horn with its 100° x 55° (hor.

x vert.) dispersion pattern can easily be rotated through 90° providing

a 55° x 100° pattern without the use of tools.

The E6 is a two-way design with a built-in passive crossover network. Its

frequency response extends from 85 Hz to 20 kHz.

The E6 enclosure is injection-molded from polyamide with an impact

and weather resistant black paint finish. The cabinet shape allows use

either in a vertical or horizontal orientation as well as deployment as a

stage monitor.

The front of the loudspeaker cabinet is protected by a rigid metal grill in

front of an acoustically transparent fabric. The grill can easily be

removed without tools to modify the horn orientation.

The cabinet incorporates a handle and four M8 threaded inserts to

connect to different rigging accessories like Z5377 E6 Flying bracket,

Z5378 E6 Horizontal bracket or a safety wire.

The connector panel of the E6 cabinet is recessed and tilted to allow

deployment as a stage monitor. With the panel on the right hand side,

the cabinet is oriented correctly.

NOTICE: Only operate E6 loudspeakers with a correctly configured d&b

amplifier, otherwise there is a risk of damaging the loudspeaker

components.

Fig. 3: E6 SC/WR versions

top view

E6 cabinet options

The special color (SC) version of the cabinet is available in all colors of

the RAL color table. It comes without the handle. The respective opening

of the cabinet is covered by a plate in cabinet color. The connector type

is NL4.

The weather resistant (WR) version is available in black only. It also

comes without the handle. It is equipped with a fixed input cable (5 m /

16.4 ft, type H-07-RN-F 2 x 2.5 mm2/AWG 13).

E6 Manual, (1.1 EN) Page 4 of 10

Connections

Fig. 4: Connector wiring

The E6 cabinet is fitted with a pair of EP5 connectors. All five pins of

both connectors are wired in parallel. The E6 uses the pin assignments

1/2. Pins 3/4 and 5 are designated to active subwoofers, where pin 5 is

used for SenseDrive (only available when using a D12 amplifier and 5-

wire cabling). Using the male connector as the input, the female

connector allows for direct connection to additional loudspeakers.

The E6 can be supplied with NL4 connectors as an option.

Pin equivalents of EP5 and NL4 connectors and the fixed cable option

are listed in the table below.

EP5 1 2 3 4 5

NL4 1+ 1– 2+ 2– n.a.

Fixed cable (PG) Brown (+) Blue (–)

Operation with D6 or D12

Select the controller setup E6.

On the D12 amplifier it is available in “Dual Channel” and “Mix

TOP/SUB” mode. For combinations with active subwoofers fed by a

single 4/5-wire cable "Mix TOP/SUB" mode must be selected.

Up to a total of four E6 loudspeakers can be driven by each channel of

the D6 or D12 amplifiers.

Controller settings

For acoustic adjustment the functions CUT, HFA and CPL can be

selected.

CUT circuit

Set to CUT, the E6 low frequency level is reduced. The E6 is now

configured for use with E12X-SUB or E15X-SUB in active mode or other

d&b active subwoofers.

HFA circuit

-5

-10

-15

-20

-25

-30

20 100 1k 10k 20k

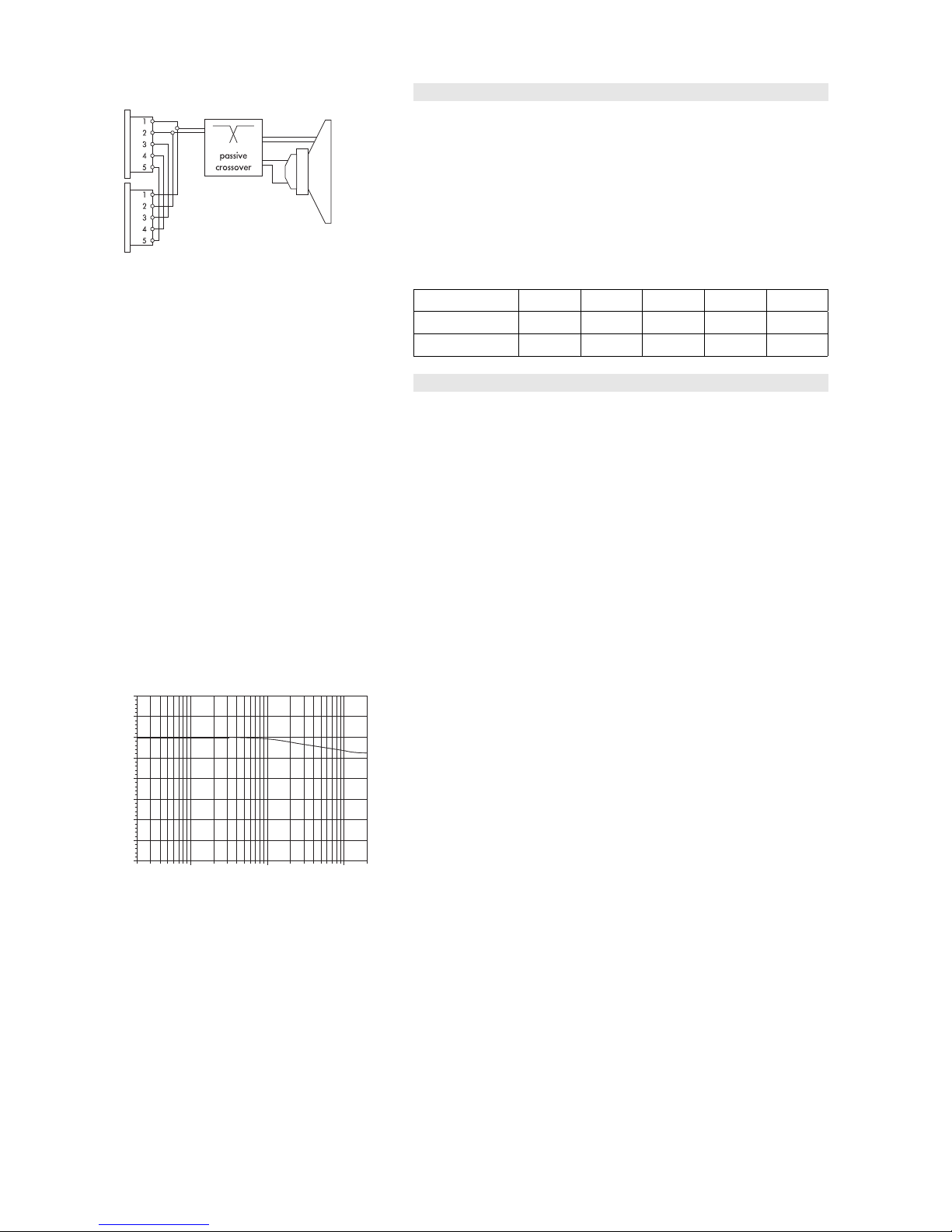

Fig. 5: Frequency response correction of

HFA circuit

In HFA mode (High Frequency Attenuation), the HF response of the E6

system is rolled off. The HFA circuit provides a natural, balanced

frequency response when a unit is placed close to listeners in near field

or delay use.

High frequency attenuation begins gradually at 1 kHz, dropping by

approximately 3 dB at 10 kHz. This roll-off mimics the decline in

frequency response experienced when listening to a system from a

distance in a typically reverberant room or auditorium.

E6 Manual, (1.1 EN) Page 5 of 10

CPL circuit

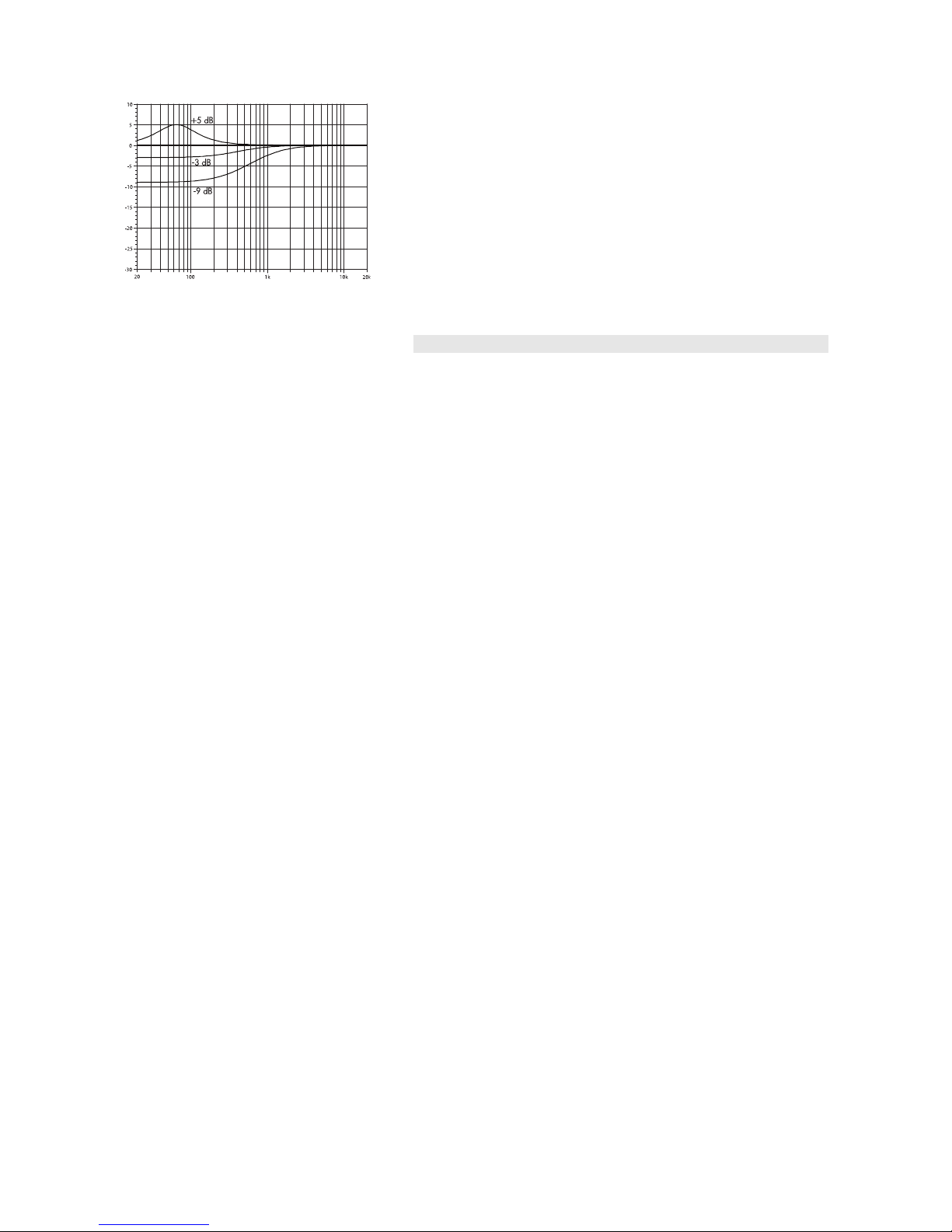

Fig. 6: Frequency response correction of

CPL circuit

The CPL (Coupling) circuit compensates for coupling effects when

building closely coupled arrays or when the cabinet is used as a stage

monitor. CPL begins gradually at 1 kHz, with maximum attenuation

below 250 Hz, providing a balanced frequency response when E6

cabinets are used in arrays of two or more. The function of the CPL

circuit is shown in the diagram opposite and can be set in dB

attenuation values between –9 and 0, or a positive CPL value which

creates an adjustable low frequency boost around 65 Hz (0 to +5 dB).

Operation with E-PAC

Selecting E6 mode enables the E-PAC to drive up to three E6

loudspeakers. LO IMP mode configures the E-PAC to drive a maximum

of five E6 loudspeakers with a 6 dB reduction in input level to the

loudspeakers.

For acoustic adjustment the functions CUT and HFA can be selected. The

characteristics of the CUT and HFA settings are explained in the

previous section "Operation with D6 or D12 - Controller settings".

E6 Manual, (1.1 EN) Page 6 of 10

Dispersion characteristics

The graphs below show dispersion angle over frequency of a single E6

cabinet plotted using lines of equal sound pressure (isobars) at –6 dB

and –12 dB.

Fig. 7: Isobar diagram E6 horizontal,

standard setup

Fig. 8: Isobar diagram E6 vertical,

standard setup

Fig. 9: Isobar diagram E6 horizontal,

horizontal setup with the horn rotated

Fig. 10: Isobar diagram E6 vertical,

horizontal setup with the horn rotated

Altering the HF horn dispersion

The HF horn can be rotated through 90° within the coaxial driver

assembly. There are no tools required as the grill is attached to the

baffle by magnets. It is secured by an additional safety wire.

The grill can be accessed through an opening in the top handle of the

cabinet.

- Remove the grill.

- Take the horn at its outer edges and turn it until it snaps into the

desired direction.

- Relocate and fix the front grill.

Make sure the safety wire slips into the recess between baffle and

cabinet body.

E6 Manual, (1.1 EN) Page 7 of 10

Technical specifications

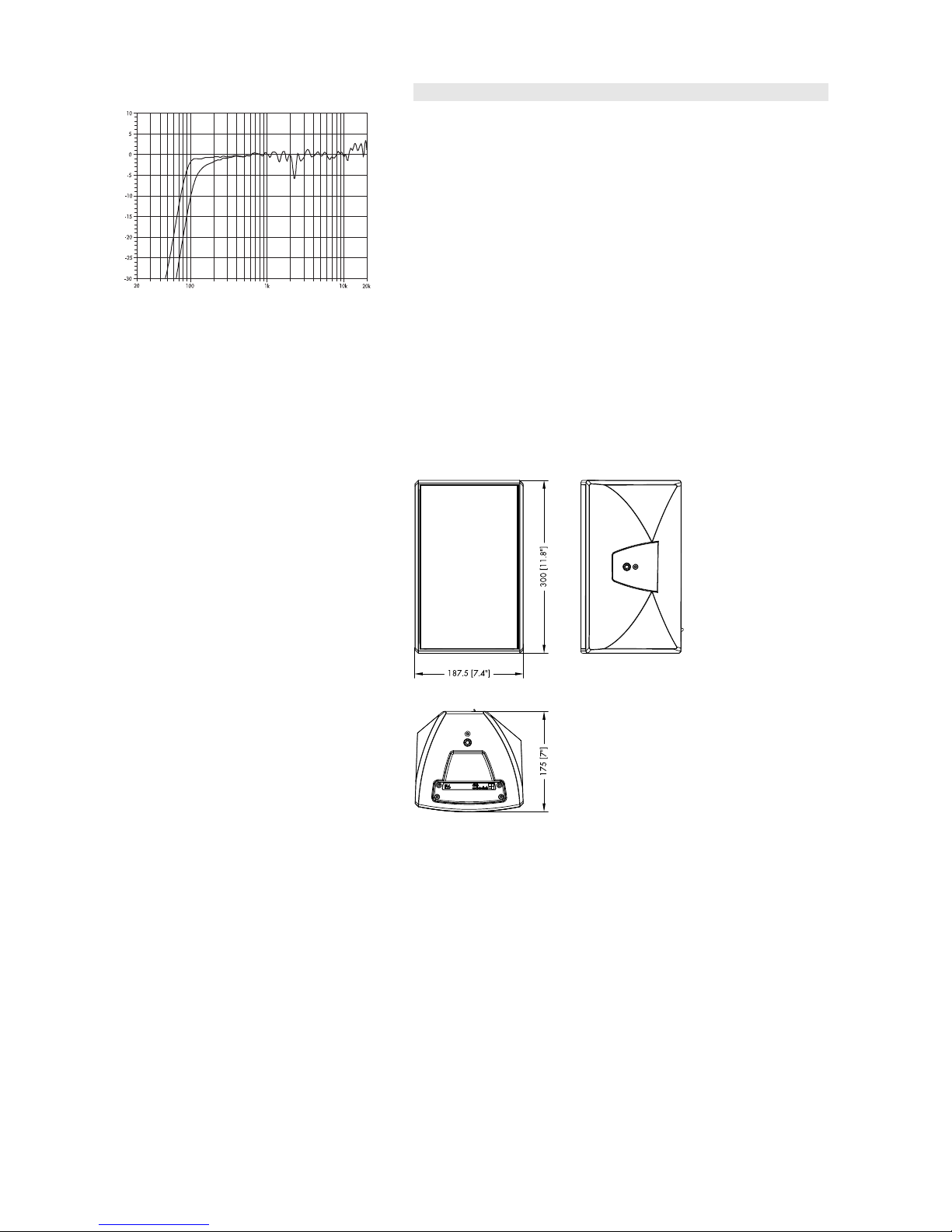

Fig. 11: E6 frequency response, standard

and CUT settings

E6 system data

Frequency response (–5 dB standard).................................................85 Hz ... 20 kHz

Frequency response (–5 dB CUT mode)...........................................120 Hz ... 20 kHz

Max. sound pressure (1 m, free field) E6 with D12 .........................................123 dB

Max. sound pressure (1 m, free field) E6 with D6 or E-PAC .........................120 dB

(SPLmax peak, pink noise test signal with crest factor of 4)

Input level (100 dB-SPL/1 m)...............................................................................–11 dBu

E6 loudspeaker

Nominal impedance...............................................................................................20 ohms

Power handling capacity (RMS / peak 10 ms).........................................150/800 W

Nominal dispersion angle (hor. x vert.).........................................................100° x 55°

Components..........................................................6.5“ driver with neodymium magnet

..............coaxial 1” exit compression driver with 1.75“ coil and rotatable CD horn

....................................................................................................Passive crossover network

Connections................................................................................................................2 x EP5

......................................................................................Optional and SC option: 2 x NL4

.............WR option: Fixed cable 5 m (16.4 ft) (H-07-RN-F 2 x 2.5 mm2/AWG 13)

Pin assignments.......................................................................................................EP5: 1/2

.............................................................................................................................NL4: 1+/1–

.............................................................................................Fixed cable: Brown + / Blue –

Weight..............................................................................................................5.0 kg (11 lb)

Fig. 12: E6 cabinet dimensions in mm [inch]

E6 Manual, (1.1 EN) Page 8 of 10

Manufacturer's declarations

EU conformity of loudspeakers (CE symbol)

This declaration applies to

E6 loudspeaker, Z0350

manufactured by d&b audiotechnik GmbH.

All production versions of this type are included, provided they

correspond to the original technical version and have not been subject

to any later design or electromechanical modifications.

We herewith declare that said products are in conformity with the

provisions of the respective EC directives including all applicable

amendments.

A detailed declaration is available on request and can be ordered from

d&b or downloaded from the d&b website at www.dbaudio.com.

WEEE Declaration (Disposal)

Electrical and electronic equipment must be disposed of separately from

normal waste at the end of its operational lifetime.

Please dispose of this product according to the respective national

regulations or contractual agreements. If there are any further questions

concerning the disposal of this product please contact d&b audiotechnik.

E6 Manual, (1.1 EN) Page 9 of 10

D2606.EN .01, 07/2011 © d&b audiotechnik GmbH

d&b audiotechnik GmbH, Eugen-Adolff-Str. 134, D-71522 Backnang, Germany, Phone +49-7191-9669-0, Fax +49-7191-95 00 00

Altri manuali per E6

Indice

Altri manuali d & b audiotechnik Altoparlanti

d & b audiotechnik

d & b audiotechnik V-GSUB Manuale utente

d & b audiotechnik

d & b audiotechnik SL Series Manuale utente

d & b audiotechnik

d & b audiotechnik Yi7P Manuale utente

d & b audiotechnik

d & b audiotechnik Qi7 Manuale utente

d & b audiotechnik

d & b audiotechnik AL90 Manuale utente

d & b audiotechnik

d & b audiotechnik MAX Manuale utente

d & b audiotechnik

d & b audiotechnik Vi-GSUB Manuale utente

d & b audiotechnik

d & b audiotechnik T10 Manuale utente

d & b audiotechnik

d & b audiotechnik Ci7-TOP Manuale di istruzioni

d & b audiotechnik

d & b audiotechnik XSL-SUB Manuale utente

d & b audiotechnik

d & b audiotechnik M2 Manuale utente

d & b audiotechnik

d & b audiotechnik M2 Manuale utente

d & b audiotechnik

d & b audiotechnik E8 Manuale utente

d & b audiotechnik

d & b audiotechnik eo Manuale utente

d & b audiotechnik

d & b audiotechnik J12 Istruzioni per il montaggio

d & b audiotechnik

d & b audiotechnik J-INFRA Manuale utente

d & b audiotechnik

d & b audiotechnik xS 18S-SUB Manuale utente

d & b audiotechnik

d & b audiotechnik xS Series Manuale utente

d & b audiotechnik

d & b audiotechnik Qi10 Manuale utente

d & b audiotechnik

d & b audiotechnik J Series Guida rapida

d & b audiotechnik

d & b audiotechnik F1222 Istruzioni per il montaggio

d & b audiotechnik

d & b audiotechnik MAX Manuale utente

d & b audiotechnik

d & b audiotechnik E3 Manuale utente

d & b audiotechnik

d & b audiotechnik Q Series Manuale utente

Manuali Altoparlanti popolari di altre marche

argon audio

argon audio IE20 Manuale utente

Denon

Denon SC-N7 Manuale utente

Gemline

Gemline Ace 3952 Manuale utente

Focal

Focal ON WALL 300 Manuale di istruzioni

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuale utente

SoundLogic

SoundLogic BCCS-6/6395 Manuale utente

Peavey

Peavey DTH 218 Manuale utente

Avantree

Avantree Pluto Air Manuale utente

Morel

Morel Integra Series INTEGRA OVATION 4 Manuale utente

Oppo

Oppo SONICA Manuale utente

Bose

Bose SoundLink Wireless Music System Manuale utente

Rocksteady

Rocksteady Stadium Manuale utente

Bowers & Wilkins

Bowers & Wilkins 4 Manuale utente

Sonance

Sonance SONOS OUTDOOR Series Manuale utente

Electro-Voice

Electro-Voice EVID FM4.2 Manuale utente

Pioneer

Pioneer XW-HTD630 Manuale utente

Onn

Onn BWA16AA002 Manuale utente

HP GL313AA - USB Speakers PC Multimedia Manuale utente

d & b audiotechnik E6 Manuale utente

Manuali Altoparlanti popolari di altre marche
