D-Link D DPH-50U DPH-50U Manuale utente

2 D-Link DPH-50U Quick Install Guide

Package Contents

System Requirements

DPH-50U Skype™ USB

Phone Adapter

RJ-11 Phone Cable USB 2.0 Cable

CD-ROM with User Guide

* If Skype™ is not already installed on your computer, please insert the CD and click “Install

Skype” or visit http://www.skype.com to download latest version and follow the instructions

there to install Skype. Verify that Skype is working before installing the DPH-50U adapter.

An available Broadband connection

400MHz processor or higher

At least 128MB RAM

10MB Available Hard Drive Space

CD-ROM Drive

A valid Skype™ account*

If any of the above items are missing, please contact your reseller.

3D-Link DPH-50U Quick Install Guide

Front Panel

Rear Panel

Power

A solid blue light indicates that

the device is receiving power.

USB Connection

Connect the supplied USB cable into this slot and the

other into an available USB port on your computer.

VoIP

A solid light indicates a

VoIP call.

PSTN

A solid light indicates a

PSTN call.

4 D-Link DPH-50U Quick Install Guide

Installation

Do not connect the DPH-50U to your computer until

instructed to do so by the DPH-50U installation wizard

Insert the supplied CD into your PC CD-ROM drive. The installation should

start automatically. If you do not have Skype installed, click Install Skype

before installing the phone adapter driver.

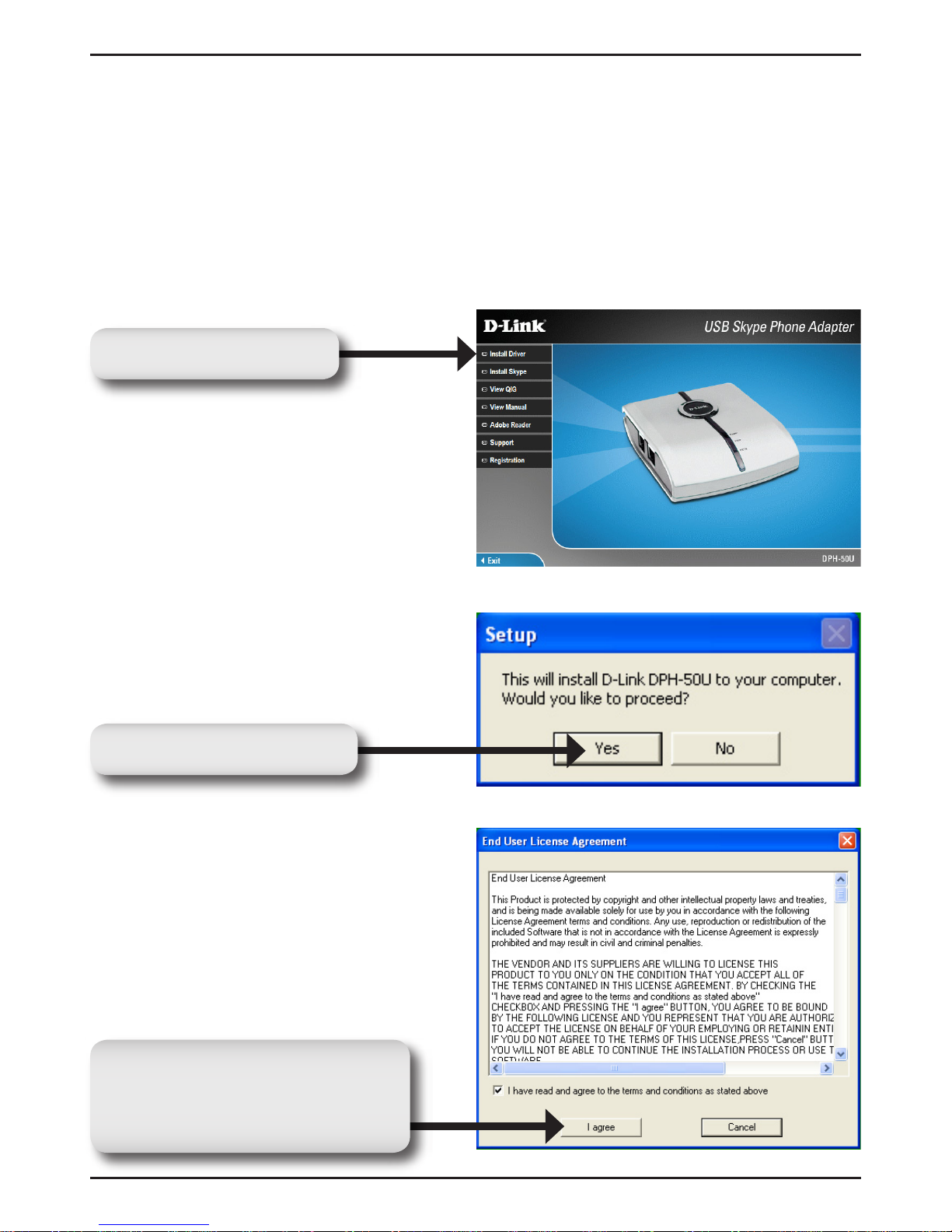

Click Install Driver.

Click Yes to continue.

Check the I have read and

agree... box and then click

I Agree to continue.

5D-Link DPH-50U Quick Install Guide

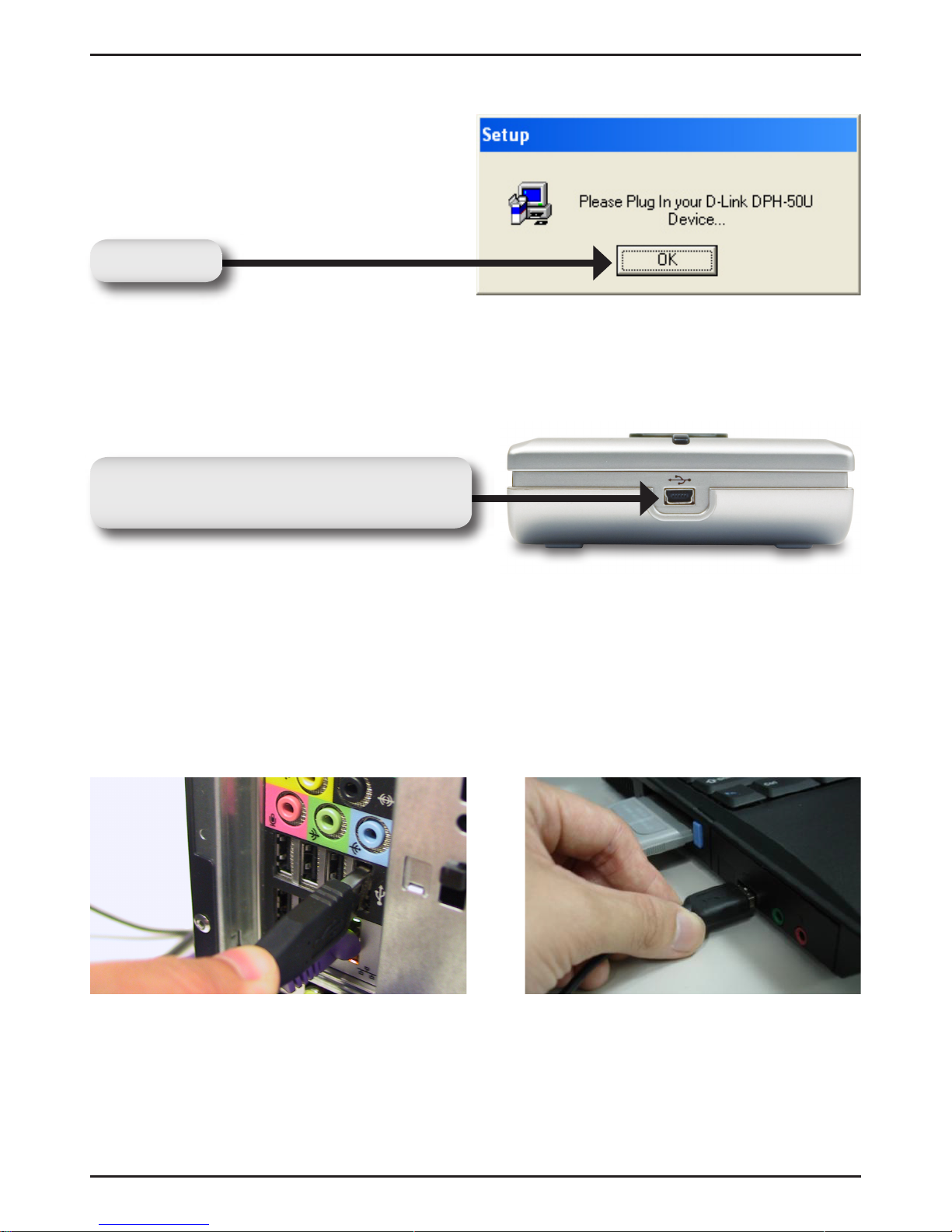

The other end of the USB cable must be connected to a USB port on your

computer as shown or to a powered USB hub.

Click OK.

Connect the USB cable to the

DPH-50U adapter USB port.

6 D-Link DPH-50U Quick Install Guide

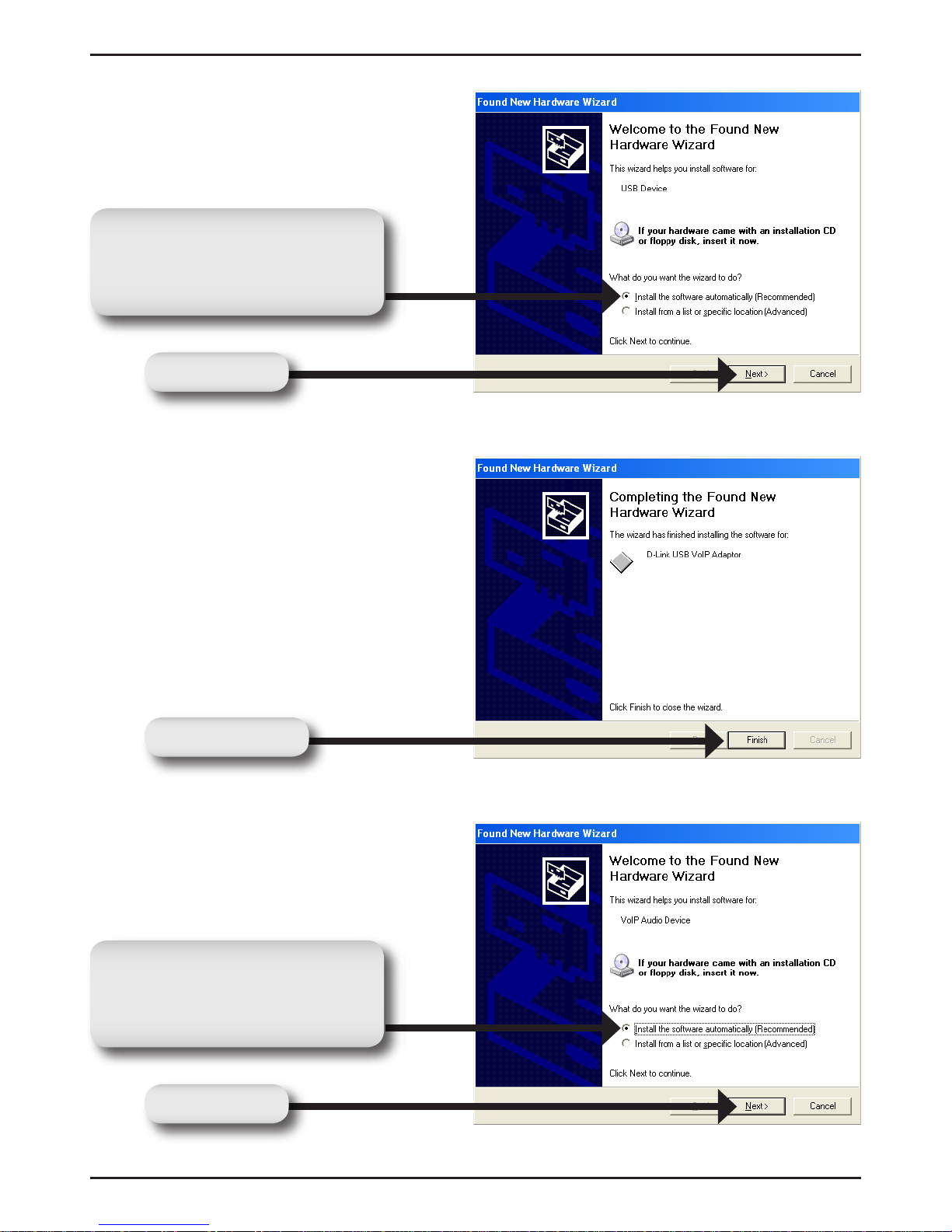

Select Install the

software automatically

(Recommended).

Click Next.

Click Finish.

Select Install the

software automatically

(Recommended).

Click Next.

7D-Link DPH-50U Quick Install Guide

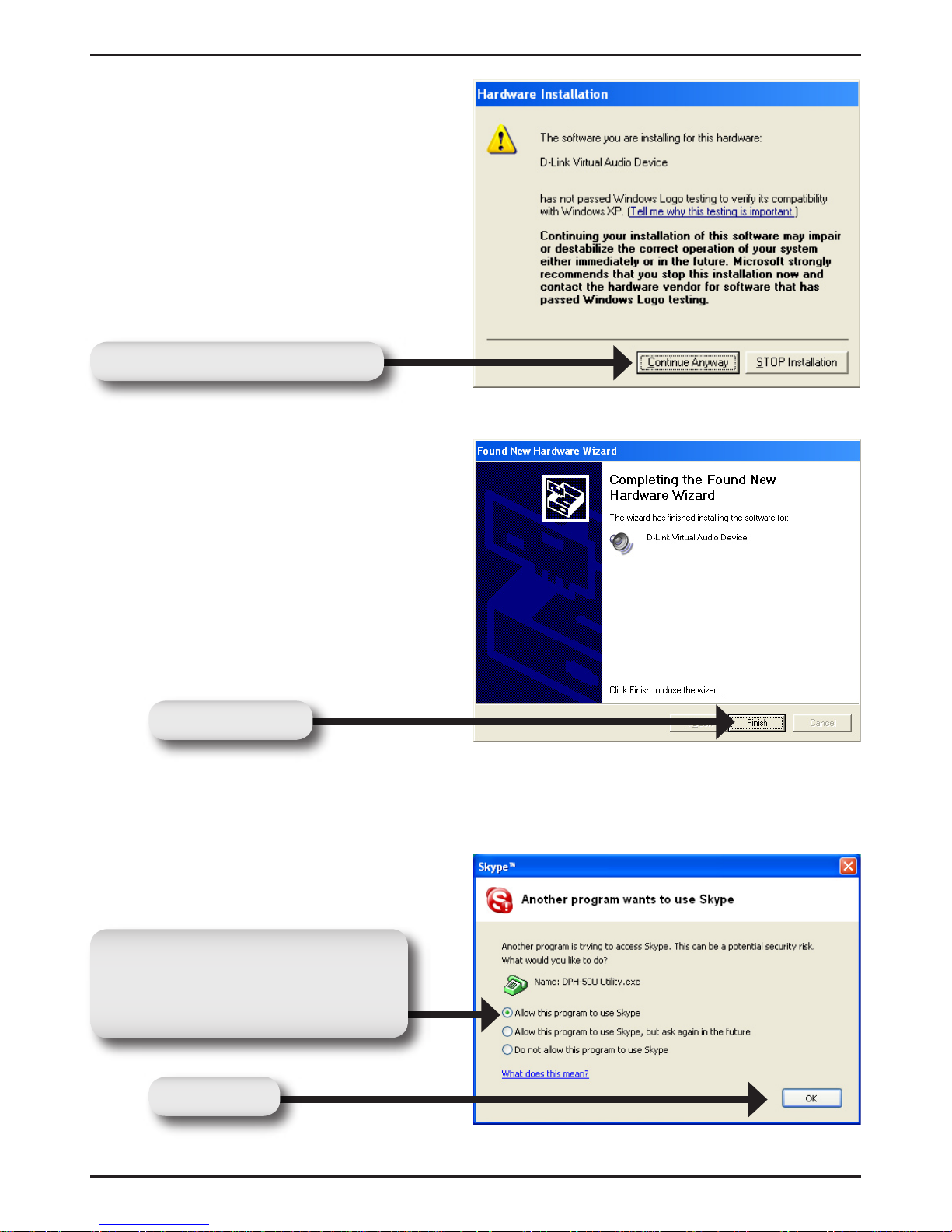

Click Continue Anyway.

If you will see the following

screen, select Allow this

program to use Skype.

Click OK.

Click Finish.

8 D-Link DPH-50U Quick Install Guide

Your Installation Is Completed!

The DPH-50U Utility will automatically start and the utility icon

will appear in the bottom right-hand corner of the desktop

screen (systray). If this icon appears BLUE, then you have

successfully installed the DPH-50U.

Connect a standard telephone handset to the DPH-50U phone

jack using a RJ-11 telephone cable as shown below

You will see a new program group named D-Link USB Phone

Adapter. Click Start > All Programs > D-Link USB Phone

Adapter > DPH-50U Utility as shown below.

9D-Link DPH-50U Quick Install Guide

Connect a telephone cable between the DPH-50U line jack

and a wall jack as shown below. Note that this is only required

for making regular phone calls or for forwarding Skype calls

to your mobile (or other off-site) phone or for toll bypass

applications.

You ﬁnal conﬁguration should resemble the following.

10 D-Link DPH-50U Quick Install Guide

You can continue to use the telephone handset connected to the

DPH-50U Skype USB Phone Adapter to make and receive standard

telephone calls as you used without any change. To make a standard

phone call, just pick up the handset and dial as you normally would. Make

sure you hear a dial tone before you dial ## or the phone number. To

answer (receive) a standard phone call just pick up the handset when the

phone rings.

When you receive an incoming Skype™ call, the handset connected to the

DPH-50U will ring. To answer the call, just pick up the handset and speak

as you normally would. To end the call, simply hang up the handset as you

normally would.

If you have SkypeOut™, you can use the DPH-50U connected handset to

make SkypeOut™ calls by picking up the handset, pressing ## (only if the

DHP-50U is in PSTN mode), to indicate to the DPH-50U that this will be a

Skype call, dialing as per the SkypeOut™ recommended dialing sequence,

00 + country code + telephone number and pressing the asterisk (*) key. If

the DPH-50U is already in VoIP mode, pressing ## is not required.

Examples:

PSTN mode: ## 001 617 555 1212 *

VoIP mode: 001 617 555 1212 *

In order to make a call to a Skype™ contact, you will need to use the Skype™

program to assign a speed dial (as described in the user manual) to each

person you would like to call from the DPH-50U connected handset. Then

simply pick up the handset, press ## (if in PSTN mode), to indicate to the

DPH-50U that this is a Skype call, you will hear a new dial-tone, press the

speed dial number (e.g. 22) and then press the asterisk (*) key.

Making and Receiving Calls
