D-Link GO-PL-200 Manuale utente

Version 1.0 | 05/06/2013

User Manual

GO-PL-200/GO-PLK-200

Powerline AV Mini Easy Adapter

2D-Link GO-PL-200/GO-PLK-200 User Manual

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any

person or organization of such revisions or changes.

Manual Revisions

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United

States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of

their respective companies.

from D-Link Systems, Inc.

Revision Date Description

1.0 May 06, 2013 • Initial release for hardware revision A1

Preface

3D-Link GO-PL-200/GO-PLK-200 User Manual

Table of Contents

Preface .........................................................................................2

Manual Revisions ..........................................................................2

Trademarks ..................................................................................... 2

Product Overview ......................................................................4

Package Contents .........................................................................4

Introduction ................................................................................... 5

Features ............................................................................................ 5

Hardware Overview .....................................................................6

LEDs ........................................................................................... 6

Connection ............................................................................. 7

Hardware Installation ...............................................................8

Push Button Security ................................................................... 9

Powerline Installation Considerations ................................12

Troubleshooting ..................................................................... 14

Technical Specications ........................................................ 15

Table of Contents

4D-Link GO-PL-200/GO-PLK-200 User Manual

Section 1 - Product Overview

GO-PL-200

• D-Link GO-PL-200 Powerline AV Mini Easy Adapter

• Ethernet Cable

• Quick Install Guide

GO-PLK-200

• D-Link GO-PL-200 Powerline AV Mini Easy Adapter x2

• Ethernet Cable x2

• Quick Install Guide

Product Overview

Package Contents

5D-Link GO-PL-200/GO-PLK-200 User Manual

Section 1 - Product Overview

Introduction

D-Link announces a fast, 200Mbps* Powerline AV Mini Easy Adapter which allows you to connect your computers, networking

devices and gaming devices through the most pervasive medium in your house - the electric wiring - and share Internet

connections, share printers, transfer les, play games, and more.

Features

• Provides Ethernet to Powerline Connection

• Fast Data Transfer Rate of Up to 200Mbps*

• One Ethernet port

• Plug & Play, Easy Installation

• Push Button Security

• Power Saving mode

• Quality of Service(QoS)

* Maximum throughput based on theoretical transmission PHY rate. Actual date throughput will vary. Network conditions and environmental factors, including volume of trac

and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect

the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other powerline devices that

do not follow the HomePlug AV and IEEE1901 standard.

6D-Link GO-PL-200/GO-PLK-200 User Manual

Section 1 - Product Overview

Hardware Overview

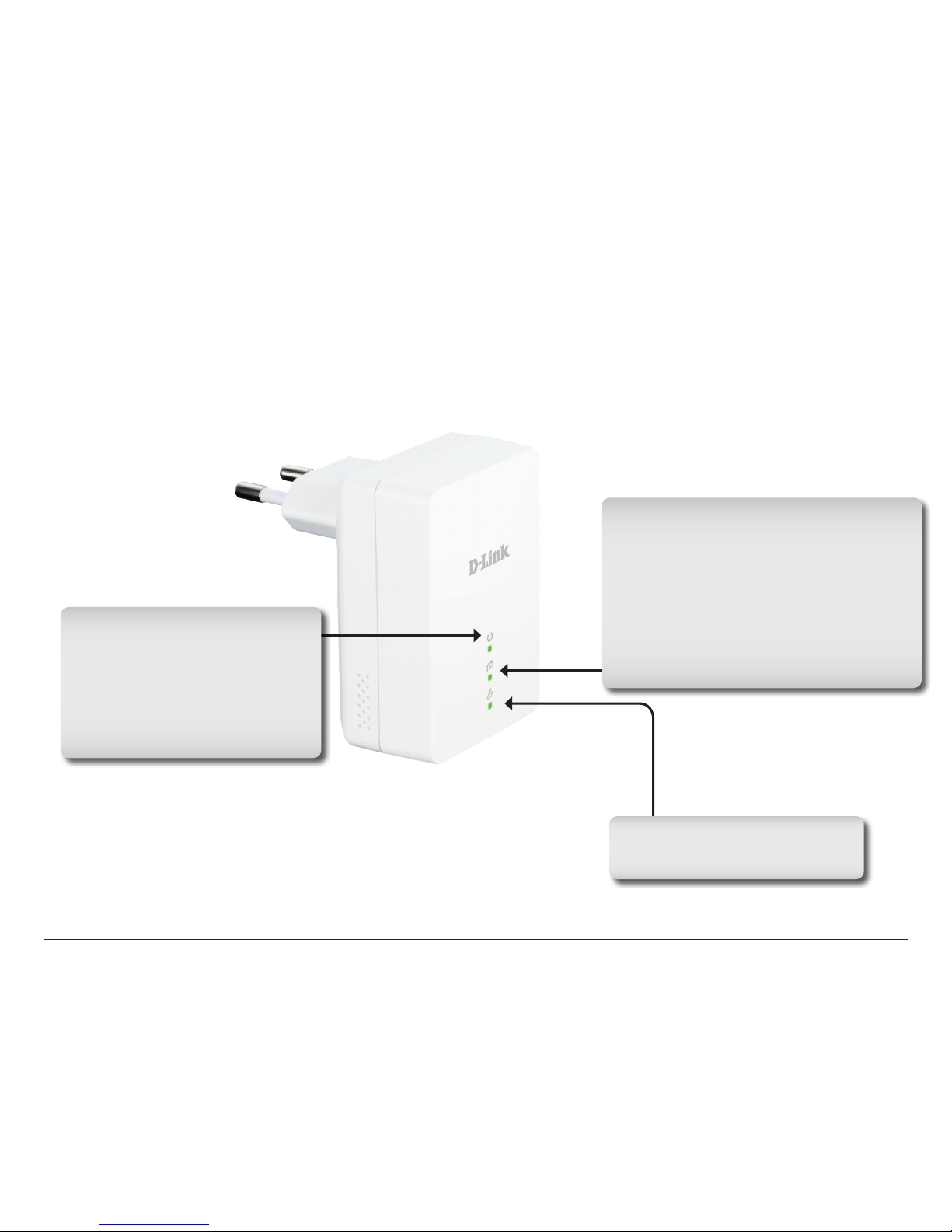

LEDs

Power LED

• Solid. The device is receiving electrical

power.

• Blinking. The device is setting itself up

after reset or simple connect button was

pressed or power saving mode enabled.

• O. The device is not receiving electrical

power.

Ethernet LED

• Solid. The Ethernet port is linked.

• O. There is no Ethernet connection.

Powerline LED

• Solid. The device is connected to a Powerline

network.

• O. The device has not found any other compatible

Powerline devices using the same encryption key.

The color indicates the Powerline link rate:

• Green. The Powerline link rate is excellent.

• Amber. The Powerline link rate is good

• Red. The Powerline link rate is fair.

7D-Link GO-PL-200/GO-PLK-200 User Manual

Section 1 - Product Overview

Hardware Overview

Connection

Ethernet Port

Connects to your PC or Ethernet

device through an Ethernet cable.

Simple Connect Button

Press to secure your network or

reset your device back to the

factory default settings. Refer

to page 9 for more information.

8D-Link GO-PL-200/GO-PLK-200 User Manual

Section 2 - Installation

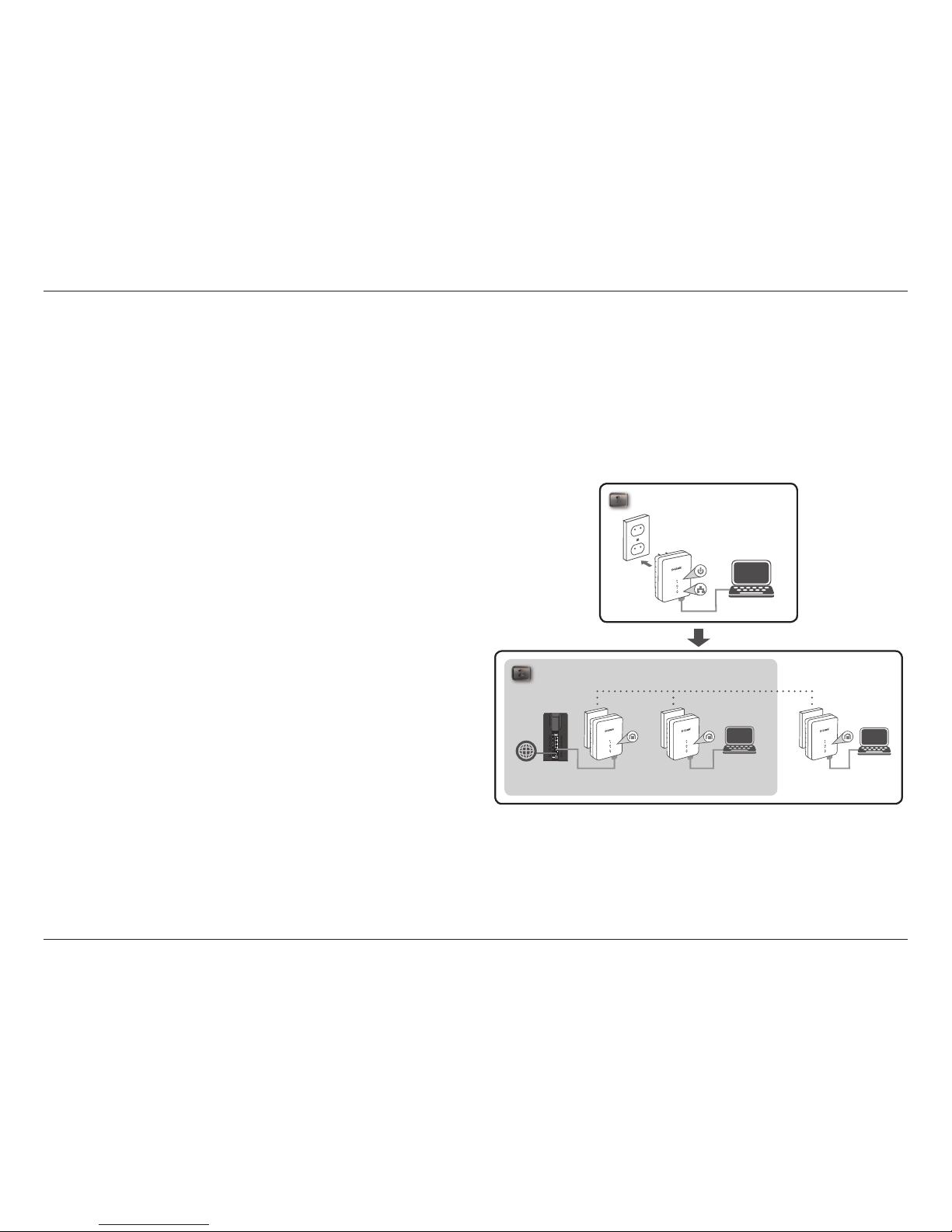

Hardware Installation

Power

Plug in the GO-PL-200 into an AC wall outlet. Note that it is not recommended to connect the GO-PL-200 to a power

strip or UPS.

Note: Power source is conrmed when the Power LED on the GO-PL-200 is illuminated.

Connect the Ethernet Cable

Connect the included Ethernet cable to the Ethernet port

located on the GO-PL-200 and attach the other end of the

Ethernet cable to your PC or Ethernet device. Network

Connectivity is conrmed when the Ethernet LED on the

GO-PL-200 is illuminated.

Power Saving Mode Enabled

When the Ethernet link activity has been down for 5

minutes, the GO-PL-200 will automatically go into power

saving mode. The Power LED will blink intermittently.

WARNING! D-Link powerline devices cannot be congured while in

Power Saving Mode.

1ROOM C

GO-PL-200

2ROOM A ROOM B ROOM C

GO-PL-200GO-PL-200

RouterInternet

GO-PL-200

EXISTING PLC NETWORK

9D-Link GO-PL-200/GO-PLK-200 User Manual

Section 2 - Installation

Understanding Powerline AV Mini Easy Adapter Security

Powerline AV Mini Easy Adapters must use the same encryption key in order to be on the same network. The default encryption

key of each Powerline AV Mini Easy Adapter is HomePlug AV. All Powerline AV Mini Easy Adapters with default encryption key

can communicate with each other.

It’s recommended to create a private encryption key for network security purposes. The private encryption key allows you to

protect your network from unauthorized access via the Powerline network. To create a private encryption key, please follow

the steps below:

1. All Adapters

Plug in all the adapters to be congured and make sure each device’s encryption key is set to HomePlug AV (default value). If

the encryption key is not set to the default value, press the Simple connect button for 10 seconds to reset it to the default value.

2. First Adapter

Press the Simple Connect Button of the rst adapter for no more than three seconds.

The Power LED will start blinking after you release the button. The adapter will create a private, randomly generated encryption

key that each Powerline AV Mini Easy Adapter will use.

3. Second Adapter

Push Button Security

10D-Link GO-PL-200/GO-PLK-200 User Manual

Section 2 - Installation

Within two minutes of pushing the Simple connect button of the rst adapter, press the Simple Connect Button on the second

adapter in your Powerline network for no more than three seconds. The Power LED will start blinking after you release the

button.

Note: Both Simple connect buttons must be pressed within two minutes.

Your Powerline network is now securely congured with the same network encryption key. The adapters will remember the

security settings even if they are unplugged.

Note: To change the private encryption key, please reset the adapter back to its default value by pressing the Simple Connect

button for 10 seconds and then follow the security setup procedure above.

4. Adding More Adapters

If you would like to add more than two adapters, press the Simple Connect Button on the additional adapter for no more than

three seconds. The Power LED will start blinking after you release the button.

press the Simple Connect Button on any adapter in your existing Powerline network for no more than two seconds. The Power

LED will start blinking after you release the button.

Note: Both Simple connect buttons must be pressed within two minutes.

Now your new adapter will be able to connect to your existing Powerline network.
