D-Link Powerline DHP-300 Manuale utente

2D-Link DHP-300 User Manual

Table of Contents

Product Overview ........................................................3

Package Contents....................................................3

System Requirements ............................................. 3

Introduction..............................................................4

Features...................................................................5

Hardware Overview .................................................6

LEDs ..................................................................6

Connection......................................................... 7

Hardware Installation ..................................................8

Using the Setup Wizard...............................................9

Conﬁguration............................................................. 13

Setup .....................................................................15

Security.................................................................. 17

QoS........................................................................18

Application QoS.....................................................19

Reset .....................................................................20

Troubleshooting.........................................................21

Technical Speciﬁcations...........................................22

Contacting Technical Support..................................23

Warranty .....................................................................24

Registration................................................................29

Table of Contents

3D-Link DHP-300 User Manual

Section 1 - Product Overview

• D-Link DHP-300 Powerline HD Ethernet Adapter

• CAT5 Ethernet Cable

• CD-ROM with Software and Manual

• Quick Installation Guide

System Requirements

• PC with 233MHz Processor, 64MB Memory

• Windows®XP SP2 or 2000 SP4

• Ethernet Adapter (100MBit/s)

Product Overview

Package Contents

4D-Link DHP-300 User Manual

Section 1 - Product Overview

Introduction

D-Link announces a fast, 200Mbps Powerline HD Ethernet Adapter which allows you to network your home computers,

networking devices and gaming devices through the most pervasive medium in your house - the electric powerlines

- and share Internet connections, printers, transfer ﬁles, play games, and more. This kit can be used to network two

computers with a 10/100Base-T adapter through powerlines.

5D-Link DHP-300 User Manual

Section 1 - Product Overview

• Provides Ethernet to Powerline Connection

• Fast Data Transfer Rate of Up to 200Mbps

• One 10/100 Ethernet port

• Plug & Play, Easy Installation

• Easy to use Management Software

• Conﬁgurable QoS for video streaming, VoIP and Gaming

• Conﬁgurable encryption key for security

• Firmware Upgrade Support

Features

6D-Link DHP-300 User Manual

Section 1 - Product Overview

Hardware Overview

LEDs

Power LED

A solid light indicates that the

device is receiving power.

Powerline LED

A solid light indicates that the device has

detected another Powerline device on the

network.

Ethernet LED

A solid light indicates a connection on

the Ethernet port.The LED blinks during

data transmission.

7D-Link DHP-300 User Manual

Section 1 - Product Overview

Hardware Overview

Connection

Ethernet

Connect the CAT5 Ethernet cable to the

DHP-300 Ethernet port.

8D-Link DHP-300 User Manual

Section 2 - Installation

Hardware Installation

Power

Plug in the DHP-300 into an AC wall outlet or power strip.

Note: Power source is conﬁrmed when the green LED Power Indicator on the DHP-300 is illuminated.

Connect the Ethernet Cable

Connect the included Ethernet cable to the network cable connector located on the DHP-300 and attach the other end

of the Ethernet cable to the network or PC. Network Connectivity is conﬁrmed when the green LED Indicator on the

DHP-300 located left of the Power LED is illuminated.

9D-Link DHP-300 User Manual

Section 2 - Installation

Follow the simple steps below to run the Setup Wizard to guide you quickly through the installation process.

Insert the D-Link DHP-300 CD into your CD-ROM drive. If the CD Autorun function does not automatically start on

your computer, click Start > Run.

In the Run command box type “D:\DHP300.exe”, where D: represents the drive letter of your CD-ROM. If it does start,

proceed to the next screen.

Click on Install Utility

Using the Setup Wizard

Click Next

The InstallShield Wizard will begin the DHP-300 software

installation.

10D-Link DHP-300 User Manual

Section 2 - Installation

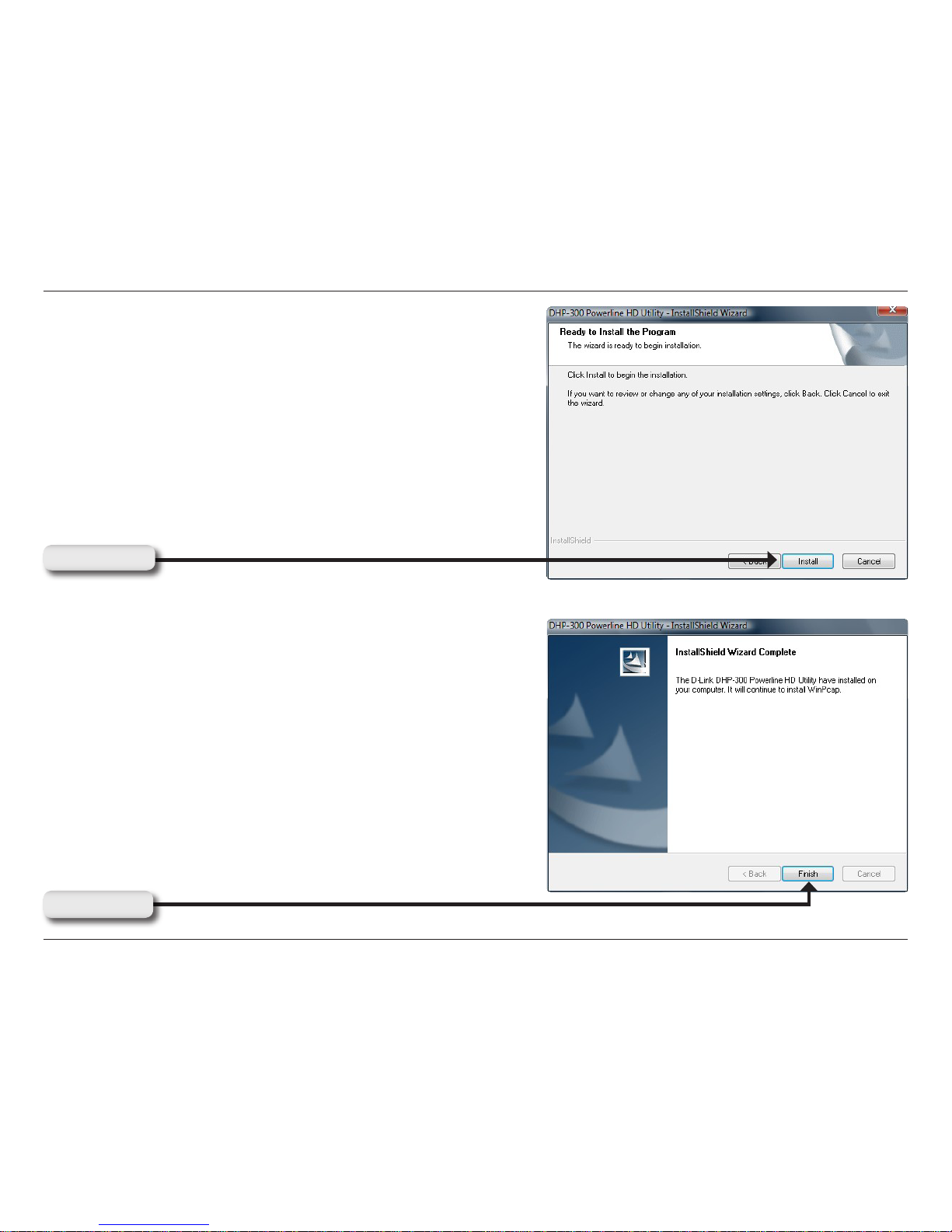

Click Finish

Click Install
