D-Link DG-102SH Manuale utente

Manual

Building Networks for People

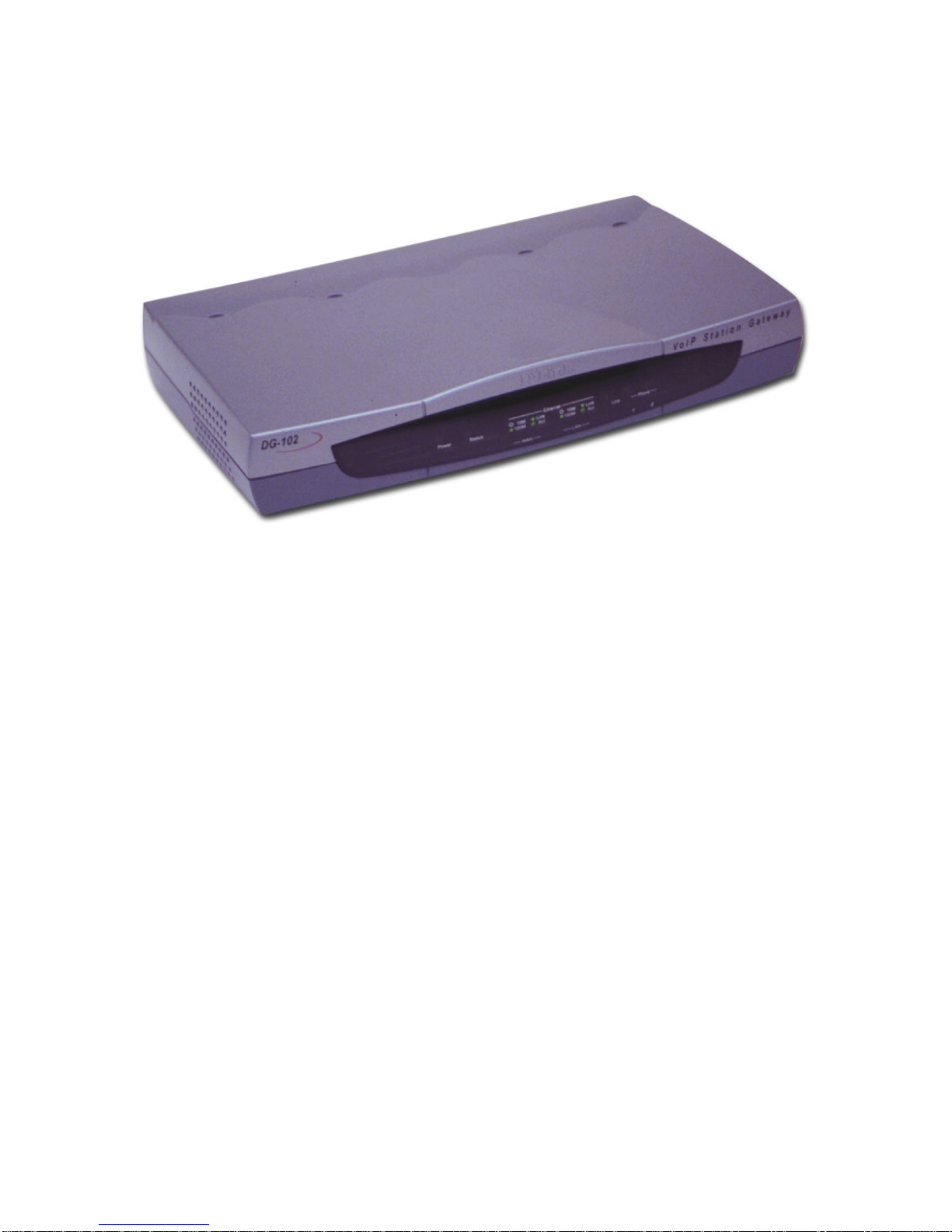

D-Link DG-102SH

VoIP Station Gateway

Version 1.10

Contents

PackageContents ................................................................................3

Introduction............................................................................................4

Features andBenefits ...........................................................................5

GettingStarted ......................................................................................6

Configuration ......................................................................................10

UsingWeb-Based Management .........................................................11

ConfigurationUsing aConsole............................................................50

Usingthe BootMenu ...........................................................................60

CommandLineInterface .....................................................................68

TechnicalSpecifications ......................................................................76

Waranty...............................................................................................79

Registration ........................................................................................82

ContactingTechnicalSupport ..............................................................83

Package Contents

System Requirements:



Internet Explorer Version 6.0 or Netscape Navigator

Version6.0andAbove

Computers with Windows, Macintosh, or Linux-based

operating systems with an installed Ethernet adapter

Contents of Package:

D-Link DG-102SH VoIP Station Gateway

Ethernet Cable (Straight-through CAT5 with RJ-45 connectors)

12V/1AA/CPowerAdapter

If any of the above items are missing, please contact your reseller.



Introduction

TheD-LinkDG-102SHVoIPStationGatewaylinkstraditionaltelephonynetworks

to IP networks with conventional telephony devices such as analog phones or

fax machines. The DG-102SH includes two loop start Foreign Exchange

Subscriber (FXS) that interfaces with normal RJ-11 telephone connectors to

provide voice/fax communication over the IP network. The DG-102SH also

includes two 10/100 Mbps Fast Ethernet ports. One Ethernet port is for a DSL/

CableModemorotherWANdevicesand theothermay functionasa connection

to create a home or small office LAN network. The built-in DHCP server/client

and Network Address Translation (NAT) function automatically to assign IP

addresses for LAN users, allowing multiple users to share a single Internet

connection. It can be configured and monitored via the Console, Web browser,

or Telnet and also supports SNMP management.

By routing calls over the Internet or any IP network, this gateway can reduce or

eliminate long distance or inter-office phone charges. Corporations can also

enjoy the benefits of network consolidation and the reduction of leased lines by

relyingonInternetservice providers todelivertoll-qualityvoice communications

over the IP networks.

Features and Benefits

Designedforversatilityandperformance,theDG-102SHVoIPGatewayprovides

the following features:



One 10/100 Fast Ethernet WAN port for connecting to a call agent



One analog POTS interface for PSTN Life Line

Two analog loop-start FXS interfaces using female RJ-11 connectors

One 10/100 Fast Ethernet LAN port for connecting to a local network

IP address assignment using DHCP (Dynamic Host Configuration

Protocol) or static configuration

Silence suppression to reduce bandwidth consumption

Comfort noise generation for a more natural feel

Adaptive jitter buffer for smooth voice reception

Lost packet recovery ability for improved voice quality

Command port for easy configuration

Remote Software download/update

IP sharing support to allow multiple users access to the Internet via

a single IP address

Build-in PPPoE function to support dial-up connection for broadband

technology

CallerID

QoS support to ensure voice quality

Life Line support

1. Automatic fall back to PSTN in case of power failure or network

breakdown

2. Intelligentdialing mode(IP/PSTNCall)alternationvia configurable

hot key (“ # “ key is the default)

3. Listening of incoming calls from PSTN



Getting Started

Identifying External Components

Front Panel

Understanding Indicators

Before configuring your VoIP Gateway, take a few minutes to look over this

section and familiarize yourself with the front panel LED indicators depicted

below.

Power: This LED is lit when the device is receiving power; otherwise, it

is unlit.

Status: This LED will flash quickly when the DG-102SH is either per-

forming a self test or booting up. The LED will remain lit when the system

isreadyfora connection withtheGatekeeper.Itwillremain dark whenthe

system is ready but can not receive an acknowledgement from the

Gatekeeper.

WAN: This LED displays the connection speed, link status, and activity

on the 10/100 dual-speed Ethernet port that is used to connect to your

WAN device (usually a DSL/cable modem).



Getting Started

Identifying External Components

10/100M: This indicator remains unlit when there is no connection, or

the port is operating at 10Mbps through a connection to a 10BASE-T

device. It is lit when the port is operating at 100Mbps through a con-

nection to a dual-speed or 100BASE-TX Fast Ethernet device.

Link/Act: When a good link to a powered-up, but idle device is de-

tected on a port, this indicator shines steadily. When packets are re-

ceived from the device, the indicator blinks.

Rear Panel

Line: Lights when PSTN line is in use.

Phone 1 to 2: Lights when standard phone port is in use.

Note: If a powered-up device is connected to a port and the port’s Link/Act status

indicator is unlit, the most probable cause is a cabling or connection problem

(for example, wrong cable type or bad contact) or a device malfunction.

LAN: ThisLEDdisplaystheconnectionspeed,linkstatus,andactivity on

the 10/100 dual-speed Ethernet port that is used to connect to your LAN.

10/100M: This indicator remains unlit when there is no connection, or

the port is operating at 10Mbps through a connection to a 10BASE-T

device. It is lit when the port is operating at 100Mbps through a con-

nection to a dual-speed or 100BASE-TX Fast Ethernet device.

Link/Act: When a good link to a powered-up, but idle device is de-

tected on a port, this indicator shines steadily. When packets are re-

ceived from the device, the indicator blinks.



Getting Started

Identifying External Components

Fast Ethernet LAN: A10/100 dual-speed Ethernet port fitted with an RJ-

45 connector used to connect the VoIP gateway to a LAN device (hub,

switch, PC, etc.). This port accepts Category 5 or higher UTP cabling

with an RJ-45 connector.

Line: RJ-11 phone jack for connecting to a standard telephone wall out-

let through an approved (No. 26AWG or larger) telecommunications line

cord.

Phone 1 to 2: Normal RJ-11 phone jacks used to connect analog (and

digital) telephones and fax machines. Plug your telephone(s) and/or fax

machine directly into any of these jacks.

Installation

When choosing a place to install the VoIP Gateway, please use the following

guidelines:

The power outlet should be within 1.82 meters (6 feet) of the device.

Visually inspect the power cord and see that it is secured to the AC

power connector.



AC Power Connector: For the included power adapter. Be sure to use

onlythe 12V/1Apower adapter includedwith the product.Using thewrong

power adapter can damage the product and void the warranty.

Diagnostic Port: An RS-232 serial port used to configure the device.

Plug one end of a straight-through wired RS-232 cable to the device and

the other end to a serial port of a PC running a terminal emulation pro-

gram (such as Microsoft HyperTerminal) or a VT-100 terminal.

Fast Ethernet WAN: A10/100dual-speed Ethernet port fittedwith an RJ-

45 connector used to connect the VoIP gateway to a WAN device (usually

a router). This port accepts Category 3, 4 or 5 UTP cabling with an RJ-45

connector.



Connecting the Network Cable

Category 3, 4 or 5 UTP cable can be used to make the Ethernet connection to

your router.

The maximum cable length between the DG-102SH and the supporting call

agentis 100meters. The cablemust be straight-through(not acrossover cable)

with RJ-45 connectors at each end.

Connecting the VoIP Gateway to a Hub/Switch

Connecting the VoIP Gateway to a Computer

The DG-102SH requires a straight-through cable when connecting to a

computer. Make sure that your IP address on your Ethernet card is in the same

subnet as the DG-102SH otherwise it will not connect.

To connect the device to either a hub or switch, you must connect the straight-

through cable to the LAN port.

Getting Started

Installation



When installing the unit on a desktop or shelf, the rubber feet in-

cluded with the device should be attached. These cushioning feet

should be attached to the bottom corners of the device.

Do not place heavy objects on the DG-102SH at any time. Placing

the DG-102SH in a well ventilated area is very important. Not doing

so may cause damage to the unit.

Configuration

Configuring the VoIP Gateway

Using a web browser on a computer connected to the device via the

WANorLAN Ethernetconnections. In thediscussion below,the computer

running the browser is referred to as the management station.

Using a terminal or computer running terminal emulation software

connected to the diagnostic port via an RS-232 cable. In the discussion

below, the terminal (or computer) is referred to as a console and the

connection, a console connection.



There are two ways to configure the VoIP gateway:
