This Quick Guide will guide you through the installation Process. You are
only moments away from using your new D-Link Network Security Product
Building Networks for People
DFL-M510
1.Before You Begin
1.1 Check Your Package Contents................................................................1
1.2 DFL-M510 Introduction...........................................................................2
1.3 DFL-M510 Architecture...........................................................................3
2.Identifying Components
2.1 Front View..............................................................................................4
2.2 Rear View...............................................................................................5
2.3 LCD Navigation Button Descriptio..........................................................5
2.4 LCD Panel .............................................................................................6
2.5 Status LEDs ............................................................................................7
3.Connecting the DFL-M510
3.1 Setting up without firewall.....................................................................8
3.2 Setting up with firewall..........................................................................9
4.Configure DFL-M510
4.1 Connect to DFL-510..............................................................................10
4.2 Setup Wizard.........................................................................................13
5.WARRANTY
Warranty...............................................................................................16
DFL-M510 Quick Installation Guide
01
1.1 Check Your Package Contents
Thank you for purchasing DFL-M510 Information Security
Gateway. Before continuing, please check the contents of the
product package. This product package should contain the
following items:
One (1) DFL-M510 Information Security Gateway
One (1) Power Cord
One (1) Console Cable (RS-232 cable)
One (1) Ethernet (CAT5 UTP/Straight Through) Cable
One (1) CD-ROM (containing QIG/Manual )
Two (2) Rack Mount Brackets
If anything is missing, please contact your reseller immediately.
DFL-M510
Before You Begin 1
DFL-M510 Power Cord Console Cable
Ethernet Cable CD-ROMRack Mount Brackets
1.2 DFL-M510 Introduction
DFL-M510 is a transparent network device which is installed in
In-Line mode with “Hardware Bypass” function, without any
change of current network architecture to control/manage
information trafc ow (IM, P2P and Streaming Media … etc.)
from intranet and detect/drop the trafc with health concerns
(Trojan, Illegal agent and Network worm … etc.) Based on the
policy rules applied to specic Group/Hosts/subnet.
DFL-M510 provides very friendly user-interface to congure.
D-Link develops this product based on easy-to-use principle
without compromise any security protection issue.
02
DFL-M510 Quick Installation Guide
03
DFL-M510 Quick Installation Guide
1.3 DFL-M510 Architecture
Without Firewall
When there is no rewall involved, we suggest place DFL-M510
after the router or ADSL modem. Here is the recommended
structure illustration.
With Firewall
When there is a rewall, placing the DFL-M510 between the
rewall and the LAN is recommended. The recommended
structure is illustrated as following.
ADSL Router DFL-M510 Switch
ADSL Router DFL-M510Firewall
WAN Port LAN Port
WAN Port LAN Port
Identifying Components 2
The following illustrations show the front view, rear view,
LCD Panel and status LEDs of the DFL-M510.

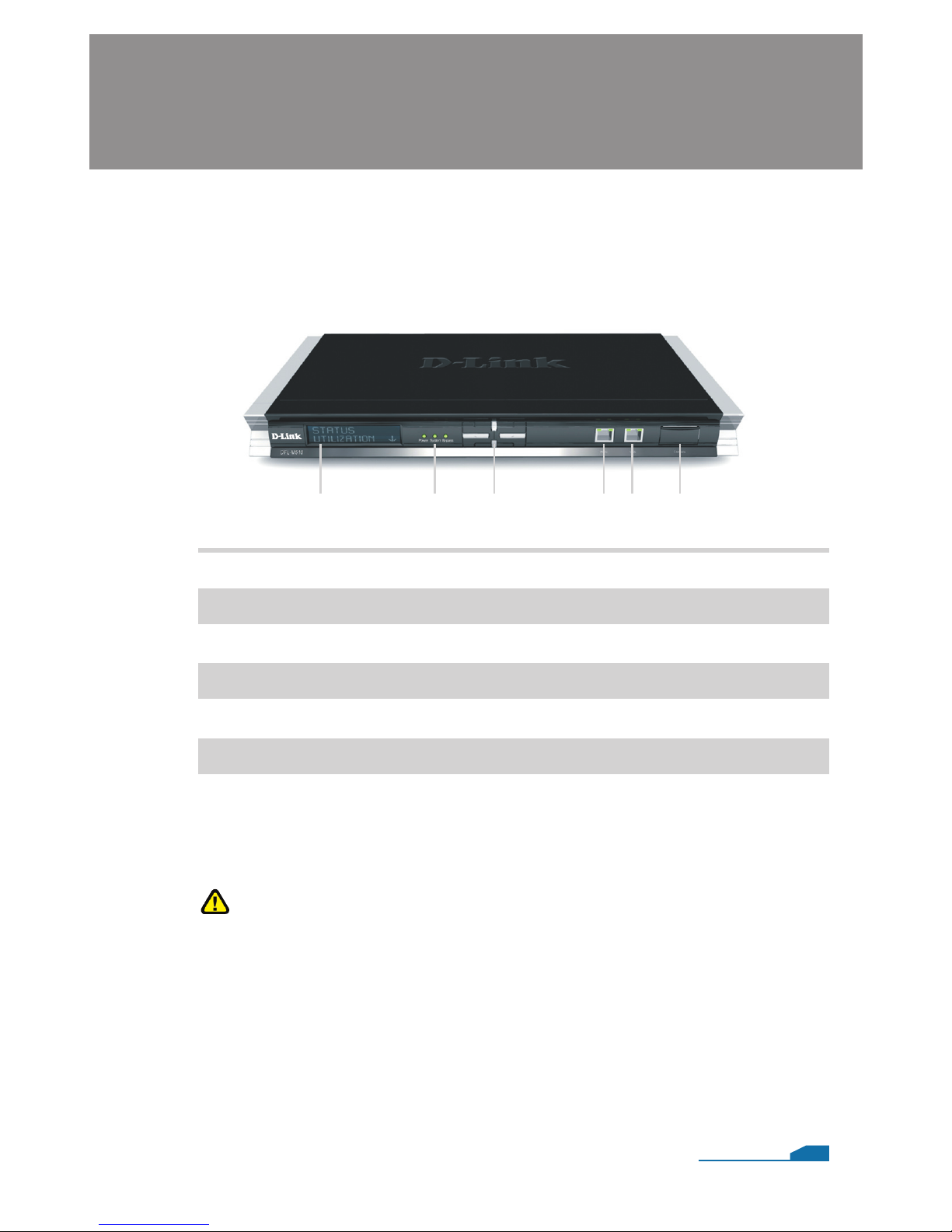

2.1 Front View
1 2 3 4 5 6
1. See “LCD Panel” below
2. See”Status LEDs” below
3. LCD Navigation Buttons
4. WAN Port with hardwave bypass
5. LAN Port with hardwave bypass
6. Console Port
Note:
Hardware Bypass – A built-in failure-proof function of the
DFL-M510. In an unlikely event of a hardware failure or an
accidental power-off, your network trafc will automatically skip
(bypass) the DFL-M510 and ow normally as if a DFL-M510 was
not deployed on your network at all in the rst place.
*
*
04
*
Button
Name
UP
Down
ESC
Enter
Description
Scroll Up
Scroll Down
Go back to the previous screen
Next screen
2.2 Rear View
2.3 LCD Navigation Button Description
DFL-M510 Quick Installation Guide
05
1 2
1. Power socket
2. Power switch
DFL-M510 Quick Installation Guide
2.4 LCD Panel
Main Menu
Device Status
Device Cong
Reset
Reboot
Description
Firmware Ver.:
Policy Ver.:
Policy Number:
Current Date:
Current Time:
Dev. Up Time:
CPU Load:
Memory Usage:
Current Session:
WAN RX:
WAN Drop:
LAN RX:
LAN Drop:
Trafc Level:
Trafc Alert:
Device Name:
IP Address:
IP Mask:
Gateway IP:
DNS IP:
Operation Mode:
LAN Link Mode:
LAN Stealth:
WAN Link Mode:
WAN Stealth:
Sub-Menu
System Info.
Trafc Info.
Alert Monitor
IP Info.
Interface Info.
Reset Conrm
Reboot Conrm
06
LED
Power
System
Bypass
Inbound
(LAN)
Outbound
(WAN)
Status
On
Off
On
Off
On
Off
On
Off
On
Off
Blinking
On
Off
On
Off
Blinking
Description
DFL-M510 is powered on
DFL-M510 is powered off
DFL-M510 is ready
DFL-M510 is not ready
Hardware Bypass is enabled
Hardware Bypass is not enabled
Link OK and the speed is 100Mbps
Link OK and the speed is 10Mbps
Link Present
No packets Send/Receive
Port is sending or receiving data
Link OK and the speed is 100Mbps
Link OK and the speed is 10Mbps
Link Present
No packets Send/Receive
Port is sending or receiving data
2.5 Status LEDs
Color
Green
Green
Red
Green
(Left)
Green
(Right)
Green
(Left)
Green
(Right)
DFL-M510 Quick Installation Guide
07
Connecting the DFL-M510 3
The client’s network structure can be set up with/without a rewall.
3.1 Setting up without a firewall
If your network is not behind a rewall, the DFL-M510 is
placed between the ADSL or router and switch. Refer to the
following:
Connect a UTP cable from the ADSL router to the WAN port
on the DFL-M510.
Connect a UTP cable from the LAN port on the DFL-M510 to
the switch.
Note:
Transparent Device – The DFL-M510 is a “transparent device” in
the sense that it can be deployed directly behind a rewall without
affecting your existing network conguration and architecture. It
can be added to or removed from your network anytime without
requiring you to re-congure or reset your network.
ADSL Router DFL-M510 Switch
WAN Port LAN Port
08
