D-Link DVG-2032S Manuale utente
Before You Begin
You must have the following:
‧ A subscription with the service provider
‧ A Computer with a CD-ROM drive and an Ethernet port running Windows
‧ Ethernet-based broadband modem
Check Your Package Contents
If any of the items below are missing, please contact your reseller.
These are the items included with your DVG-2032S purchase:
DVG-2032S FXS VoIP Gateway
FXS VoIP Gatewa
y
2 Phone Cables with 1 RJ-21 and 16 RJ-11 connectors
CAT5 Ethernet Cable
AC Power Cord
©2018 Corporation. All rights reserved. Trademarks or registered trademarks are the property of
their respective holders. Software and specifications subject to change without notice.
1
DVG-2032S
CD-ROM
2 Rack-Mount Brackets
Mounting KIt
Warranty Card

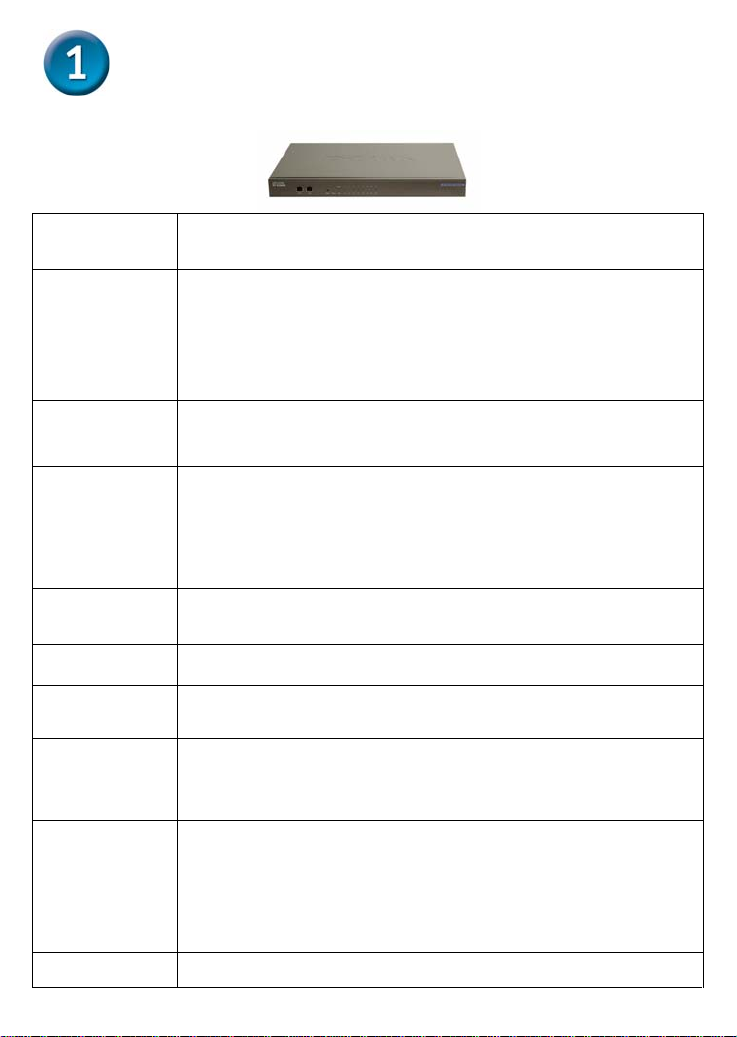

Hardware Overview
Front Panel
Connects to your broadband modem using an Ethernet
cable.
WAN Port
WAN LED When a connection is established, the 10 or 100 LED will
light up. The LED will blink to indicate activity. If the 10 or
100 LED does not light up when a cable is connected,
verify the cable connections and make sure your devices
are powered on.
LAN Port
Connect to an Ethernet enabled computer using
Ethernet cabling.
LAN LED
When a connection is established, the 10 or 100 LED
will light up. The LED will blink to indicate activity. If the
10 or 100 LED does not light up when a cable is
connected, verify the cable connections and make sure
your devices are powered on.
Reset
This button is used to reset the unit to its factory default
settings.
Power LED Indicates the unit is powered on.
Run LED
The Run LED will flash during the self-test/boot process
and light green if the self-test or boot fails.
The Alarm LED will light red if the self-test or boot fails.
The Alarm will flash red while the system is registering or
if registration fails.
Alarm LED
Phone LEDs
(1-32)
These LEDs display the VoIP status and Hook activity
on the phone ports that are used to connect normal
telephones. If a phone connected to a phone port is off
hook or in use, this LED will light up. When a phone is
ringing, the indicator will blink.
2
VoIP LED
The VoIP LED is on if the gateway is successfully registered at IP-PBX.
Rear Panel
FXS Ports
with Two
RJ-21
Connector
Connect up to thirty two phones using included
phone cables.
Power
Switch Used to turn the unit on and off.
AC Input
The power cord connects here.
3
Connecting the Gateway directly
to a Modem and Computer
If your computer connects directly to a DSL or Cable modem and does
not connect to a router, follow the steps below to install your gateway.
For any other configuration, please refer to the user manual located on
the CD-ROM. After the steps are completed, your setup should look
similar to the diagram below.
a. Turn off your Computer.
b. Disconnect the power to your Cable/DSL Modem (unplug it or turn off
the power switch).
c. Unplug the Ethernet cable that is connected to your Cable/DSL
Modem’s LAN or Ethernet port. Leave
the other end of this cable connected to
your PC.
d. Plug the Ethernet cable connector that
you just removed from the modem into
the LAN port on the front of the gateway.
The other end remains
connected to the PC.
4
Connecting the Gateway directly to
a Modem and Computer (continued)
e. Connect one end of the Ethernet Cable provided in this package to
the LAN or Ethernet Port on the Cable/DSL Modem.
f. Connect the other end of the provided
Ethernet Cable to the WAN Port of the
gateway.
g. Connect one end of one of the provided phone cables to
a standard analog telephone.
h. Connect the other end of the cable to
the RJ-21 port on the rear panel of
the gateway.
i. Restore power to the Cable/DSL Modem (plug it in or turn on the
power switch).
j. Connect the power cord to the AC Input
and the electrical outlet. Turn the switch ON.
If your ISP registers your computer’s MAC address, see the section labeled MAC
Cloning for Connections in the user manual on the CD-ROM.
PPPoE Users, please continue to the next page for additional configuration steps.
Hardware configuration is complete! If your VoIP service is already activated, you
can make phone calls now.
5
k. Restart your PC.
Configuration
6
Click Next.
Open your Web browser and type
http://192.168.8.254 into the URL
address box. Press the Enter or
Return Key.
Click Lo
g
in to enter Web Site.
Click Setu
p
Wizard.
To access the web-based configuration utility, open a web-browser and
enter the IP address of the DVG-2032S.
Configuration (continued)
7
It is highly recommended to create
a login ID and password to keep
your gateway secure.
Enter a NTP server or use the
default server. Click Next.
Click Next.
8
Configuration (continued)
Select your Internet connection
type:
DHCP – Most Cable ISPs or if
you are connecting the DVG-
2032S behind a router.
Static IP – Select if your ISP
supplied you with your IP
settings.
PPPoE – Most DSL ISPs.
PPTP – Select if required by
your ISP.
Select Manual to manually enter
IP address of DNS or select
Auto if DNS is assigned by ISP.
Click Next.
9
Configuration (continued)
Register to the SIP Proxy Server
by clicking Enable support of
SIP Proxy Server. Enter Proxy
Server IP/Domain and Port.
The Outbound Proxy Support
is optional. To register, please
click on the Outbound Proxy
Support check box and enter
Outbound Proxy IP/Domain
and Port in it.
Registration by phone line: enter
Number, User ID/Account and
Password supplied by your
ITSP. Click on the Register
check box to register to Proxy
Server.
Click Next.

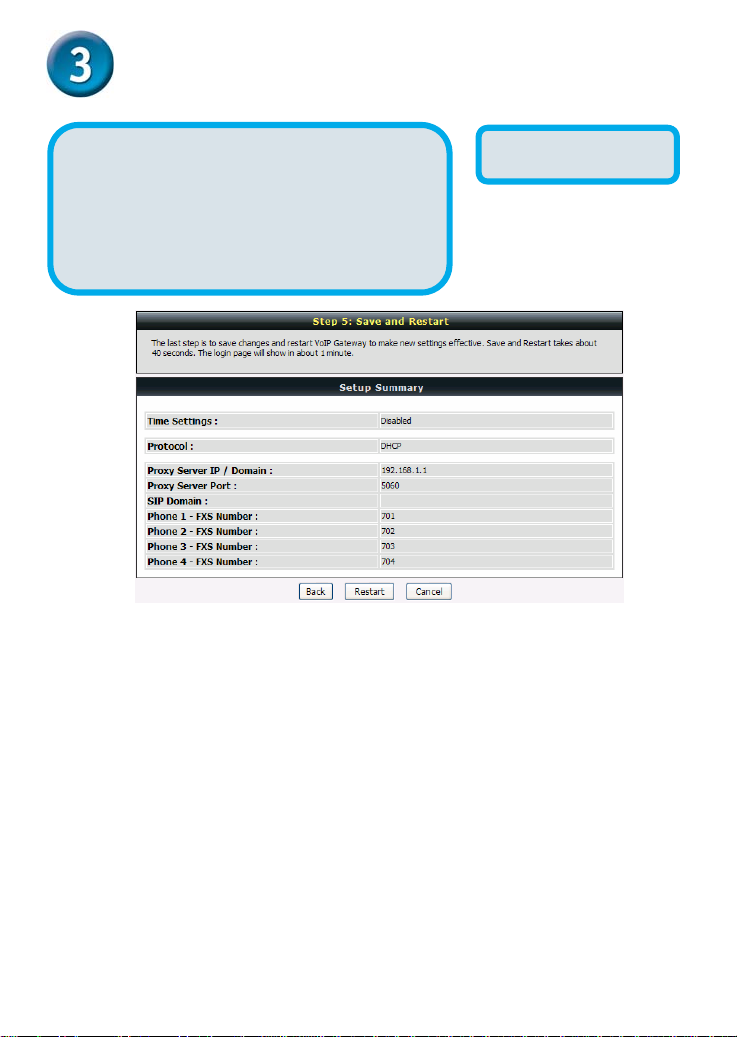

Configuration (continued)
Setup is finished. Check the
summary of your settings. To make
new settings effective, you must
click on the Restart button to reboot
the DVG-2032S.
Click Restart.
10
