D-Link DFE-855 Manuale utente





This guide provides basic information on the installation

and use of D-Link converter model DFE-855.



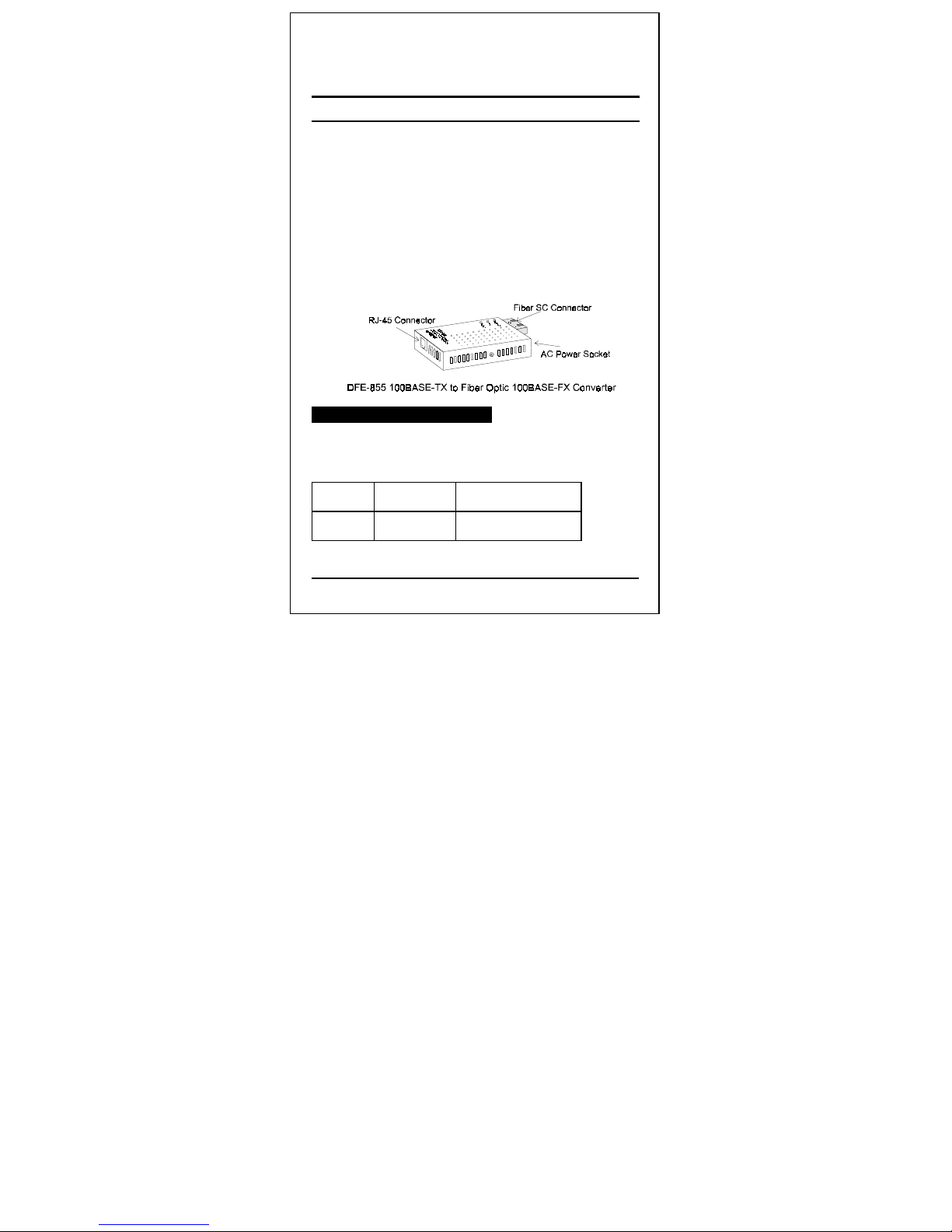

The D-Link DFE-855 100BASE-TX to Fiber Optic

100BASE-FX Converter represents the best value on the

market. The converter is IEEE 802.3u 100BASE-TX and

100BASE-FX compliant, mediates between a 100BASE-TX

segment and a 100BASE-FX segment, and supports both

full-duplex and half-duplex operation. The DFE-855

converter supports transmission distances of up to 2

kilometers in full-duplex mode (please refer to the section

entitled Connections and Communication Mode).

Diagnostic LEDs on the DFE-855 provide indication of

power, linkage and data reception.

Network Cables Supported



The connectors and network cables supported by the

converter are listed in the following table:

Connector Type of

Network

Network Cable

Supported

RJ-45

100BASE-TX Cat 5 Twisted-Pair





Fiber SC 100BASE-FX 1300nm

62.5/125, 50/125-um

Multimode fiber









   Fiber Optic 

Converter



• Conforms to the IEEE 802.3u 100BASE-TX and

100BASE-FX standards.

• 100Mbps data transfer rate.

• Supports transmission distances of up to 2 km

(full-duplex).

• One fiber optic SC connector and one RJ-45 connector.

(Refer to Appendix C: RJ-45 Pin Specifications.)

• LED indicators allow for visual verification of power,

linkage and data received.

• Operating temperature: 0 to 55 degrees Celsius.

• Storage Temperature: -25 to 55 degrees Celsius.

• Humidity: 5%- 90% (non-condensing)

• EMI Certification: CE, FCC A, VCCI A and C-Tick.















The DFE-855 converter features the following LED

indicators:

1. TX Link/Rx Indicator (green)

Steady green indicates that a valid link exists.

Flashing green indicates that the converter is

receiving data from the RJ-45 connector.

2. PWR Indicator(green)

Lights when power is on.

3. FX Link/Rx Indicator (green)

Steady green indicates that a valid link exists.

Flashing green indicates that the converter is

receiving data from the Fiber Optic connector.



Open the shipping carton and carefully remove all items. In

addition to this User's Guide, ascertain that you have:

• One DFE-855 Converter

• One DC power adapter (The specifications for this

adapter appear in Appendix A)

• AC Power Cord

In the event that you find any mismatched, damaged or

missing item, promptly contact your dealer for replacement











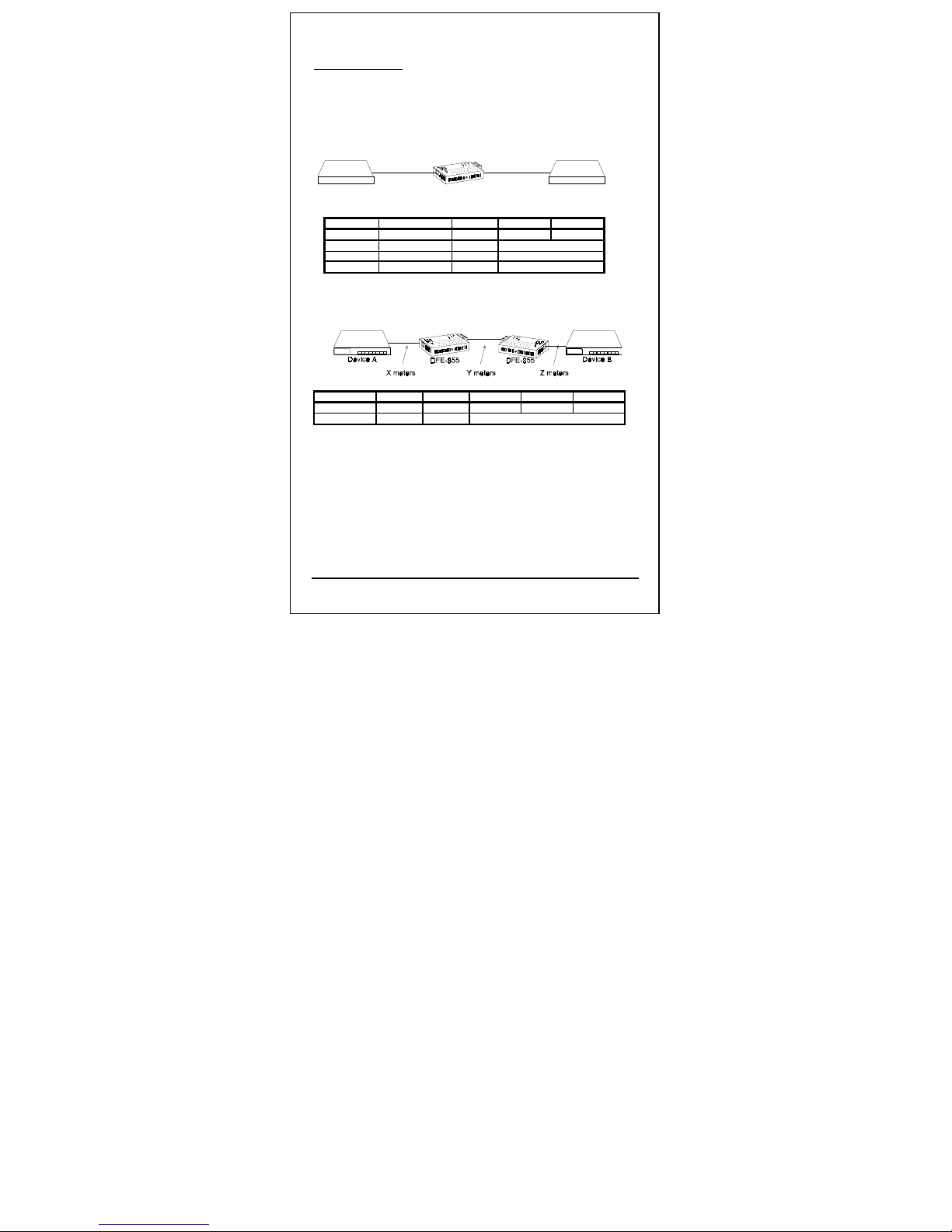

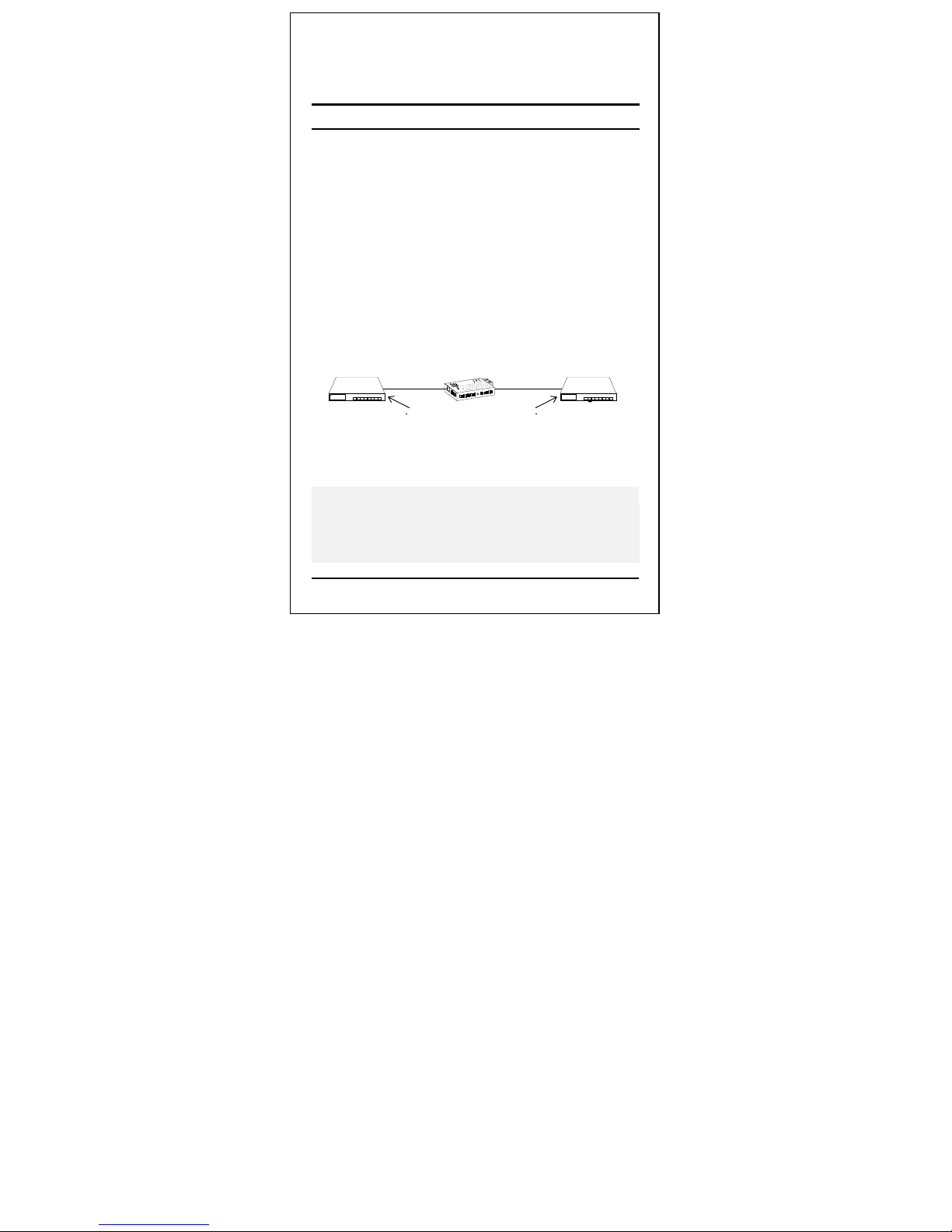

The figure below shows the basic connection scheme for the

DFE-855.

A network device (a server, workstation, router, switch)

with a 100BASE-TX port is connected to the DFE-855's

RJ-45 jack through a twisted-pair cable; a device with a

100BASE-FX port is connected to the DFE-855's SC jack

through a fiber-optic cable; and the supplied AC power

adapter is connected to the DFE-855's DC power jack. The

figure shows the maximum possible distance between the

two devices: 2,100 meters. Note that the network ports on

both devices must be explicitly set to full-duplex mode to

allow the use of a cable of up to 2,000 meters long on the

100BASE-FX side.

























's !

"  !! ! "!#

$$  ! "%

& ! " $"!'(





%"! $)*! 

 %





Appendices:

Appendix A





  





  

  !









Appendix B













 

 











 



  

   

  ≤

≤≤

≤





  





  ≤

≤≤

≤















    

    

  ≤

≤≤

≤



≤

≤≤

≤





 !"#$%$&'%%(

)'$*++&',&''$-&

'$($$,'$-&'$$.//$,%

$'--('$,-$$'$

.//0'-%&$-$'''*++$.//$

,(







Appendix C

RJ-45 Pin Specifications.

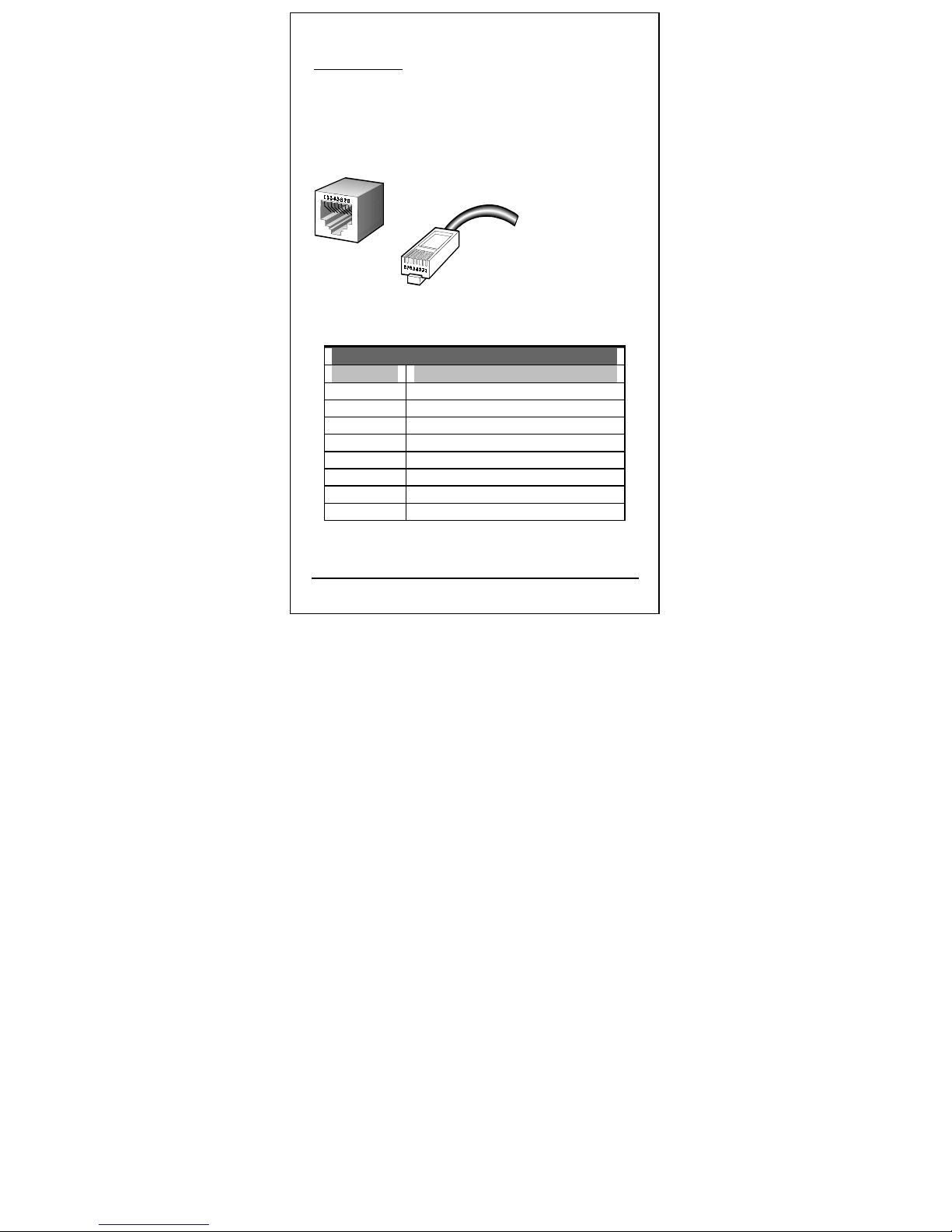

The following diagram and table show the

standard RJ-45 connector and their pin

assignments.

The standard RJ-45 connector



 

 "#$%!&'

 "#%!&'

( )#$%'

 *

 *

 )#%'

+ *

, *









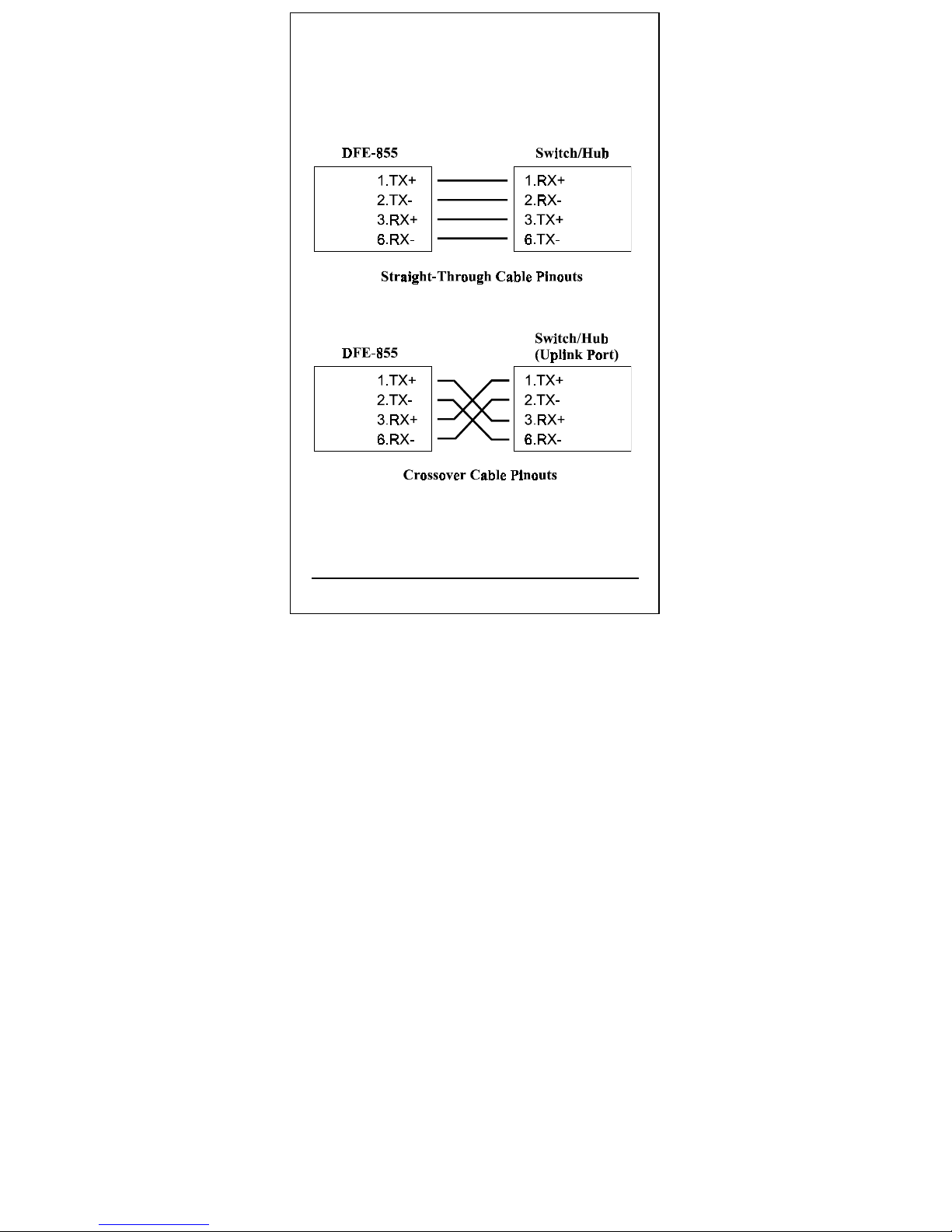

Pinout descriptions for straight-through and

crossover cables are shown in the following

figures.




