D-Link 100Base-FX Manuale utente

100Base-FX to 100Base-FX Converter

Quick Installation Guide

First Edition (Jan. 2002)

6012-9600132 (1907M120SC16000)

Printed In Taiwan

RECYCLABLE

2

Introduction

This Quick Installation Guide gives step-by-step

instructions for setting up the D-Link Media

Converter. The model you have purchased may

appear slightly different from those shown in the

illustrations. For more detailed information about

the switch, its components, making network

connections and technical specifications, please

refer to the User’s Guide included with your switch.

Connecting to Power

1. This Converter is a plug-and-play device.

2. Connect the supplied AC to DC power adaptor with

a power voltage of 7.5Vdc/1.5Amp to the DC-Jack

on the converter, and then attach the plug into a

standard AC outlet.

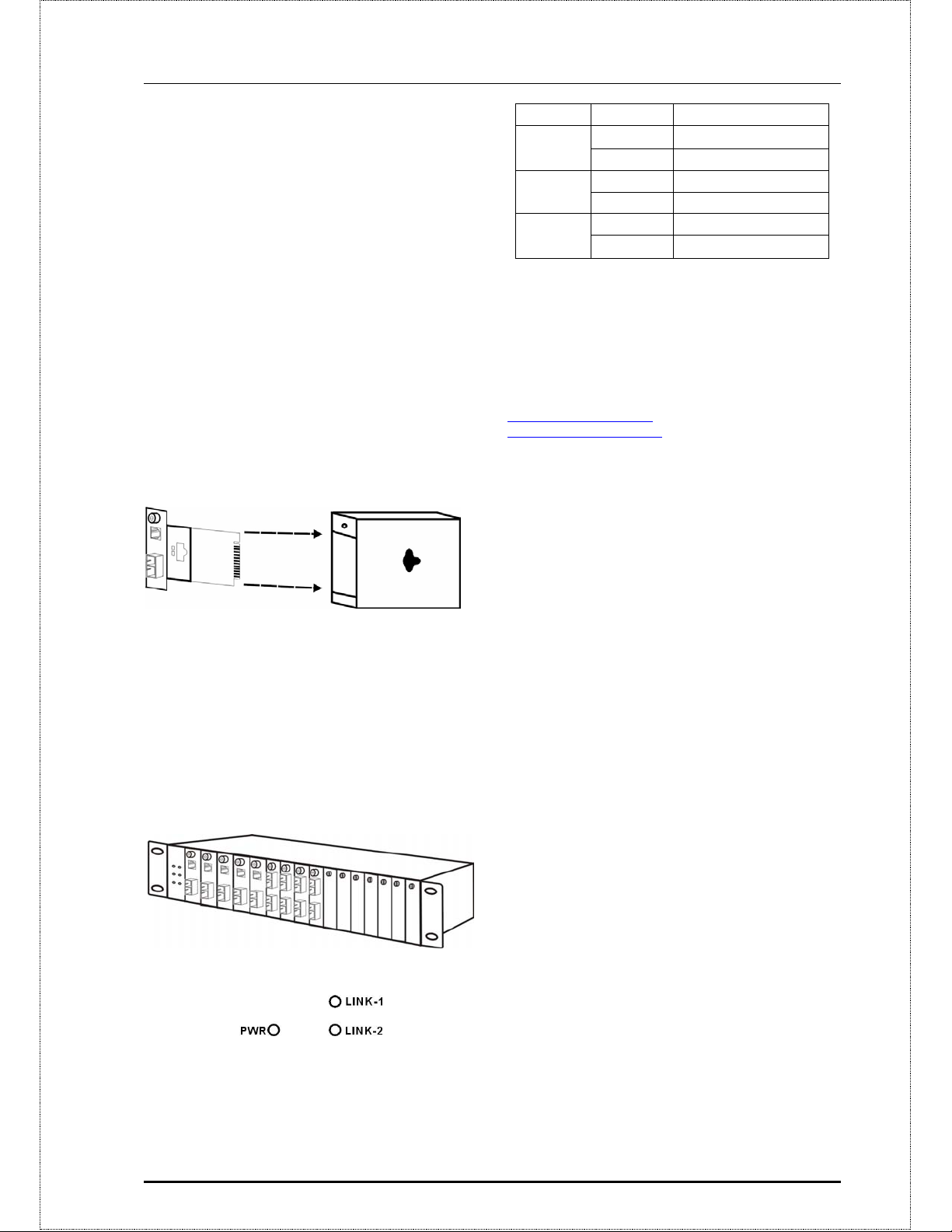

Installing in a Chassis

The Converter can be fit into any of the expansion slots

on a special designed chassis.

yFirst, install the converter onto a carrier supplied with

the chassis:

Step 1- Unscrew and pull out the media converter

board.

Step 2- Plug in the media board to any of the vacant

slot.

Step 3- Fit the converter onto the carrier and use the

screw to secure it.

LED Indicator

Additional Information

If you are encountering problems setting up your

network, please refer to the User’s Guide that

came with the switch. It contains many more rules,

charts, explanations and examples to help you get

your network up and running.

Additional help is available online at

http://www.dlink.com in the United States, at

http://www.dlink.co.uk in the United Kingdom, or

through our offices listed at the back of the User’s

Guide.

LEDs State Indication

Steady Power onPower

(PWR) Lights off Power off

Lights on Linking on port FX-1

LINK-1 Lights off Not Linking

Lights on Linking on port FX-2

LINK-2 Lights off Not Linking

Unscrew and

p

ull out the
