D-Link DSL-2320B - 24 Mbps DSL Modem Manuale utente

2D-Link DSL-2320B Quick Install Guide

• ADSL2/2+ Ethernet/USB Modem

• 12VDC, 1A DC CEC-compliant switching power adapter

• RJ-11 telephone cable

• RJ-45 Ethernet cable

• USB Cable

• Quick Install Guide

• CD-ROM (User Manual + Drivers)

General Information

The D-Link DSL-2320B is an ADSL2+ modem offering the

convenience of both Ethernet and USB connections.This Quick Install

Guide provides you with a simple and easy-to-understand format to

install and conﬁgure your modem.

Package Contents

Note: Using a power supply with a different voltage rating than the

one included with the DSL-2320B will cause damage and void the

warranty for this product.

If any of the above items are missing, please contact your reseller.

3 D-Link DSL-2320B Quick Install Guide

Important Safety Instructions

• Place your modem on a ﬂat surface close to the cables in a location

with sufﬁcient ventilation.

• To prevent overheating, do not obstruct the ventilation openings of

this equipment.

• Plug this equipment into a surge protector to reduce the risk of

damage from power surges and lightning strikes.

• Operate this equipment only from an electrical outlet with the correct

power source as indicated on the adapter.

• Do not open the cover of this equipment. Opening the cover will void

any warranties on the equipment.

• Unplug equipment ﬁrst before cleaning. A damp cloth can be used

to clean the equipment. Do not use liquid/aerosol cleaners or

magnetic/static cleaning devices.

4D-Link DSL-2320B Quick Install Guide

Front Panel View

Status LED

A blinking light indicates

trafﬁc is passing through.

Power LED

A solid green light

indicates the unit

is powered up.

DSL LED

A Solid light indicates the DSL

is synchronized. A ﬂashing LED

indicates the modem is attempting to

synchronize with the DSL provider.

Internet LED

A solid green light indicates

that the modem has an IP

address and is connected to

the internet.

USB LED

A Solid light indicates a connection is

established using USB. A ﬂashing LED

indicates trafﬁc is being sent and received

using USB.

Local Network LED

A solid light indicates a connection

to an Ethernet-enabled computer.

This LED blinks during data

transmission.

5 D-Link DSL-2320B Quick Install Guide

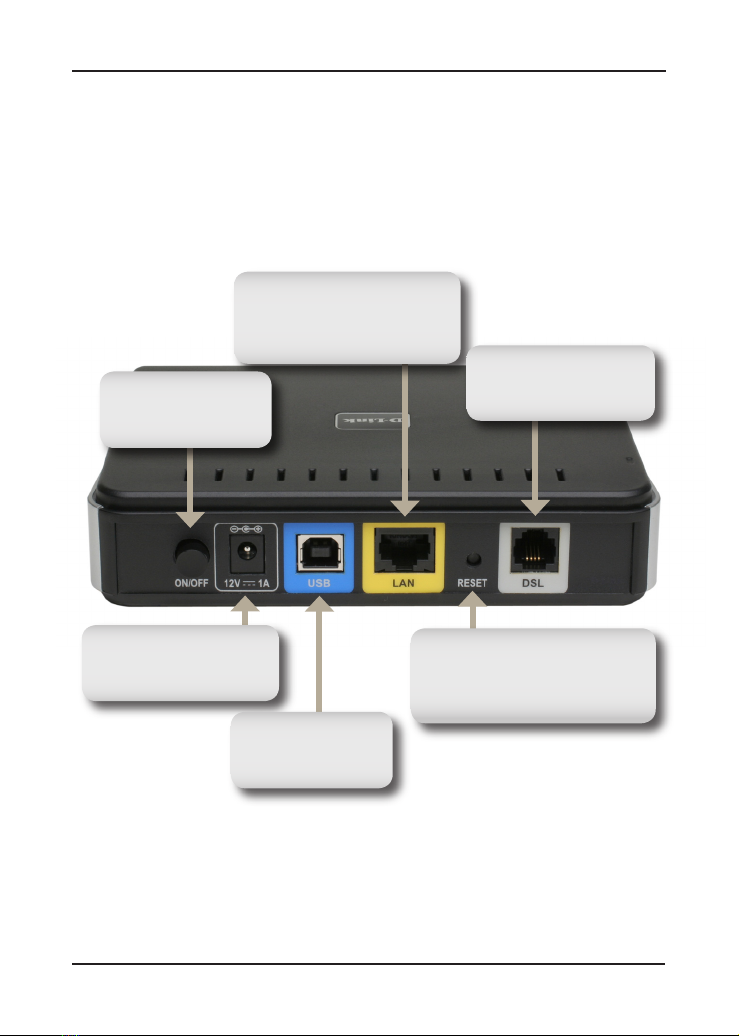

Rear Panel View

LAN Port

Connect Ethernet devices

such as computers, switches,

and hubs.

ON/OFF

Press this button to

turn the unit on or off.

Power Receptor

Receptor for the supplied

power adapter.

DSL Line

Connect to an active

telephone line (RJ-11).

USB Port

Connect a computer

using a USB cable.

Reset

Pressing the Reset button

restores the modem to its original

factory default settings.

6D-Link DSL-2320B Quick Install Guide

Installing the Modem

Connect the ADSL and Telephone Lines

• Connect an RJ-11 cable between the wall phone jack and the line-

end of the splitter (see diagram below).

• Attach another RJ-11 phone cable to the modem-end of the splitter

and the ADSL port on the rear panel of the modem.

• The phone-end of the splitter will be connected to the telephone

using a third RJ-11 phone cable.

Note: See connections on the installation diagram.

Connect the PC to the Modem

• To use the Ethernet connection, connect the Ethernet cable from the

computer directly to the modem. Connect one end of the Ethernet

cable to the port labeled LAN on the back of the modem and attach

the other end to the Ethernet port of your computer.

• Or, you can use the supplied USB cable to connect your computer

directly to the modem. Connect one end of the USB cable to the

USB port on the back of the modem and connect the other end to

a free USB port on your PC. The Found New Hardware Wizard will

open on your PC. See Installation Diagram on page 7.

• If your LAN has more than one computer, you can attach one end of

an Ethernet cable to a hub or a switch and the other to the Ethernet

port (labeled LAN) on the modem. Note that either a crossover

or straight-through Ethernet cable can be used. The modem

automatically recognizes the type of connection that is required.

7 D-Link DSL-2320B Quick Install Guide

Connect the Power Adapter

• Complete the process by connecting the supplied 12VAC, 1A power

adapter to the POWER connector on the back of the device and

plug the adapter into a wall outlet or power strip. Then turn on and

boot up your PC and any LAN devices, such as hubs or switches,

and any computers connected to them.

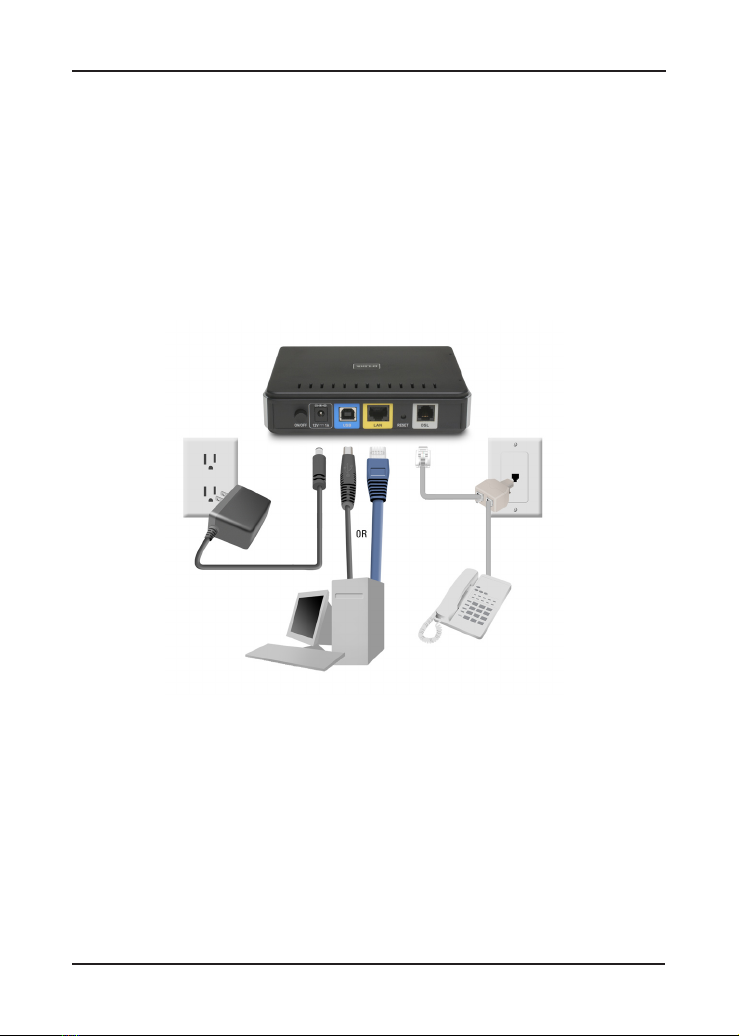

Installation Diagram

USB Driver Installation

To connect your computer to the modem by the USB cable instead of

the Ethernet cable, you will need to install the modem’s USB driver. If

you are completing the setup using the ethernet port on the modem,

skip this section and proceed to “Conﬁguring your Computer” in the

manual.

8D-Link DSL-2320B Quick Install Guide

The following are general steps (may vary for each computer) to

complete the USB driver installation on a Windows®2000.

The following pop-up window appears when you connect the USB

cable to your computer (with the other end already attached to the

modem).

The Found New Hardware

Wizard will appear on your

screen.

The next screen allows you

to select how you want the

wizard to search for the driver

on your computer. The default

selection is set to search for a

suitable driver for my device

(recommended).

Click Next

9 D-Link DSL-2320B Quick Install Guide

Next, you can specify the

search locations. Make sure

CD-ROM drives and Specify

a Location are selected and

click Next.

Click Next

At this point, you can insert the CD-ROM into your computer’s CD-ROM

drive and click on the Browse button to specify the CD-ROM drive

of your computer.

The driver is located in the folder named D-Link_WHQL_USB_

Driver. The ﬁle name is usbdslur.inf. Click Open to proceed with the

installation.

10D-Link DSL-2320B Quick Install Guide

After the ﬁle has been selected, the following screen will appear,

verifying the location where the ﬁle will be extracted from. Click on

OK to continue.

This next screen shows the

device and the driver to be

installed. Click Next to proceed

with the installation.

The last screen conﬁrms that

the installation is complete.

Click on Finish to close the

wizard.

Click OK

Click Next

Note: For procedures on conﬁguring your computer, please see

“Conﬁguring Your Computer” in the manual.
