D-Link COVR-X1862 Istruzioni per l'installazione

10/28/21, 1:50 PM

D-Link Technical Support

https://support.dlink.ca/ProductInfo.aspx?m=COVR-X1862

1/13

A: NOTE: This example shows the setup of the COVR-X1862 using Android OS. Apple/iOS setup should be the

same/similar

NOTE: Remote COVR nodes are pre-synced out of the box.

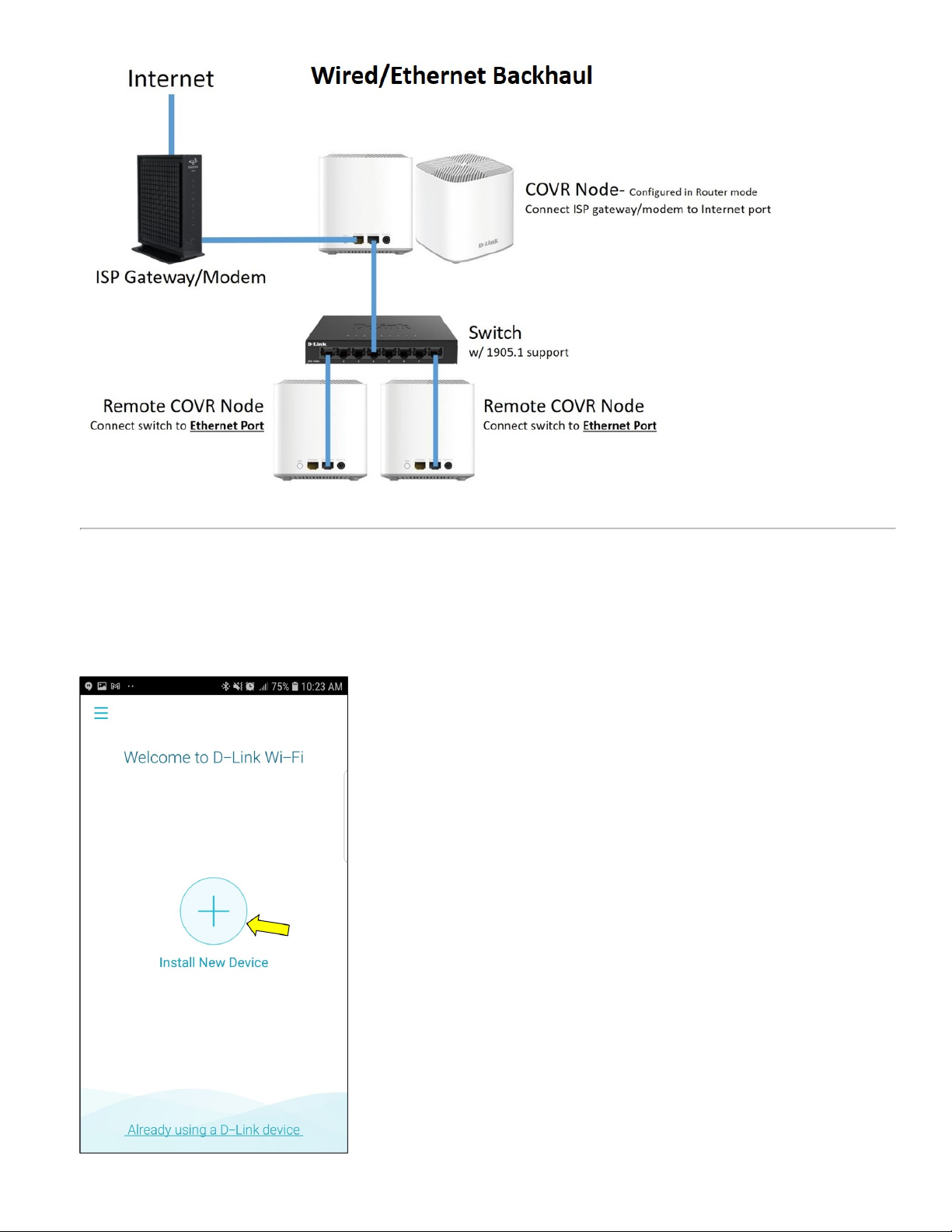

NOTE: If you will be using a switch in between for Wired/Ethernet Backhaul for the COVR points you will need to

make sure your switch support IEEE 1905.1 protocol. Also when connecting the remote COVR nodes to the switch

you will need to use the Ethernet port on the back of the nodes.

How do I setup and install my COVR-X1862/X1863 router?

10/28/21, 1:50 PM

D-Link Technical Support

https://support.dlink.ca/ProductInfo.aspx?m=COVR-X1862

2/13

Step 1: Download and install the D-Link Wi-Fi app on your Android OS/Apple iOS device.

Step 2: Launch the D-Link Wi-Fi app, and tap Install New Device

10/28/21, 1:50 PM

D-Link Technical Support

https://support.dlink.ca/ProductInfo.aspx?m=COVR-X1862

3/13

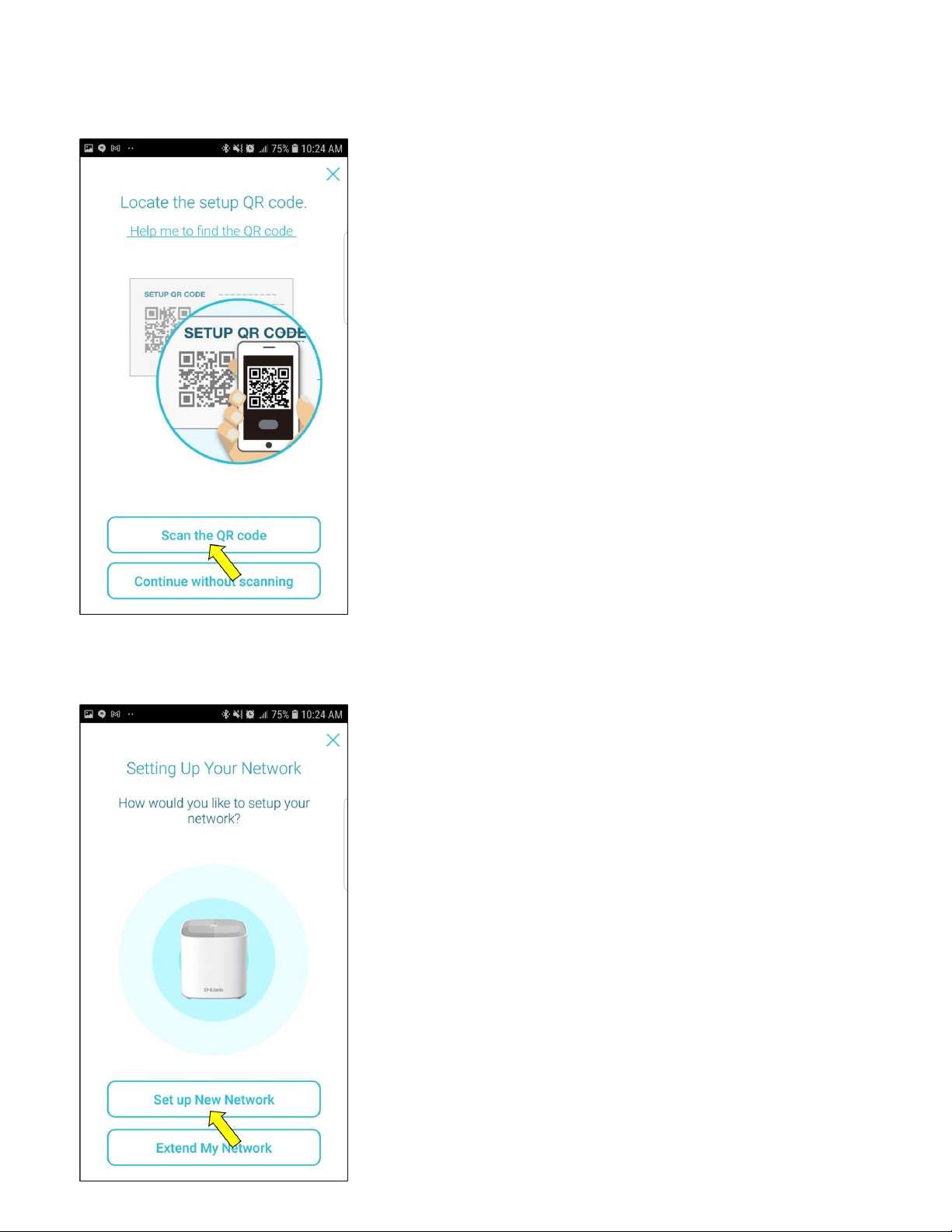

Step 3: Tap Scan the QR code, then scan the QR code

NOTE: The QR code can be located on the bottom of the router or on the quick install card

Step 4: Tap Setup New Network

10/28/21, 1:50 PM

D-Link Technical Support

https://support.dlink.ca/ProductInfo.aspx?m=COVR-X1862

4/13

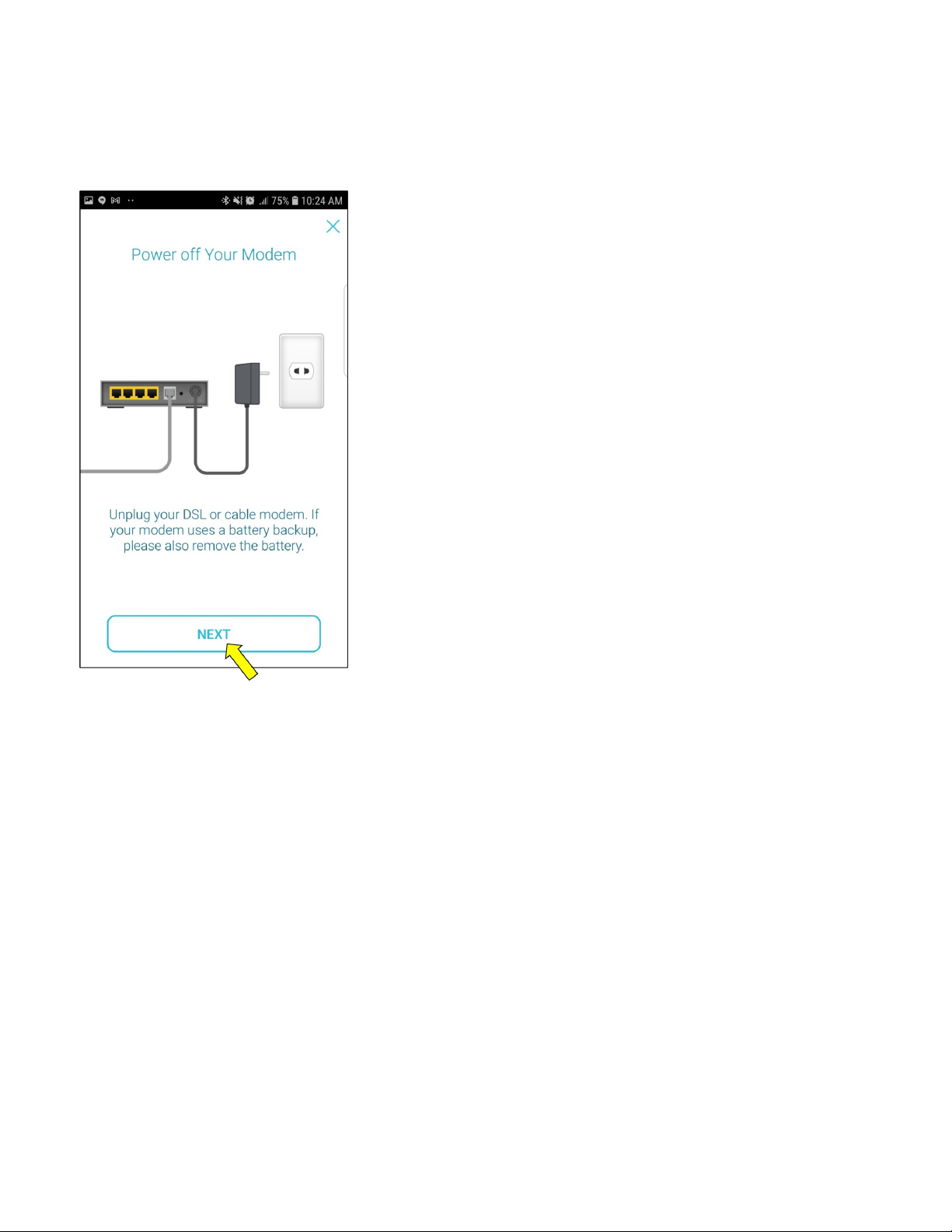

Step 5: Unplug the power to your modem or gateway, then tap NEXT

NOTE: Make sure all lights are off on the modem, if not then you may need to remove the battery from the

modem.

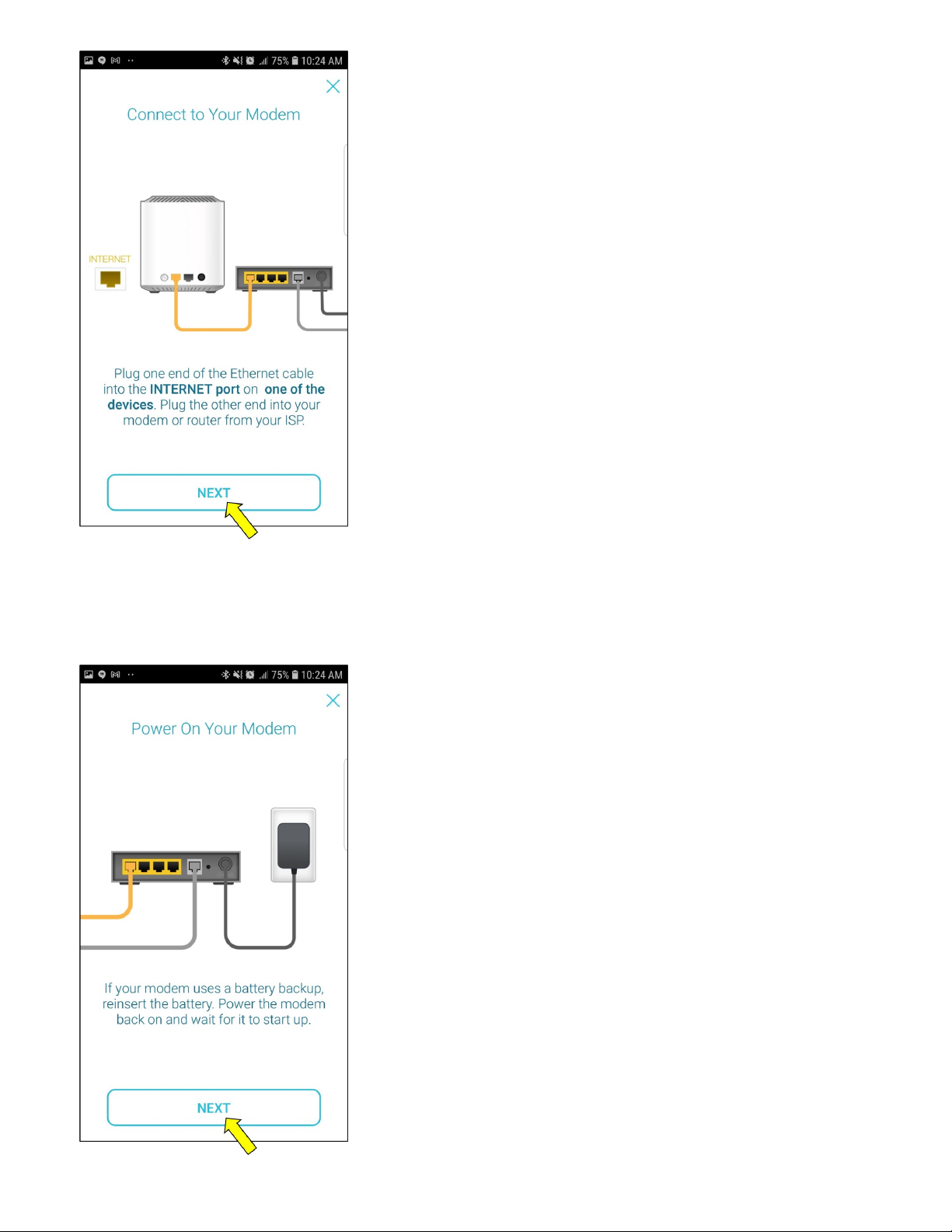

Step 6: Connect the Ethernet cable from your modem/gateway into the Internet port on the COVR

Tap NEXT

10/28/21, 1:50 PM

D-Link Technical Support

https://support.dlink.ca/ProductInfo.aspx?m=COVR-X1862

5/13

Step 7: Power the modem/gateway back on and wait for it to start up, then tap NEXT

NOTE: If you removed the battery from your modem, re-insert it before powering the modem back on

10/28/21, 1:50 PM

D-Link Technical Support

https://support.dlink.ca/ProductInfo.aspx?m=COVR-X1862

6/13

Step 8: Power the unit on, then tap NEXT

NOTE: The LED will be red at first, and then will start flashing orange when the unit is ready for setup

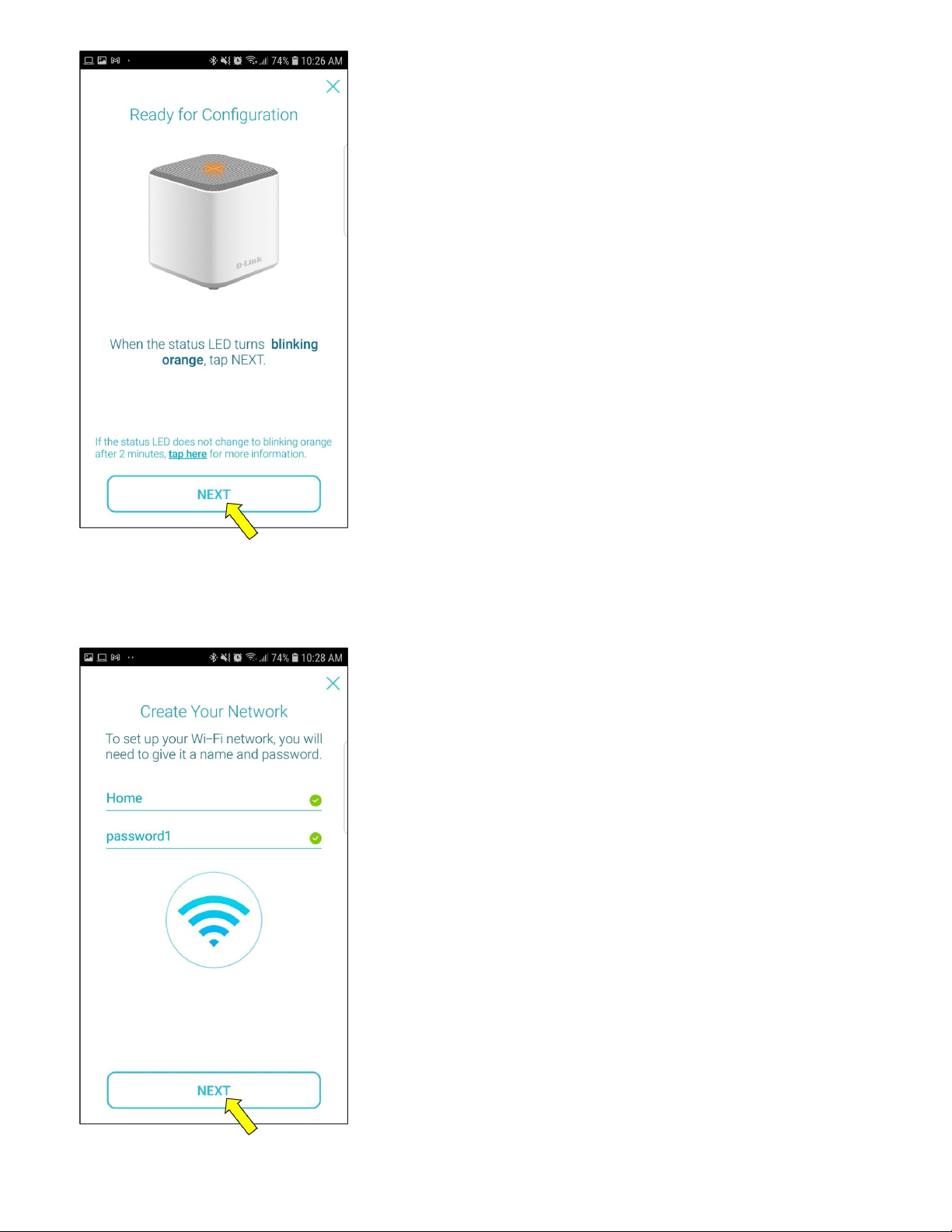

Step 9: When the device LED starts blinking orange, then tap NEXT

10/28/21, 1:50 PM

D-Link Technical Support

https://support.dlink.ca/ProductInfo.aspx?m=COVR-X1862

7/13

Step 10: Here you can specify what wireless network name your COVR-X1862/X1863 will broadcast. Enter a new

network name, then enter a new wireless password, then tap NEXT

Step 11: Create a device admin password, then tap NEXT

10/28/21, 1:50 PM

D-Link Technical Support

https://support.dlink.ca/ProductInfo.aspx?m=COVR-X1862

8/13

Step C eate a de ce ad pass o d, t e tap

Step 12: Select the option to keep your device up to date, then tap NEXT

10/28/21, 1:50 PM

D-Link Technical Support

https://support.dlink.ca/ProductInfo.aspx?m=COVR-X1862

9/13

Step 13: Tap SAVE, the router will now save your changes

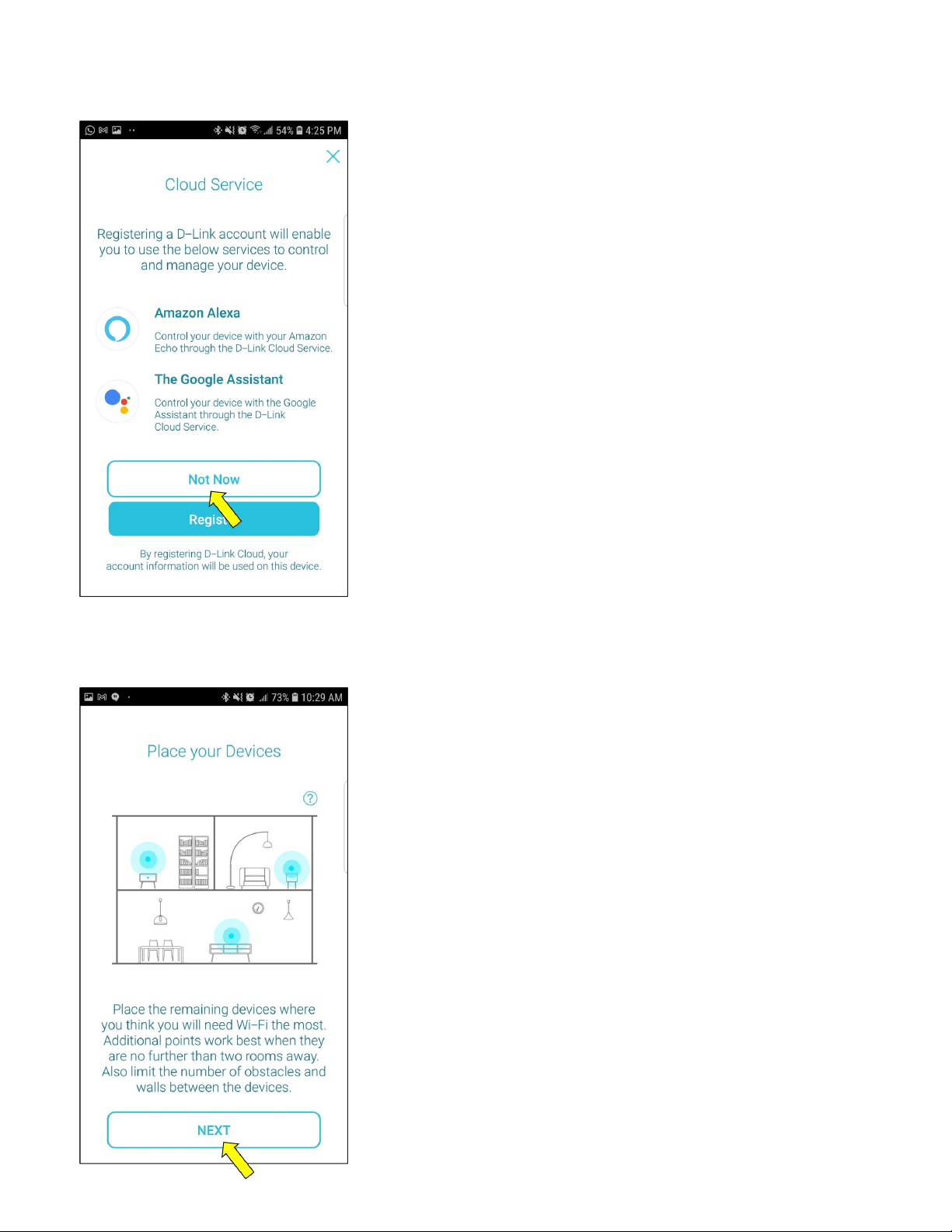

Step: 14: If you would like to link the COVR to Google Assistant, Amazon Alexa, then tap Register (Optional) or

tap Not Now

10/28/21, 1:50 PM

D-Link Technical Support

https://support.dlink.ca/ProductInfo.aspx?m=COVR-X1862

10/13

NOTE: In this example we selected Not Now

Step 15: Place the other COVR Point(s) in range of the unit that we setup then tap NEXT
