The Telkom Easy Guide to set up your

D-Link DSL 2750U Router.

First, unpack

your new router.

Your D-Link DSL Router

The quick reference guide

2 external antennae

1 power supply cord

1 LAN cable

2 telephone cables

2 3

4 5 6

Let’s get

started.

Connect the 12vDC

power supply into

your router and into

a power socket.

Plug one end of the grey

cable into the power

supply port marked IN

and the other end into the

telephone jack on the wall.

Plug the red cable from

power supply marked

OUT into the red socket

on the back of router

marked DSL.

Plug the yellow LAN cable into

the yellow port on the router

and the other end into the LAN

port on your computer.

Open your internet browser and

go to http://10.0.0.2 and click

Enter. Type in admin for both

the username and password. Click

From the D-Link page that loads,

click Status to see whether the

router is conﬁgured.

If your router is not online and not conﬁgured

click Setup > Setup Wizard

1 2 3

Setting up

the Router.

Almost

there...

Change the password to your preferred

password. Click Next on the Time and Date

page. There is no need to change these.

Select South Africa from the country

dropdown and Telkom as your Internet

Services Provider. Enter the username and

password that were SMS’d to you and click

Next.

4 5

Enter your preferred name for your

Wi-Fi network, and your password. Check

the Summary page and click Apply.

Last few

steps.

If you were accessing the router via Wi-Fi up to this

point, you will need to reconnect to the router using

the new Wi-Fi name and password. It is important

to log out properly by clicking Logout.

Activate your internet account by typing

www.telkom.co.za/verifyadsl to the address ﬁeld of your

internet browser. Press Enter. Complete the ﬁelds with your

telephone number and order number and click on Submit.

7 8

No connection?

Don’t panic...

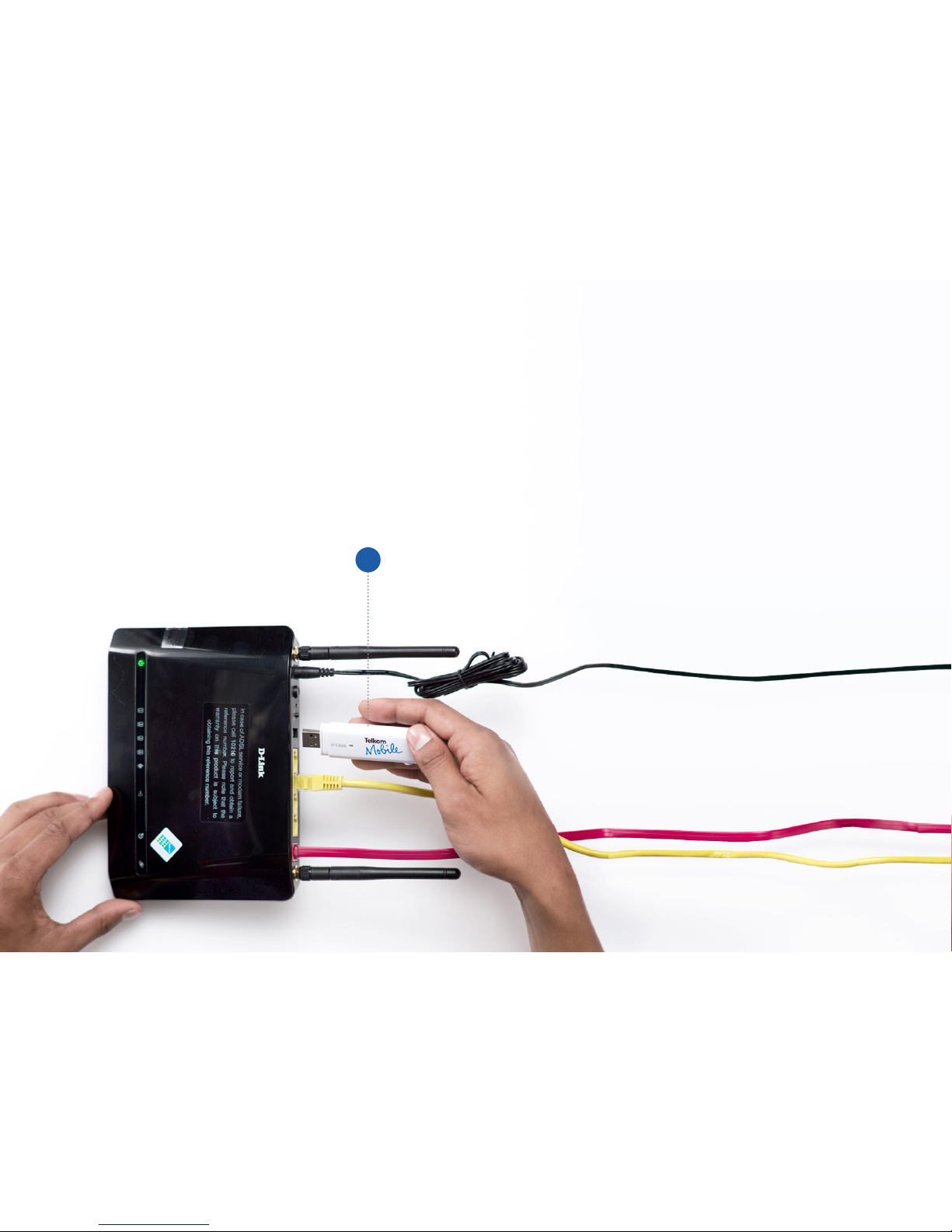

Plug your dongle into the

back of your router.

Open your web browser and go to http://10.0.0.2.

Type in admin as your username and your new

password, if you changed it. Otherwise use the

default admin password. Click 3G Internet Setup.

Click Add. Click Auto Settings.

1 2 3

Setting up

the Dongle.

Click Apply/Save. Click 3G Internet Setup from

the left navigation menu to

refresh the page, and if your SIM

card requires a pin, click the Pin

Manage button.

Enter the SIM’s Pin and click Submit.

4 5 6

Last few

steps.

Done.

You’re connected.

If you still need help

call us on 10210.
