D-Link DCS-4602EV Quick Installation Guide

ENGLISH

Quick Installation Guide

This installation guide provides basic instructions for installing the Network Camera on

your network. For additional information about how to use the camera, please see the

User’s Manual which is available on the CD included in this package or from the D-Link

support website.

Package Contents

DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera

Cable Waterproong Connector

Rubber Power Connector Plug

Mounting Kit

Manual and Software on CD-ROM

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certied technicians so as to conform to all

local codes and prevent voiding your warranty.

D-Link DCS-4602EV Quick Installation Guide 3

ENGLISH

Hardware Overview

IR LEDs

Provide illumination for

low-light environments

Camera Lens

Reset Button

Resets camera to

factory default settings

Grounding Screw

Can be attached to a

grounding wire if desired

Ethernet Jack

RJ-45 connector for Ethernet, can also be used to power

the camera using Power over Ethernet (PoE)

Power Connector

Connects to an optional 12 V / 1.5 A

power adapter (not included)

Protective Cover

Cover Screws

The three screws can be

removed with the included

wrench

Tilt Adjustment Screw

Can be loosened to adjust

camera angle

Inner Cover

D-Link DCS-4602EV Quick Installation Guide

ENGLISH

Conguring the Camera

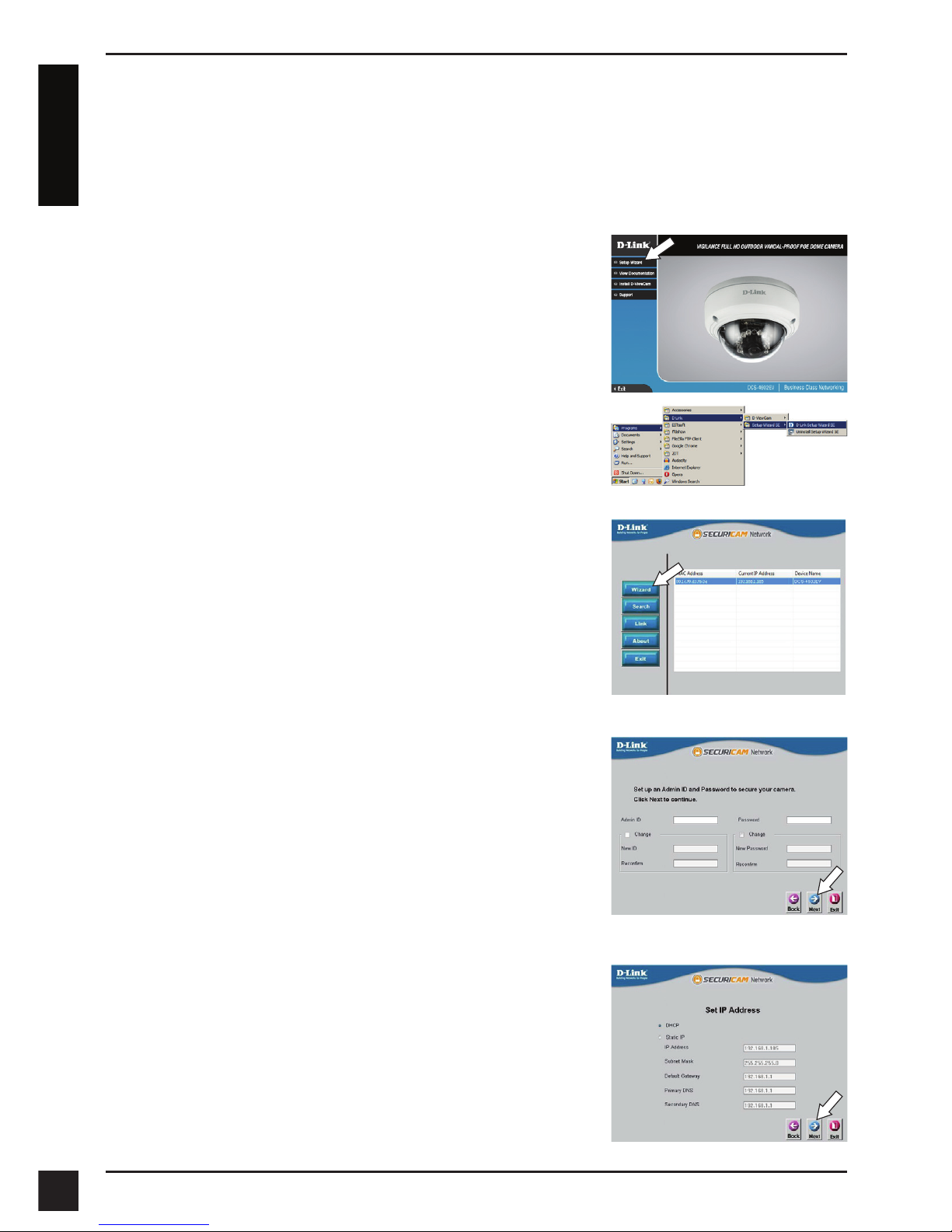

Insert the DCS-4602EV CD into your computer's CD-ROM drive to begin the installation.

If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to

start automatically, click the Start button and type D:\autorun.exe (where D: represents

the drive letter of your CD-ROM drive) and press Enter.

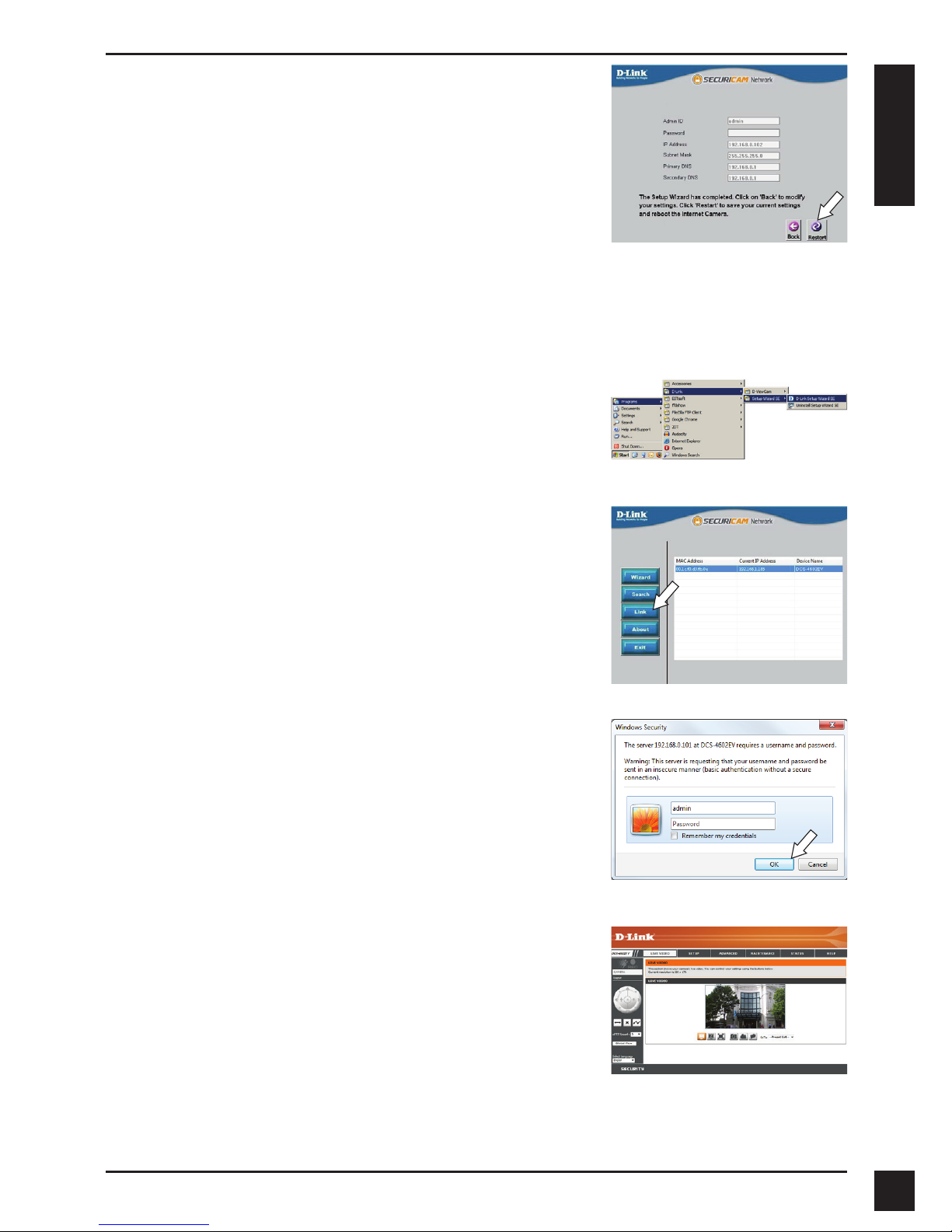

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu (Start > D-Link >

Setup Wizard SE).

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you have a

DHCP server on your network, a valid IP Address will be

displayed. If your network does not use a DHCP server,

the network camera's default static IP 192.168.0.20 will be

displayed.

Select your camera, then click the Wizard button to

continue.

Click Setup Wizard and follow the instructions to install

the Setup Wizard.

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click the checkboxes if you wish to change the admin ID

and password for the camera, and enter the new ID and

password you wish to use.

Click Next to continue.

Select DHCP if your camera obtains an IP address

automatically from a DHCP server such as a router.

Select Static IP if you want to manually enter the IP

settings for the camera.

Click Next to continue.

D-Link DCS-4602EV Quick Installation Guide 5

ENGLISH

Viewing Your Camera via Web Browser

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu (Start > D-Link >

Setup Wizard SE).

Select the camera and click Link to access the web

conguration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

This section displays your camera’s live video. You can

select your video prole and view or operate the camera.

For additional information about web conguration, please

refer to the user manual included on the CD-ROM or the

D-Link website.

Enter admin as the default username and leave the

password blank. Click OK to continue.

Take a moment to conrm your settings and click Restart.

D-Link DCS-4602EV Quick Installation Guide

ENGLISH

Mounting Instructions

It is highly recommended that you congure and test your camera before mounting it.

Place the mounting sticker where you want to position the

camera.

Use a 6 mm drill bit to make the required holes

approximately 25 mm deep, then insert the wall anchors

into the holes.

If you are running the camera cables through the wall,

drill a hole in the center and pull the cables through the

hole.

Use the included wrench to loosen the 3 screws on the

top of the camera, then lift the camera cover off.

Use the screws provided to mount the camera to the wall.

If you are running the camera cables out the side of

the camera, guide the camera cables through the cable

channel on the base.

D-Link DCS-4602EV Quick Installation Guide 7

ENGLISH

If you need to waterproof your installation, please continue to the next page.

Connect the power and Ethernet cables, or just the

Ethernet cable if you are using a PoE connection.

Reattach the camera cover.

If you are running the camera cables out the side of

the camera, guide the camera cables through the cable

channel on the base.

To adjust the camera's angle, pull the black inner cover

and remove it from the camera.

Loosen the adjustment screw on the side of the camera,

then retighten it after moving the camera to the desired

angle. You can also rotate the camera by grasping the

camera and turning it left or right.

When you are done adjusting the camera's angle, put the

inner cover back into place.

Note: The camera has a limited range of motion; if it stops

when you are adjusting it, do not attempt to rotate or tilt

the camera any further in that direction.

D-Link DCS-4602EV Quick Installation Guide

ENGLISH

To waterproof your camera installation, follow the instructions below. Round Ethernet

cable, a crimping tool, and RJ-45 plugs are required for this procedure.

Waterproong Your Installation

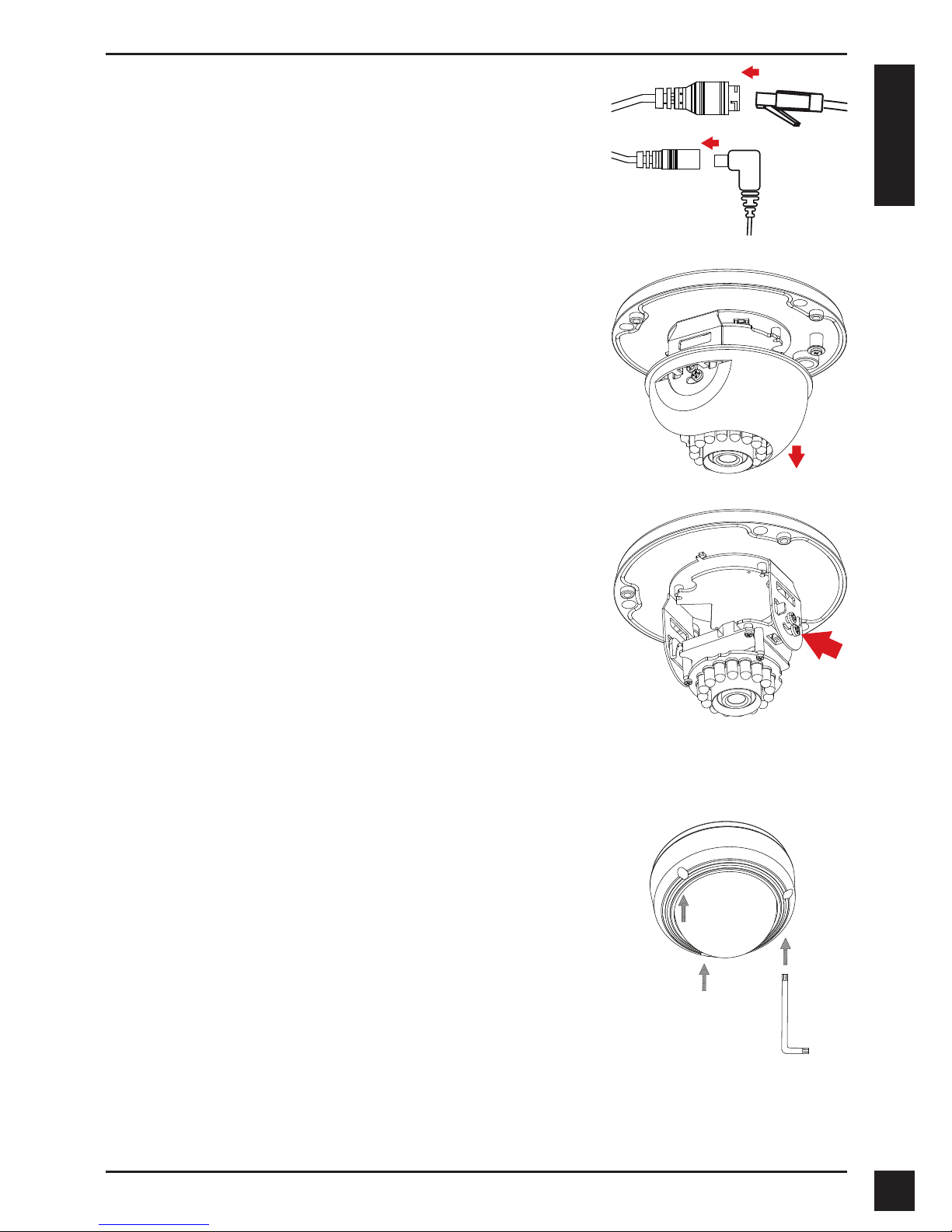

Place the washer around the base of the Ethernet

connector as shown.

Connect the RJ-45 plug into the Ethernet connector, then

screw the waterproof connector to the Ethernet connector

by turning it about a half-turn clockwise.

Thread bare Ethernet cable through the waterproof

connector as shown, then crimp an RJ-45 plug onto the

cable.

D-Link DCS-4602EV Quick Installation Guide 9

ENGLISH

If you are using PoE to power your camera, use the

included rubber power connector plug to the power

connector.

If you are using a power adapter(not included) to

power your camera, wind waterproof tape around the

connection in an overlapping manner to cover it.

Additional Information

Additional help and product information is available online at http://www.dlink.com.

Warranty Information

Please visit http://warranty.dlink.com/ for warranty information for your region.

Screw the back part of the waterproof connector clockwise

until there is a tight seal around the Ethernet cable.

Ver. 1.00(DI)_90x130

2015/04/28

RMN0101611
