D-Link AirPremier N DAP-2360 Manuale utente
This document will guide you through the basic installation
process for your new D-Link Wireless N Access Point.
DAP-2360
Documentation also available on
CD and via the D-Link Website
Quick Installation Guide
AirPremier N PoE Access Point
Quick Installation Guide
Руководство по быстрой установке
Guía de Instalación Rápida
Guia de Instalação Rápida
快速安裝指南
Petunjuk Pemasangan Cepat
クイックインストールガイド
D-Link DAP-2360 Quick Install Guide
2
ENGLISH
DAP-2360 Quick Install Guide
This installation guide provides basic instructions for installing the DAP-2360 Wireless
Access Point on your network. For additional information about how to use the Access
Point, please see the User’s Manual which is available on the CD included in this
package or from the D-Link support website.
System Requirements
Minimum System Requirements:
• CD-ROM Drive
• Computers with Windows®, Macintosh®, or Linux-based operating systems
• Installed Ethernet Adapter
• Internet Explorer version 7.0 or Firefox 3.0 and above
1. Package Contents
DAP-2360 802.11n Access Point
Manual and Software on CD-ROM
Power Adapter
Mounting Plate
Ethernet Cable
If any of the above items are missing, please contact your reseller.
Safety Notice:
Installation and servicing should be done by certied technicians so as to conform to all
local codes and prevent voiding your warranty.
D-Link DAP-2360 Quick Install Guide
3
ENGLISH
RESET
LAN(PoE)
5V 2.5A
2. Hardware Overview
3. Hardware Installation
LAN - Solid light when the Ethernet port is connected
to a working port, such as a router or switch. The light
will blink when there is traffic through LAN port.
2.4 GHz - When lit, the access point is operating at
2.4GHz. This light will blink when there is wireless
traffic.
POWER - The light will blink during boot up. Once solid, the access point is ready.
Antennas
Power Receptor
Reset
LAN Port (PoE)
D-Link DAP-2360 Quick Install Guide
4
ENGLISH

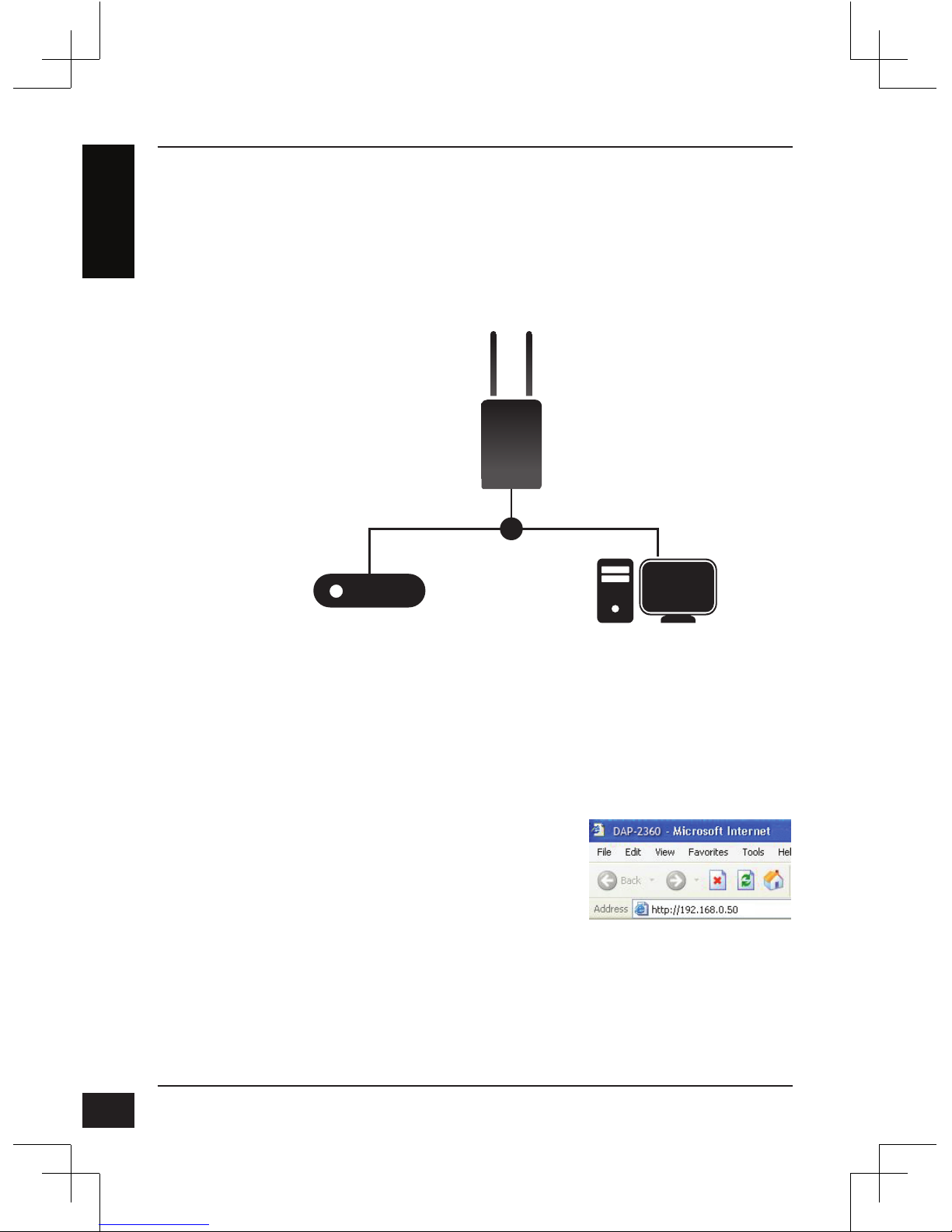

To power the access point, you can use one of the following methods:
1. Use the supplied power adapter
2. Connect one end of your Ethernet cable into the LAN (PoE) port on the DAP-2360
and the other end into one port on a PoE switch.
To setup and manage the DAP-2360 from a computer, use one of the following methods:
1. Connect a straight through Ethernet cable between the access point and your
computer.
2. Connect the access point to a switch or router and use a computer from a
computer that is also connected to that switch or router.
3. Please start your web browser program, type the
IP address of the device (http://192.168.0.50) and
press Enter. Make sure that the IP addresses of the
device and your computer are in the same subnet.
Then, refer to the Manual for conguration.
OR
Computer
PoE Switch
DAP-2360
D-Link DAP-2360 Quick Install Guide 5
ENGLISH
4. Mounting Plate Assembly
Step 1: Insert provided wall anchors in
the wall where the mounting plate will be
attached.
Step 2: Use the provided screws to secure
the mounting plate on the wall.
Step 3: Attach the remaining screws
securely to the back of the DAP-2360.
Step 4: Attach the DAP-2360 to the
mounting plate.
Step 5: Slide the DAP-2360 down into the
grooves on the mounting plate to secure it
to the plate.
D-Link DAP-2360 Quick Install Guide
6
ENGLISH
5. Your Setup is Complete
When you have completed the steps in this Installation Guide and congured your for
your network, your network should look similar to this:
* Maximum Wireless signal rate derived from IEEE 802.11n specications. Actual data throughput will vary.
Network conditions and environmental factors, including volume of network trafc, building materials and
construction, and network overhead lower actual data throughput rate.
T1
RADIU Server
Computer 3 with
Wireless N Adapter
Computer 1 with
Wireless N Adapter
Computer 2 with
Wireless N Adapter
Computer 5 with
Wireless N Adapter
Computer 6 with
Wireless N Adapter
Computer 7 with
Wireless N Adapter
Computer 8 with
Wireless N Adapter
Computer 9 with
Wireless N Adapter
Computer 10 with
Wireless N Adapter
Computer 4 with
Wireless N Adapter
PoE Switch
Business-class Router
Managed Switch
DAP-2360DAP-2360
D-Link DAP-2360 Quick Install Guide 7
ENGLISH
Computer 4 with
Wireless N Adapter
You can nd software updates and user documentation on the D-Link website.
Tech Support for customers in
Australia:
Tel: 1300-766-868
24/7 Technical Support
Web: http://www.dlink.com.au
E-mail: [email protected]
India:
Tel: 1800-233-0000 (MTNL & BSNL Toll Free)
+91-832-2885700 (GSM, CDMA & Others)
Web: www.dlink.co.in
E-Mail: [email protected]
Indonesia, Malaysia, Singapore and Thailand:
Tel: +62-21-5731610 (Indonesia)
Tel: 1800-882-880 (Malaysia)
Tel: +65 6501 4200 (Singapore)
Tel: +66-2-719-8978/9 (Thailand)
24/7, for English Support only
Web: http://www.dlink.com.sg/support/
E-mail: [email protected]
Korea:
Tel: +82-2-2028-1815
Monday to Friday 9:00am to 6:00pm
Web: http://www.d-link.co.kr
E-mail: [email protected]
New Zealand:
Tel: 0800-900-900
24/7 Technical Support
Web: http://www.dlink.co.nz
E-mail: [email protected]
Egypt:
Tel: +202-2919035
+202-2919047
Sunday to Thursday 9:00am to 5:00pm
Web: http://support.dlink-me.com
E-mail: [email protected]
Iran:
Tel: +98-21-88880918,19
Saturday to Thursday 9:00am to 5:00pm
Web: http://support.dlink-me.com
E-mail: [email protected]
Technical support
D-Link DAP-2360 Quick Install Guide
8
ENGLISH
Technical support
You can nd software updates and user documentation on the D-Link website.
Tech Support for customers in
Israel:
Magshimim 20, Petach Tikva 49348
Main Tel: 972-3-9215173
Customer Support Tel: 972-3-9212886
Web: www.dlink.co.il
Pakistan:
Tel: +92-21-4548158
+92-21-4548310
Monday to Friday 10:00am to 6:00pm
Web: http://support.dlink-me.com
E-mail: [email protected]
South Africa and Sub Sahara Region:
Tel: +27-12-665-2165
08600 DLINK (for South Africa only)
Monday to Friday 8:30am to 9:00pm South Africa Time
Web: http://www.d-link.co.za
E-mail: [email protected]
Turkey:
Tel: +90-212-2895659
Monday to Friday 9:00am to 6:00pm
Web: http://www.dlink.com.tr
E-mail: [email protected]
U.A.E and North Africa:
Tel: +971-4-4278127 (U.A.E)
Sunday to Thursday 9.00AM to 6.00PM GMT+4
Web: http://www.dlink-me.com
E-mail: [email protected]
Saudi ARABIA (KSA):
Tel: +966 01 217 0008
Fax: +966 01 217 0009
Saturday to Wednesday 9.30AM to 6.30PM
Thursdays 9.30AM to 2.00 PM
E-mail: [email protected]
D-Link DAP-2360 Quick Install Guide 9
PYCCКИЙ
Руководство по быстрой
установке DAP-2360
Руководство содержит инструкции по установке беспроводной точки доступа
DAP-2360 в сети. За дополнительной информацией об использовании точки
доступа, пожалуйста, обратитесь к руководству пользователя на CD-диске из
комплекта поставки или на web-сайт технической поддержки D-Link.
Системные требования
Минимальные системные требования:
• Привод CD-ROM
• Компьютер под управлением Windows®, Macintosh®, или Linux
• Установленный адаптер Ethernet
• Internet Explorer версии 7.0 или Firefox 3.0 и выше
1. Комплект поставки
Точка доступа DAP-2360 802.11n
Руководство пользователя и программное обеспечение на CD-диске
Адаптер питания
Крепежная пластина
Кабель Ethernet
Если что либо из перечисленного отсутствует, пожалуйста, обратитесь к
поставщику.
Примечание по безопасности:
Установка и обслуживание должны проводиться сертифицированным
специалистом в соответствии с правилами во избежание лишения гарантии.
D-Link DAP-2360 Quick Install Guide
10
PYCCКИЙ
RESET
LAN(PoE)
5V 2.5A
2. Обзор устройства
3. Установка устройства
LAN - индикатор горит постоянно, если порт
Ethernet подключен к работающему порту
маршрутизатора или коммутатора. Мигает при
передаче трафика через порт LAN.
2.4 GHz - индикатор горит при работе точки
доступа на частоте 2,4 ГГц, мигает – при передаче
беспроводного трафика.
POWER - индикатор мигает во время загрузки и горит постоянным светом, когда точка
доступа готова к работе.
Антенны
Разъем питания
Кнопка Reset
Порт LAN (PoE)
