D-Link D DWL-G700AP DWL-G700AP Manuale utente

This product can be set up usingThis product can be set up using

This product can be set up using

anan

any curry curr

y curry curr

y currenen

enen

ent web brt web br

t web brt web br

t web browserowser

owserowser

owser, i.e, i.e

, i.e, i.e

, i.e.,.,

.,.,

Internet Explorer 6 or NetscapeInternet Explorer 6 or Netscape

Internet Explorer 6 or Netscape

Navigator 6.2.3.Navigator 6.2.3.

Navigator 6.2.3.

DWL-G700APDWL-G700AP

DWL-G700AP

D-LinkD-Link

D-Link

AirAir

Air

PlusPlus

Plus™™

™™

™GG

WirWir

Wireless Aeless A

eless Aeless A

eless Access Pccess P

ccess Pccess P

ccess Poinoin

oinoin

ointt

5V 2A DC Power Adapter

BefBef

Beforor

oror

ore Ye Y

e Ye Y

e You Beginou Begin

ou Beginou Begin

ou Begin

ChCh

Check Yeck Y

eck Yeck Y

eck Your Pour P

our Pour P

our Packack

ackack

ackagag

agag

age Cone Con

e Cone Con

e Contenten

tenten

tentsts

tsts

DWL-G700AP WirelessAccess Point

CD-ROM (containing Manual and Warranty)

Ethernet (CAT5 UTP) Cable

If any of the above items are missing, please contact your reseller.

Using a power supply

with a different voltage

ratingwilldamageandvoidthe

warrantyof this product.

It’s best to use a computer (with an Ethernet adapter) that is connected to a switch for

configuringtheDWL-G700AP.ThedefaultIPaddressfortheDWL-G700APis192.168.0.50

with a Subnet Mask of 255.255.255.0. You will need to assign your computer a Static IP

address within the same range as the DWL-G700AP’s IP address for the purpose of

configuring the DWL-G700AP. See the Manual on the CD-ROM if you need assistance

in assigning a Static IP address for your network adapter.

Softwareandspecificationssubject to changewithoutnotice. DWL-G700AP.05072004

Connecting The DWL-G700AP WirelessConnecting The DWL-G700AP Wireless

Connecting The DWL-G700AP Wireless

Access Pccess P

ccess Pccess P

ccess Poinoin

oinoin

oint Tt T

t Tt T

t To Yo Y

o Yo Y

o Your Nour N

our Nour N

our Networketwork

etworketwork

etwork

A. Connect the power adapter to the receptor on the rear panel of the DWL-G700AP

andthen plug the other end of the power adapter to a wall outlet or power strip. The

PowerLED willturnON to indicateproper operation.

B. UsingaEthernetcable, insert oneendofthe cable to theLAN port ontherear panel

ofthe DWL-G700APandthe other endof the cableto aswitch. Note:Youalsohave

theoption of connectingthe DWL-G700AP directlyto the computerthat will beused

for configuration. The Link LED light will illuminate to indicate a proper Ethernet

connection.

C. Computers with 802.11g wireless adapters such as the DWL-G630 AirPlus™G

WirelessCardbusAdapterandtheDWL-G510AirPlus™G Wireless PCIAdapter can

connect to the DWL-G700AP. By default, the DWL-G700AP SSID is set to ‘default’

with a Channel setting of ‘6’.

C.Antenna

Usedto wirelesslyconnect

to802.11g networks.

B.LAN Port

This is the connection for

Ethernet cables to your

Ethernet-enableddevice.

A.Receptorfor

Power Adapter

Reset Button

Using The Setup WizardUsing The Setup Wizard

Using The Setup Wizard

Open your Web

browser and type

http://192.168.0.50

intothe URLaddress

box. Then press the

Enter or Return key.

The logon pop-up screen

willappear.

Type admin for the

usernameandleavethe

passwordfieldblank.

Click OK

Onceyou havelogged in,the

Home screen will appear.

Click Run Wizard

Click Next

Step 1 - Set up your new

password.Youhavetheoption

to establish a password.

Step 2 - Set Wireless LAN

Connection.

By default the DWL-G700AP

SSID is set to ‘default’ with a

Channel setting of ‘6’.

Click Next

Using The Setup Wizard (continued)Using The Setup Wizard (continued)

Using The Setup Wizard (continued)

You will see the

followingscreens.

Click Next

Step 3 - Encryption

TheDWL-G700AP is capableof

twolevelsof wireless encryption

64-bit and 128-bit. By default

encryptionis disabled.Youcan

change the encryption settings

for more secure wireless

communication.

Click Next

Click Restart

Using The Setup Wizard (continued)Using The Setup Wizard (continued)

Using The Setup Wizard (continued)

Click Close

You will be returned to the Home tab. Please close all internet browser windows.

Your Setup is Complete!our Setup is Complete!

our Setup is Complete!our Setup is Complete!

our Setup is Complete!

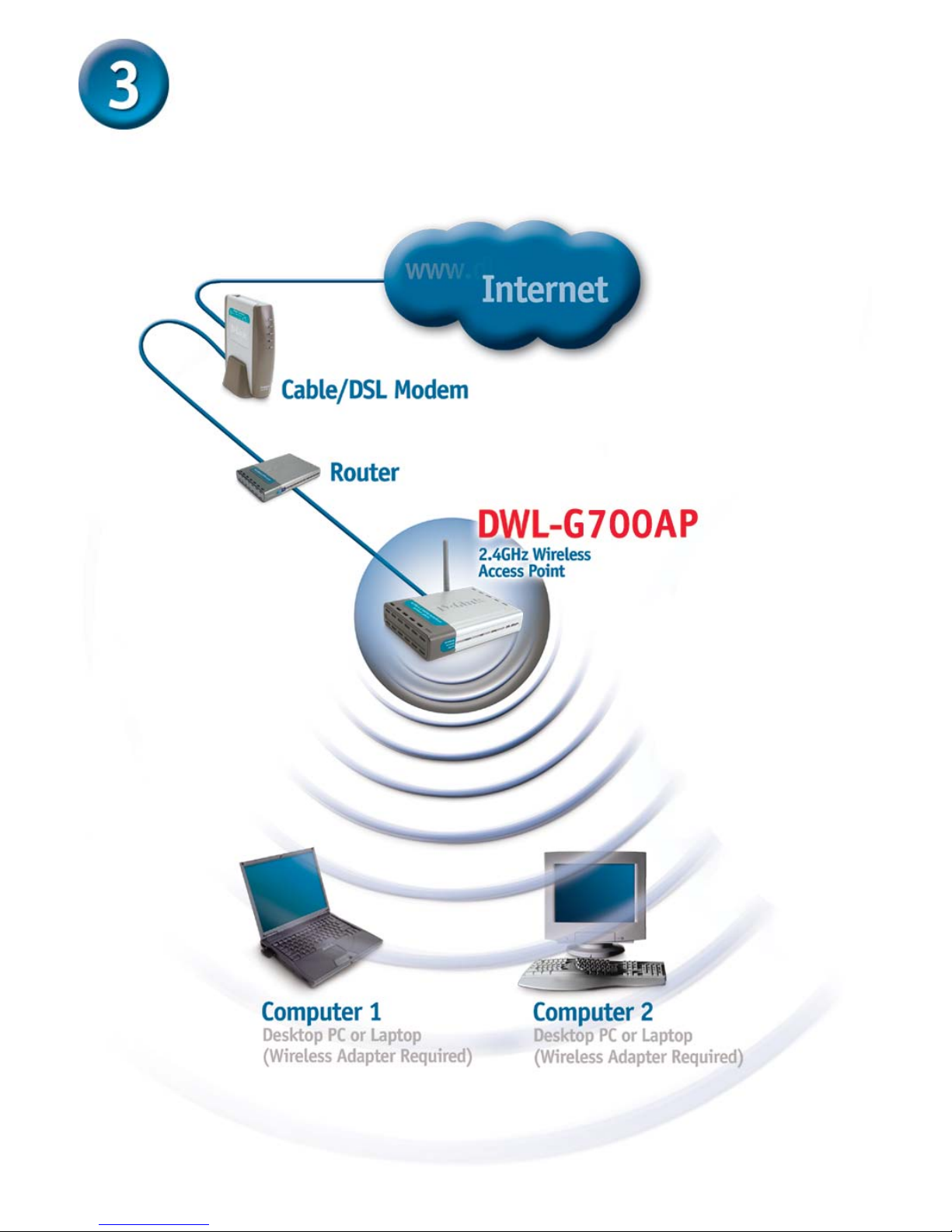

WhenyouhavecompletedthestepsinthisQuick Installation Guide,yourconnected

network should look similar to this:

Connecting to the DWL-G700APConnecting to the DWL-G700AP

Connecting to the DWL-G700AP

UsingtheAirPlus™GWireless

Utillity included with the

AirPlus™G adapters, you can

browse and connect to the

DWL-G700AP.

The Link Info page of the

AirPlus™G utility willshowthe

connectionstatusbetweenthe

DWL-G700APandAirPlus™G

wirelessadapter.

The MAC address of the

DWL-G700AP is listed on

the product sticker on the

bottom of the unit.

Techniechni

echniechni

echnical Supportcal Support

cal Supportcal Support

cal Support

You can find software updates and user documentation on the D-Link website.

D-Linkprovides freetechnical supportfor customers within the United States and

withinCanada forthe duration of the warrantyperiod onthis product.

U.S. and Canadian customers can contact D-Link technical support through our

website,or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877)453-5465

24 hours a day, seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com

email:[email protected]

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800)361-5265

Monday to Friday 8:30am to 9:00pm EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

email:[email protected]
