D-Link DAP-3320 Quick Install Guide 1

ENGLISH

IMPORTANT INFORMATION

This product should ONLY be installed by an experienced installer who is familiar with local

building and safety codes and, wherer applicable, is licensed by the appropriate authorities.

Failure to employ an experienced installer may render the D-Link product warranty void and

may also expose the end user or the service provider to legal and financial liabilities. D-Link

and its resellers or distributors expressly disclaim any and all liabilities for injury, damage, or

violation of regulations due to the improper installation of outdoor units or antennas.

A safety grounding system is necessary to protect your outdoor installation from lightning

strikes and the build-up of static electricity. Direct grounding of an outdoor AP is very important

and can protect your networks from brutal outdoor environments and devastating ESD attacks.

The grounding system must comply with the National Electrical Code and safety standards that

apply in your country and/or region. Always check with a qualified electrician if you are in doubt

as to whether your outdoor installation is properly grounded.

D-Link DAP-3320 Quick Install Guide

ENGLISH

Before You Begin

This chapter describes safety precautions

and product information you must know and

check before installing this product.

Professional Installation

Required

1. Please seek assistance from a

professional installer who is well trained

in RF installation and knowledgeable

about local regulations.

2. This product is distributed through

distributors and system installers with

professional technicians and is not to be

sold directly through retail stores.

Safety Precautions

To keep you safe and to install the

hardware properly, please read and follow

these safety precautions:

1. If you are installing an access point for

the rst time, for your safety as well as

others’, please seek assistance from a

professional installer who has received

safety training on the hazards involved.

2. Keep safety as well as performance in

mind when selecting your installation

site, especially when there are electric

power and phone lines.

3. When installing your access point, note

the following:

• Do not use a metal ladder.

• Do not work on a wet or windy day.

• Wear shoes with rubber soles and

heels, rubber gloves, and a long

sleeved shirt or jacket.

4. When the system is operational, avoid

standing directly in front of the antenna.

Strong RF elds are present when the

transmitter is on.

5. A safety grounding system is necessary

to protect your outdoor installation

from lightning strikes and the build-up

of static electricity. When mounting

the product on an antenna mast, you

must connect the product to the same

grounding system as the AC wall outlet.

The grounding system must comply with

the National Electrical Code and safety

standards that apply in your country.

6. Always check with a qualied electrician

if you are in doubt as to whether

your outdoor installation is properly

grounded.

D-Link DAP-3320 Quick Install Guide 3

ENGLISH

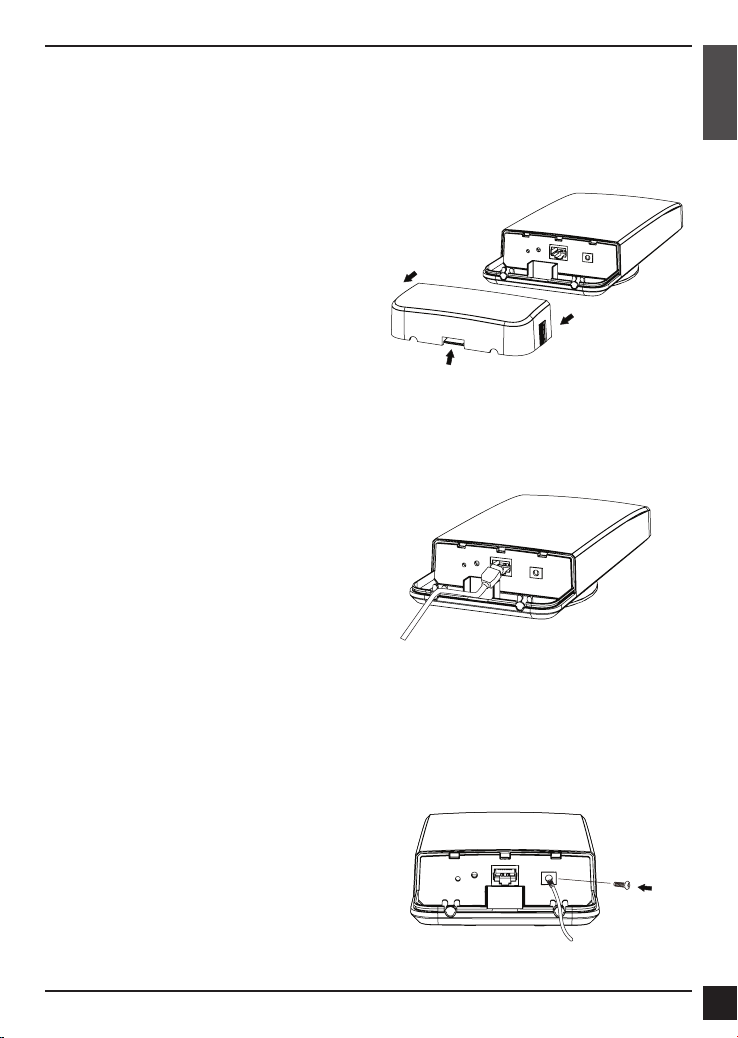

Physical Installation

Remove the bottom cover

Lift the release tab in the middle of the

cover, then pull the cover off.

Connect an Ethernet cable

Connect an Ethernet cable(not included) to

the Ethernet port.

Connect the grounding wire

Use the grounding screw to attach the

grounding wire.

Quick Installation Guide

This installation guide provides basic

instructions for installing the DAP-3320

Wireless PoE Outdoor Access Point on your

network. For additional information about

how to use the Access Point, please see

the datasheet and user manual available on

the D-Link support website.

Minimum System Requirements

- Computer with Windows, Mac OS, or

Linux-based operating system, and an

Ethernet adapter installed

- Internet Explorer 7, Mozilla Firefox 12.0,

Safari 4.0, or Chrome 20.0 or newer

Package Contents

- DAP-3320 Wireless PoE Outdoor Access Point

- PoE injector with 48 V/0.5 A power

adapter (included with some models)

- Wall mounting bracket with mounting kit

- Two plastic mounting ties

- Grounding wire

If any of the above items are missing,

please contact your reseller.

D-Link DAP-3320 Quick Install Guide

ENGLISH

Mounting the AP

The DAP-3320 supports the IP55 water/

dustproof standard. It is recommended that

you place the AP under a roof, shelter, or

weatherproof container in severe weather

environments.

Mounting the AP to a Pole

Thread the plastic mounting ties through the

back of the DAP-3320 and around the pole.

Reattach the bottom cover.

You may need to break off the plastic port

covers to allow your cables to exit the AP.

Mounting the AP to a Wall

Screw the wall mounting bracket into the

wall, then attach the DAP-3320 to it. For

extra security, you can thread the plastic

mounting ties through the back of the

DAP-3320 and the wall mounting bracket

as shown.

D-Link DAP-3320 Quick Install Guide 5

ENGLISH

Conguration

If you are configuring the DAP-3320 locally,

connect a PC to same network that the

DAP-3320 is connected to.

A. Assign a static IP address to your PC

that is in the same network segment as

the DAP-3320. As the default IP address

of this unit is 192.168.0.50, you may

choose any address from 192.168.0.1 to

192.168.0.254, except 192.168.0.50.

B. Open a web browser and go to

http://192.168.0.50. Enter admin as your

username and leave the password blank

to log in to the web UI. Now you can

congure the DAP-3320 through the web

UI.

Connecting to the PoE Injector

A. Connect the Ethernet cable that is

connected to the DAP-3320 to the

P+DATA OUT port on the PoE injector.

B. Connect an Ethernet cable to the DATA

IN port on the PoE Injector. Connect the

other end of the Ethernet cable to your

network switch or router.

C. Attach the power adapter to the connector

labeled POWER IN on the PoE Injector,

and plug it into an electrical outlet.

Connecting to Your Network

You can connect the DAP-3320 to a PoE

switch, or you can use the included PoE

injector to power the AP.

Connecting to a PoE Switch

Connect the Ethernet cable that is

connected to the DAP-3320 to your PoE

switch.

PoE Switch Computer

LAN (PoE)

P+DATA OUT

DATA IN

PoE Injector

POWER IN

Router or Switch Computer

LAN (PoE)

D-Link DAP-3320 Quick Install Guide

ENGLISH

TECHNICAL SUPPORT

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-832-2856000

Toll Free 1800-233-0000

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street -

City Light Building - oor 5

Nasrcity - Cairo, Egypt

Tel.: +2 02 23521593 - +2 02 23520852

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce # 84 ,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1121 70008

Technical Support:

+966 1121 70009

General Inquiries: info.sa@ dlinkmea.com

Tech Support: support.sa@ dlinkmea.com

Pakistan

Islamabad Ofce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Ofce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]

D-Link DAP-3320 Quick Install Guide 7

ENGLISH

TECHNICAL SUPPORT

Iran

Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest

St. , Argentine Sq. ,

Tehran IRAN

Postal Code : 1513833817

Tel: +98-21-88880918,19

+98-21-88706653,54

General Inquiries: [email protected]

Tech Support: [email protected]

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029

Bureau N° 312 ET 337

Casablanca , Maroc

Phone : +212 663 72 73 24

Email: [email protected]

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: [email protected]

Bahrain

Technical Support: +973 1 3332904

Kuwait:

Technical Support: + 965 22453939 / +965

22453949

Türkiye

Büyükdere Cad. Ferro Plaza No:155

D: 1 K: 1 Zincirlikuyu / Istanbul

Tel: +90 (212) 289-56-59

Email: [email protected]

לארשי

רטנס ןולטמ

20 םימישגמה 'חר

7060 ד"ת ,49348 ת"פ ,ןולטמ תירק

03-9215173 :לט

073-7962797 :לט

[email protected] :יללכ ל"אוד

[email protected] :הכימת ל"אוד

D-Link DAP-3320 Quick Install Guide

ВАЖНАЯ ИНФОРМАЦИЯ

Установку данного устройства следует проводить ТОЛЬКО квалифицированному

специалисту, который знаком с местными строительными нормами и правилами техники

безопасности и лицензирован соответствующими органами. Невыполнение этого

условия может привести к аннулированию гарантии на устройство D-Link и привлечению

конечного пользователя или поставщика услуг к финансово-правовой ответственности.

Компания D-Link и ее поставщики или дистрибьюторы не несут ответственности за

ущерб, повреждение или нарушение нормативных требований, связанных с установкой

оборудования для наружного использования или антенн.

Система защитного заземления необходима для обеспечения защиты установленного

вне помещения оборудования от повреждения разрядом молнии и предотвращения

накопления статического электричества. Прямое заземление внешней точки

доступа очень важно и может защитить Вашу сеть от экстремальных погодных

условий и повреждения электростатическим зарядом. Система заземления должна

соответствовать Национальным электротехническим нормам и правилам (NEC) и

стандартам безопасности, которые применяются в Вашей стране. Проконсультируйтесь

с квалифицированным электриком, если у Вас возникают сомнения относительно

правильности заземления установленного вне помещения оборудования.

PYCCКИЙ

Altri manuali per DAP-3320

Indice

Lingue:

Altri manuali D-Link Punto di accesso wireless

D-Link

D-Link DAP-3662 Manuale utente

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuale utente

D-Link

D-Link DWL-3500AP Manuale utente

D-Link

D-Link DWL-3200AP - AirPremier - Wireless Access... Manuale utente

D-Link

D-Link DAP-3666 Manuale utente

D-Link

D-Link NUCLIAS CONNECT DIS-3650AP Manuale utente

D-Link

D-Link DAP-1533 Manuale utente

D-Link

D-Link Rangebooster N 650 Access Point DAP-1353 Manuale utente

D-Link

D-Link D DWL-8200AP DWL-8200AP Manuale utente

D-Link

D-Link DAP-1533 Manuale utente

D-Link

D-Link D DWL-8200AP DWL-8200AP Manuale utente

D-Link

D-Link DAP-2553 - Wireless N Dual Band Gigabit Access... Manuale utente

D-Link

D-Link AirPremier DWL-7700AP Manuale utente

D-Link

D-Link DWL-3200A Manuale utente

D-Link

D-Link DWL-AG700AP - AirPlus AG - Wireless Access... Manuale utente

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuale utente

D-Link

D-Link DAP-2590 - AirPremier N Dual Band PoE Access... Manuale utente

D-Link

D-Link DAP-3220 Manuale utente

D-Link

D-Link Air Premier DAP-2695 Manuale utente

D-Link

D-Link DIR-506L Manuale utente

D-Link

D-Link Rangebooster N 650 Access Point DAP-1353 Manuale utente

D-Link

D-Link DAP-3320 Manuale utente

D-Link

D-Link DAP-1620 Manuale

D-Link

D-Link DWL-7200AP - AirPremier AG - Wireless Access... Manuale utente

Manuali Punto di accesso wireless popolari di altre marche

Ubiquiti

Ubiquiti NanoStation NSM2 Manuale utente

Cisco

Cisco Aironet 1550 Series Manuale utente

Aruba

Aruba IAP-335 Manuale utente

Advantek Networks

Advantek Networks AWN-AP-54MR Manuale utente

IP-COM

IP-COM AP355 Manuale utente

Buffalo

Buffalo AirStation WLA-L11G Manuale utente

EnGenius

EnGenius EnStationACv2 Manuale utente

xG Technology

xG Technology xMax CN1300 Manuale utente

Widelink

Widelink ezWave WAP-1100 Series Manuale utente

Edimax

Edimax CAP1200 Manuale utente

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuale utente

Aruba

Aruba AP-203R Manuale utente

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuale utente

CreatComm

CreatComm TB5F Manuale utente

SineDigital

SineDigital MW-1500AP(H) Manuale utente

TP-Link

TP-Link AP9650 V1 Manuale utente

Draytek

Draytek VIGORAP 902 Manuale utente

EnGenius

EnGenius EAP350 Manuale utente
