DWL-AG700AP Install Guide

System Requirements

Minimum System Requirements:

Computers with Windows XP/2000, Macintosh, or

Linux-based operating systems with an installed Ethernet

adapter

Internet Explorer version 6.0 or Netscape Navigator

version 7.0 and above

Package Contents

D-Link Systems, Inc. 2

DWL-AG700AP Install Guide System Requirements

System Requirements

Minimum System Requirements:

Computers with Windows XP/2000, Macintosh, or

Linux-based operating systems with an installed Ethernet

adapter

Internet Explorer version 6.0 or Netscape Navigator

version 7.0 and above

Package Contents

DWL-AG700AP Install Guide

Connecting to your network

D-Link Systems, Inc.3

DWL-AG700AP

Install Guide

Con

necting to your network

DWL-AG700AP Install Guide Connecting to your network

Connecting the DWL-AG700AP

to your network

Reset Button A. Receptor

Receptor for Power Adapter.

Reset Button

A. Receptor

Receptor for Power Adapter.

B. LAN Port

This is the connection for Ethernet cables to

attach to your Ethernet-enabled device.

B. LAN Port

This is the connection for Ethernet cables to

attach to your Ethernet-enabled device.

C. Antenna

Used to wirelessly connect to

802.11a/g networks.

Connect the power adapter to the receptor on the rear panel

of the DWL-AG700AP and then plug the other end of the

power adapter to a wall outlet or power strip. The power LED

will turn ON to indicate proper operation.

Using an Ethernet cable, insert one end of the cable to the

LAN port on the rear panel of the DWL-AG700AP and the other

end of the cable to a switch. Note: You also have the option of

connecting the DWL-AG700AP directly to the computer that will

be used for conﬁ guration. The link LED will illuminate to indicate

a proper Ethernet connection.

Computers with 802.11a/g wireless adapters can connect to

the DWL-AG700AP.

D-Link Systems, Inc. 4

DWL-AG700APUsing the Setup Wizard

DWL-AG700AP

Using the Setup Wizard

DWL-AG700APUsing the Setup Wizard

Connecting to your network

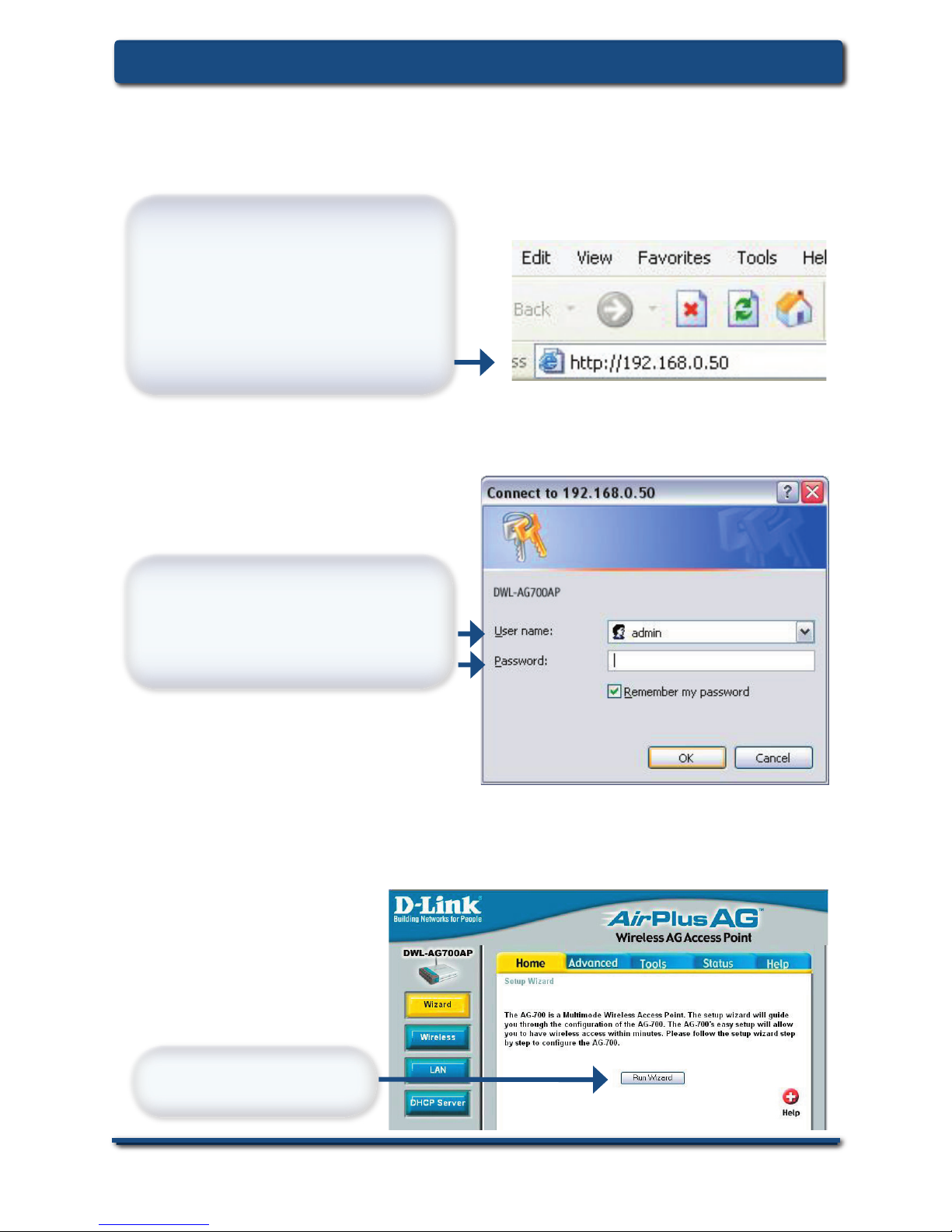

Open your Web browser

and type http://192.168.0.50

into the URL address box.

Then press the Enter or

Return key.

Click Run Wizard

The logon pop-up screen will

appear.

Type admin

for the username and leave

the password ﬁ eld blank.

Once you have logged in, the

Home screen will appear.

Using the Setup Wizard

DWL-AG700APUsing the Setup Wizard

D-Link Systems, Inc.

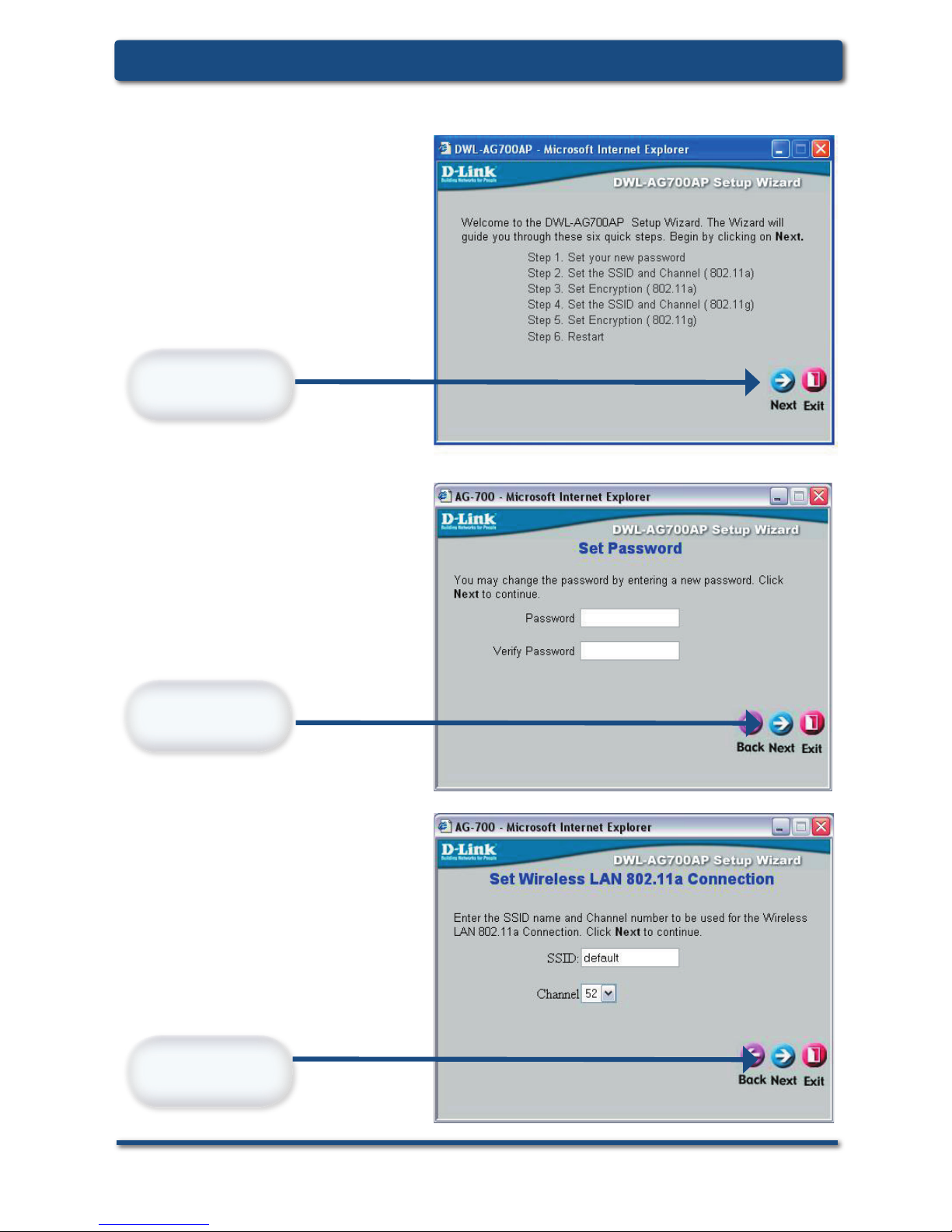

You will see the following

screens.

Click Next

Step 1 - Setup your new

password. You have the

option to establish a

password.

Click Next

Step 2 - Set Wireless LAN

Connection.

By default the

DWL-AG700AP SSID

is set to default with a

Channel setting of 52.

Click Next

For 802.11a networks please

do the following:

D-Link Systems, Inc. 6

DWL-AG700APUsing the Setup Wizard

DWL-AG700AP

Using the Setup Wizard

DWL-AG700APUsing the Setup Wizard

For 802.11a networks please continue as follows:

Click Next

Step 2 - Set Wireless LAN

Connection.

By default the

DWL-AG700AP SSID is set

to default with a Channel

setting of 6.

For 802.11g networks

please do the following:

Click Next

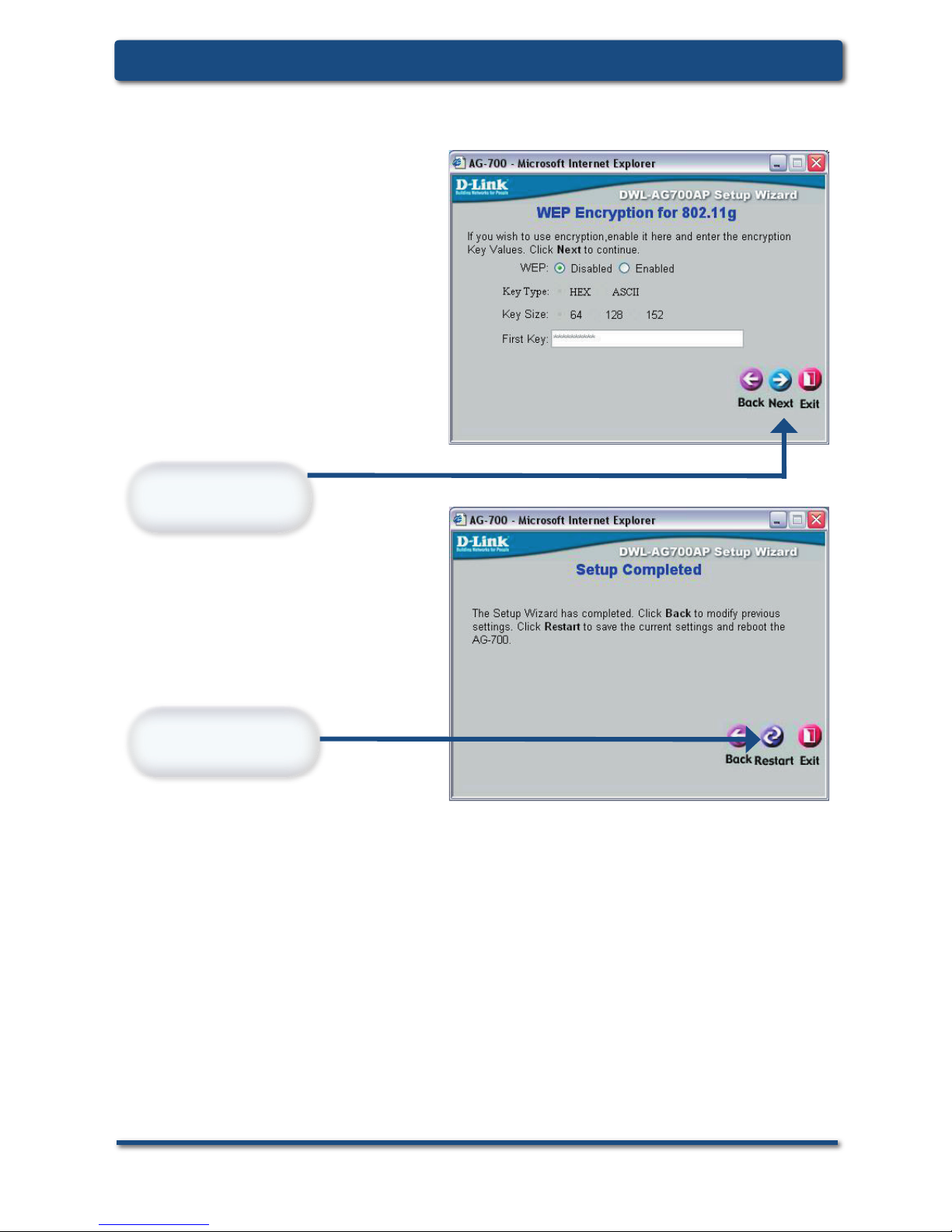

Step 3 - Encryption

The DWL-AG700AP is

capable of three levels

of wireless encryption:

64-,128-,or 152-bit, using

either Hexadecimal or

ASCII key type. By default

encryption is disabled. You

can change the encryption

settings for more secure

wireless communication.

D-Link Systems, Inc.

DWL-AG700APUsing the Setup Wizard

For 802.11g networks please continue as follows:

Click Next

Your Setup is complete!

Step 3 - Encryption

The DWL-AG700AP is

capable of three levels

of wireless encryption:

64-,128-,or 152-bit, using

either Hexadecimal or

ASCII key type. By default

encryption is disabled. You

can change the encryption

settings for more secure

wireless communication.

Click Restart

D-Link Systems, Inc. 8

DWL-AG700AP Install Guide Your Setup is Complete!

When you have completed the steps in this Quick Installation Guide,

your connected network should look similar to this:

Your Setup is Complete!

D-Link Systems, Inc. 9

DWL-AG700AP Install Guide Contacting Technical Support

Technical Support

D-Link’s website contains the latest user documentation and software updates

for D-Link products.

D-Link provides free technical support for customers within the United States

and Canada for the duration of the product’s warranty period.

U.S. and Canadian customers can contact D-Link Technical Support through

our website or by phone.

United States

Telephone

(877) 453-5465

Twenty four hours a day, seven days a week.

World Wide Web

http://support.dlink.com

E-mail

suppor[email protected]

Canada

Telephone

(800) 361-5265

Monday through Friday, 7:30am to 12:00am EST.

World Wide Web

http://support.dlink.ca

E-mail

suppor[email protected]

Version 1.0

Revised 02/11/05

speciﬁ cations subject to change without notice.

Contacting Technical Support

D-Link Systems, Inc. 10

DWL-AG700AP Install Guide Notes
