REFRIGERATOR MODEL EF36BNDFSS

IThe Life of the Kitchen. _ IEpicure ®Handle Service Kit,

PN 700976 I INSTALLATIONINSTRUCTIONS I

Tools Required

• 3/32" Allen wrench (not supplied)

• T20 Torx driver

Parts Included

Handle Set Screws

(6 each - PN 102984) T-20 Mounting Screws

(6 each - PN 104170)

Size may vary

from that shown Size may vary

from that shown

Handle Mounting Studs

(6 each - PN 102987)

Handle End Caps - Right Side

(PN 102866-01)

Handle End Caps - Left Side

(PN 102866-02)

Handle Set Scr_

Locations

Part No. 104169 Rev. A-1

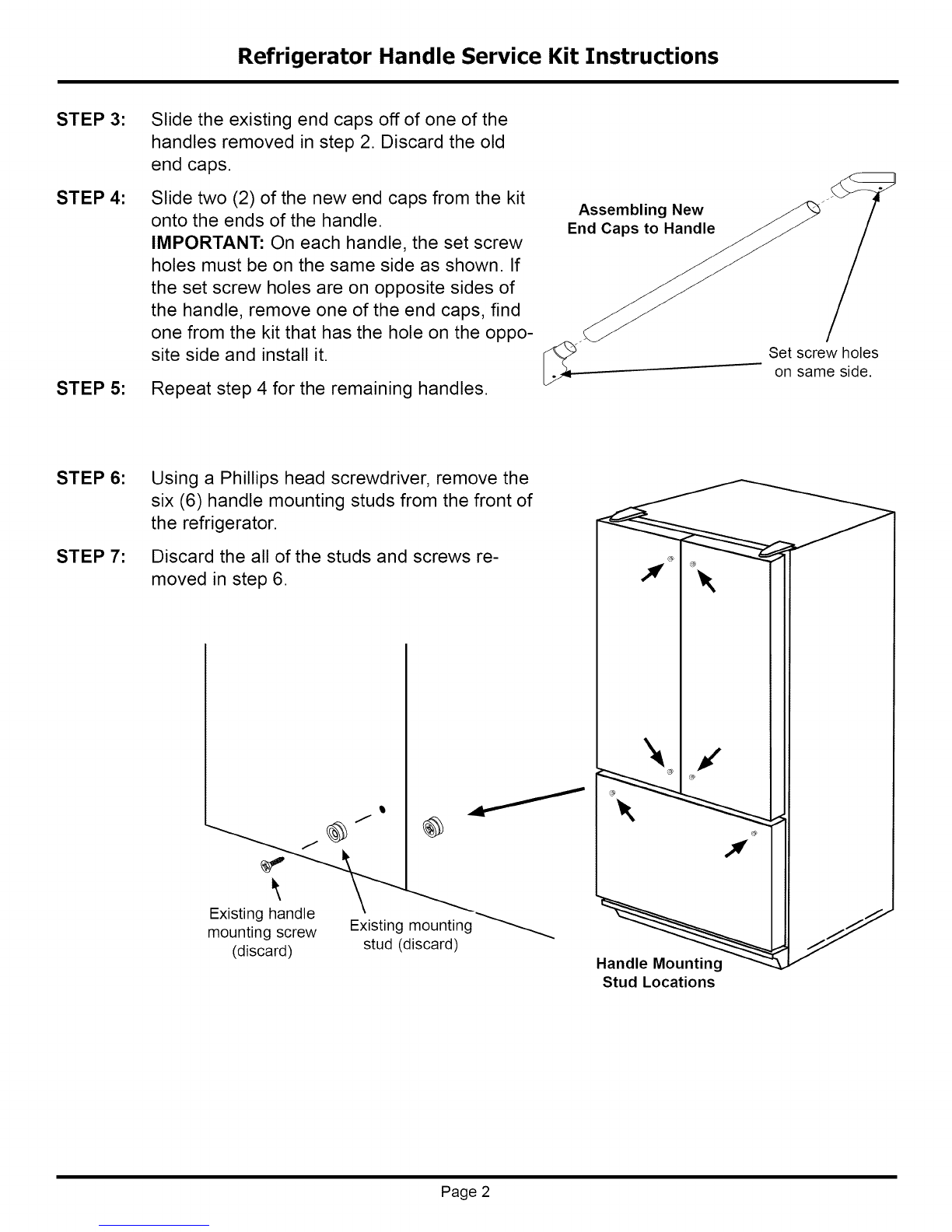

Refrigerator Handle Service Kit Instructions

STEP 3:

STEP 4:

STEP 5:

Slide the existing end caps off of one of the

handles removed in step 2. Discard the old

end caps.

Slide two (2) of the new end caps from the kit

onto the ends of the handle.

IMPORTANT: On each handle, the set screw

holes must be on the same side as shown. If

the set screw holes are on opposite sides of

the handle, remove one of the end caps, find

one from the kit that has the hole on the oppo-

site side and install it.

Repeat step 4 for the remaining handles.

Assembling New __

End__

Set screw holes

on same side.

STEP 6:

STEP 7:

Using a Phillips head screwdriver, remove the

six (6) handle mounting studs from the front of

the refrigerator.

Discard the all of the studs and screws re-

moved in step 6.

Existing handle

mounting screw

(discard)

O / ®

Existing mounting

stud (discard)

Handle Mounting

Stud Locations

Page 2

Refrigerator Handle Service Kit Instructions

STEP 8: Using a T20 Torx driver and the Torx screws from

the kit, install the six (6) handle mounting studs

from the kit in the locations shown.

New handle

mounting screw

New mounting

stud from kit

Handle Mounting

Stud Locations

STEP 9:

STEP 10:

STEP 11:

STEP 12:

STEP 13:

Locate the smallest of the three handles as-

sembled in step 4.

Insert two (2) of the provided set screws into

the holes on the handle end caps. Thread

about two or three turns.

Mount the handle to the bottom drawer by

sliding the holes on the back over the handle

mounting studs on the refrigerator. Make sure

the set screw holes face the floor.

Carefully tighten the set screws into place

using a 3/32" Allen wrench. Be careful not to

scratch the finish.

Check to make sure that the handle is firmly

attached.

Handle Mounting

Studs

Set Screws

Page 3

Refrigerator Handle Kit Installation Instructions

STEP 14:

STEP 15:

STEP 16:

STEP 17:

Insert two (2) of the provided set screws into the

holes on the end caps of one of the remaining

handle assemblies. Thread about two or three

turns.

Mount the handle to the top right door by sliding

the holes on the back over the handle mounting

studs on the door. Make sure the set screw holes

face the center of the refrigerator.

Carefully tighten the set screws into place using a

3/32" Allen wrench. Be careful not to scratch the

finish.

Check to make sure that the handle is firmly at-

tached.

S Handle Mounting

S Studs

STEP 18:

STEP 19:

STEP 20:

STEP 21"

STEP 22:

Insert the remaining set screws into the holes

on the side of the remaining handle. Thread

about two or three turns.

Mount the remaining handle to the top left door

with the holes for the set screws toward the

center of the refrigerator.

Open the left door while holding the handle in

place to prevent damage to the other handle

during step 21.

Carefully tighten the set screws into place

using a 3/32" Allen wrench. Be careful not to

scratch the finish.

Check to make sure that the handle is firmly

attached.

Handle Mounting

Stud

Set

Screw

Set

Screw

Handle Mounting

Stud

The Life of the Kitchen?

Dacor •1440 Bridge Gate Drive, Diamond Bar, CA 91765 • Tel: (800) 793-0093 • FAX: (626)403-3130 • www.Dacor.com
