CABINET PARTS

For Model: IF36BNNFSFPA

(White)

1−09 Litho In U.S.A. (mat) (eeb) Part No. W10237827 Rev. A

REFRIGERATOR

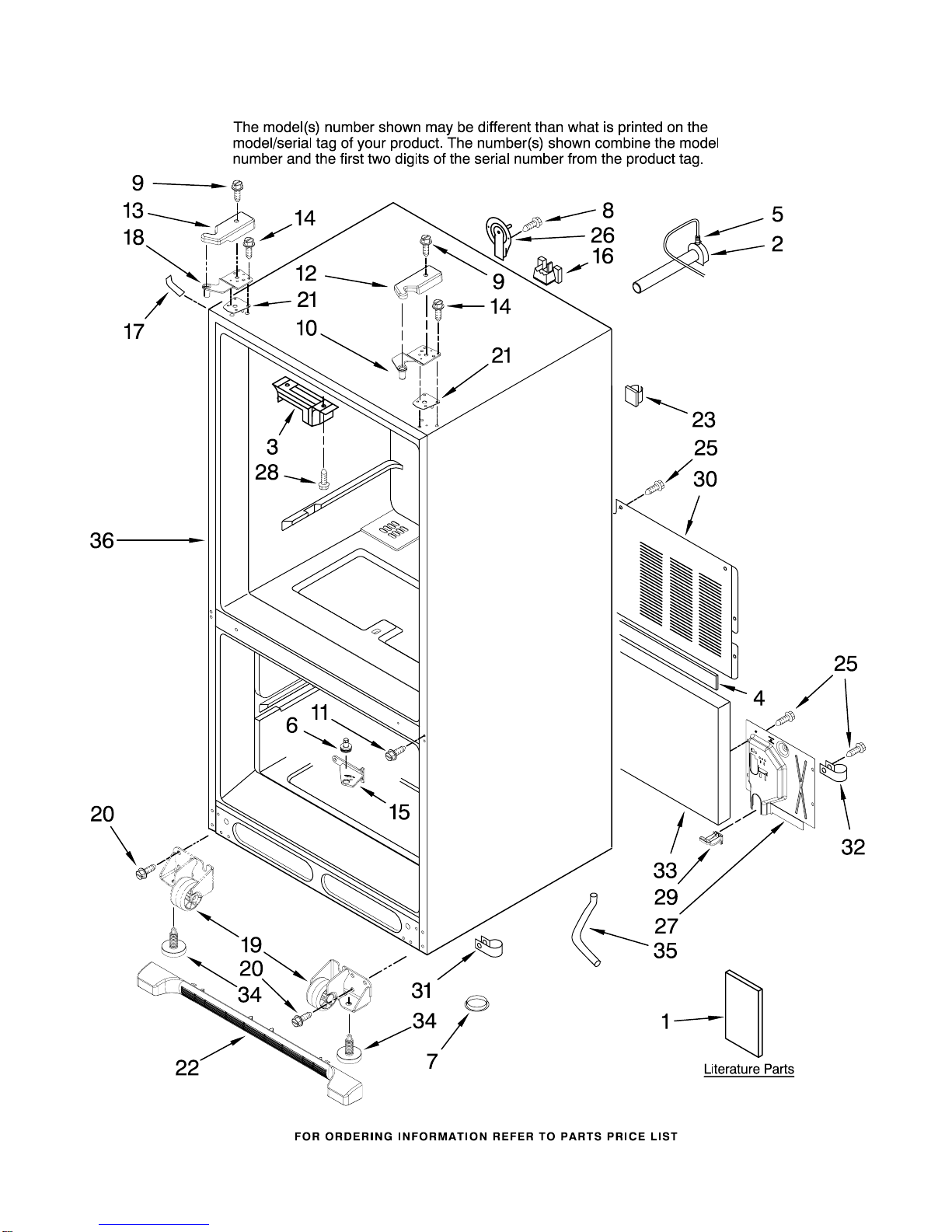

CABINET PARTS

For Model: IF36BNNFSFPA

(White)

W10237827

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

67006616 Tech Sheet

W10204314

Owners Manual

W10217668

Tag, Energy

W10137519

Elbow, Fill Tube

3 67003405 Block, Pivot

4 B5759649 Gasket

5 M0114003 Clip, Speed

6 67006642 Pin, Center Hinge

7 A3076901 Plug, Button

8 67006287 Screw

9 67006521 Screw

12626910ED

Hinge, Top Right

11 67006380 Screw (6)

12 Cover, Right Hinge

12629801B

Black

13 Cover, Left Hinge

67006726 Black

14 67006303 Screw (6)

12655103ED

Hinge, Center

16 67004092 Block, Fill Tube

17 Cover, Corner (2)

67003485 Black

12626911ED

Hinge, Top Left

19 Roller Assy.

(Front)

W10237085

Right

W10237087

Left

20 67006564 Screw (8)

21 12579702 Shim, Hinge

22 Grille, Toe

W10131134

Black

23 M0104106 Clip (2)

25 67006425 Screw (10)

26 67003331 Cover, Water Line

27 12751509 Cover, Water Valve

28 67006669 Screw (2)

29 67004101 Sweep, Dual Tube

30 67006102 Cover, Unit

W10157973

Clip, Drain Tube

32 M0108105 Clamp, Tube

33 67003796 Insulation, Sound

W10141622

Brake, Foot

W10164397

Tube, Drain

36 Cabinet (Not a

Servicable Part)

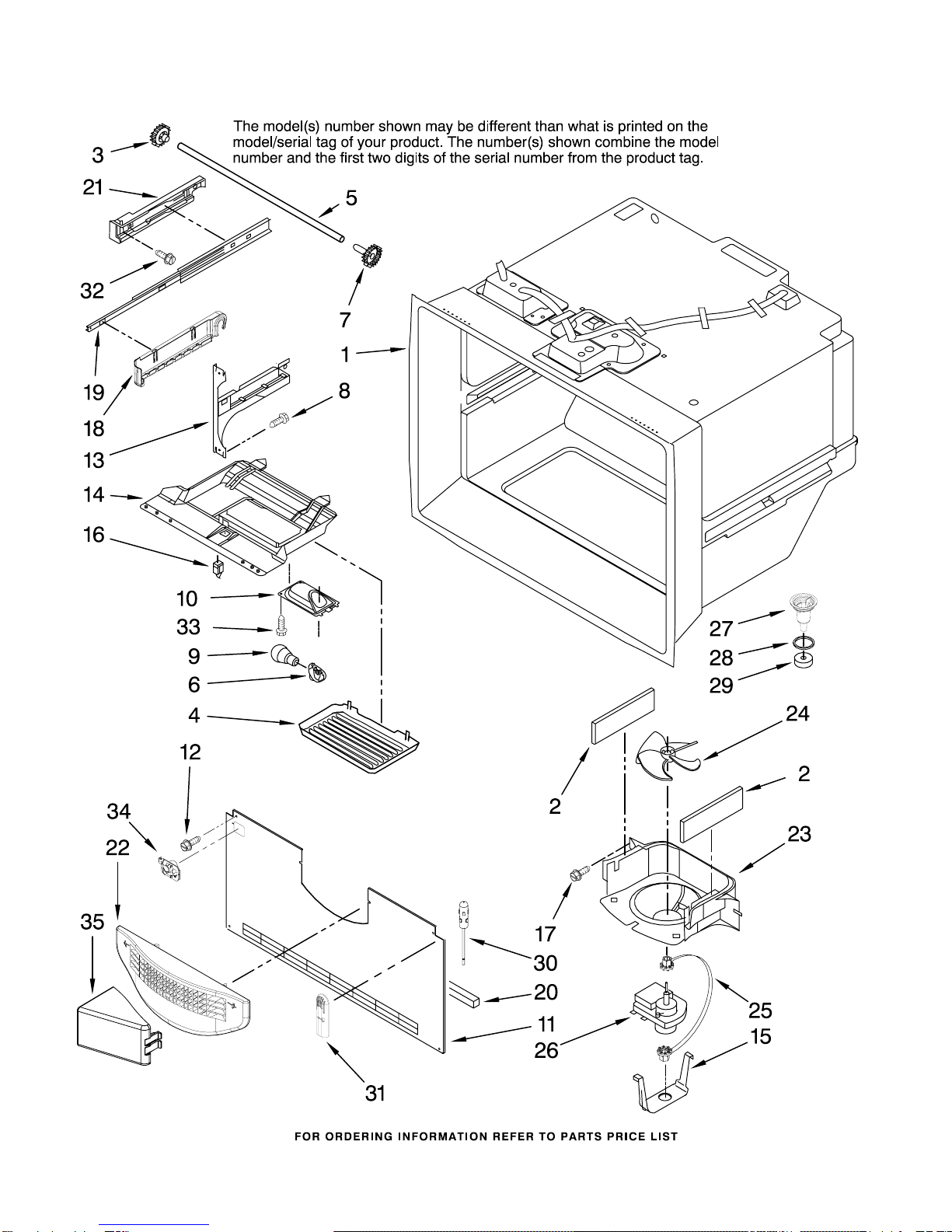

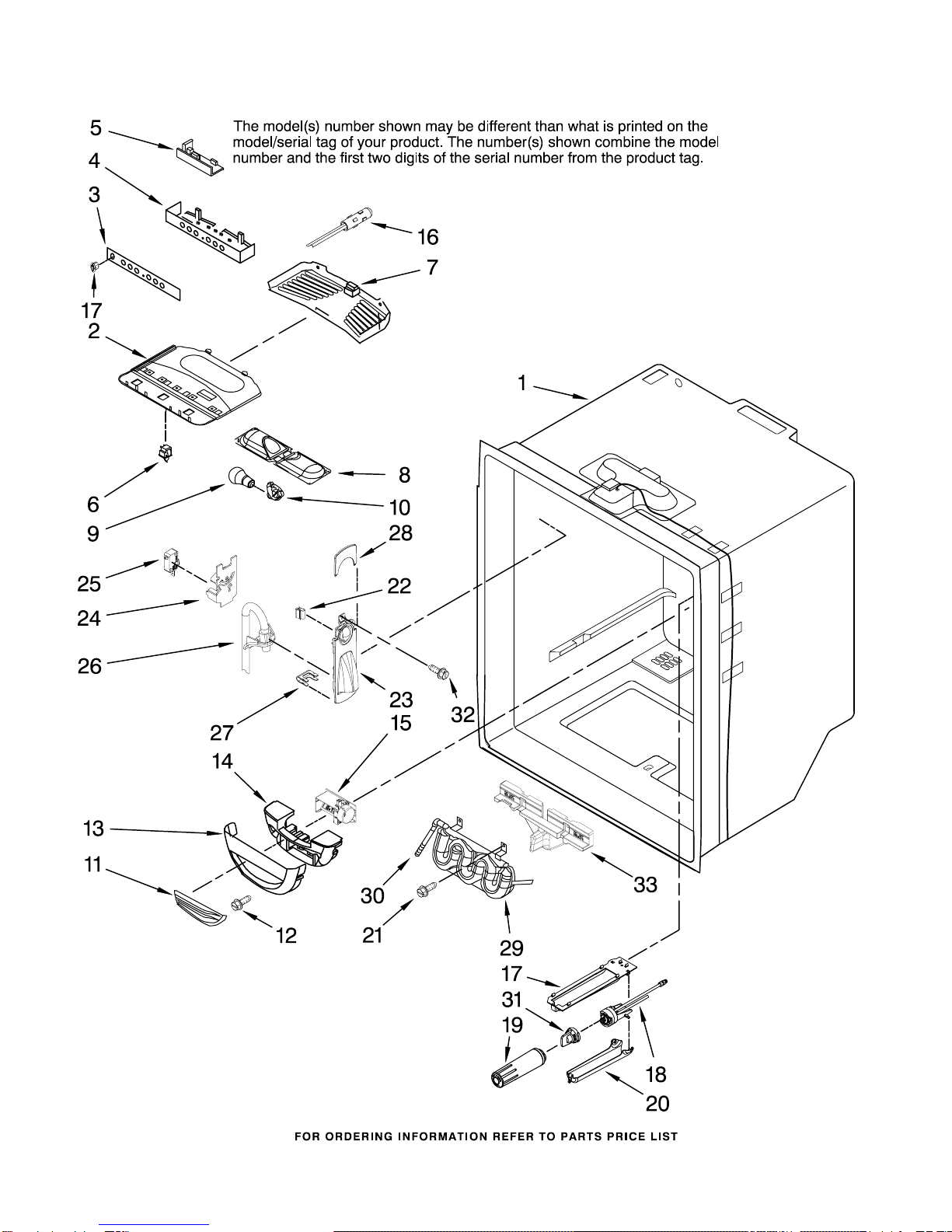

FREEZER LINER PARTS

For Model: IF36BNNFSFPA

(White)

W10237827

FREEZER LINER PARTS

For Model: IF36BNNFSFPA

(White)

W10237827

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (Left)

(Includes Item 7)

4 67003905 Cover, Light

5 67004017 Shaft

Y12570701

Socket, Light

7 12002497 Gear (Right)

(Includes Item 3)

8 67006473 Screw (8)

W10194422

Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw (4)

13 Bracket, Door

W10119064

Left

W10119295

Right

14 67003906 Housing, Light

15 13058002 Clip, Evap Motor

16 67005653 Switch, Light

17 67006287 Screw (2)

18 Cradle, Basket

12846703 Left

12846704 Right

W10180420

Slide, Drawer (2)

20 67002492 Gasket, Bottom

21 Adapter, Slide

12846607 Left

12846608 Right

W10175909

Grille, Fz Air

W10167023

Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

W10150583

Grommet

W10199049

Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw (6)

33 67006530 Screw

34 67005874 Guide, Fill Tube

W10157765

Diverter, Air

Following Parts Not Illustrated

67006095 Harness, Fz Module

REFRIGERATOR LINER PARTS

For Model: IF36BNNFSFPA

(White)

W10237827

REFRIGERATOR LINER PARTS

For Model: IF36BNNFSFPA

(White)

W10237827

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67004078 Module, Light

W10216821

Overlay

W10185585

Housing, Control

W10207861

Board, Control

6 C3680310 Switch, Light (2)

7 67003897 Cover, Light

8 67003901 Housing, Light

W10194422

Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw

13 67003899 Cover, Damper

14 13012402 Insulation

W10196393

Control, Damper

16 12002355 Thermistor

17 67001668 Plate

18 67006524 Head, Water Filter

W10181835

Filter, Water

20 12568001 Cover, Filter

21 67006415 Screw (2)

22 B8390302 Clip, Facade (2)

12706909SP

Facade, Disp.

12707303SP

Plate, Switch

25 12575501 Switch, Limit

26 67003728 Guide, Waterline

27 67002816 Clip, Waterline

28 67006909 Facade, Disp (Top)

W10153959

Tank, Water

30 61006182 Union

31 67003146 Plug, Bypass

32 67006400 Screw

W10163893

Insulation, Water

Tank

Following Parts Not Illustrated

W10224292

Harness, Control

(Refrigerator)

REFRIGERATOR DOOR PARTS

For Model: IF36BNNFSFPA

(White)

W10237827

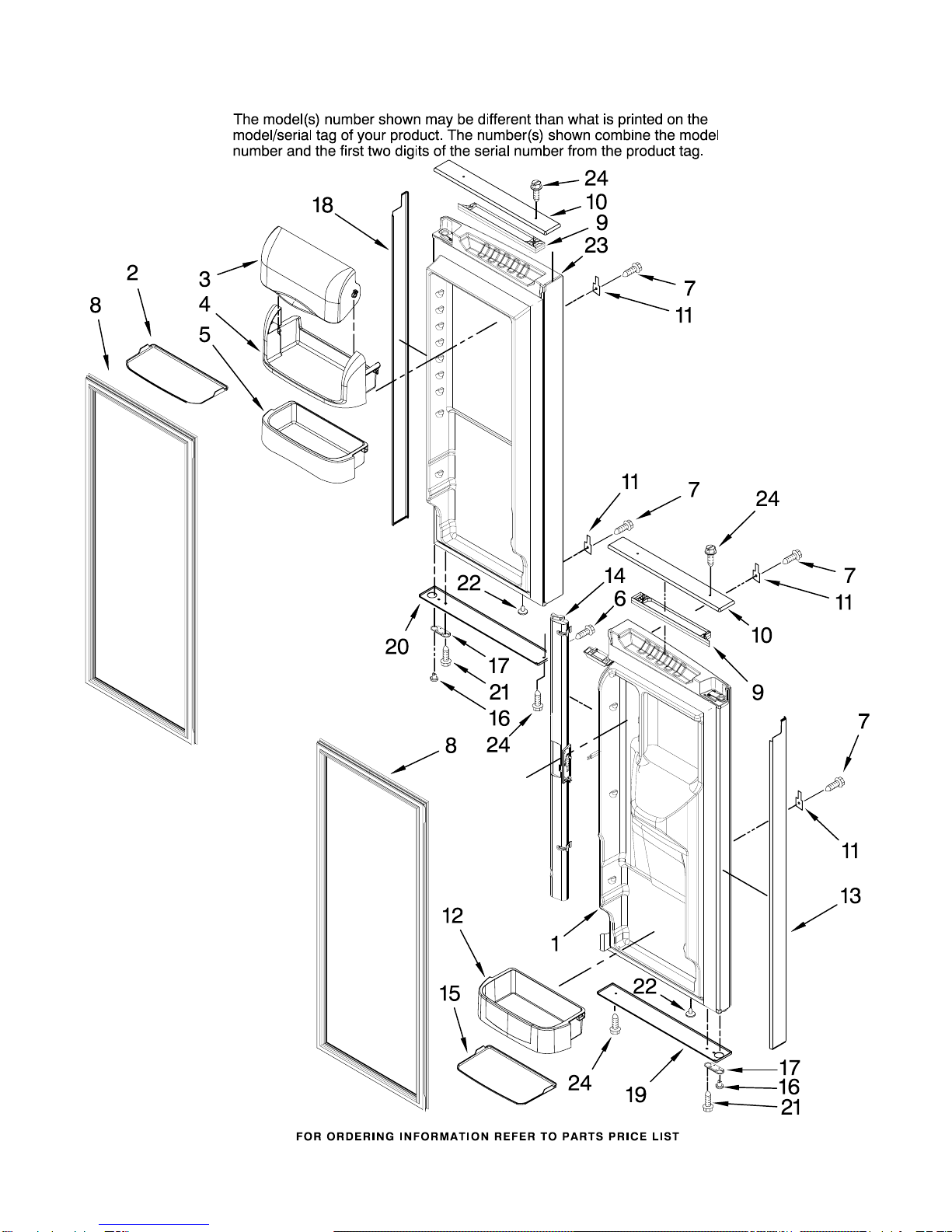

REFRIGERATOR DOOR PARTS

For Model: IF36BNNFSFPA

(White)

W10237827

Illus. Part

No. No. DESCRIPTION

1 Door, Left

13024020BQ

Black

2 67006906 Gripper, Medium

3 67003637 Door, Dairy

4 67001279 Tray, Dairy

5 67003775 Bin, Shelf (3)

(Medium)

6 67006786 Screw

7 67006767 Screw

8 Gasket, Door (2)

W10163895

Black

9 67005698 Extension, French

Door

10 Trim, Top

12752907S1

12752908S1

11 67002451 Clip, Handle

12 67005258 Bin, Shelf (2)

(Gallon)

13 67006513 Trim, Vertical

14 Mullion, Door

67004131 Black

15 67006907 Gripper, Gallon

16 Closure, Door

67003639 Black

17 Stop, Door

67003780 Black

18 Trim, Vertical

67006228 LH

19 Trim, Bottom

12752909S1

20 Trim, Bottom

12752910S1

21 67006473 Screw

22 67002721 Bushing, Door

23 Door, Right

13024019BQ

Black

24 67006287 Screw

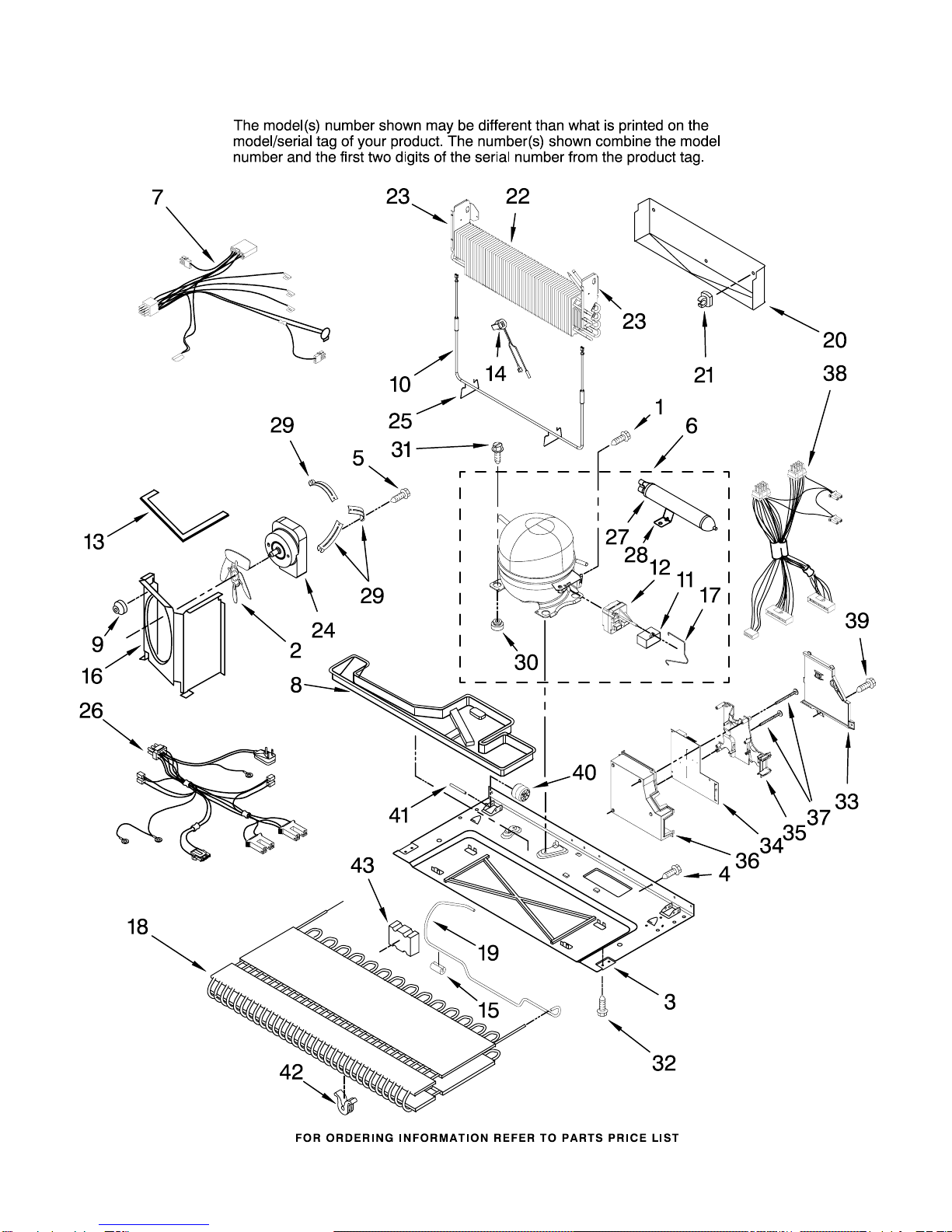

UNIT PARTS

For Model: IF36BNNFSFPA

(White)

W10237827

UNIT PARTS

For Model: IF36BNNFSFPA

(White)

W10237827

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10156818

Blade, Fan

3 67005889 Basepan

4 67006425 Screw (2)

5 67004954 Screw (3)

W10134623

Compressor Kit

(Includes items

11,12,17,27, &

30)

W10171661

Harness, Evap

Heater

8 67007175 Pan, Drain

9 61004743 Grommet (3)

10 67002493 Heater, Defrost

11 2264017 Capacitor

W10128795

Relay Assy.

13 61003210 Gasket

W10165425

Thermostat,

Defrost

15 67005680 Grommet (2)

16 12575309 Shroud

17 2255199 Clip, Capacitor

18 67006131 Condenser

W10134293

Tube, Discharge

20 67002490 Tray, Drip

21 10623002 Clip, Evaporator

22 12002041 Evaporator Kit

(Incl. Evap., Heat

Shield, & Instr.

Sheet)

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060202 Harness, Unit

With Power Cord

W10143759

Drier

28 10547003 Clip, Drier

29 67004953 Bracket, Fan Motor

W10169124

Grommet (4)

31 67006432 Screw (3)

32 67006573 Screw (4)

33 67005421 Cover, HV Box

W10205114

Board, HV Control

(Inc. Inst. Sheet)

35 67005418 Spacer, HV Box

36 67004969 Box, HV

37 67006550 Screw (2)

38 12972902 Harness, HV

39 67006615 Screw, Cover

40 67005149 Roller (2)

41 67006434 Axle, Roller (2)

W10137529

Grommet, Cond (4)

43 67005491 Block, Condenser

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)
