Dahua Technology PC-EBW81242 Manuale utente

Panoramic Fisheye Network Camera

Quick Start Guide

V1.0.

1ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

Quick Start Guide

Foreword

General

This manual introduces the functions, installation and operations of the camera.

Safety Instructions

The following categorized signal words with defined meaning might appear in the manual.

Signal Words Meaning

WARNING

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

CAUTION

Indicates a potential risk which, if not avoided, could result in

property damage, data loss, lower performance, or unpredictable

result.

NOTE Provides additional information as the emphasis and supplement to

the text.

Revision History

Version Revision Content Release Date

V1.0.1 Updated "Important Safeguards and Warnings." April 2021

V1.0.0 First release. July 1, 2018

About the Manual

The Manual is for reference only. If there is inconsistency between the manual and the actual

product, the actual product shall prevail.

We are not liable for any loss caused by the operations that do not comply with the manual.

The manual would be updated according to the latest laws and regulations of related regions.

For detailed information, see the paper manual, CD-ROM, QR code or our official website. If

there is inconsistency between paper manual and the electronic version, the electronic version

shall prevail.

All the designs and software are subject to change without prior written notice. The product

updates might cause some differences between the actual product and the manual. Please

contact the customer service for the latest program and supplementary documentation.

There still might be deviation in technical data, functions and operations description, or errors

in print. If there is any doubt or dispute, please refer to our final explanation.

Upgrade the reader software or try other mainstream reader software if the manual (in PDF

format) cannot be opened.

All trademarks, registered trademarks and the company names in the manual are the properties

of their respective owners.

Quick Start Guide

Please visit our website, contact the supplier or customer service if there is any problem

occurred when using the device.

If there is any uncertainty or controversy, please refer to our final explanation.

Quick Start Guide

III

Important Safeguards and Warnings

Electrical safety

All installation and operation should conform to your local electrical safety codes.

The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and supply

power with rated voltage which conforms to Limited Power Source requirement according to

IEC60950-1. Please note that the power supply requirement is subject to the device label.

Make sure the power supply is correct before operating the device.

A readily accessible disconnect device shall be incorporated in the building installation wiring.

Prevent the power cable from being trampled or pressed, especially the plug, power socket and

the junction extruded from the device.

Environment

Do not aim the device at strong light to focus, such as lamp light and sun light; otherwise it

might cause over brightness or light marks, which are not the device malfunction, and affect the

longevity of Complementary Metal-Oxide Semiconductor (CMOS).

Do not place the device in a damp or dusty environment, extremely hot or cold temperatures, or

the locations with strong electromagnetic radiation or unstable lighting.

Keep the device away from any liquid to avoid damage to the internal components.

Keep the indoor device away from rain or damp to avoid fire or lightning.

Keep sound ventilation to avoid heat accumulation.

Transport, use and store the device within the range of allowed humidity and temperature.

Heavy stress, violent vibration or water splash are not allowed during transportation, storage

and installation.

Pack the device with standard factory packaging or the equivalent material when transporting

the device.

Install the device in the location where only the professional staff with relevant knowledge of

safety guards and warnings can access. The accidental injury might happen to the

non-professionals who enter the installation area when the device is operating normally.

Operation and Daily Maintenance

Do not touch the heat dissipation component of the device to avoid scald.

Carefully follow the instructions in the manual when performing any disassembly operation

about the device; otherwise, it might cause water leakage or poor image quality due to

unprofessional disassemble. Please make sure that the gasket ring is flat and properly installed

in the groove before installing the cover. Please contact after-sale service for desiccant

replacement if there is condensed fog found on the lens after unpacking or when the desiccant

turns green. (Not all models are included with the desiccant).

It is recommended to use the device together with lightning arrester to improve lightning

protection effect.

Quick Start Guide

It is recommended connect the grounding hole to the ground to enhance the reliability of the

device.

Do not touch the image sensor (CMOS) directly. Dust and dirt could be removed with air blower,

or you can wipe the lens gently with soft cloth that moistened with alcohol.

Device body can be cleaned with soft dry cloth, which can also be used to remove stubborn

stains when moistened with mild detergent. To avoid possible damage on device body coating

which could cause performance decrease, do not use volatile solvent such as alcohol, benzene,

diluent and so on to clean the device body, nor can strong, abrasive detergent be used.

Dome cover is an optical component, do not touch or wipe the cover with your hands directly

during installation or operation. For removing dust, grease or fingerprints, wipe gently with

moisten oil-free cotton with diethyl or moisten soft cloth. You can also air blower to remove

dust.

WARNING

Please strengthen the protection of network, device data and personal information by adopting

measures which include but not limited to using strong password, modifying password

regularly, upgrading firmware to the latest version, and isolating computer network. For some

device with old firmware versions, the ONVIF password will not be modified automatically along

with the modification of the system password, and you need to upgrade the firmware or

manually update the ONVIF password.

Use standard components or accessories provided by manufacturer and make sure the device is

installed and maintained by professional engineers.

The surface of the image sensor should not be exposed to laser beam radiation in an

environment where a laser beam device is used.

Do not provide two or more power supply sources for the device unless otherwise specified. A

failure to follow this instruction might cause damage to the device.

Quick Start Guide

Table of Contents

Foreword............................................................................................................................................................ I

Important Safeguards and Warnings............................................................................................................. III

1 Introduction................................................................................................................................................... 1

Cable ............................................................................................................................................................................................... 11.1

Connecting Alarm Input/output.......................................................................................................................................... 21.2

2 Network Configuration ................................................................................................................................. 4

Initializing Device....................................................................................................................................................................... 42.1

Modifying Device IP Address................................................................................................................................................. 52.2

Logging in Web Interface........................................................................................................................................................ 62.3

3 Installation..................................................................................................................................................... 8

Packing List................................................................................................................................................................................... 83.1

Dimension..................................................................................................................................................................................... 83.2

Installing Device ......................................................................................................................................................................... 93.3

3.3.1 Installation Method...................................................................................................................................................... 9

3.3.2 Installing SD Card (Optional) ..................................................................................................................................10

3.3.3 Attaching Device.........................................................................................................................................................10

3.3.4 Installing Waterproof Connector...........................................................................................................................14

Quick Start Guide

1Introduction

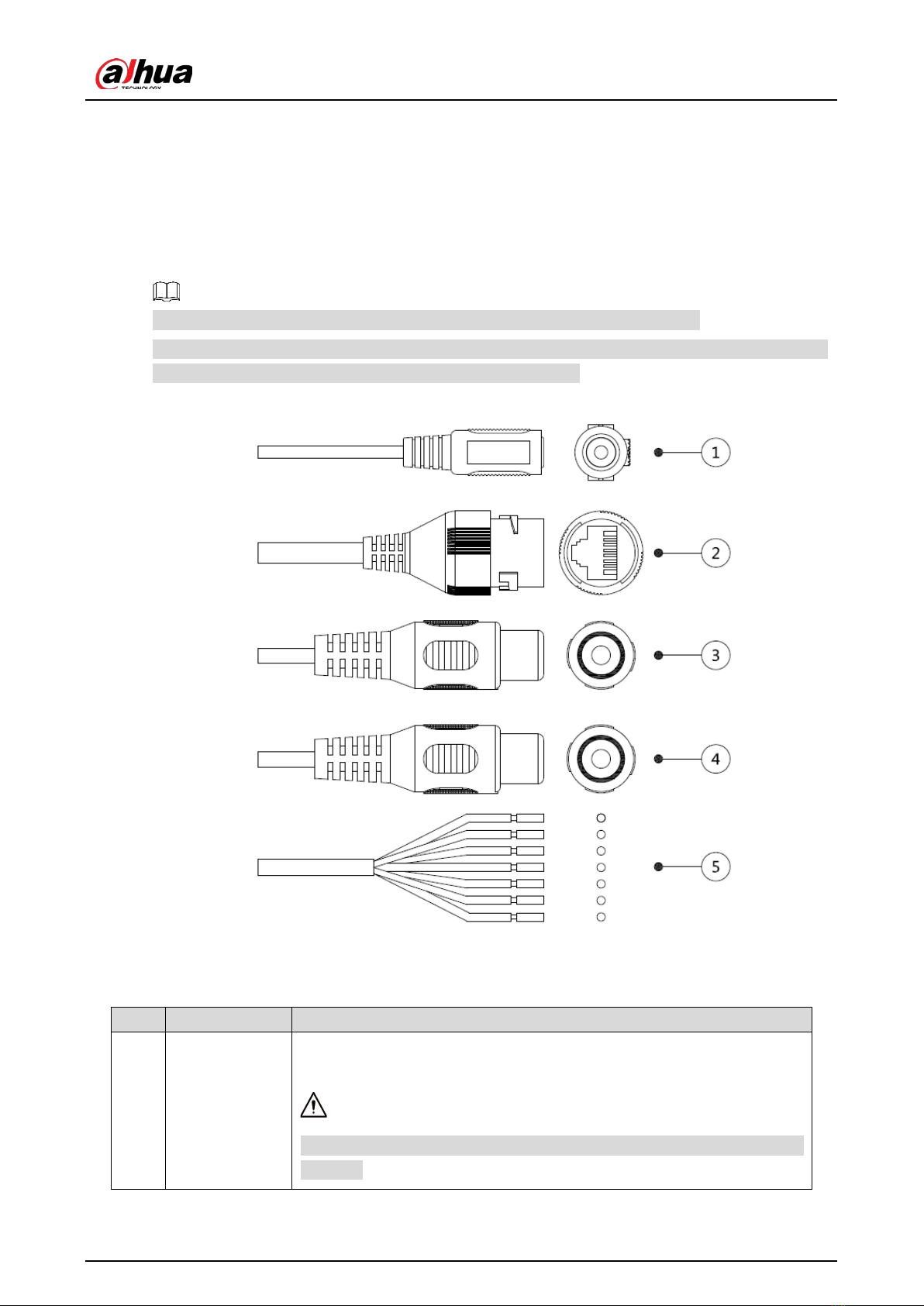

Cable1.1

Cable type might vary with different devices, and the actual product shall prevail.

Please waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit

and water damage. For detailed operation, see the FAQ Manual.

Cable listFigure 1-1

For more information about cable ports, see Table 1-1.

Table 1-1 Cable information

No. Port Name Description

1 12V DC power

input

Inputs 12V DC power. Please be sure to supply power as instructed in the

Guide.

Device abnormity or damage could occur

if power is not supplied

correctly.

Quick Start Guide

No. Port Name Description

2 Ethernet Port Connects to network with network cable.

Provides power to the device with PoE.

PoE is available on select model.

3 Audio input Connects to sound-pick-up device to receive audio signal.

4 Audio output Connects to speaker to output audio signal.

5 Alarm I/O Includes alarm signal input and output ports, the number of I/O ports

Might vary on different devices. For detailed information, see

Table 1-2.

Table 1-2 Alarm I/O port information

Port name No. Connector name Description

I/O port

1 ALARM_OUT1 Alarm output port 1 outputs alarm signal to alarm

device.

When connecting to alarm device, only the

ALARM_OUT 1 port and ALARM_OUT_GND 1 port

with the same number can be used together.

2 ALM_OUT_GND1

3 ALARM_IN1 Alarm input port 1 receives the switch signal of

external alarm source.

4 ALARM_IN2 Alarm input port 2 receives the switch signal of

external alarm source.

5 ALM_IN_GND Alarm input GND.

6 ALARM_OUT2 Alarm output port 2 outputs alarm signal to alarm

device.

When connecting to alarm device, only the

ALARM_OUT 2 port and ALARM_OUT_GND 2 port

with the same number can be used together.

7 ALM_OUT_GND2

Connecting Alarm Input/output1.2

Alarm input/output is available on select models.

Connect alarm input device to the alarm input end of the I/O port.Step 1

Device collects different states of alarm input port when the input signal is idling and being

grounded. Device collects logic "1" when input signal connecting to 3.3V or idling; device

collects logic "0" when input signal being grounded.

Quick Start Guide

Alarm inputFigure 1-2

Connect alarm output device to the alarm output end of the I/O port. The alarm output isStep 2

relay switch output, which can only connect to NO alarm devices.

The ALARM_OUT port and the ALM_OUT_GND port with the same number constitute a

switch for alarm output, see Figure 1-3. The switch is open normally and closes when there is

alarm output.

Alarm outputFigure 1-3

The alarm input in the web interface is corresponding to the alarm input end of the I/O

port. There will be high level and low level alarm signal generated by the alarm input

device when alarm occurs, set the input mode to NO if the signal is high level and to NC

if the signal is low level.

The alarm output in the web interface is corresponding to the alarm output end of the

device, which is also the alarm output end of the I/O port.

Quick Start Guide

2Network Configuration

Device initialization and IP setting can be finished with the "ConfigTool" or in web interface. For more

information, see the WEB Operation Manual.

Device initialization is available on select models, and it is required at first use and after device is

being reset.

Device initialization is available only when the IP addresses of the device (192.168.1.108 by

default) and the PC stays in the same network segment.

Planning useable network segment properly to connect the device to the network.

The following figures and interfaces are for reference only, and the actual product shall prevail.

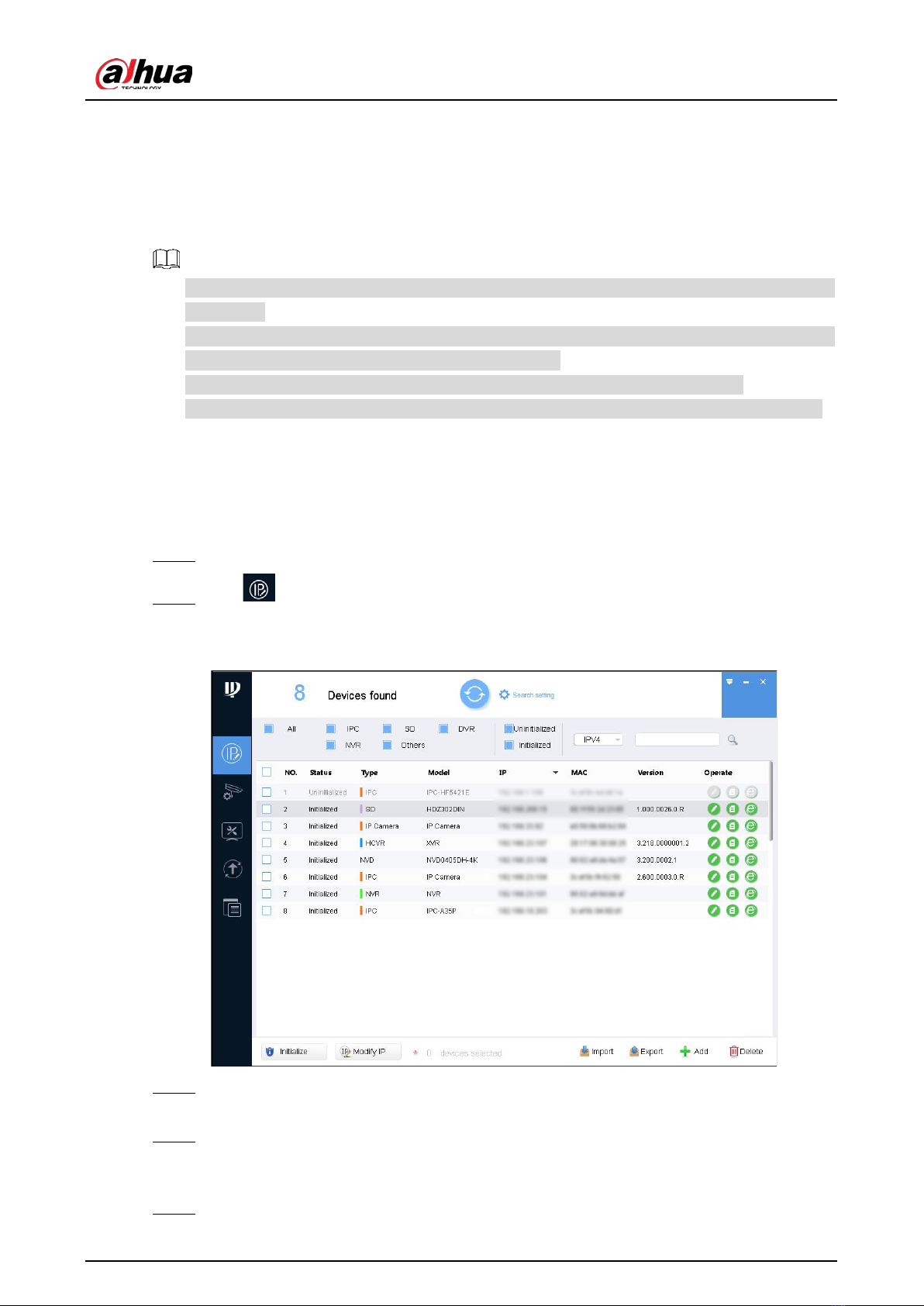

Initializing Device2.1

Double-click "ConfigTool.exe" to open the tool.Step 1

Click .Step 2

The Modify IP interface is displayed. See Figure 2-1.

Modify IP interfaceFigure 2-1

Click Search setting.Step 3

The Setting interface is displayed.

Enter the start IP and end IP of the network segment in which you want to search devices,Step 4

and then click OK.

All the devices found in the network segment are listed.

Select one or several devices whose Status is Uninitialized, and then click Initialize.Step 5

Indice

Altri manuali Dahua Technology Telecamera di sicurezza

Dahua Technology

Dahua Technology IPC-PDW5849-A180-E2-ASTE Manuale utente

Dahua Technology

Dahua Technology IPC-HFW5449T1-ASE-D2-0360B Manuale utente

Dahua Technology

Dahua Technology IPC-HFW1239DQ-PV-STW Manuale utente

Dahua Technology

Dahua Technology DH-IPC-HFW3 Manuale utente

Dahua Technology

Dahua Technology Lite IPCHFW2231T-ZAS-S2 Manuale utente

Dahua Technology

Dahua Technology Pro IPC-HDW5241TM-AS Manuale utente

Dahua Technology

Dahua Technology IPC-HFW2531T-ZS-S2 Manuale utente

Dahua Technology

Dahua Technology HD IR Mini Bullet Manuale utente

Dahua Technology

Dahua Technology DH-IPC-HUM8441-E1-L4 Manuale utente

Dahua Technology

Dahua Technology IPC-HFW1230S1-0280B-S5 Manuale utente

Dahua Technology

Dahua Technology D-IPC-HFW1430DSP-SAW-0280B Manuale utente

Dahua Technology

Dahua Technology IPC-HDW1531SP Manuale utente

Dahua Technology

Dahua Technology IPC-HFW7442H-Z-X Manuale utente

Dahua Technology

Dahua Technology D-IPC-HDBW1430DEP-SW-0280B Manuale utente

Dahua Technology

Dahua Technology N65CB5Z Manuale utente

Dahua Technology

Dahua Technology IPC-HFW2831T-ZS-S2 Manuale utente

Dahua Technology

Dahua Technology DH-PSDW8842ML-A180-D237 Manuale utente

Dahua Technology

Dahua Technology EZ-IP BULLET Manuale utente

Dahua Technology

Dahua Technology IPC-HDW5842T-ZE Manuale utente

Dahua Technology

Dahua Technology HFW5241E-ZE Manuale utente

Dahua Technology

Dahua Technology IPC-HDW3549H-ZAS-PV-27135 Manuale utente

Dahua Technology

Dahua Technology HDW2831TM-AS-S2 Manuale utente

Dahua Technology

Dahua Technology DH-HAC-HUM1220GN-B Manuale utente

Dahua Technology

Dahua Technology A21BM0V Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
